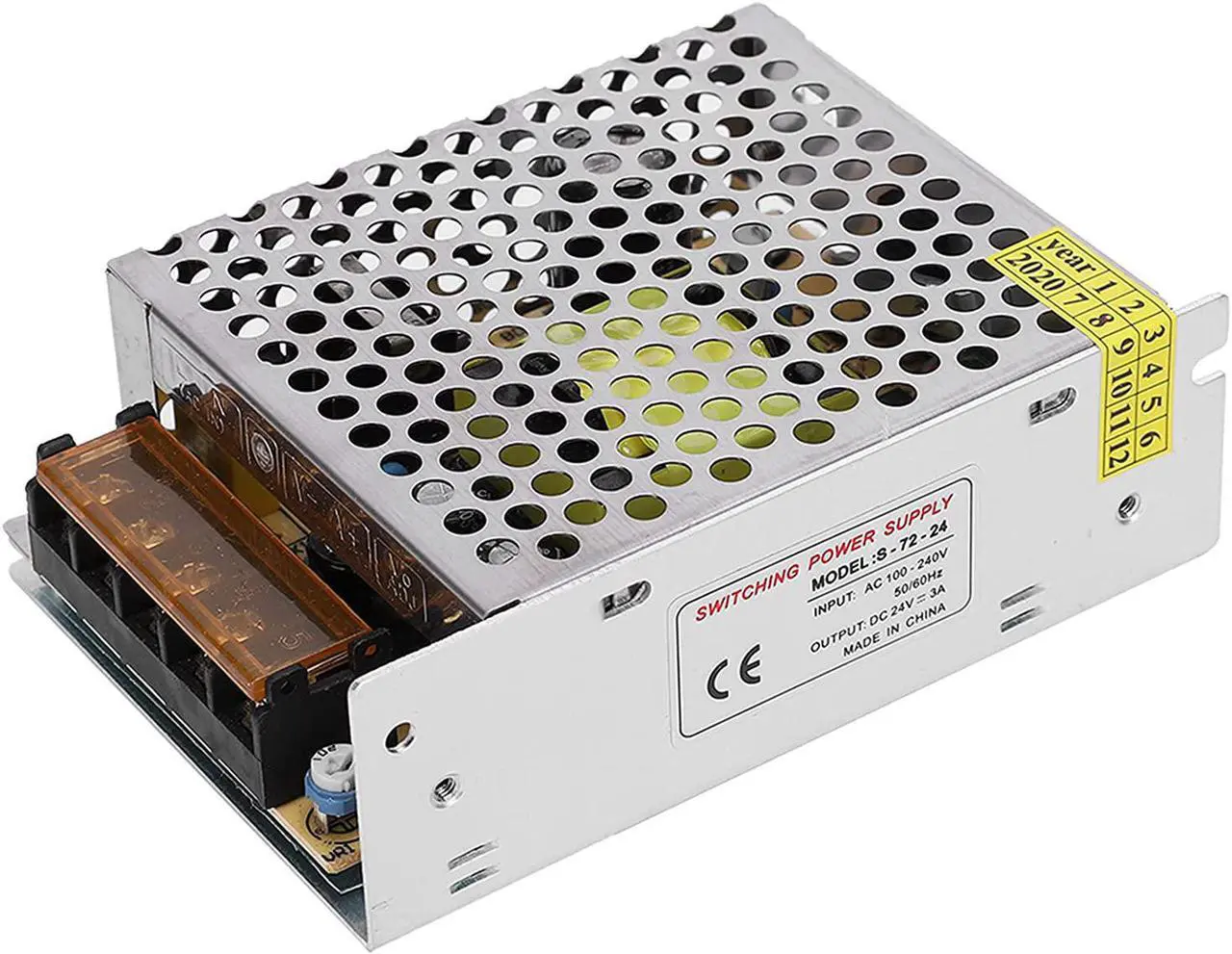

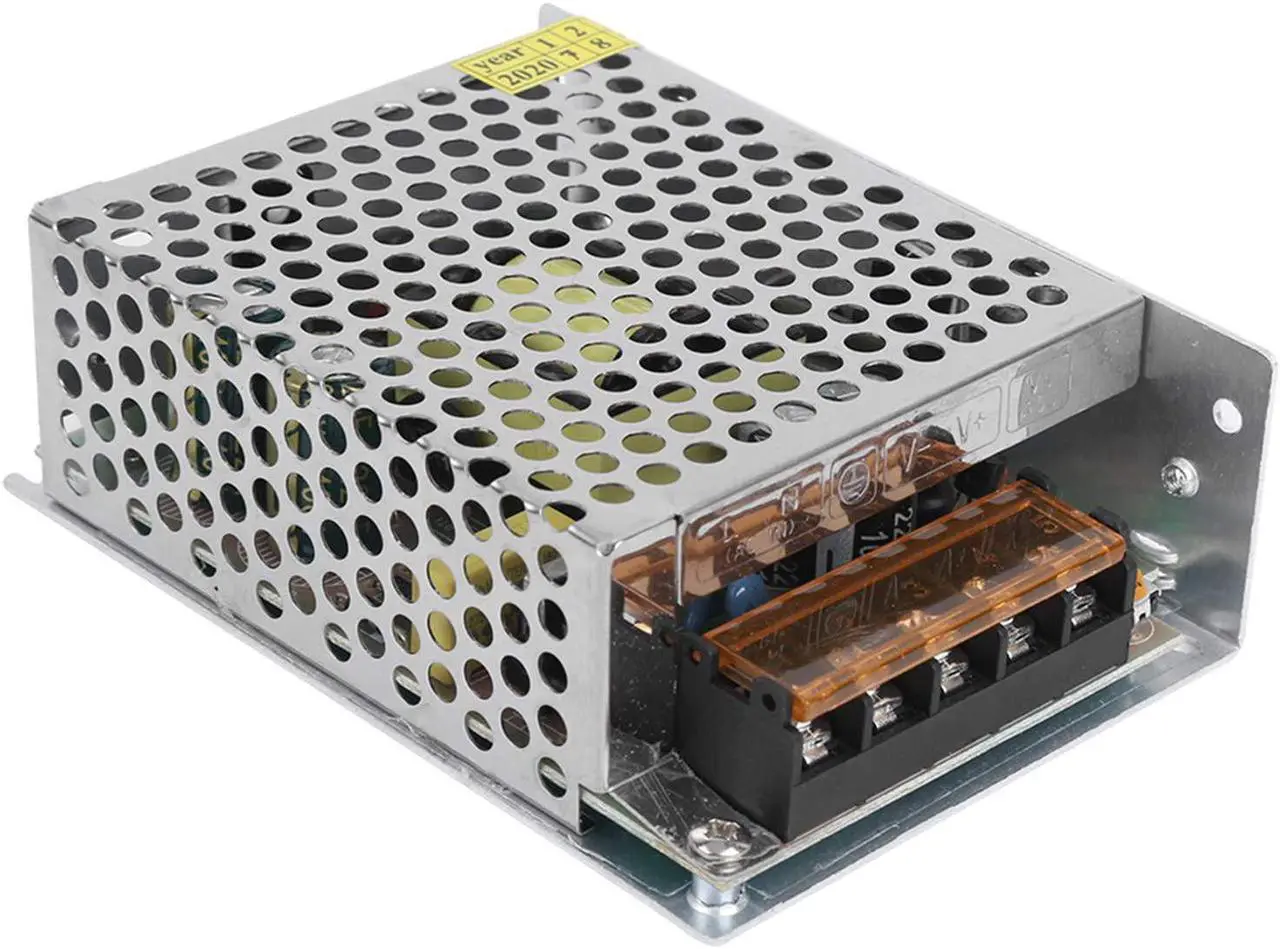

Reliable Switch Power Supply Driver for Radio(S-72-24 (24V/3A/72W) AC100-240V, Transl)

Feature:
1. This switch power supply driver adapter possess high working efficiency and low DC ripple, very practical
2. The power supply driver can work in low operating temperature, possess a long service life
3. The product possess excellent insulation performance with high insulation strength
4. DC24V power supply driver after 100% total load burning test, you can use with confidence
5. The product have protection function of short circuit, overload, and overvoltage situations


Specification:
Item Type: Switch Power Supply Driver
Material: Aluminum alloy
Output: DC 24V
Protection: Overload/overvoltage/short circuit

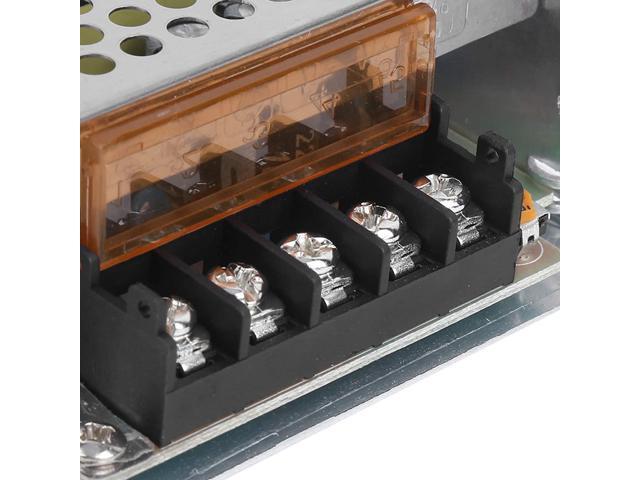

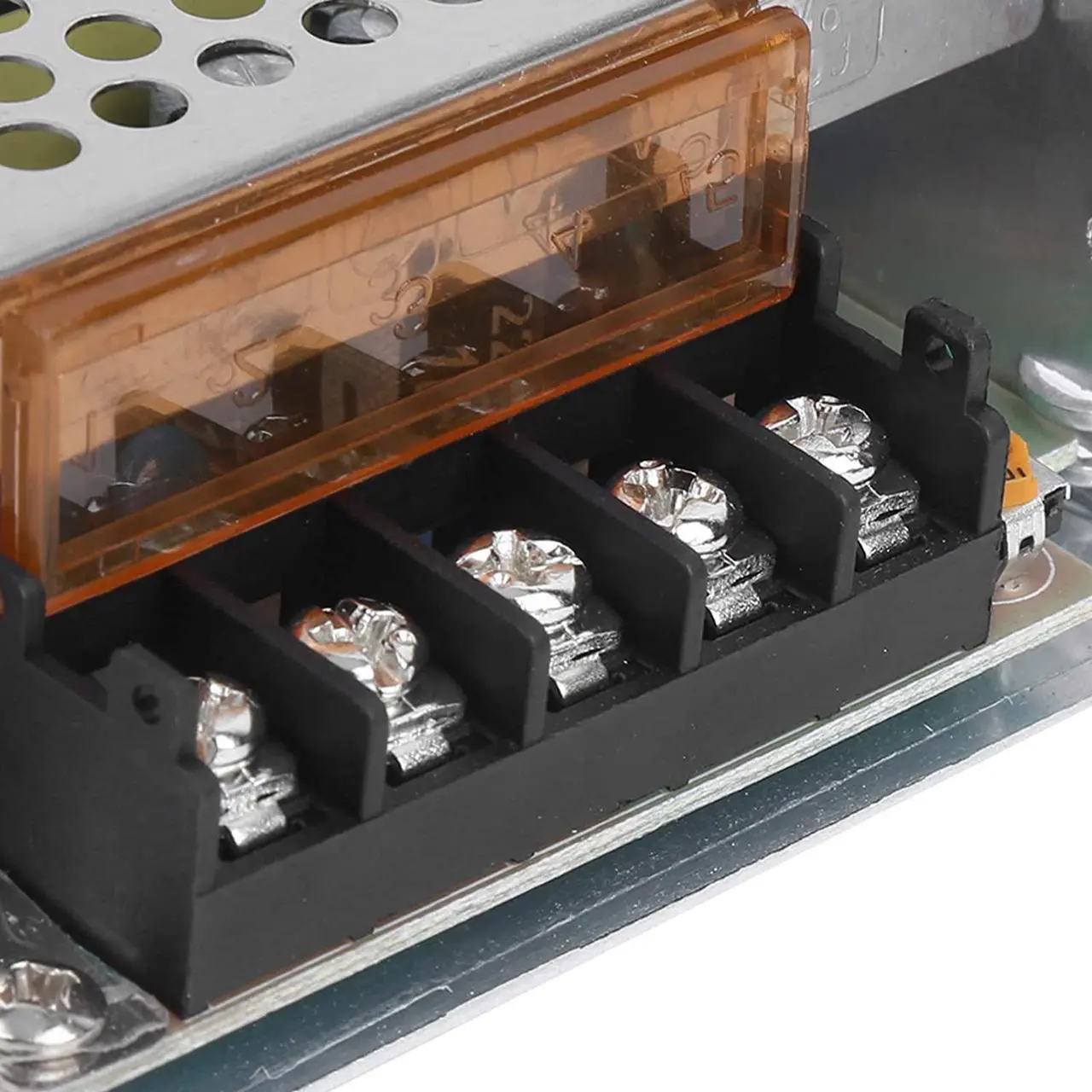

Connection:
L, N: AC power input
GND: DC power output "-"
V: DC power output "+"
+ V / ADJ: Adjust output voltage
Safety Compliance: CCC / FCC / CE
Working Temperature: 0~40
Storage Temperature: -20~60
Environmental Humidity: 0~95% non-condensing
Applicable To: Industrial automation, LED display, CCTV, radio, computer engineering, LED light bar, 3D printer, etc.

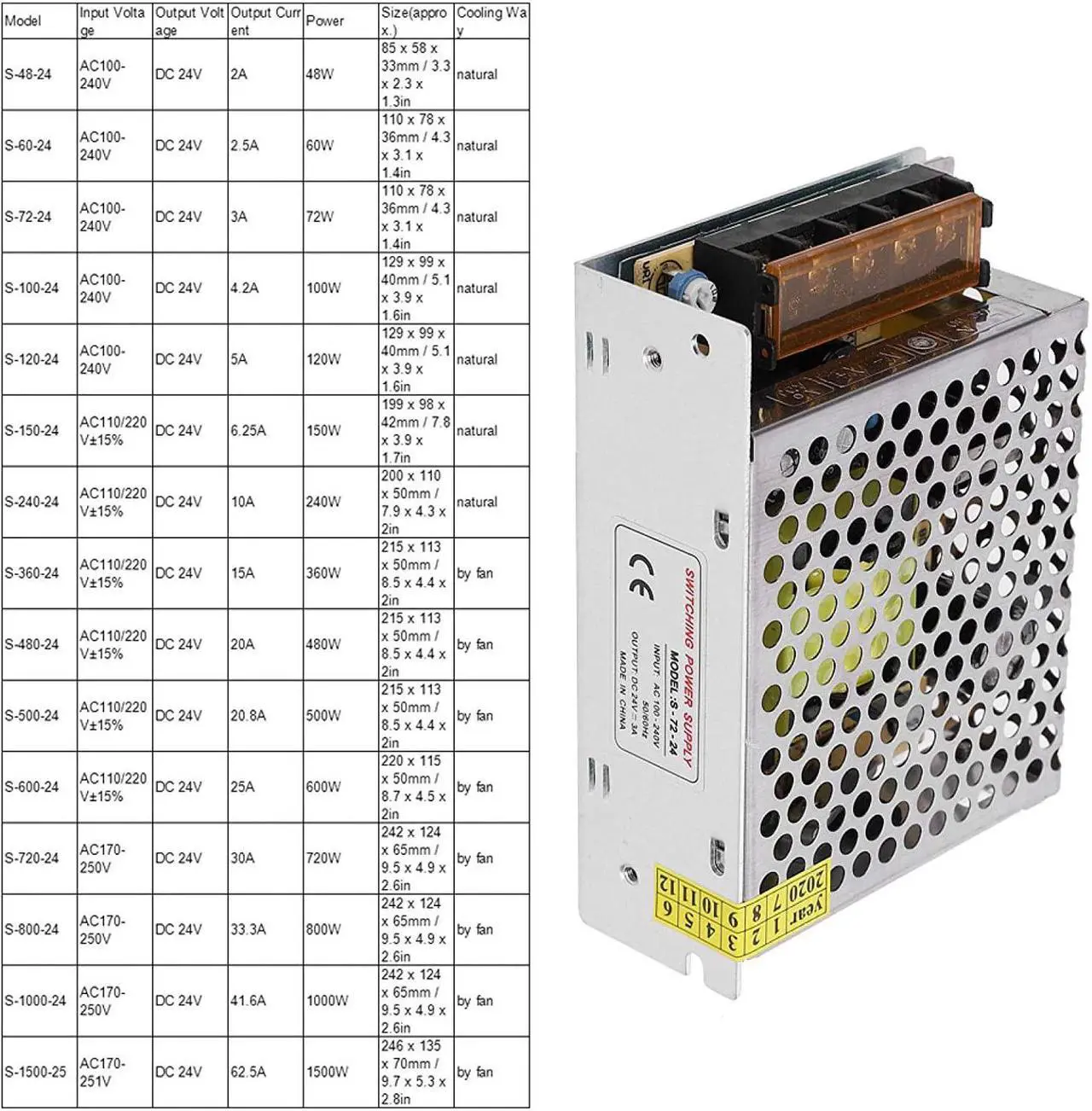

Product Parameter Comparison Table:
Model Input Voltage Output Voltage Output Current Power Size(approx.) Cooling Way S-48-24 AC100-240V DC 24V 2A 48W 85 x 58 x 33mm / 3.3 x 2.3 x 1.3in natural S-60-24 AC100-240V DC 24V 2.5A 60W 110 x 78 x 36mm / 4.3 x 3.1 x 1.4in natural S-72-24 AC100-240V DC 24V 3A 72W 110 x 78 x 36mm / 4.3 x 3.1 x 1.4in natural S-100-24 AC100-240V DC 24V 4.2A 100W 129 x 99 x 40mm / 5.1 x 3.9 x 1.6in natural S-120-24 AC100-240V DC 24V 5A 120W 129 x 99 x 40mm / 5.1 x 3.9 x 1.6in natural S-150-24 AC110/220V±15% DC 24V 6.25A 150W 199 x 98 x 42mm / 7.8 x 3.9 x 1.7in natural S-240-24 AC110/220V±15% DC 24V 10A 240W 200 x 110 x 50mm / 7
