Din?Rail Power Supply, Industrial Din Rail Power Supply Rail Power EDR?75?24 for Rail Power
- Easy to install with mounting holes on the back, convenient to install and have a long service time.
- With all?copper transformer, have strong conductivity, not easy to generate heat.
- Have multiple protection functions, such as over current protection, over voltage protection, overload protection, short circuit protection.
- The voltage stabilizer is smaller than traditional transformer,and more stable than the traditional transformer, safe to use.
- Beehive design, ventilation and heat dissipation, fast heat dissipation in the air, long?lasting operation.
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now
Feature:

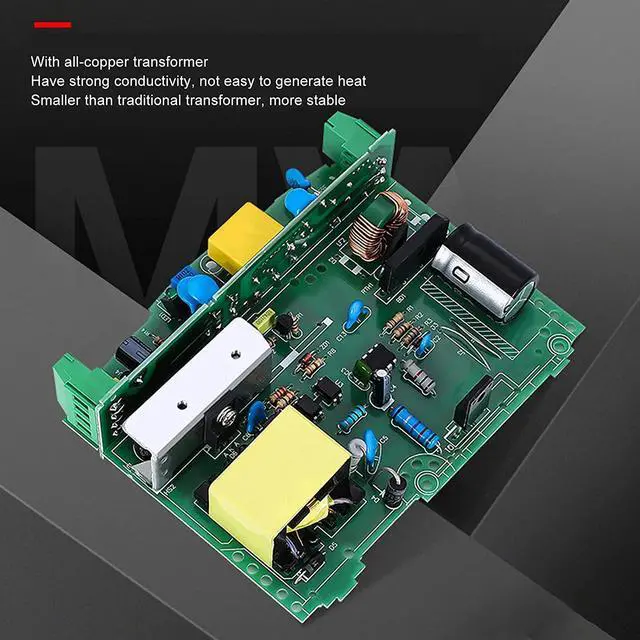

1. With all?copper transformer, have strong conductivity, not easy to generate heat.
2. The voltage stabilizer is smaller than traditional transformer,and more stable than the traditional transformer, safe to use.
3. Beehive design, ventilation and heat dissipation, fast heat dissipation in the air, long?lasting operation.
4. Easy to install with mounting holes on the back, convenient to install and have a long service time.
5. Have multiple protection functions, such as over current protection, over voltage protection, overload protection, short circuit protection.
Specification:
Item Type: Rail Power
Model: EDR-75-24
Output:
DC Voltage: 24V
Rated Current: 3.2A
Current Range: 0-3.2A
Rated Power: 76.8W
Ripple and Noise: 120mVp-p
Voltage Adjustment Range: 24-28V
Voltage Accuracy: ±1.0%
Linear Adjustment Rate: ±0.5%
Load Regulation Rate: ±1.0%
Start-up and Rise Time: 500ms, 70ms/230VAC 500ms, 70ms/115VAC (at full load)
Holding Time (typ): 36ms/230VAC 32ms/115VAC (at full load)
Input:
Voltage Range: 100-240VAC
Frequency Range: 50-60Hz
Efficiency (Typ): 86%
AC Current (Typ): 1.45A/115VAC 0.9A/230VAC
Inrush Current (Typ): Cold start 20A/115VAC 40A/230VAC
Leakage Current: <1mA/240VAC
Package List:
1 xRail Power
Note:

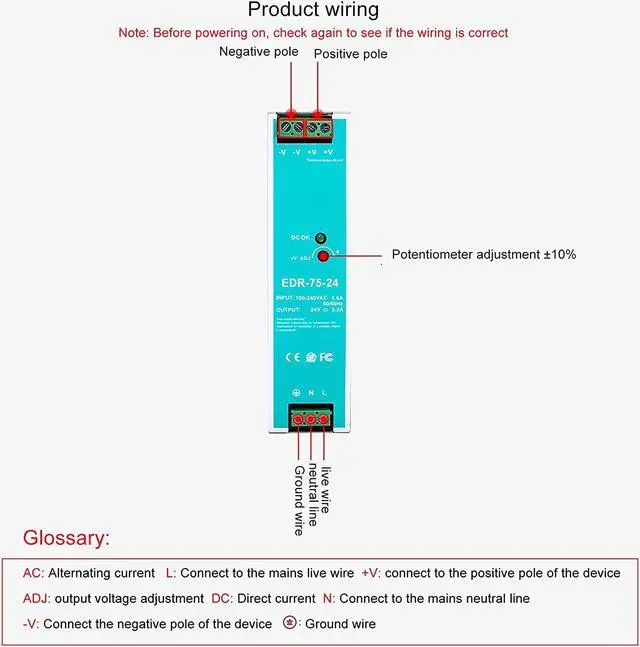

Connect according to the diagram, and check again if the wiring is correct before turning on the power.
1. With all?copper transformer, have strong conductivity, not easy to generate heat.
2. The voltage stabilizer is smaller than traditional transformer,and more stable than the traditional transformer, safe to use.
3. Beehive design, ventilation and heat dissipation, fast heat dissipation in the air, long?lasting operation.
4. Easy to install with mounting holes on the back, convenient to install and have a long service time.
5. Have multiple protection functions, such as over current protection, over voltage protection, overload protection, short circuit protection.
Specification:
Item Type: Rail Power
Model: EDR-75-24
Output:
DC Voltage: 24V
Rated Current: 3.2A
Current Range: 0-3.2A
Rated Power: 76.8W
Ripple and Noise: 120mVp-p
Voltage Adjustment Range: 24-28V
Voltage Accuracy: ±1.0%
Linear Adjustment Rate: ±0.5%
Load Regulation Rate: ±1.0%
Start-up and Rise Time: 500ms, 70ms/230VAC 500ms, 70ms/115VAC (at full load)
Holding Time (typ): 36ms/230VAC 32ms/115VAC (at full load)
Input:
Voltage Range: 100-240VAC
Frequency Range: 50-60Hz
Efficiency (Typ): 86%
AC Current (Typ): 1.45A/115VAC 0.9A/230VAC
Inrush Current (Typ): Cold start 20A/115VAC 40A/230VAC
Leakage Current: <1mA/240VAC
Package List:
1 xRail Power
Note:
Connect according to the diagram, and check again if the wiring is correct before turning on the power.
