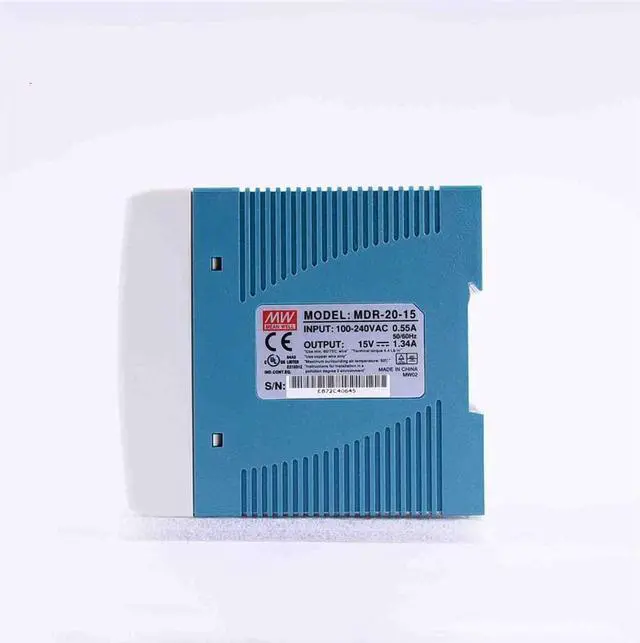

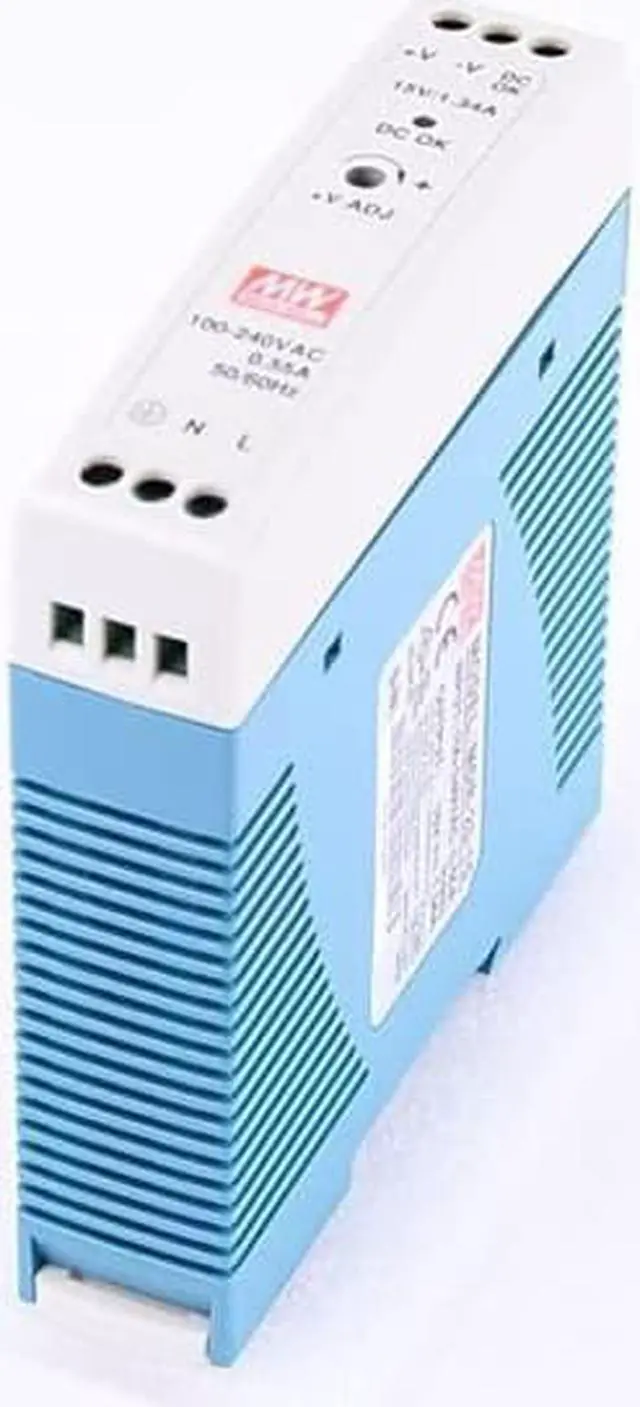

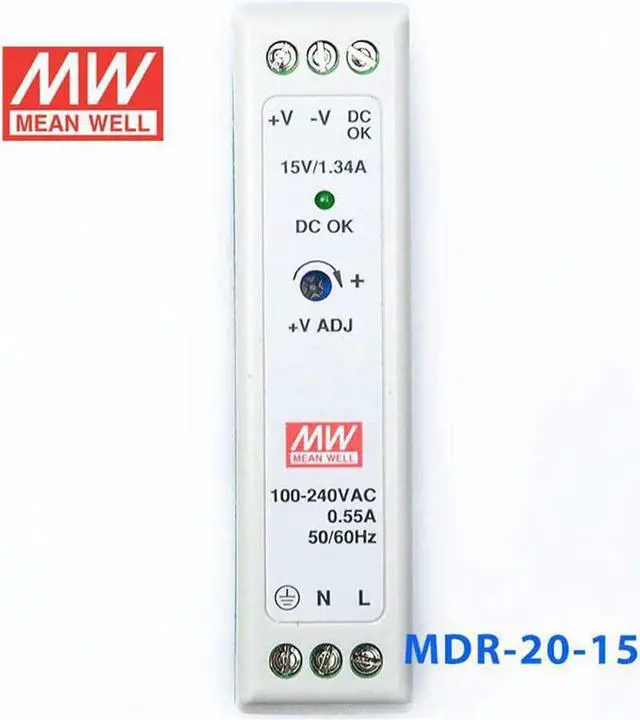

MW Mean Well Plastic Case MDR-20W-12/15/24/5V Ultra Slim Class I Single Output Industrial DIN Rail AC-DC Power Supply (MDR-20-15)
- 100% original MDR-20W|(12V 1.67A).(15V 1.34A).(24V 1A).(5V 3A) For Industrial PLC sensor
- The MDR-20 series is a stabilized ultra-thin DIN rail type industrial control driver
- Can be installed on DIN rail TS-35/7.5 or 15,No load power consumption<0.75W
- Short circuit / Overload / Over voltage / Over temperature Protections,3 years warranty
- 30 years of well-known standard power supply brand, 24 hours fast after-sales support from countries in Asia, Europe and America More than 85% of MW's(MEAN WELL's) products can be shipped within 24 hours, supporting mass wholesale.
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now
The MDR-20 series Suitable for power supply of industrial control PLC sensor equipment, such as industrial robots, automated factories, industrial product testing, power distribution cabinets, intelligent vision, subway gate control, environmental protection purification equipment control systems, etc.
Features :
?Universal AC input/Full range
?Protections: Short circuit / Overload / Over voltage
?Cooling by free air convection

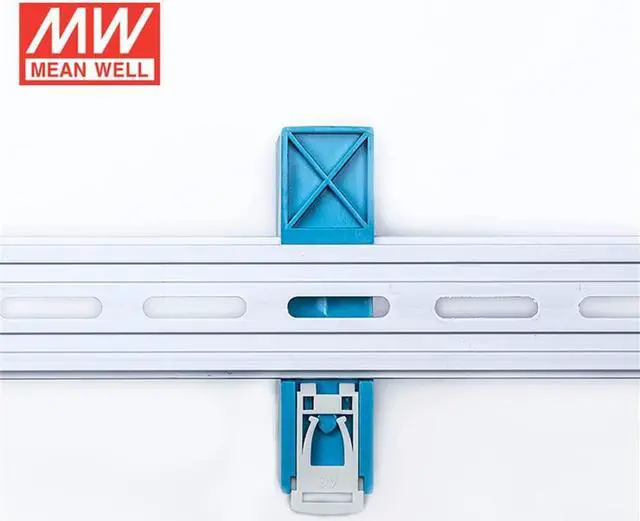

?Can be installed on DIN rail TS-35 / 7.5 or 15
?Built in DC OK active signal
?LED indicator for power on
?No load power consumption <0.75W
?100% full load burn-in test
?3 years warranty
Features :
?Universal AC input/Full range
?Protections: Short circuit / Overload / Over voltage
?Cooling by free air convection
?Can be installed on DIN rail TS-35 / 7.5 or 15
?Built in DC OK active signal
?LED indicator for power on
?No load power consumption <0.75W
?100% full load burn-in test
?3 years warranty
