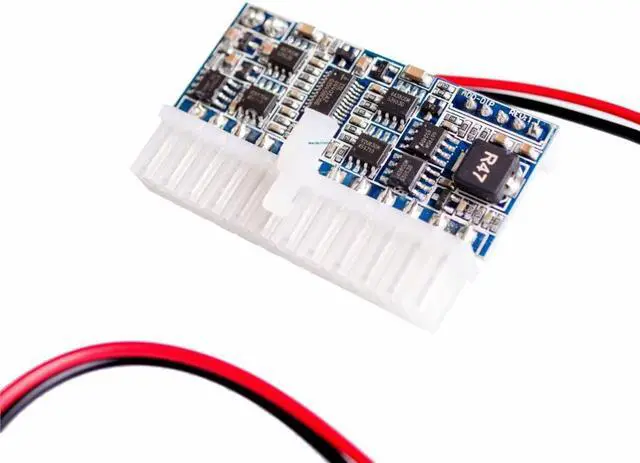

JXSZ High Power DC 12V/24Pin ATX Switch PicoPSU Mini Atom HTPC ITX PICOBox ATX Power Supply ATX-160W

ATX-160W DC 12V 24-Pin 24Pin ATX switch PicoPSU mini ATOM HTPC ITX Pico-Box


Description:
*Complete Power solution for your PC/ATX/Mini-ATX project, silent and economical.
*Full application documentation available Eliminates the need for a 24-pin ATX power cable through direct plug-in design.
*Perfect for those low-profile systems. PicoPSU ATX DC-DC converter is very small, Also 1U ServerRack compliant.ATX Compliant.
*The picoPSU is fully ATX-compliant. It can power VIA Mini-ITX boards, Intel P3, P4, Pentium-M, Core 2 Duo and low power AMD processors, also power most full-sized ATX form-factor motherboards.Provides a cool, silent for small PC designs using a single 12V power source.
Feature:
*.DC Input: 12V(OD:5.5mm ID:2.5mm)
*.DC Output : 160W
*.Input Current: Max. 15A
*.Efficiency: above 92%
*.MTPF: 90,000H
*.Operating Temperature: 0 ~ 40
*.Storage Temperature: -20 ~ 80
*.overload protection:DC output Over Voltage Protection
*.24PIN color:White or Black (random color)
*.PCB color:Blue or Green (random color)

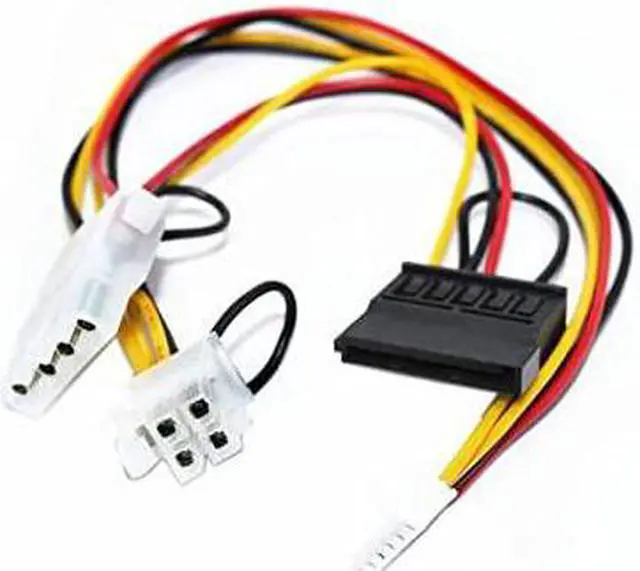

Package included:(not included AC adapter)
1x 24pin DC-ATX Power Supply
1 x 4Pin AUX.(12V)
1 x SATA Power
1 x 4Pin PATA (12V)

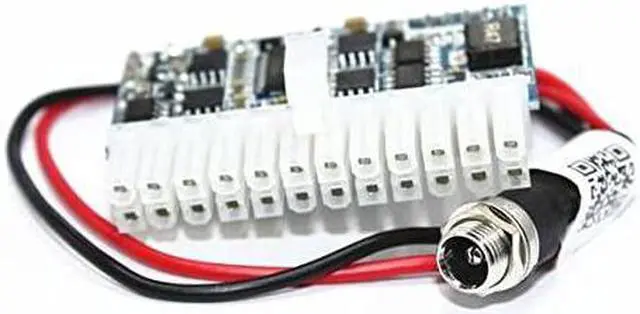

1 x DC-in Jack (2.5/5.5mm)
