Industrial Rail Power Supply, Stable Rail Power Supply 10A Rail Power Supply 12V Rail Power Supply for Rail Power Supply

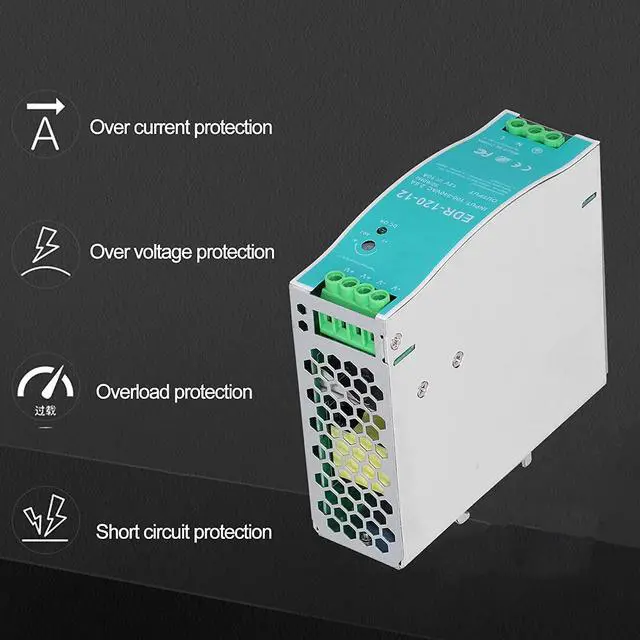

- Multiple protection functions such as over current protection, over voltage protection, overload protection, short circuit protection.
- The voltage regulator is smaller and more stable than the traditional transformer, so that you can use it at ease.

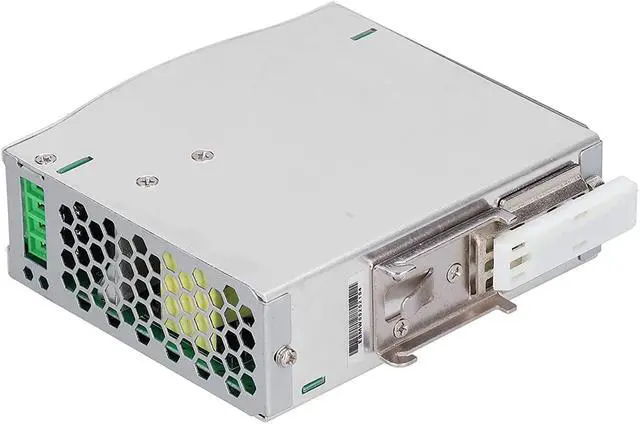

- EDR?120?12 Model rail power supply, easy installation, designed with back mounting hole
- All copper transformer have strong electrical conductivity and are not easy to generate heat.
- Good ventilation and heat dissipation performance, fast air heat dissipation, lasting operation, safety to use.
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now
Feature:
1. EDR?120?12 Model rail power supply, easy installation, designed with back mounting hole
2. All copper transformer have strong electrical conductivity and are not easy to generate heat.
3. The voltage regulator is smaller and more stable than the traditional transformer, so that you can use it at ease.
4. Good ventilation and heat dissipation performance, fast air heat dissipation, lasting operation, safety to use.
5. Multiple protection functions such as over current protection, over voltage protection, overload protection, short circuit protection.
Specification:
Item Type: Rail Power Supply
Material: Aluminum Shell
Model: EDR-120-12
Output
DC Voltage: 12V
Rated Current: 10A
Current Range: 0-10A
Rated Power: 120W
Ripple and Noise: 80 MVP-P
Voltage Adjustment Range: 12-14V
Voltage Accuracy: ±2.0%
Linear Adjustment: ±0.5%
Load Adjustment Rate: ±1.0%
Start and Rise Time: 500ms, 70ms/230VAC 500ms, 70ms/115VAC (full load)
Holding Time (TYP) : 36ms/230VAC 32ms/115VAC (full load)
Input
Voltage Range: 100-240VAC
Frequency Range: 50-60Hz
Efficiency (TYP): 85%
AC current (TYP): 1.45A/115VAC 0.9A/230VAC
Inrush Current (TYP): 20A/115VAC 35A/230VAC
Leakage Current: <3.5mA/240VAC
Package List:
1 x Rail Power Supply
Note:
Wiring according to the diagram, check again that the wiring is correct before turning on the power.
1. EDR?120?12 Model rail power supply, easy installation, designed with back mounting hole
2. All copper transformer have strong electrical conductivity and are not easy to generate heat.
3. The voltage regulator is smaller and more stable than the traditional transformer, so that you can use it at ease.
4. Good ventilation and heat dissipation performance, fast air heat dissipation, lasting operation, safety to use.
5. Multiple protection functions such as over current protection, over voltage protection, overload protection, short circuit protection.
Specification:
Item Type: Rail Power Supply
Material: Aluminum Shell
Model: EDR-120-12
Output
DC Voltage: 12V
Rated Current: 10A
Current Range: 0-10A
Rated Power: 120W
Ripple and Noise: 80 MVP-P
Voltage Adjustment Range: 12-14V
Voltage Accuracy: ±2.0%
Linear Adjustment: ±0.5%
Load Adjustment Rate: ±1.0%
Start and Rise Time: 500ms, 70ms/230VAC 500ms, 70ms/115VAC (full load)
Holding Time (TYP) : 36ms/230VAC 32ms/115VAC (full load)
Input
Voltage Range: 100-240VAC
Frequency Range: 50-60Hz
Efficiency (TYP): 85%
AC current (TYP): 1.45A/115VAC 0.9A/230VAC
Inrush Current (TYP): 20A/115VAC 35A/230VAC
Leakage Current: <3.5mA/240VAC
Package List:
1 x Rail Power Supply
Note:
Wiring according to the diagram, check again that the wiring is correct before turning on the power.
