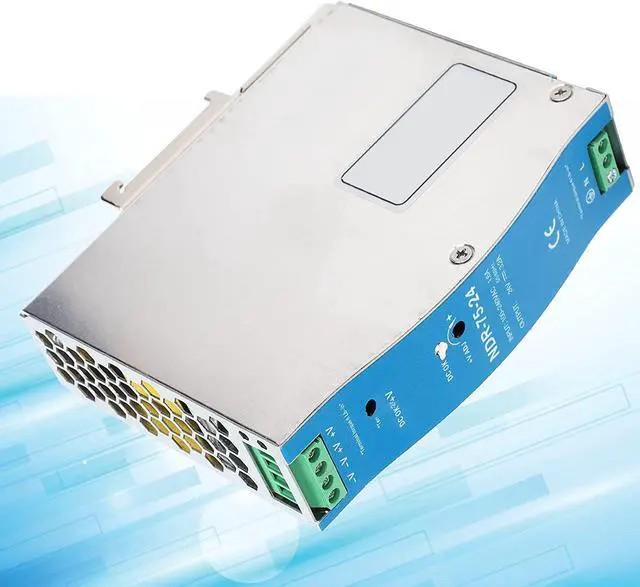

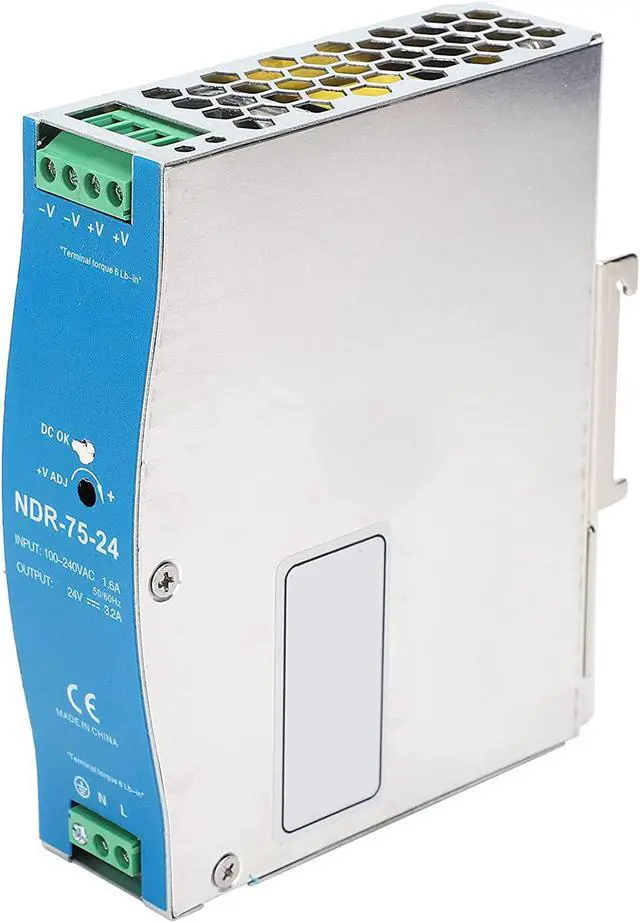

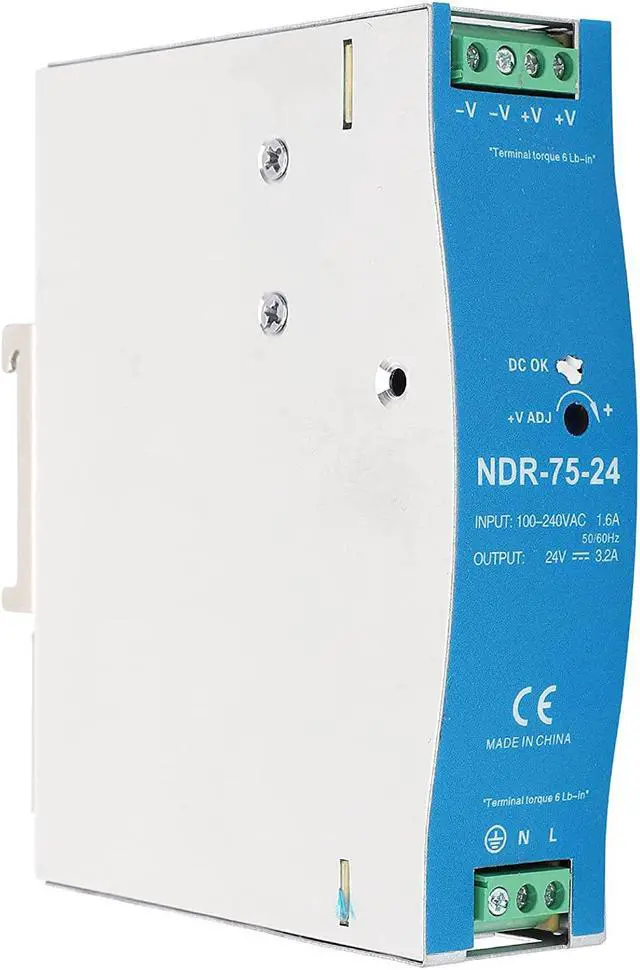

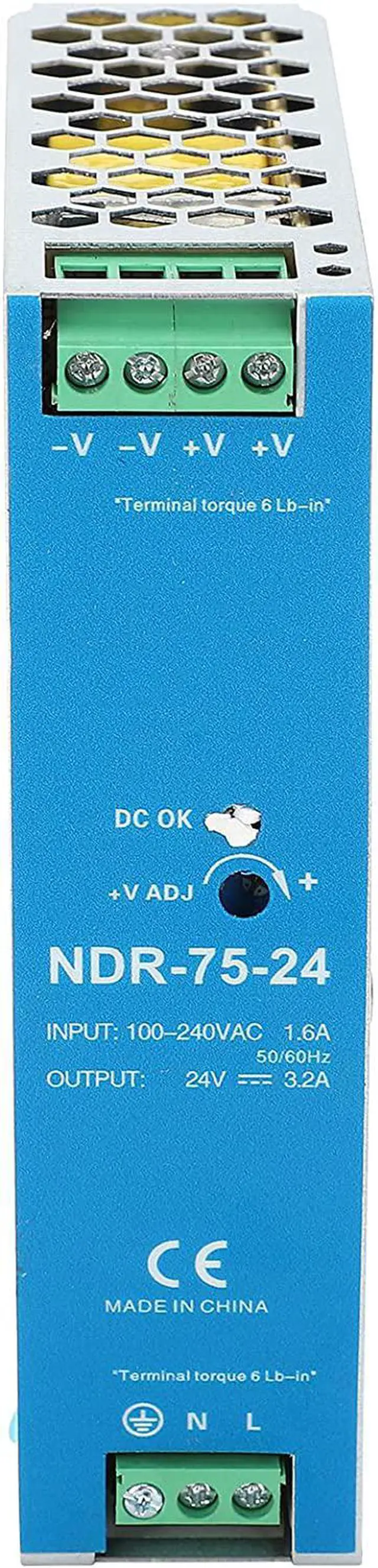

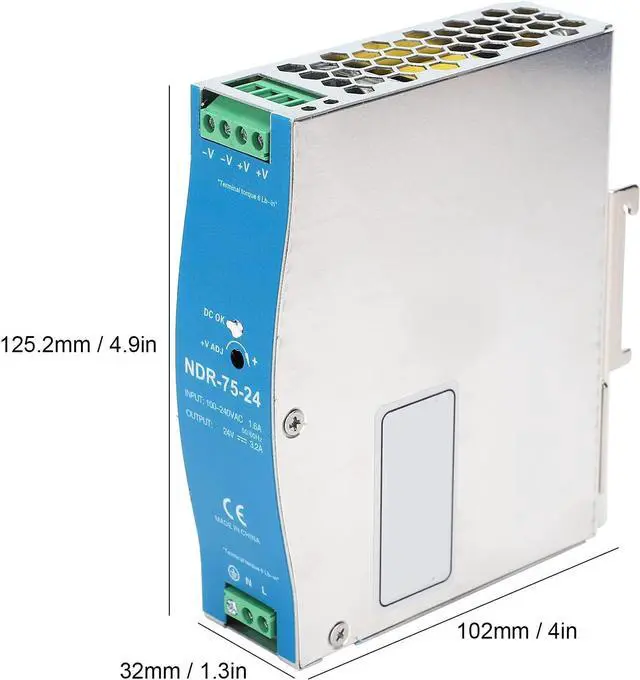

Industrial Switching Power,BERM Switching Power Supply for PLC NDR-75-24 75W 24V 3.2A 100-240VAC Input Voltage
- The product has anti?vibration and anti?interference function, and the efficiency is 88%
- The power supply has global universal full range AC input voltage, the input voltage is 100?240VAC
- Using the din rail mode, installed on the DIN rail TS35/7.5 or 15, the installation is simple and convenient

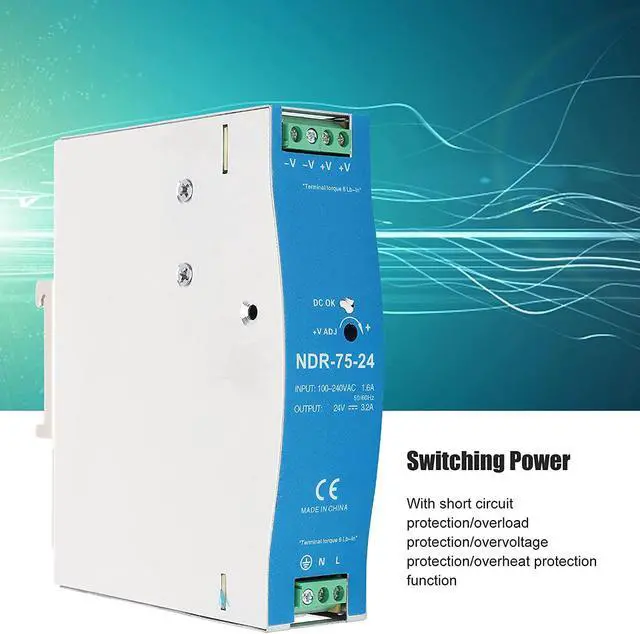

- With short circuit protection/overload protection/overvoltage protection/overheat protection function
- Made of high quality aluminum alloy material, durable and long service life, not easy to damage
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
Item Type: Switching Power
Product Material: Aluminum alloy
Product Model: NDR-75-24
DC Output Range: 24V, 0-3.2A
Output Voltage Accuracy: ±1%
Ripple and Noise: 150mV
Efficiency: 88%
Input Voltage: 100-240VAC
Overload Protection: Constant current limit when the rated output power reaches 105%130%, and it will automatically recover after the load is normal
Over-Voltage Protection: Output Voltage 12V: 1417V, 24V: 2933V, 48V: 5665V when shut down, restart and restore
Overheating Protection: Overheating shutdown, automatic recovery after the temperature drops
Start-up and Hold Time: 1200ms, 60ms, 60ms/115VAC, 2000ms, 60ms, 12ms at full load of 230VAC
Insulation Characteristics: Between Input And Output: 3KVac, Between Input and Shell: 2KVac, Between Output and Shell: 0.5KVac, 1 minute
Working Temperature: -20+70(reference for output derating curve)
Vibration Resistance: 10500Hz, 2G 10 minutes/cycle, XYZ axis each 60 minutes; installation conforms to IEC60068-2-6
Safety Certification: Passed UL508, TUV EN60950-1 certification
Electromagnetic Compatibility Standards: Emission: EN55022 (CISPR22), EN61204-3, Class B, Harmonics: EN61000-3-2, -3
How to Use:
1. The AC voltage specifications that the rail power supply can use are 110VAC, 220VAC and 380VAC. Therefore, before turning on the power supply, carefully check whether the connected voltage and the input voltage of the power supply are correct and consistent.Package List:
Item Type: Switching Power
Product Material: Aluminum alloy
Product Model: NDR-75-24
DC Output Range: 24V, 0-3.2A
Output Voltage Accuracy: ±1%
Ripple and Noise: 150mV
Efficiency: 88%
Input Voltage: 100-240VAC
Overload Protection: Constant current limit when the rated output power reaches 105%130%, and it will automatically recover after the load is normal
Over-Voltage Protection: Output Voltage 12V: 1417V, 24V: 2933V, 48V: 5665V when shut down, restart and restore
Overheating Protection: Overheating shutdown, automatic recovery after the temperature drops
Start-up and Hold Time: 1200ms, 60ms, 60ms/115VAC, 2000ms, 60ms, 12ms at full load of 230VAC
Insulation Characteristics: Between Input And Output: 3KVac, Between Input and Shell: 2KVac, Between Output and Shell: 0.5KVac, 1 minute
Working Temperature: -20+70(reference for output derating curve)
Vibration Resistance: 10500Hz, 2G 10 minutes/cycle, XYZ axis each 60 minutes; installation conforms to IEC60068-2-6
Safety Certification: Passed UL508, TUV EN60950-1 certification
Electromagnetic Compatibility Standards: Emission: EN55022 (CISPR22), EN61204-3, Class B, Harmonics: EN61000-3-2, -3
How to Use:
1. The AC voltage specifications that the rail power supply can use are 110VAC, 220VAC and 380VAC. Therefore, before turning on the power supply, carefully check whether the connected voltage and the input voltage of the power supply are correct and consistent.Package List:
