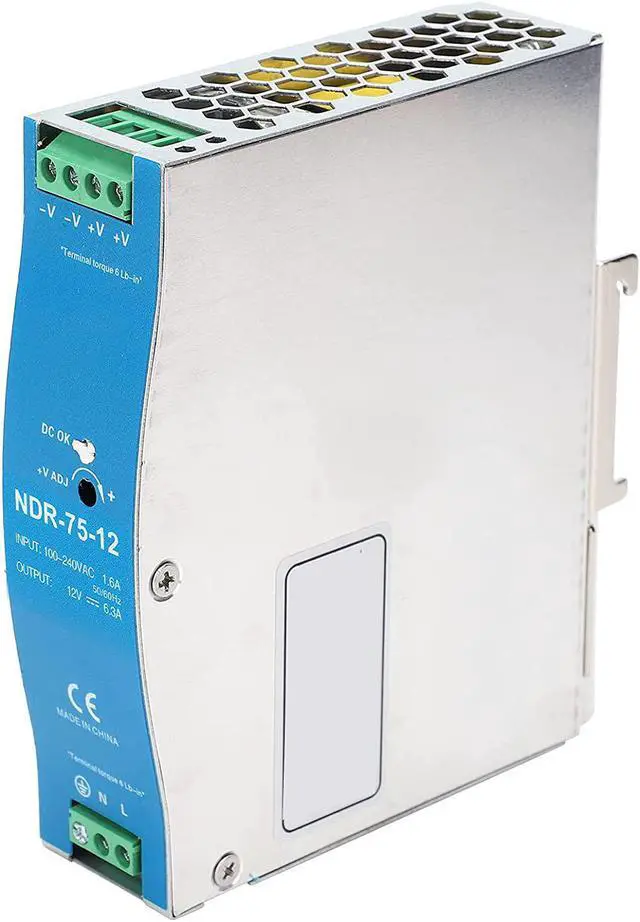

Din Rail Switching Power,Switching Power Supply for Industrial PLC Electric Cabinet Drive 100?240VAC NDR?75?12

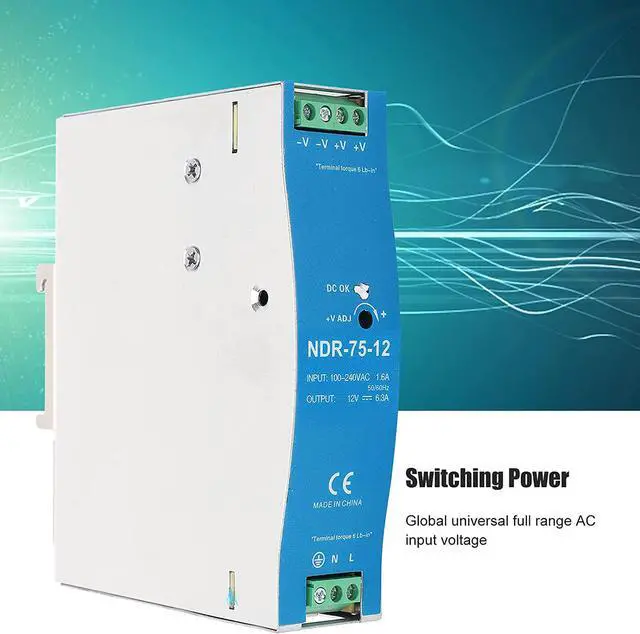

- The power supply has global universal full range AC input voltage, the input voltage is 100?240VAC
- Great workmanship and standard design, good part for industrial PLC electric cabinet drive

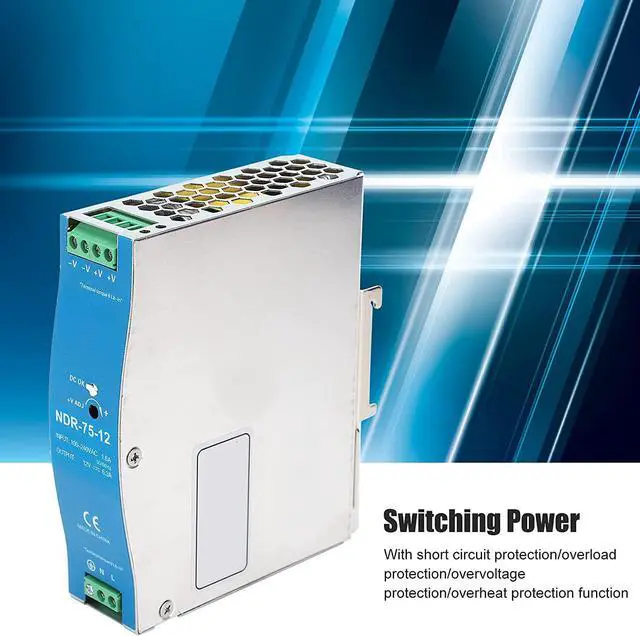

- With short circuit protection/overload protection/overvoltage protection/overheat protection function
- High quality aluminum alloy material can make sure the durability and stability of the product

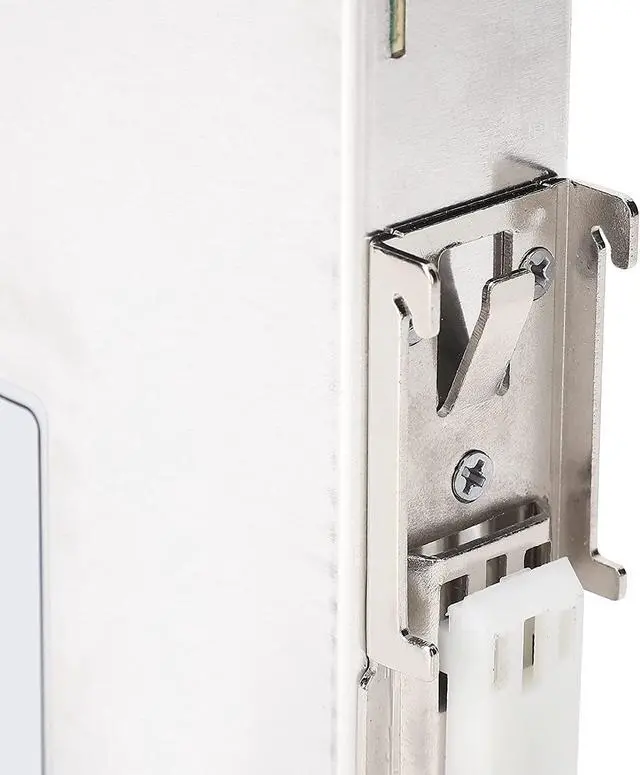

- The installation method adopts the guide rail, installed on the DIN rail TS35/7.5 or 15, the installation is simple and convenient
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
Item Type: Switching Power
Product Material: Aluminum alloy
Product Model: NDR-75-12
DC Output Range: 12V, 6.3A
Output Voltage Accuracy: ±2%
Ripple And Noise: 100mV
Efficiency: 85.5%
Input Voltage: 100-240VAC
Overload Protection: Constant current limit when the rated output power reaches 105%130%, and it will automatically recover after the load is normal
Over-voltage Protection: Output Voltage 12V: 1417V, shutdown, restart and recovery
Overheating Protection: Overheating shutdown, automatic recovery after the temperature drops
Start-up and Hold Time: 1200ms, 60ms at 230VAC full load, 2000ms, 60ms, 12ms at 60ms/115VAC full load
Vibration Resistance: 10500Hz, 2G 10 minutes/cycle, XYZ axis each 60 minutes; installation conforms to IEC60068-2-6
Safety Certification: Pass UL508, TUV EN60950-1 certification
Mean Time Between Failures: 486,200 hours, MIL-HDBK-217F (25)

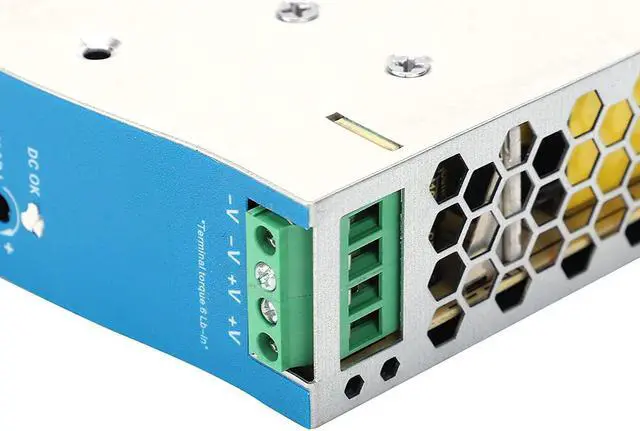

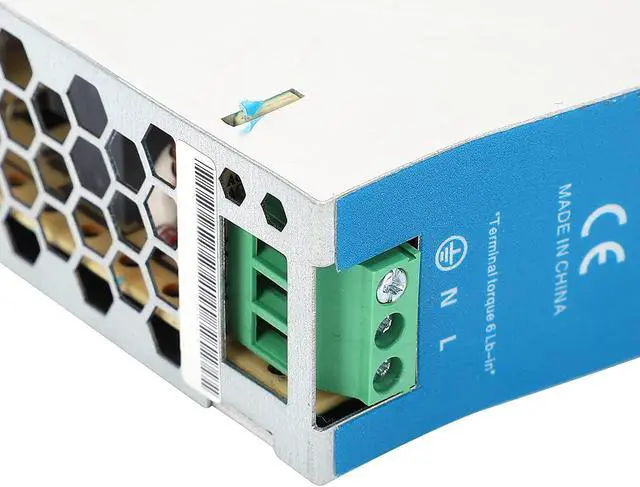

Wiring Mode: Input Terminal: 3 Points. Output Terminal: 4 points screw DIN terminal
Chassis Number: 221B

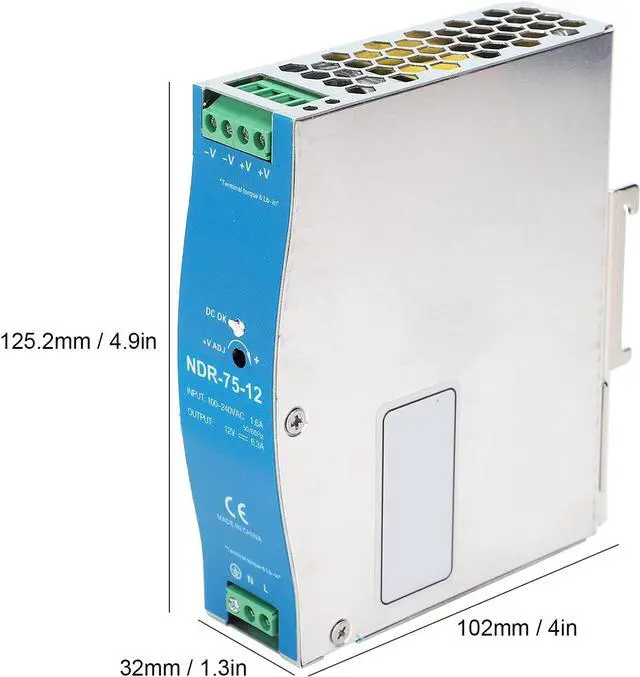

Product Size: Approx. 102 x 125.2 x 35mm / 4 x 4.9 x 1.4in
Package List:
Item Type: Switching Power
Product Material: Aluminum alloy
Product Model: NDR-75-12
DC Output Range: 12V, 6.3A
Output Voltage Accuracy: ±2%
Ripple And Noise: 100mV
Efficiency: 85.5%
Input Voltage: 100-240VAC
Overload Protection: Constant current limit when the rated output power reaches 105%130%, and it will automatically recover after the load is normal
Over-voltage Protection: Output Voltage 12V: 1417V, shutdown, restart and recovery
Overheating Protection: Overheating shutdown, automatic recovery after the temperature drops
Start-up and Hold Time: 1200ms, 60ms at 230VAC full load, 2000ms, 60ms, 12ms at 60ms/115VAC full load
Vibration Resistance: 10500Hz, 2G 10 minutes/cycle, XYZ axis each 60 minutes; installation conforms to IEC60068-2-6
Safety Certification: Pass UL508, TUV EN60950-1 certification
Mean Time Between Failures: 486,200 hours, MIL-HDBK-217F (25)
Wiring Mode: Input Terminal: 3 Points. Output Terminal: 4 points screw DIN terminal
Chassis Number: 221B
Product Size: Approx. 102 x 125.2 x 35mm / 4 x 4.9 x 1.4in
Package List:
