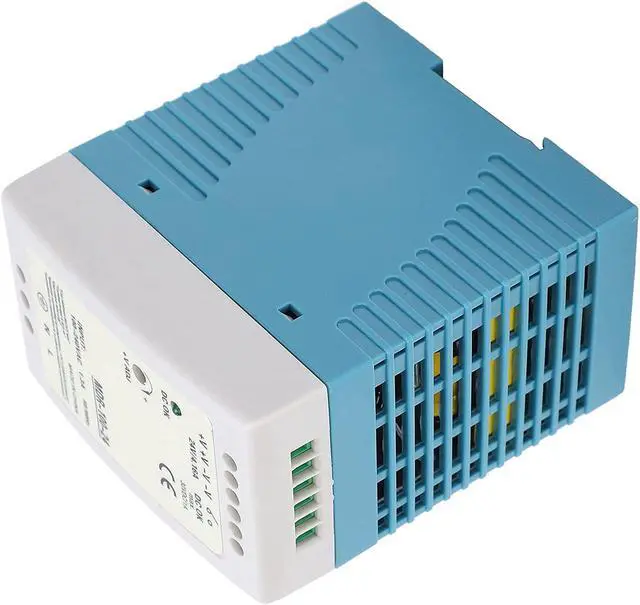

MDR?100?24 Power Supply, Long Service Life Switching Power Supply Reliable for Household

Feature:
1. Our switching power supply has gained international safety certification UL/CUL/TUV/CB/CE, reliable to use.
2. With short circuit protection/overload protection/overvoltage protection/overheat protection, the power supply is safe for household use.

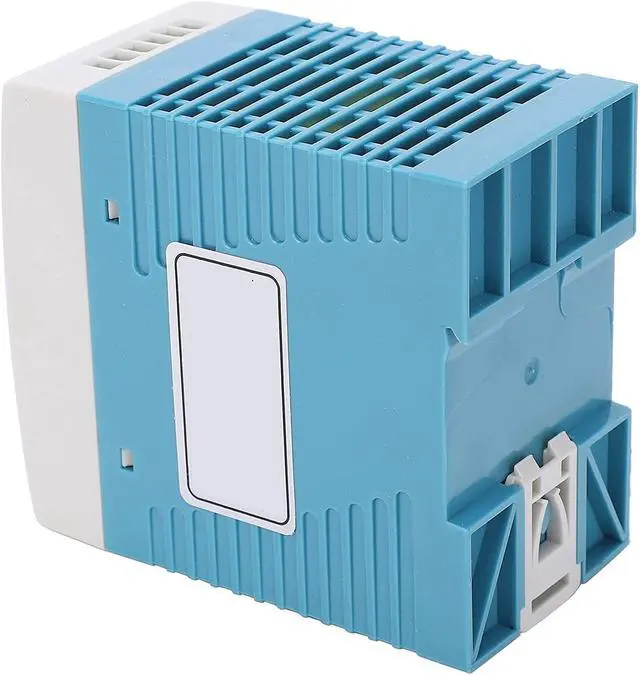

3. Switching power supply is suitable to be installed on Din? rail TS35/7.5 or 15.
4. Industrial grade switching power supply possesses stable structure, excellent performance and long service life.
5. Our product is a single output type with an input voltage of 100?240VAC, input current of 1.3A and rated current of 4A.


Specification:

Item Type: Din-Rail Switching Power Supply
Product Material: ABS
Product Model: MDR-100-24
Output Type: Single output
Input Voltage: 100-240VAC
Input Current: 1.3A
Output Voltage: 24V
Rated Current: 4A

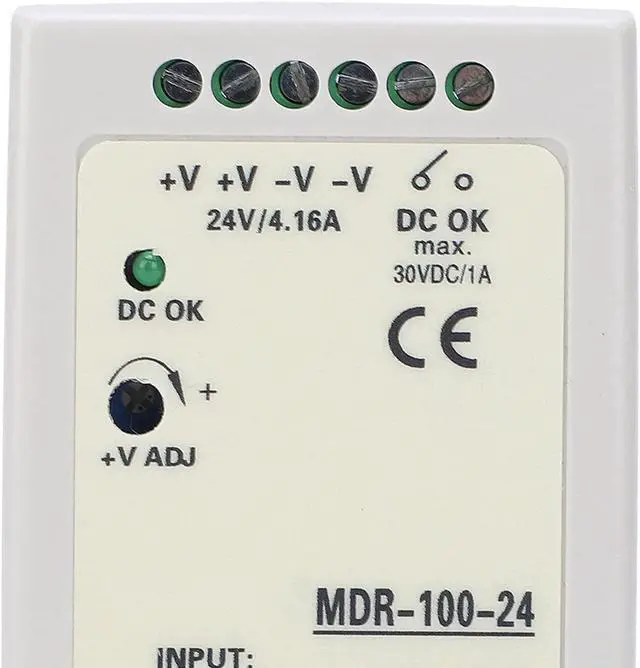

The MDR model is a DIN rail mounting power supply, which is quick and labor-saving to install. It is suitable for installation on DIN rail TS35 / 7.5 or 15. It is a low no-load standby loss model, with built-in active power factor correction function, DC OK signal output, convenient for external working condition display, 100 watt model also has an overheating protection function.
Voltage Adjustment Range: 0+20% of rated output voltage
Overload Protection: When the over current point is between 105% and 150%, the constant current limit will automatically recover
Over-Voltage Protection: Shut down when 125%150%% of rated output voltage, restart and restore
Overheating Protection: 90±10 (RTH2 detects the temperature of the power transistor radiator), protection type: overheating shutdown, automatic recovery after temperature drops
Start-up and Hold Time: 3000ms, 50ms, 50ms at 230VAC full load



Package List:
1 x Din Rail Switching Power Supply

Note:
Please note that the old and new type of the product will be sent randomly
