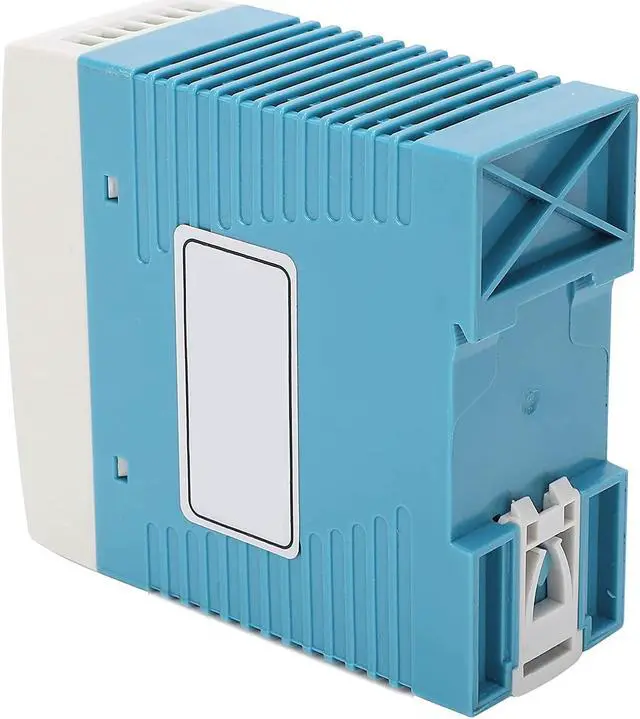

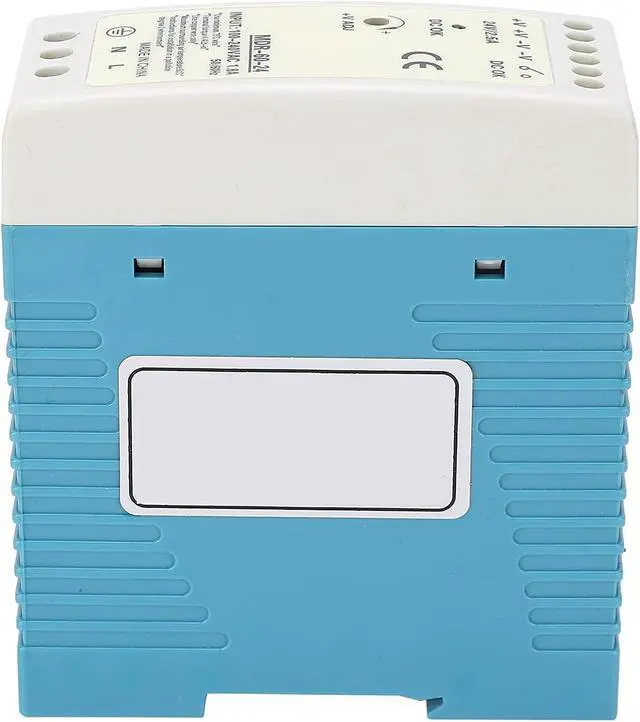

LANTRO JS - MDR-60-24 BERM Switching Power Supply, Rail type switching power supply 60W 2.5A 100-240VAC Input for Industrial PLC
- SpecificationProduct Material: ABS; Product Model: MDR-60-24; DC Output Range: 24V, 2.50A; Output Voltage Accuracy: ±1%
- High-quality materialsThe high-quality ABS material ensures the durability and stability of the rail-type switching power supply
- DIN rail installationUsing the din rail mode, installed on the DIN rail TS35/7.5 or 15, the installation is simple and convenient
- Safety protectionRail switching power supply with short circuit protection/overload protection/overvoltage protection/overheat protection
- Well workmanshipGreat workmanship and standard design, good part for industrial PLC, simple to operate
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
Item Type: Switching Power
Product Material: ABS
Product Model: MDR-60-24
DC Output Range: 24V, 2.50A
Output Voltage Accuracy: ±1%
Ripple: 150mV
Efficiency: 88%
Input Voltage: 100-240VAC
Voltage Adjustment Range: 0+20% of rated output voltage
Overload Protection: When the overcurrent point is 105%150%, the constant current limit will automatically restore
Overvoltage Protection: Shut down when 125%150% of rated output voltage, restart and recover
Start-up and Hold Time: 500ms, 30ms, 50ms at 230VAC full load
Insulation Characteristics: Between Input And Output: 3KVac, Between Input and Shell: 1.5KVac, Between Output And Shell: 0.5KVac, 1 minute
Working Temperature: -20+70 (refer to temperature drop curve)
Vibration Resistance: 10500Hz, 2G 10 minutes/cycle, 60 minutes for each axis of XYZ
Safety Certification: Pass UL508, TUV EN60950-1, UL60950-1 certification, comply with NEC class2/LPS standard
Electromagnetic Compatibility Standards: Emission: EN55011, EN55022 (CISPR22), EN61204-3 Class B, Harmonics: EN61000-3-2, -3
Electromagnetic Compatibility Standards: Anti-interference: EN61000-4-2,3,4,5,6,8,11, ENV50204, ENV55024, EN61000-6-2, EN61204-3, Class A heavy industry standards
Mean Time Between Failures: 299,200 hours, MIL-HDBK-217F (25)
Wiring Mode: Input Terminal: 3 Points. Output Terminal: 6 points screw DIN terminal
Chassis Number: 962A
Size: Approx. 100 x 40 x 90mm / 3.9 x 1.6 x 3.5in
Package List:
1 x Switching Power
Item Type: Switching Power
Product Material: ABS
Product Model: MDR-60-24
DC Output Range: 24V, 2.50A
Output Voltage Accuracy: ±1%
Ripple: 150mV
Efficiency: 88%
Input Voltage: 100-240VAC
Voltage Adjustment Range: 0+20% of rated output voltage
Overload Protection: When the overcurrent point is 105%150%, the constant current limit will automatically restore
Overvoltage Protection: Shut down when 125%150% of rated output voltage, restart and recover
Start-up and Hold Time: 500ms, 30ms, 50ms at 230VAC full load
Insulation Characteristics: Between Input And Output: 3KVac, Between Input and Shell: 1.5KVac, Between Output And Shell: 0.5KVac, 1 minute
Working Temperature: -20+70 (refer to temperature drop curve)
Vibration Resistance: 10500Hz, 2G 10 minutes/cycle, 60 minutes for each axis of XYZ
Safety Certification: Pass UL508, TUV EN60950-1, UL60950-1 certification, comply with NEC class2/LPS standard
Electromagnetic Compatibility Standards: Emission: EN55011, EN55022 (CISPR22), EN61204-3 Class B, Harmonics: EN61000-3-2, -3
Electromagnetic Compatibility Standards: Anti-interference: EN61000-4-2,3,4,5,6,8,11, ENV50204, ENV55024, EN61000-6-2, EN61204-3, Class A heavy industry standards
Mean Time Between Failures: 299,200 hours, MIL-HDBK-217F (25)
Wiring Mode: Input Terminal: 3 Points. Output Terminal: 6 points screw DIN terminal
Chassis Number: 962A
Size: Approx. 100 x 40 x 90mm / 3.9 x 1.6 x 3.5in
Package List:
1 x Switching Power
