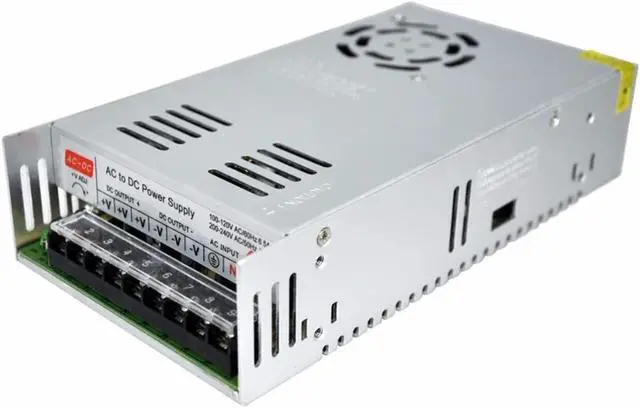

WHY-YUE Adjustable Power Supply Switch Power Supply for Led Strip Adapter to DC 24V 20A 480W Transformer
- 1.High efficiency, long life and high reliabili
- 2.Low dc ripple, high efficiency
- 3.low operation temperature &longperformancelife
- 4.input voltage suitable for the world
- 5.Excellent insulation property, high dielectric strength
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now
Model
S-480-24
INPUT
AC input voltage range(V)
AC 110/220-V±15%
Input current(A)
21A/115VAC;10.5A/230VAC
Frequency (Hz)
50/60Hz
Efficiency
82%(230VACFull Load)
Inrush current(A)
cold start 20A/115V AC 40A/230VAC
Leakage current(mA)
<;3.5mA/240VAC
output
Output Voltage(V)
24V±0.5DC
Voltage Regulation
±10%
Output Current(A)
20A
Current Range (A)
0-20A
Rated Power(W)
480W
Start time, hold-up time(ms)
300ms/230VAC 800ms,/115VAC at full load
Rise time(ms)
50ms at Full Load
Ripple/Noise(MVP-p)
120mVp-p
Environment
working Temperature (°C)
-10 centidegree to+60 centidegree
Storage Temperature(°C)
-20 centidegree to+85 centidegree
Humidity
20% to90%RH non condensing
Protection
Over voltage Protection
>115%-135% Rated output voltage
Over load Protection
>105%-150% Auto recovery
Short circuit Protection
Latched
Others
Size L*W*H(mm)
215*112*50mm
S-480-24
INPUT
AC input voltage range(V)
AC 110/220-V±15%
Input current(A)
21A/115VAC;10.5A/230VAC
Frequency (Hz)
50/60Hz
Efficiency
82%(230VACFull Load)
Inrush current(A)
cold start 20A/115V AC 40A/230VAC
Leakage current(mA)
<;3.5mA/240VAC
output
Output Voltage(V)
24V±0.5DC
Voltage Regulation
±10%
Output Current(A)
20A
Current Range (A)
0-20A
Rated Power(W)
480W
Start time, hold-up time(ms)
300ms/230VAC 800ms,/115VAC at full load
Rise time(ms)
50ms at Full Load
Ripple/Noise(MVP-p)
120mVp-p
Environment
working Temperature (°C)
-10 centidegree to+60 centidegree
Storage Temperature(°C)
-20 centidegree to+85 centidegree
Humidity
20% to90%RH non condensing
Protection
Over voltage Protection
>115%-135% Rated output voltage
Over load Protection
>105%-150% Auto recovery
Short circuit Protection
Latched
Others
Size L*W*H(mm)
215*112*50mm
