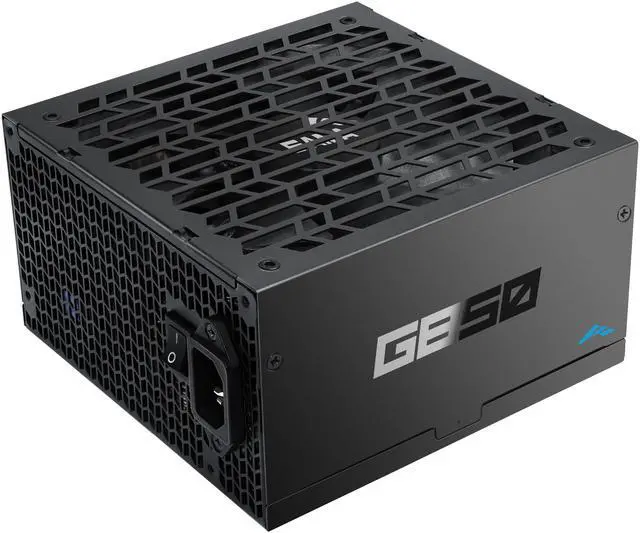

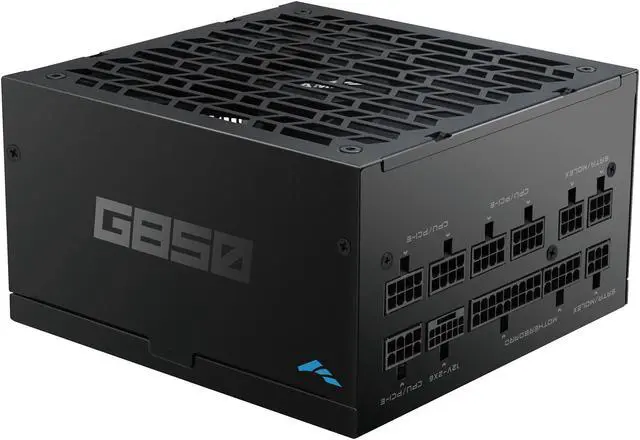

SAMA G850W ATX 3.1 Power Supply, 850W, Cybenetics Gold Standards, PCIe 5.1 Ready, Full Modular, Japanese Capacitors, FDB Fan, Black Version
OPEN BOX Product Type

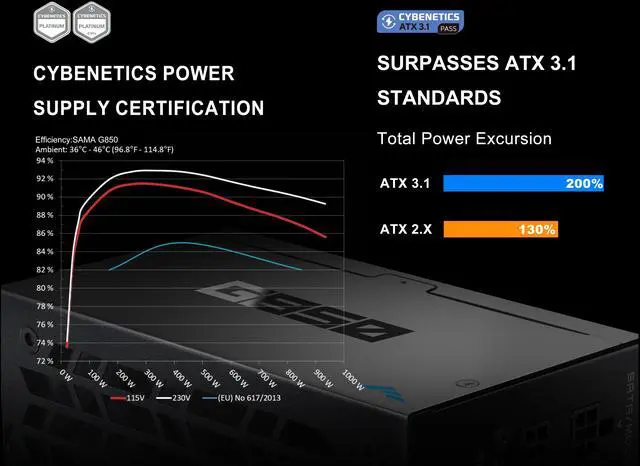

- Cybenetics Gold Coverage: Ensuring high efficiency with minimal noise.
- ATX 3.0 & PCIe 5.0 Ready: Comes with a 12VHPWR 16pin connector to provide up to 600W for power hungry Graphics card. The power supply fully ready for allfuture high performing components.

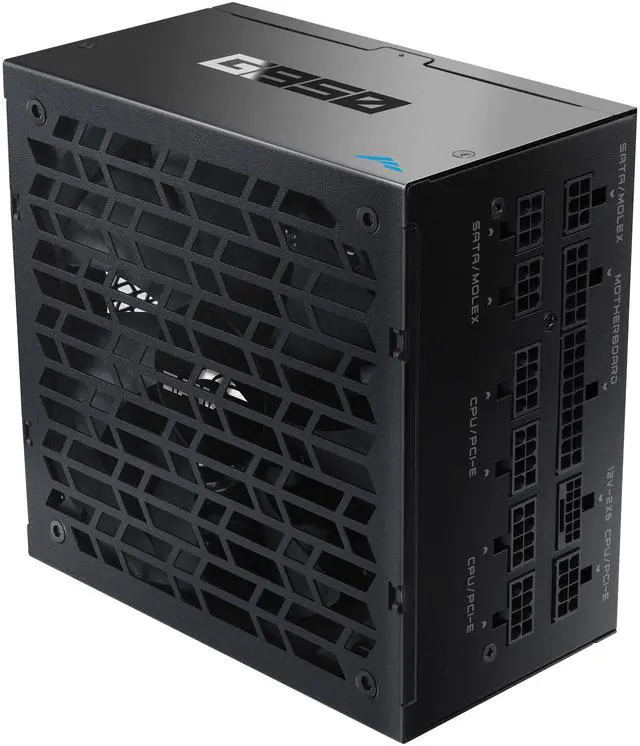

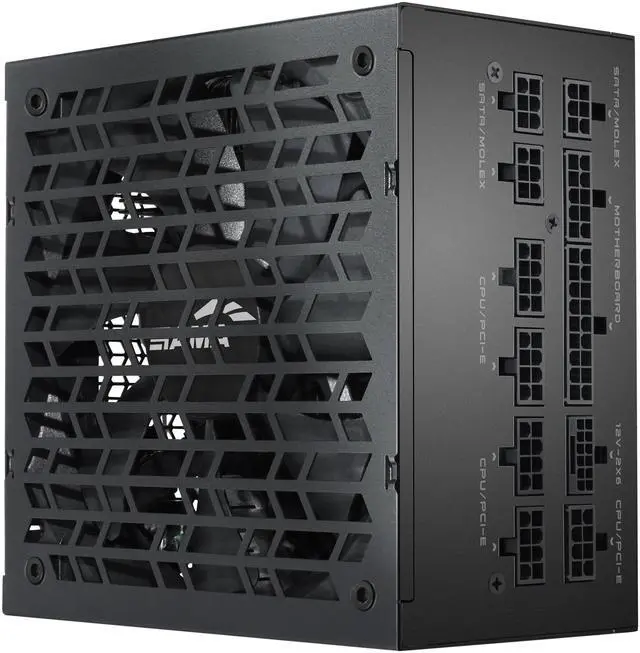

- Fully Modular Cabling Design: Modular cables for maximum build flexibility

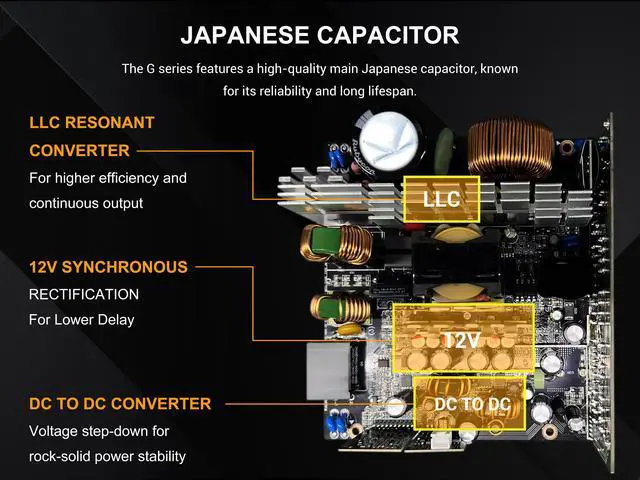

- Reliable Components: Equipped with 100% Japanese capacitors. Ensure stable power delivery and enhance overall durability.

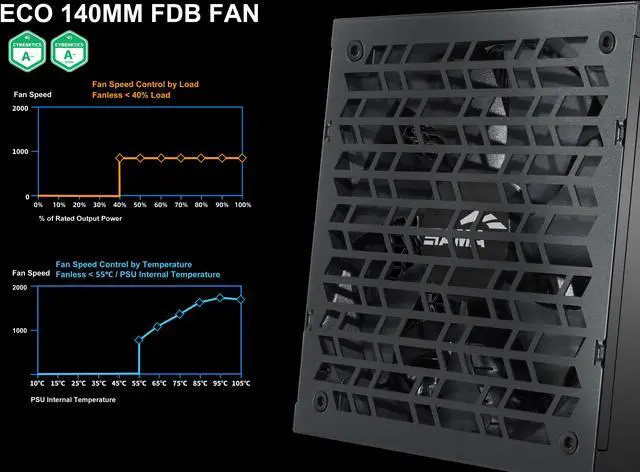

- 140mm ECO Fan with FDB: Ensures quieter operation, improved durability, and efficient cooling performance.

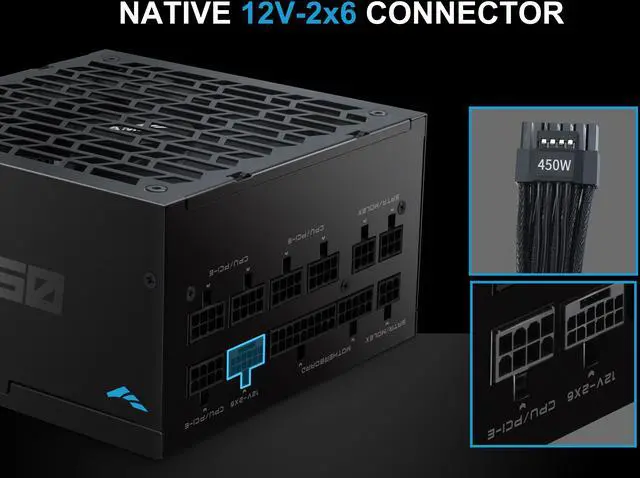

- Compatible with Latest Platforms: 12V-2x6 CONNECTOR compatible RTX 50 and 40 Series graphicscards.
- OTP/OCP/OPP/SCP/OVP/UVP/SIP/NLO
- 5-YEAR WARRANTY
+
+
Specs
Any questions? Our AI mode will help you find out quickly.
Try me now
Learn more about the SAMA HAT-850yzB1G
| Brand | SAMA |
|---|---|
| Model | HAT-850yzB1G |
| Series | G-Series |
| Type | ATX 3.1 Compatible |
|---|---|
| Maximum Power | 850 W |
| Modular | Full Modular |
| Fans | 1 x 140 mm |
| PFC | Active |
| Main Connector | 24Pin |
| +12V Rails | Single |
| PCI-Express Connector | 1 x 6+2-Pin |
| SATA Power Connector | 2 |
| Hold-up Time | > 12 ms @ 100% load |
| Efficiency | > 90% |
| Over Voltage Protection | Yes |
| Overload Protection | Yes |
| Input Voltage | 100 - 240 V |
| Output | 850W |
| MTBF | >100,000 Hours |
| Connectors | 1 x 24 pin ATX |
| Part Number | HAT-850yzB1G |
|---|
| Color | Black |
|---|---|
| Max PSU Length | 150 mm |

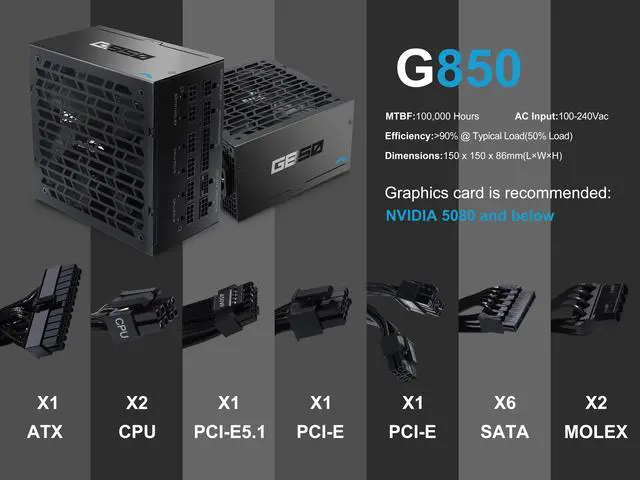

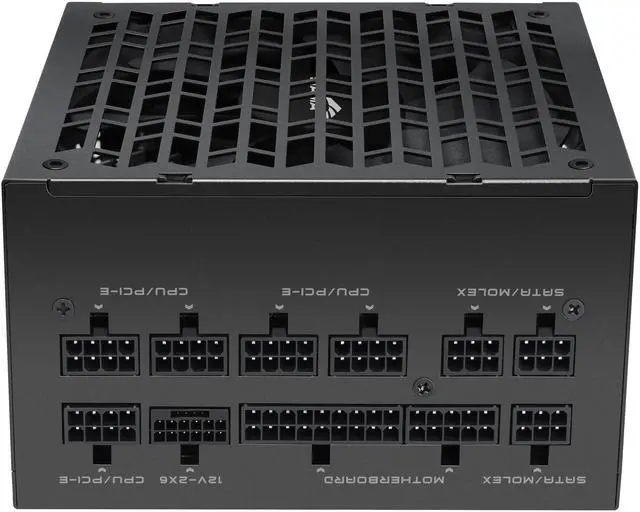

| Cable Spec | 1x MB ATX 24Pin 550mm 2x CPU (4+4)Pin 700mm 1x PCI-E (6+2)Pin 600mm 1x PCI-E (6+2)Pin+(6+2)Pin 550+150mm 1x 12V-2x6 (12+4)Pin 600mm 2x (SATA+SATA+SATA+Molex) 450+150+150+150mm |
| Modular | Yes |
| Hold-up Time | > 12 ms @ 100% load |
| Efficiency | > 90% |
| Energy-Efficient | Cybenetics Certified |
| MTBF | >100,000 Hours |
| Input Voltage | 100 - 240 V |
|---|
| Top Fans Size | 140mm |
|---|---|
| Top Fans Bearing Type | Fluid Dynamic Bearing |
| First Listed on Newegg | April 11, 2026 |
|---|
