GPNE 1600W ATX Power Supply, Fully Modular PSU for Gaming PC Case, 6 x 6+2 Pin PCIE ports, Lower Noise 140mm Double Ball Bearing Fan

(4) Write a Review
  • Full Modular Design: modular cables make cable management easier, it effectively reduces clutter, increases airflow and improves thermal performance.

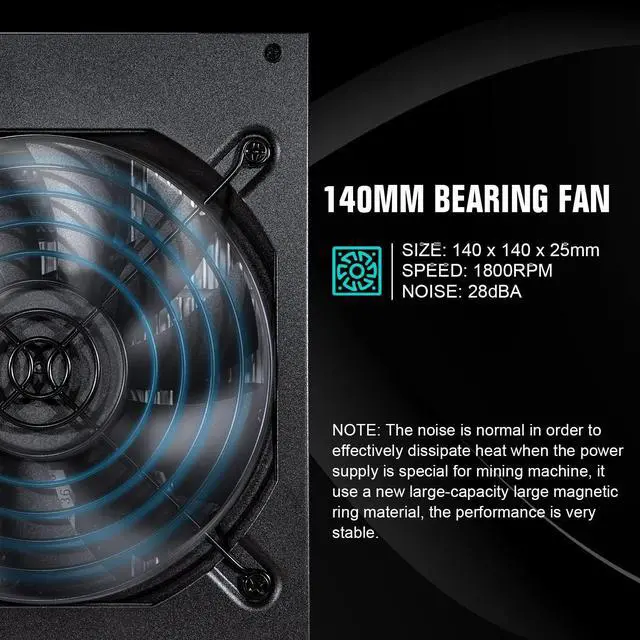

  • Low Noise Operation: The 140mm fan adopts two 8cm double ball bearing fan convection design, it keeps the fan operate under 800 rotating, virtually silent operation at low or medium loads.

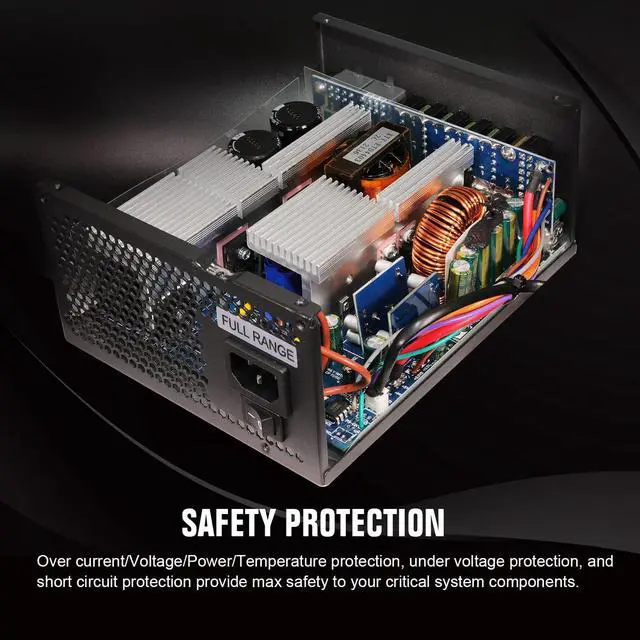

  • Safety and Reliable: Over current/Voltage/Power/Temperature protection, under voltage protection, and short circuit protection provide max safety to your critical system components.
  • The power supply has a rated output power of 1600W, which is durable and has a conversion efficiency of up to 87%. It is widely used in various mines and high-power single-circuit 12V industrial equipment.
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Overview
Specs
Reviews (4)
See all Q & A
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now
image for this item

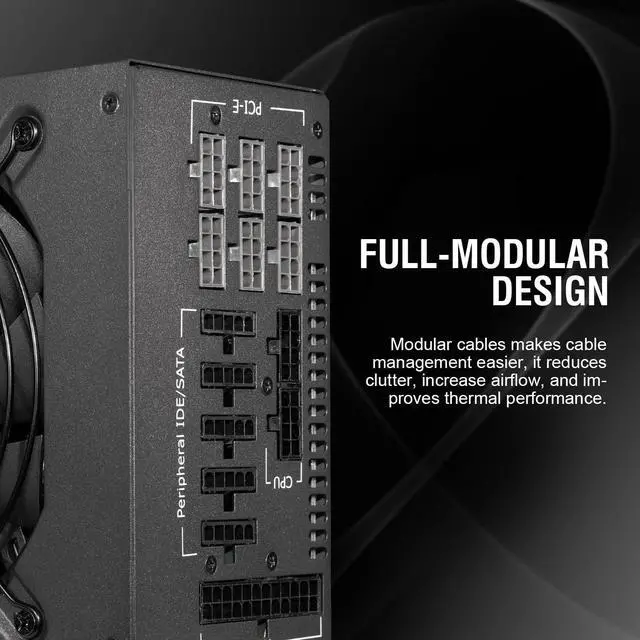

Full Modular Design

Full Modular Design makes cable management easier and provide better working performance.

image for this item
image for this item
image for this item
image for this item

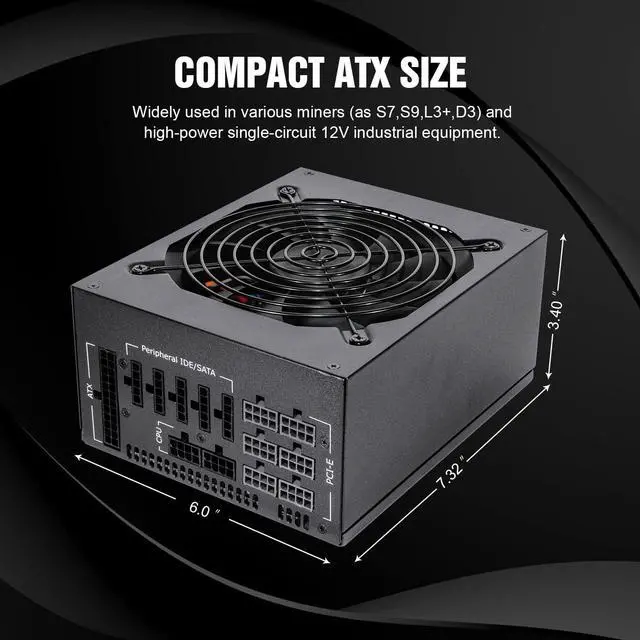

Small Size

Compact ATX power supply, suitable for ALL ATX computer case.

image for this item
image for this item
Specifications
Power Supply Size 7.32 x 6 x 3.4 inches
Model Fully Modular Support Double 8-Pin CPU

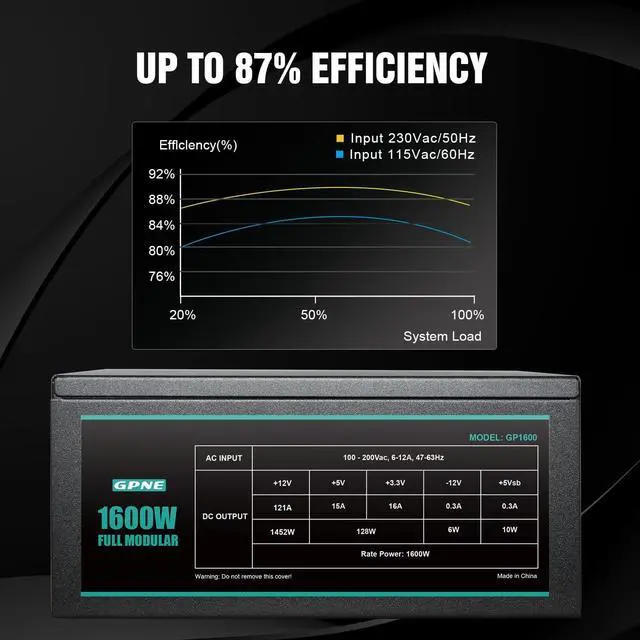

Efficiency Up to 85% with input 110v / 88% with input 220v
Cooling Fan 140mm Fan

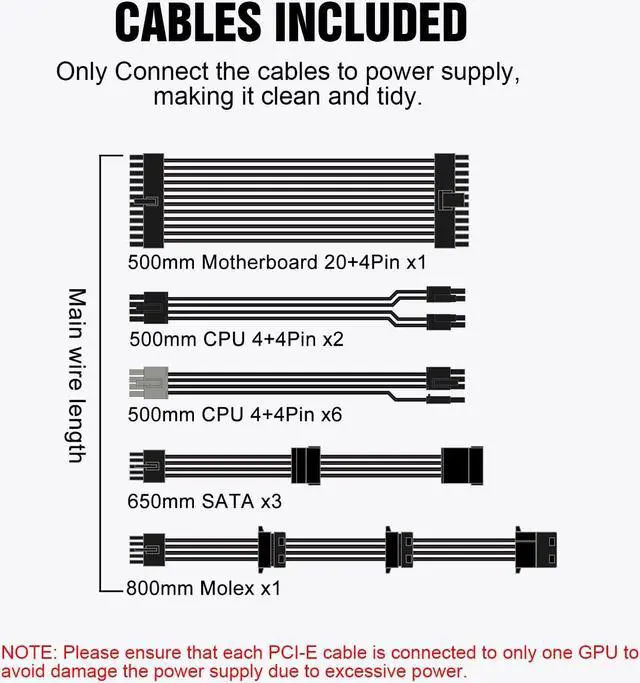

Interface 1x (20+4)PIN ; 2x (4+4)PIN CPU ; 6x (6+2)PIN PCI-E; 8x 4PIN SATA ; 3x 4PIN IDE
M/B(20+4P) 1(exposed 500MM)
CPU(4P+4P) 2(exposed 500MM)
PCI-E(6+2)P 6(exposed 500MM)
SATA 4(exposed 500MM) + 4(exposed 650MM)
Molex 4Pin 1(exposed 500MM) + 1(exposed 650MM) + 1(exposed 800MM)
GPNE 1600W Power Supply, 140mm Double Ball Bearing Fan Fully Modular PSU for Mining Rig & ATX PC Case, 5 Year
Warranty Input Voltage: 110V(fit for all ranges of 100~240V)
Model: Fully Modular Support Double 8Pin
CPU Output Type: FULL
PFC Type: Active
Efficiency: 85% with input 110v / 88% with input 220v 12V
Rail: Dual
I/O Switch: Yes
Cooling: 140mm fan
Interface: 1x (20+4)PIN; 2x (4+4)PIN CPU; 6x (6+2)PIN PCI-E; 8x 4PIN SATA; 3x 4PIN IDE Guard
Power cord: Yes
Housing size: ATX 165*150*85MM
Housing material: SGCC
M/B(20+4P): 1 (exposed 500MM)
CPU(4P+4P): 2 (exposed 500MM)
PCI-E(6+2)P: 6 (exposed 500MM)
SATA: 4 (exposed 500MM) + 4 (exposed 650MM)
Molex 4Pin: 1 (exposed 500MM) + 1 (exposed 650MM) + 1 (exposed 800MM)
Output Current: (DC
Output: +
3.3V ): 15A (Combuned
Power: =125W) (DC
Output: +
5V): 15A (Combuned
Power: =125W) (DC
Output: +
12V): 124A (Combuned
Power: =1488WW) (DC
Output: +
5VSB): 3.0A (Combuned
Power: 10W) (DC
Output:
-12V): 0.5A (Combuned
Power: 6W)
