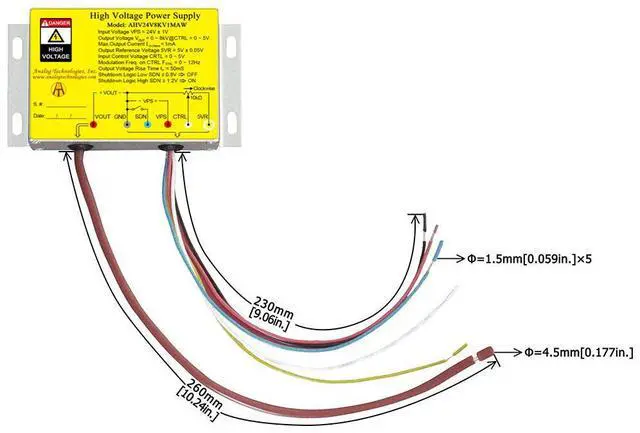

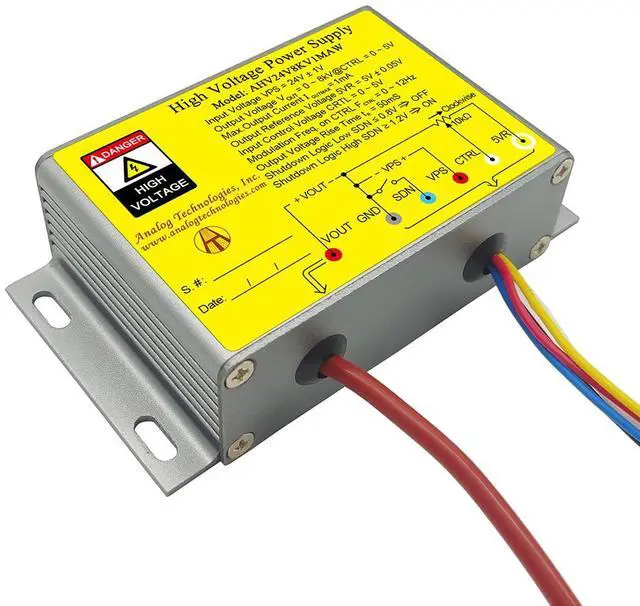

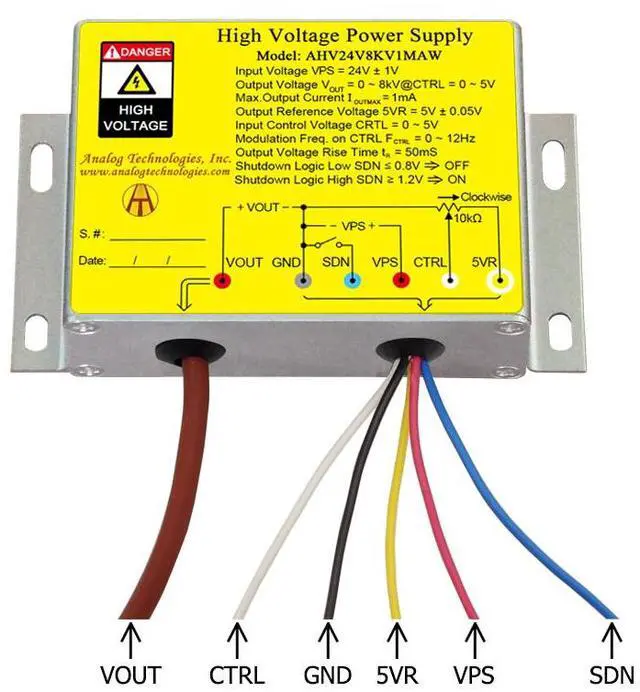

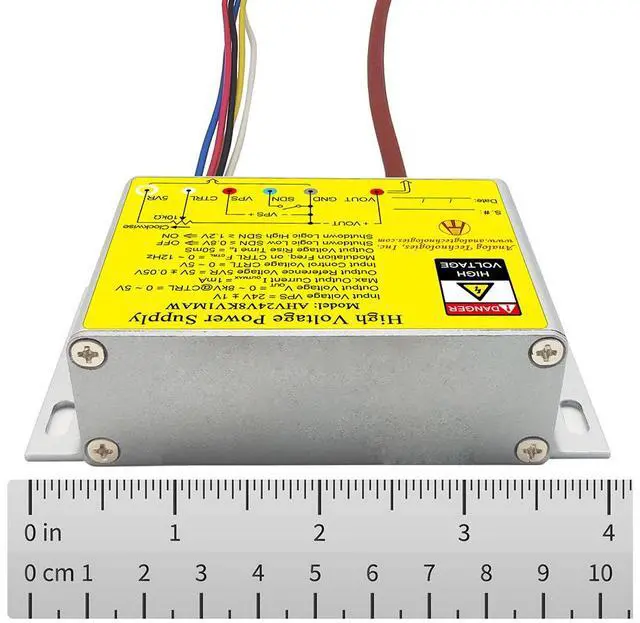

    Analog Technologies Compact High Voltage Power Supply 0 to 8KV Output Voltage 1mA Output Current 24V Input DC DC Converter AHV24V8KV1MAW

    Be the first to review this product...
    • Input Power Voltage: 24V ± 1V
    • Input Current Range: 110mA to 480mA
    • Output Voltage: 0 to 8V@CTRL = 0 to 5V
    • Max. Output Current: 1mA
    • Reference Voltage: 5V ± 0.05V
    • Input Control Voltage: 0 to 5V
    • Full Span Modulation on Output Voltage
    • Electronic Shutdown Control
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    Sponsored

    You’re seeing this ad based on the product’s relevance to your search query. If you are a seller and want to participate in this program click here to learn more.

    GIGABYTE Z890 AORUS ELITE WIFI7 ICE Ultra Core (Series 2) LGA 1851, ATX, DDR5, 4x M.2, PCIe 5.0, Thunderbolt 4, WIFI7, 2.5GbE LAN, EZ-Latch
    GIGABYTE Z890 AORUS ELITE WIFI7 ICE Ultra Core (Series 2) LGA 1851, ATX, DDR5, 4x M.2, PCIe 5.0, Thunderbolt 4, WIFI7, 2.5GbE LAN, EZ-Latch
    (117)
    •
    • $247.99 –
    • Save: 14%
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    FEATURES

    Input Power Voltage: 24V ± 1V

    Input Current Range: 110mA to 481mA

    Output Voltage: 0 to 8kV @CTRL = 0 to 5V

    Monitor Voltage: 0 to 1.5V

    Max. Output Current: 1mA

    Reference Voltage: 5V ± 0.05V

    Input Control Voltage: 0 to 5V

    Full Span Modulation on Output Voltage

    Electronic Shutdown Control

    APPLICATIONS

    This power module AHV24V8KV1MAW is designed for achieving DC-DC conversion from low voltage to high voltage as a power supply source which is widely used in scientific research and other fields including:

    X-ray Machine

    Spectral Analysis

    Nondestructive Inspection

    Semiconductor Manufacturing Equipment

    CRT Monitor Test

    Particle Accelerator

    Capillary Electrophoresis

    Nondestructive Detection

    Particles Injection

    Semiconductor Technology

    Physical Vapor Phase Deposition

    Radio Frequency Amplification

    Electrospinning Preparation of Nanofiber

    Glass / Fabric Coating

    DC Reactive Magnetron Sputtering
