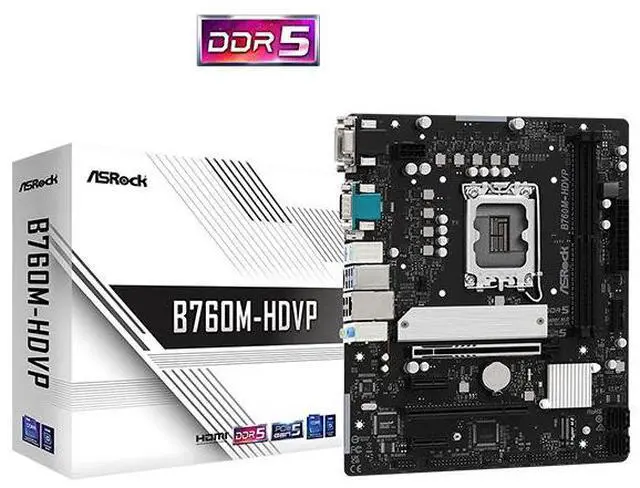

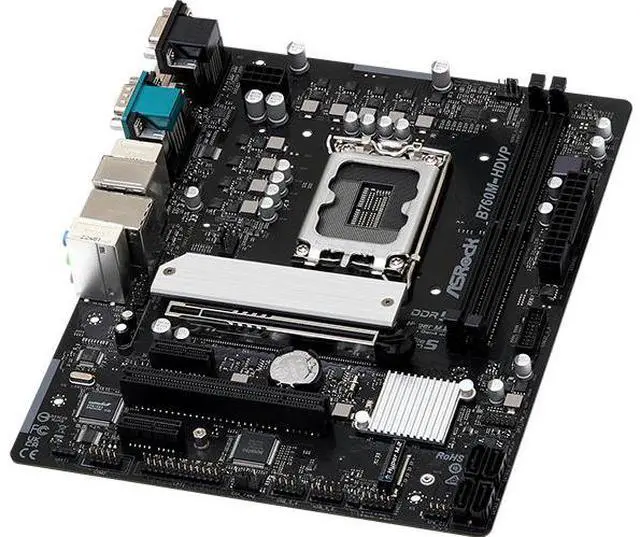

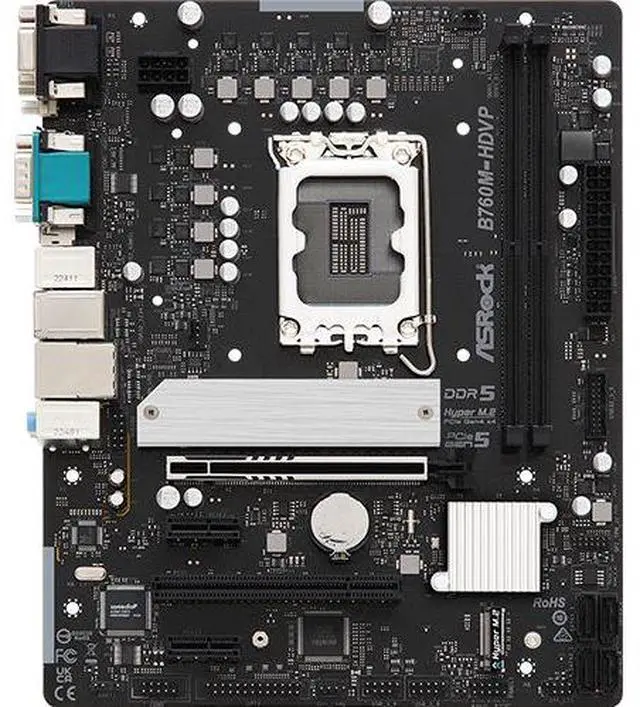

ASRock B760M-HDVP
- Supports 14th, 13th & 12th Gen Intel® Core Processors (LGA1700)
- 7+1+1 Power Phase
- 2 x DDR5 DIMMs
- Supports Dual Channel, up to 7000+ (OC)
- 1 PCIe 5.0 x16, 2 PCIe 4.0 x1, 1 PCI
- Graphics Output Options: 1 HDMI, 1 DisplayPort,
- 1 DVI-D, 1 D-Sub
- Realtek ALC897 7.1 CH HD Audio Codec
- 2 Hyper M.2 (PCIe Gen4x4), 4 SATA3
- 2 USB 3.2 Gen2 Type-A (Rear),
- 4 USB 3.2 Gen1 Type-A (2 Rear, 2 Front),
- 6 USB 2.0 (2 Rear, 4 Front)
- Realtek Gigabit LAN
- Supports ASRock Auto Driver Installer
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

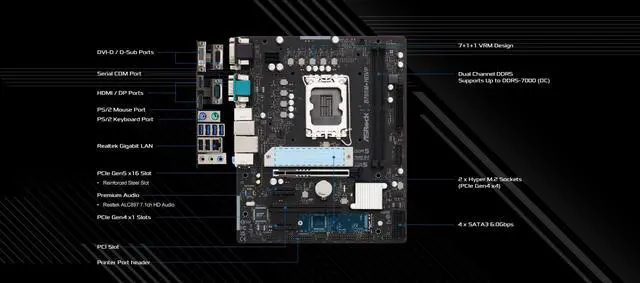

- Unique Feature
- Superb Productivity
- - PCIe Gen5 (Graphics)
- - Dual Channel DDR5
- Rock-Solid Durability
- - 7+1+1 Power Phase
- EZ Update
- - ASRock Auto Driver Installer
- CPU
- - Supports 14th, 13th & 12th Gen Intel® Core Processors (LGA1700)
- - Supports Intel® Hybrid Technology
- - Supports Intel® Turbo Boost Max 3.0 Technology
- - Supports Intel® Thermal Velocity Boost (TVB)
- - Supports Intel® Adaptive Boost Technology (ABT)
- Chipset
- - Intel® B760
- Memory
- - Dual Channel DDR5 Memory Technology
- - 2 x DDR5 DIMM Slots
- - Supports DDR5 non-ECC, un-buffered memory up to 7000+(OC)*
- - Max. capacity of system memory: 128GB
- - Supports Intel® Extreme Memory Profile (XMP) 3.0
- *1DPC 1R Up to 7000+ MHz (OC), 5600 MHz Natively.
- 1DPC 2R Up to 6600+ MHz (OC), 5200 MHz Natively.
- BIOS
- - 128Mb AMI UEFI Legal BIOS with GUI support
- Graphics
- - Intel® Xe Graphics Architecture (Gen 12)
- - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
- - 1 x DVI-D, supports max. resolution up to Full HD (1920x1200) 60Hz
- - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
- - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
- *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
- Audio
- - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- LAN
- - Gigabit LAN 10/100/1000 Mb/s
- - Realtek 8111H
- Slots
- CPU:
- - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
- Chipset:
- - 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3)*
- ASMedia ASM1083:
- - 1 x PCI Slot
- *Supports NVMe SSD as boot disks
- Storage
- CPU:
- - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- Chipset:
- - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- - 4 x SATA3 6.0 Gb/s Connectors
- *Supports Intel® Volume Management Device (VMD)
- Supports NVMe SSD as boot disks
- RAID
- - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- USB
- - 2 x USB 3.2 Gen2 Type-A (Rear)
- - 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
- - 6 x USB 2.0 (2 Rear, 4 Front)
- *All USB ports support ESD Protection
- Connector
- - 1 x Print Port Header
- - 1 x COM Port Header
- - 1 x SPI TPM Header
- - 1 x Chassis Intrusion and Speaker Header
- - 1 x CPU Fan Connector (4-pin)*
- - 1 x Chassis Fan Connector (4-pin)**
- - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
- - 1 x 24 pin ATX Power Connector
- - 1 x 8 pin 12V Power Connector
- - 1 x Front Panel Audio Connector
- - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- *CPU_FAN1 supports the fan power up to 1A (12W).
- **CHA_FAN2 supports the fan power up to 1A (12W).
- ***CHA_FAN1/WP supports the fan power up to 2A (24W).
- CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

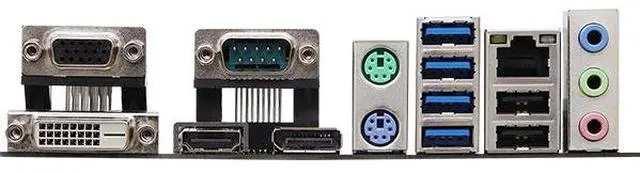

- Rear Panel I/O
- - 1 x PS/2 Keyboard Port
- - 1 x PS/2 Mouse Port
- - 1 x Serial Port: COM1
- - 1 x D-Sub Port
- - 1 x DVI-D Port
- - 1 x HDMI Port
- - 1 x DisplayPort 1.4
- - 2 x USB 3.2 Gen2 Type-A Ports
- - 2 x USB 3.2 Gen1 Type-A Ports
- - 2 x USB 2.0 Ports
- - 1 x RJ-45 LAN Port
- - HD Audio Jacks: Line in / Front Speaker / Microphone
- Software and UEFI
- Software
- - ASRock Motherboard Utility (A-Tuning)
- UEFI
- - ASRock EZ Mode
- - ASRock Full HD UEFI
- - ASRock My Favorites in UEFI
- - ASRock Auto Driver Installer
- - ASRock Instant Flash
- - ASRock Easy RAID Installer
- *These utilities can be downloaded from ASRock Live Update & APP Shop.
- Accessories
- - 1 x User Manual
- - 1 x I/O Shield
- - 2 x SATA Data Cables
- - 2 x Screws for M.2 Sockets
- - 1 x Standoff for M.2 Socket
- Form Factor
- - Micro ATX Form Factor: 9.6-in x 7.8-in, 24.4 cm x 19.8 cm
- OS
- - Microsoft® Windows® 10 64-bit / 11 64-bit
- Certifications
- - FCC, CE
- - ErP/EuP ready (ErP/EuP ready power supply is required)
