ASUS ROG Maximus XI Hero (Wi-Fi) Z390 Gaming Motherboard LGA 1151 (300 Series) ATX Onboard 802.11 ac

REFURBISHED

Be the first to review this product...

Designed for 9th and 8th generation Intel Core processors to maximize connectivity and speed with dual M.2, USB 3.1 Gen 2, onboard 802.11 ac Wi-Fi and ASUS OptiMem II for better DRAM overclocking stability
Revamped 5-Way Optimization overclocks intelligently based on smart prediction and thermal telemetry while FanXpert 4 delivers dynamic system cooling

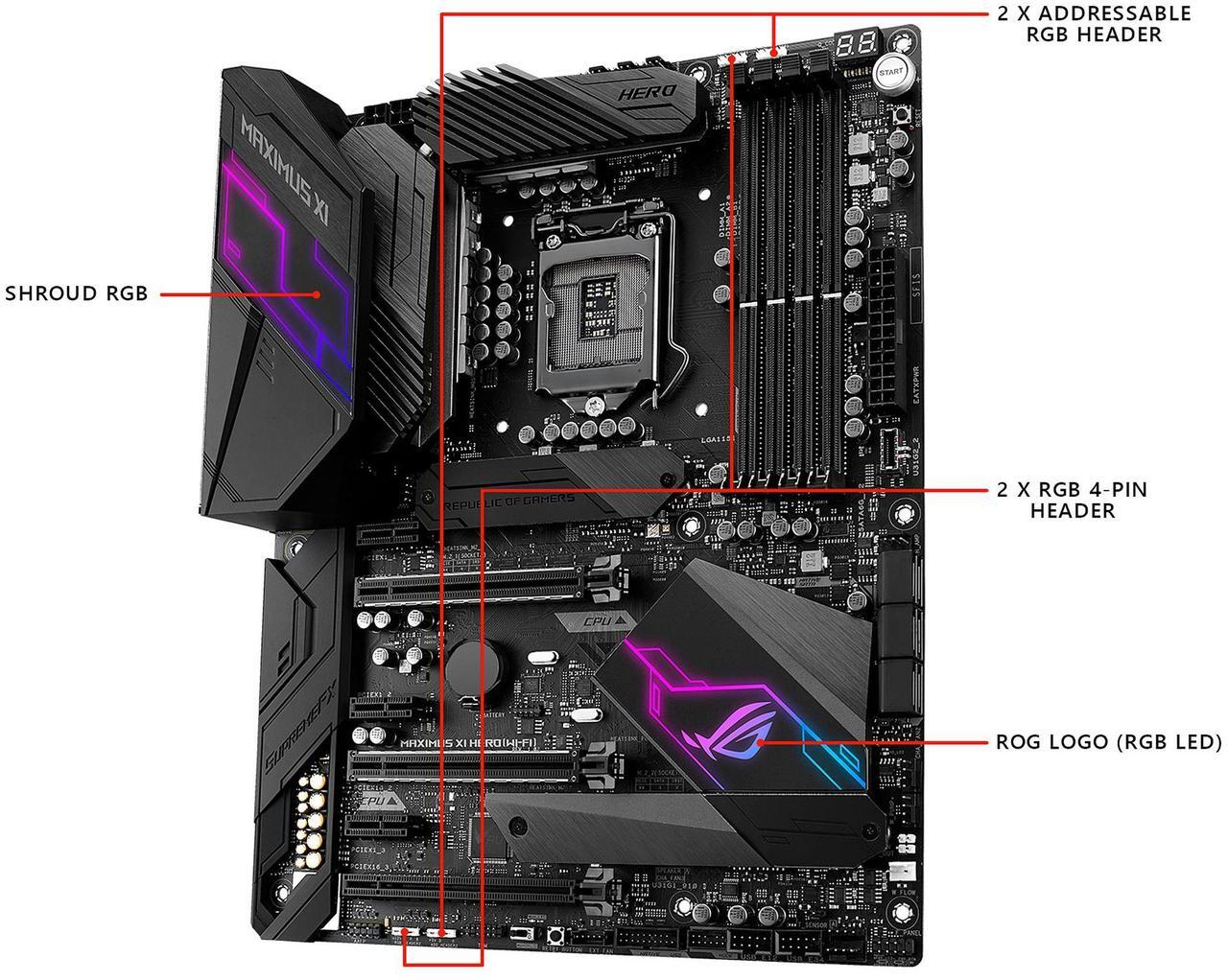

Aura Sync RGB lighting with addressable headers features a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of Aura Sync enabled products
Pre-mounted I/O shield ensures streamlined installation and represents ROG's attention to detail and quality

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

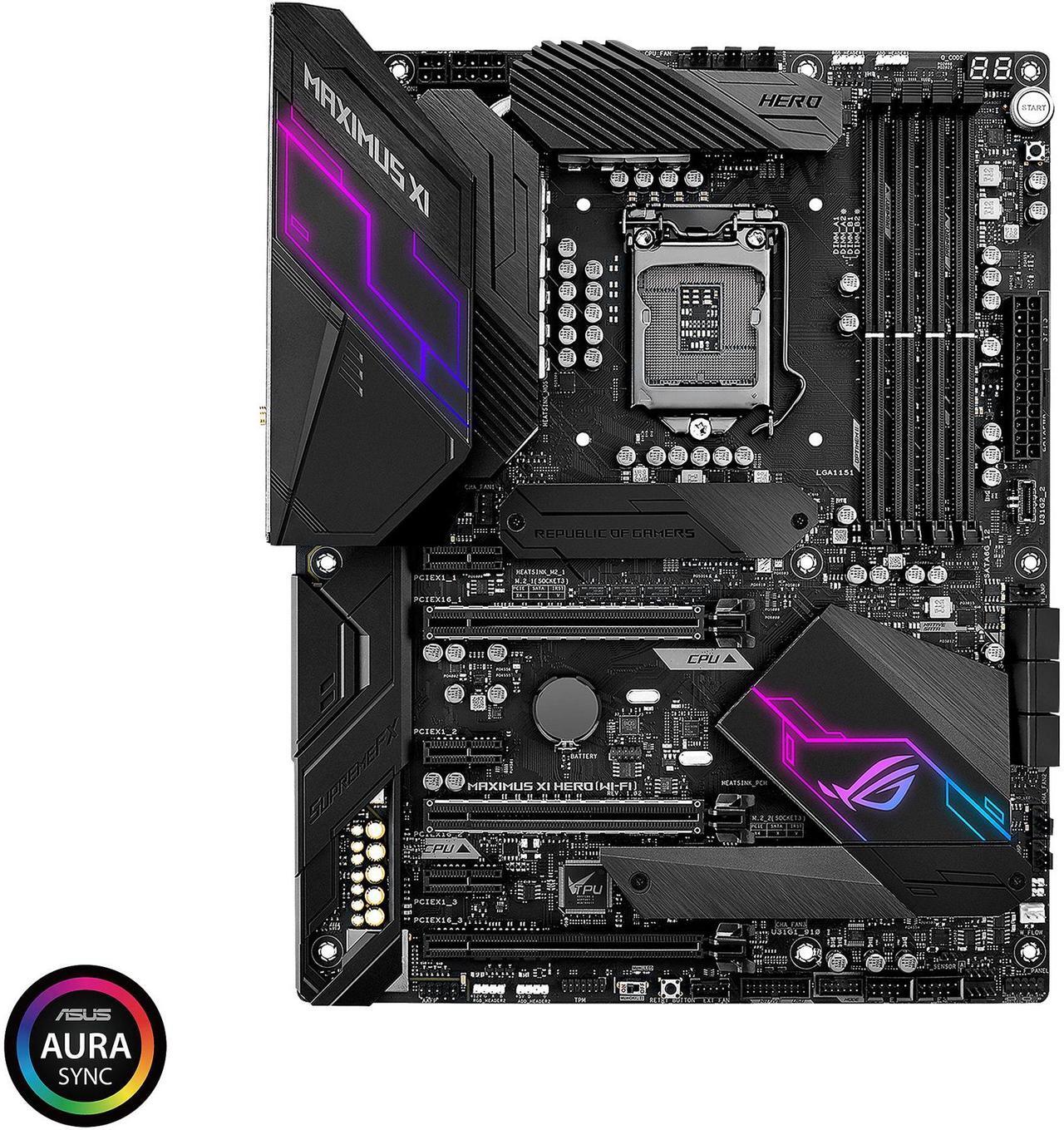

ROG MAXIMUS XI HERO (WI-FI)

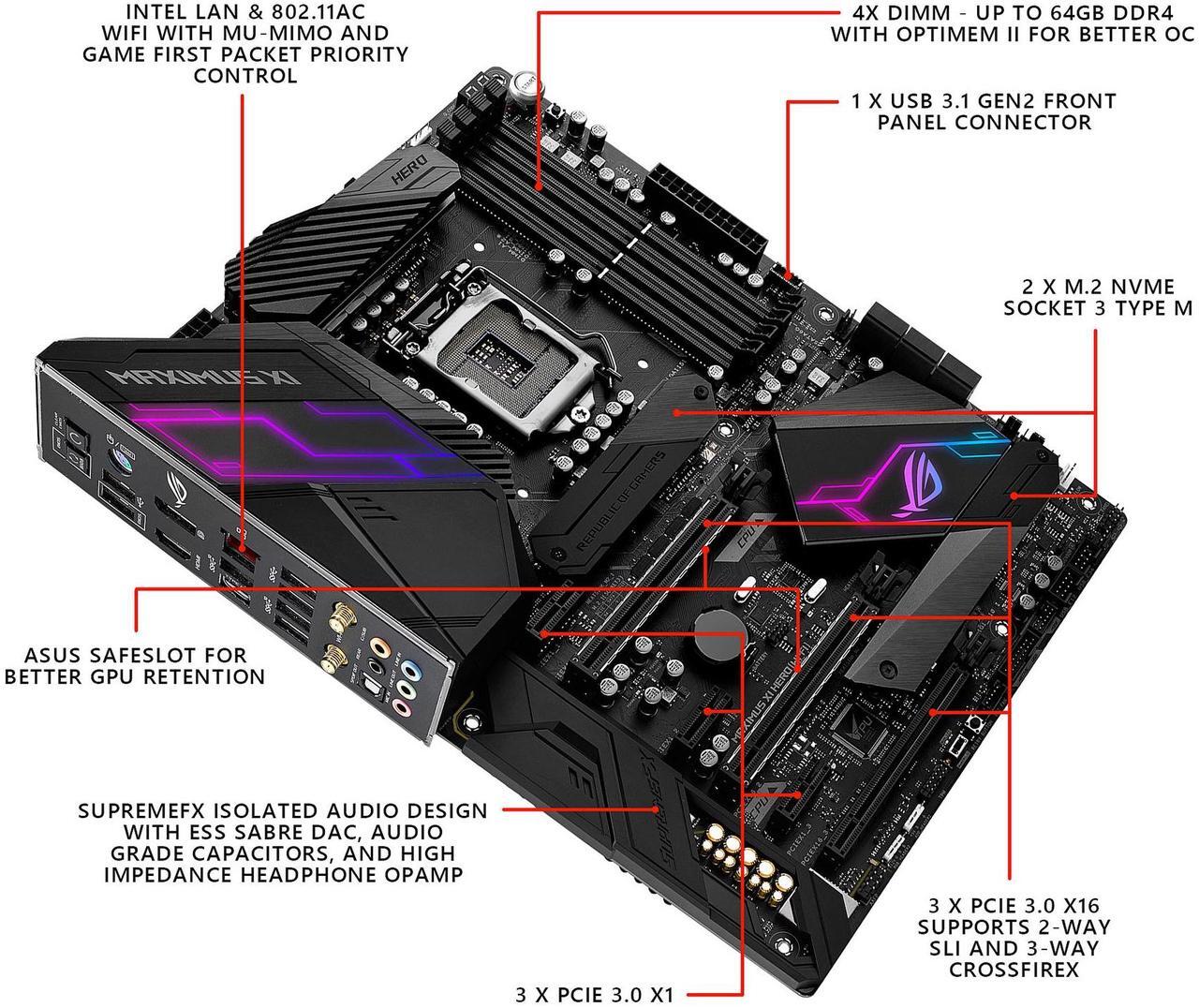

Intel Z390 ATX gaming motherboard features M. 2 heatsink, Aura Sync RGB LED lighting, DDR4 4400MHz, 802.11 ac Wi-Fi, dual M. 2, SATA 6Gb/s, and USB 3.1 Gen 2 ports
LGA1151 socket with support for 9th/8th Gen Intel ® Core desktop processors
Aura SYNC is ready to sync with other Aura SYNC-enabled devices, including programmable RGB strips and Phillip Hue

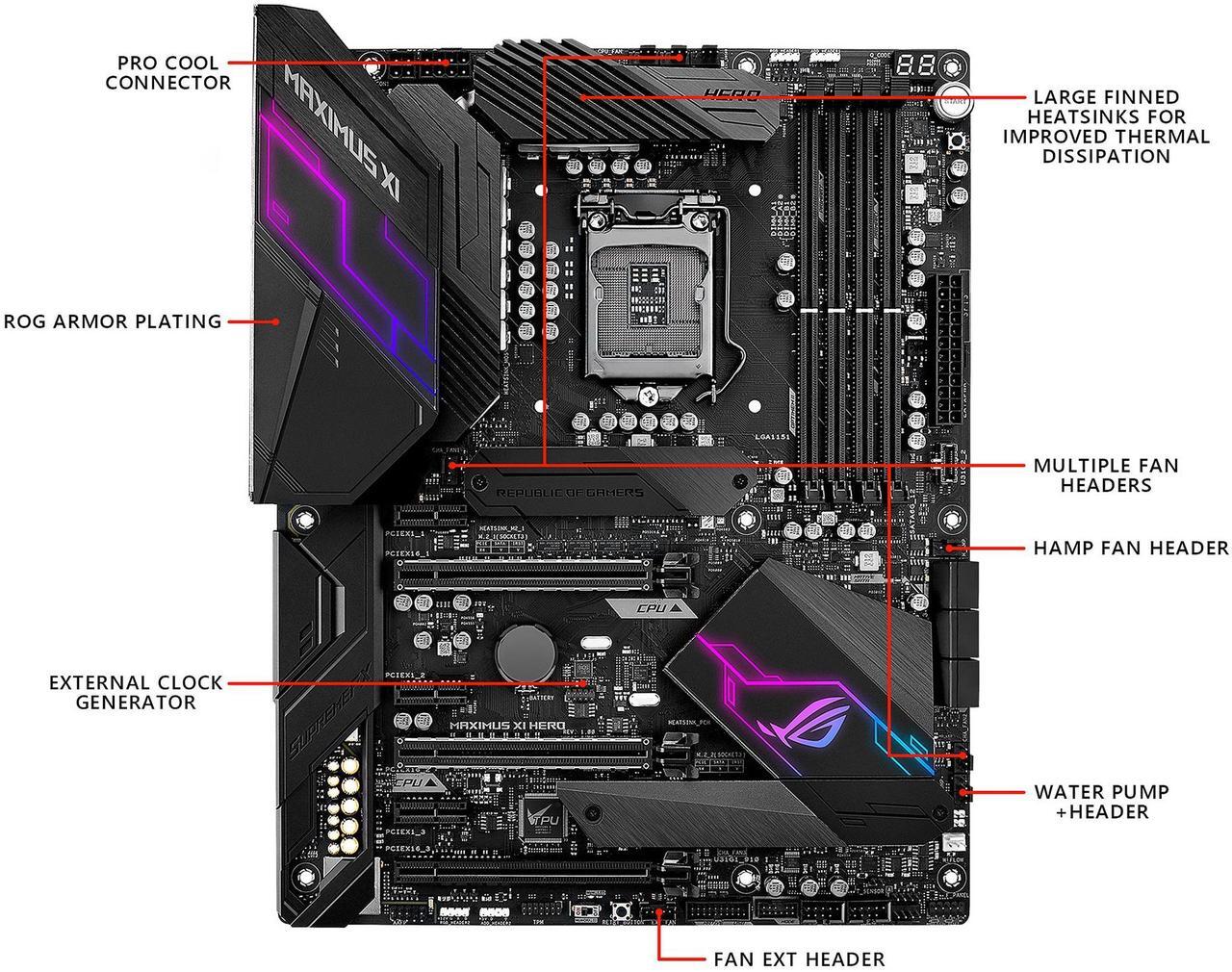

Achieve better heat dissipation with a water-cooled control zone, M. 2 heat dissipation design, and all-round fan control
ROG's Ultrafast Connectivity: Intel Gigabit Ethernet, LANGuard Internet Security, 2x2 802.11 ac Intel CNVi Wi-Fi, dual M. 2, USB 3.1 Gen 2
ROG Overclocking Tools: A wide range of overclocking options, easy-to-use, automated, one-click overclocking, and advanced BIOS granular controls
ROG Faith Audio: SupremeFX gaming audio technology and Sonic Studio III are the original audio reproductions for an immersive gaming experience
ROG Trust: ASUS SafeSlot and high-quality components for maximum durability

Model
Brand	ASUS
Series	ROG
Model	Maximus XI Hero (Wi-Fi)

Supported CPU
CPU Type	Intel Socket 1151 9th/8th Gen Intel Core, Pentium Gold and Celeron Processors * Not backward compatible with older generation of LGA 1151 CPUs * Refer to www.asus.com for CPU support list
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0* * Intel Turbo Boost Technology 2.0 support depends on the CPU types

Chipsets
Chipset	Intel Z390

Onboard Video
Onboard Video Chipset	Integrated Graphics Processor - Intel UHD Graphics support Multi-VGA output support: HDMI/DisplayPort ports - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 4400(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	2 x PCIe 3.0 x16 (x16 or dual x8 or x8/x4/x4) 1 x PCIe 3.0 x16 (x4 mode) * * The PCIe x16_3 slot shares bandwidth with SATA6G_5 and SATA6G_6. The PCIe x16_3 runs x2 mode by default.
PCI Express x1	3 x PCIe 3.0 x1 slots

Storage Devices
SATA 6Gb/s	6 x SATA 6Gb/s
M.2	1 x M.2_1 Socket 3 with M Key, type 2242/2260/2280 (supports PCIE 3.0 x4 and SATA modes)* 1 x M.2_2 Socket 3 with M Key, type 2242/2260/2280/22110 (supports PCIE 3.0 x4 mode) * When the M.2_1 Socket 3 is operating in SATA mode, SATA6G_2 port will be disabled.
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	ROG SupremeFX S1220 High Definition Audio CODEC
Audio Channels	8 Channels * Due to limitations in HDA bandwidth, 32-Bit / 192 kHz is not supported for 8-Channel audio.

Onboard LAN
LAN Chipset	Intel I219-V
Max LAN Speed	1Gbps
Wireless LAN	Intel Wireless-AC 9560 Wi-Fi 802.11 a/b/g/n/ac Supports dual band frequency 2.4/5 GHz Supports MU-MIMO Supports channel bandwidth: HT20/HT40/HT80/HT160
Bluetooth	Bluetooth v5.0

Rear Panel Ports

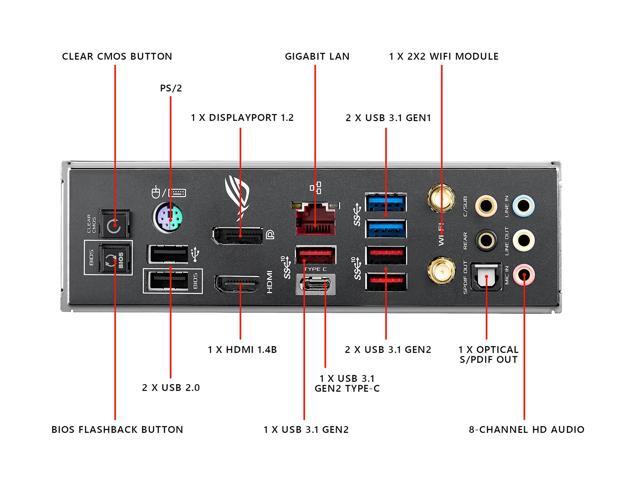

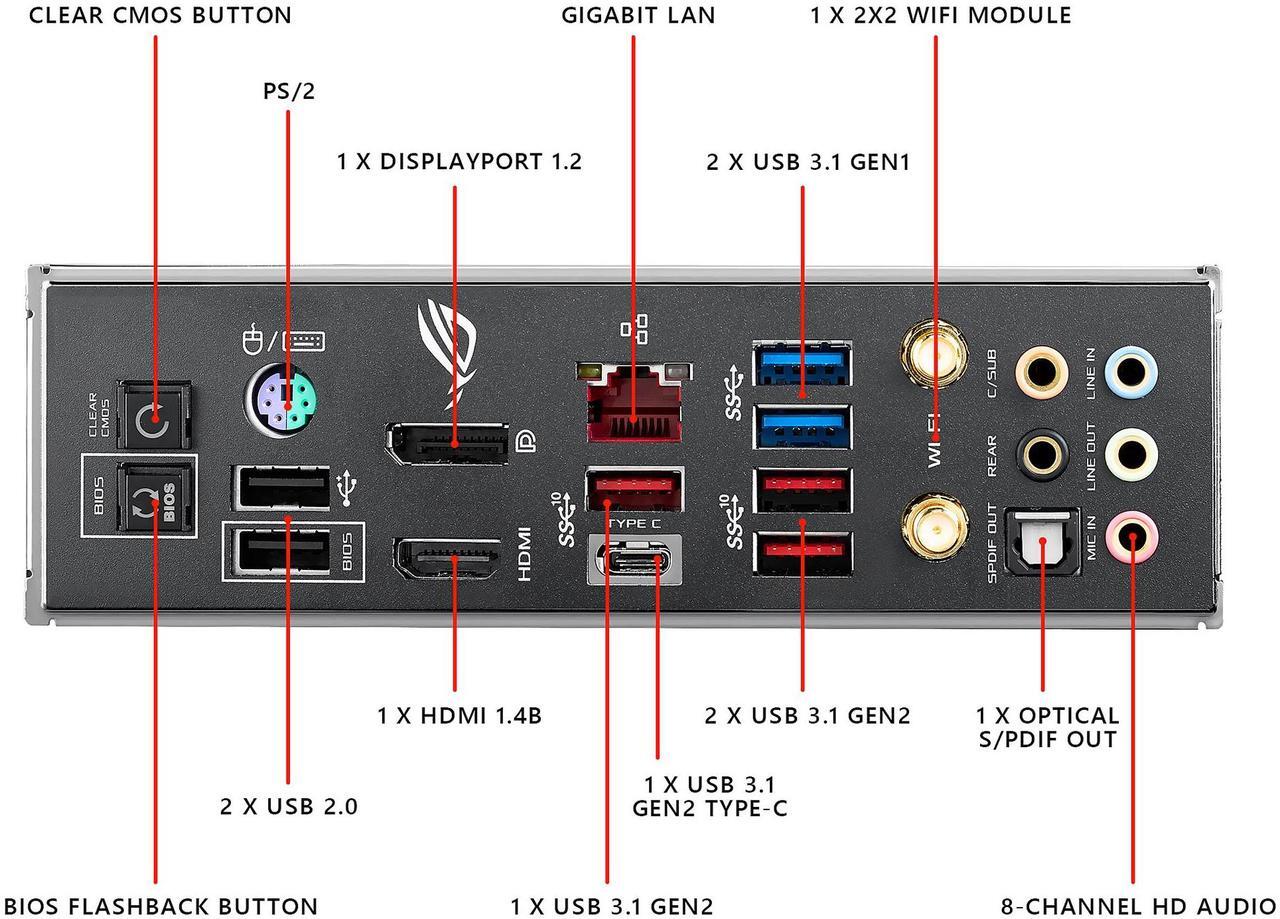

Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.1 Gen 2 (red) (1 x Type-C + 3 x Type-A) 2 x USB 3.1 Gen 1 (blue) Type-A 2 x USB 2.0 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x USB BIOS Flashback Button(s) 1 x ASUS Wi-Fi Module 5 x Gold-plated audio jacks

Internal I/O Connectors
Onboard USB	1 x USB 3.1 Gen 2 front panel connector 1 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors	2 x Aura Addressable Strip Header(s) 2 x Aura RGB Strip Headers 1 x TPM connector(s) 1 x CPU Fan connector(s) (1 x 4-pin) 1 x CPU OPT Fan connector(s) (1 x 4-pin) 3 x Chassis Fan connector(s) (3 x 4-pin) 1 x AIO_PUMP connector (1 x 4-pin) 1 x H_AMP fan connector 1 x W_PUMP+ connector (1 x 4-pin) 1 x Front panel audio connector(s) (AAFP) 1 x MemOK! II switch(es) 1 x Reset button(s) 1 x ReTry button 1 x System panel connector 1 x EXT_Fan header 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Thermal sensor connector 1 x Start button

Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x 4-pin ATX 12V Power connector(s)

Features
Features	Multi-GPU Support: Supports NVIDIA 2-Way SLI Technology Supports AMD 3-Way CrossFireX Technology ROG Exclusive Features: ReTry Button Start Button Reset Button Extreme Engine Digi+: - MicroFine Alloy Chokes - 10K Black Metallic Capacitors - OptiMOS MOSFET Mem TweakIt Extreme Tweaker ROG Exclusive Software - Mem Tweakit - RAMCache III - RAMDisk - CPU-Z - GameFirst V - Sonic Studio III + Sonic Studio Link - Sonic Radar III Special Features: ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5: - 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App AURA: - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices - Aura Addressable Strip Header(s) ASUS Exclusive Features: - USB BIOS Flashback - MemOK! II - AI Suite 3 - Ai Charger - ASUS CrashFree BIOS 3 - Armoury Crate - Pre-mounted I/O Shield - ASUS NODE: hardware control interface - OptiMem II - ASUS EZ Flash 3 - ASUS C.P.R. (CPU Parameter Recall) - BUPDATER - BIOS Flashback Button - Clear CMOS Button - Reset Button ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design: - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Overclocking Protection: - ASUS C.P.R. (CPU Parameter Recall) BIOS: 1 x 128MB Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1 Operating System: Windows 10 64-bit

Packaging
Package Contents	Accessories: User's manual 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11 a/b/g/n/ac compliant) 1 x SLI HB BRIDGE (2-WAY-M) 1 x ROG big sticker 1 x Q-Connector 1 x Extension Cable for RGB strips (80cm) 1 x Extension cable for Addressable LED 1 x ROG coaster(s)

Additional Information
Date First Available	June 04, 2025
