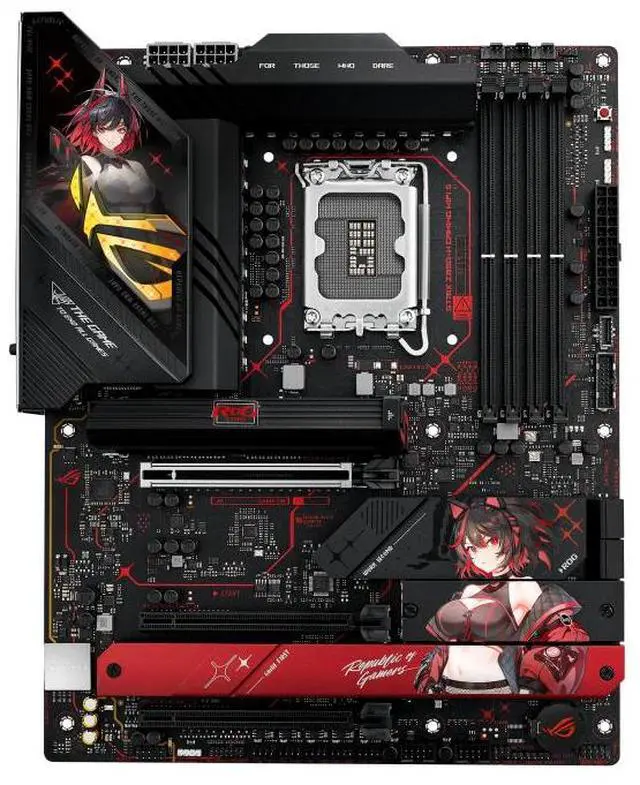

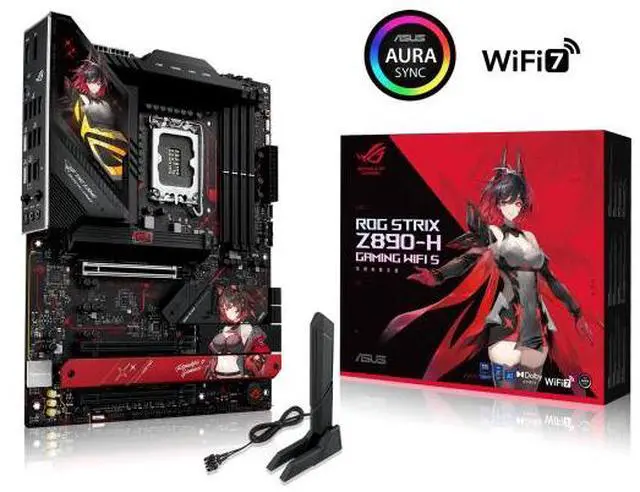

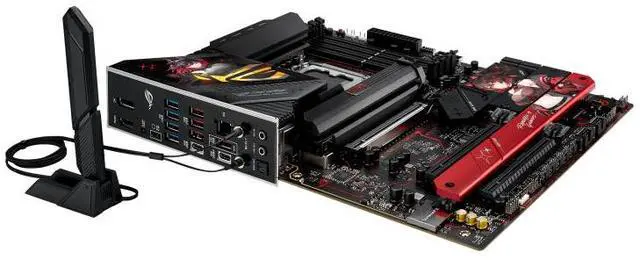

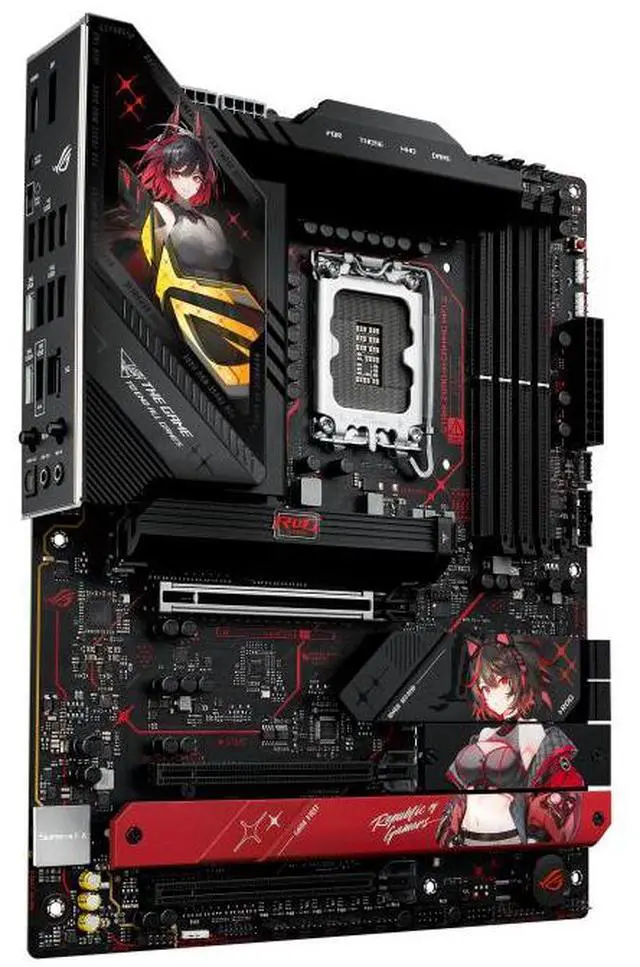

ASUS ROG STRIX Z890-H GAMING WIFI S RO Ji EDITION LGA 1851 ATX motherboard, Intel® Core Ultra Series 2 Ready, Advanced AI PC-ready, 16+1+2+2 80A power stages, DDR5, PCIe® 5.0

processor

Intel® Socket LGA1851 for Intel® Core Ultra Processors(Series 2)

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to https://www.asus.com/support/download-center/ for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

chipset

Intel® Z890 Chipset

Memory

4 x DIMM slots, max. 256GB, DDR5

Support up to 9066+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*

Dual channel memory architecture

Supports Intel® Extreme Memory Profile (XMP) memory module

Supports DIMM Flex

DIMM Fit

ASUS Enhanced Memory Profile III (AEMP III)

*Adjustments will be made based on the specifications of mass-produced memory products available on the market.

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory

Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.

* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Display function

1 x DisplayPort**

1 x HDMI port***

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

** Supports max. 8K@60Hz as specified in DisplayPort 1.4.

*** Supports 4K@60Hz as specified in HDMI 2.1.

**** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion slot

Intel® Core Ultra Processors(Series 2)

1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)

Intel® Z890 Chipset

2 x PCIe 4.0 x16 slots (supports x4 mode)

To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

Storage device slot

Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel® Core Ultra Processors(Series 2)*

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

Intel® Z890 Chipset

M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.

Network function

1x Realtek 5G Ethernet

ASUS LANGuard

Wireless/Bluetooth

Wi-Fi 7*

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band**

Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.

Bluetooth® v5.4***

*Wi-Fi features may vary depending on the operating system

For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.

For Windows 10, please note that no driver is available, please refer to the Wi-Fi chipset vendor's website for details.

** Wi-Fi 6GHz frequency band and bandwidth regulation may vary between countries.

*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

Rear USB (Total 10 ports)

2 x USB 20Gbps ports (1 x USB Type-C®* + 1 x USB Type-C® with up to 30W PD Fast-charge)**

4 x USB 10Gbps ports (4 x Type-A)

4 x USB 5Gbps ports (4 x Type-A)

Front USB (Total 7 ports)

1 x USB 20Gbps (1 x USB Type-C®)

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

* USB Type-C® power delivery output: max. 5V/3A

** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A

Sound effects

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*

- Impedance sense for front and rear headphone outputs

- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

- Supports up to 32-Bit/192 kHz playback*

Audio Features

-SupremeFX Shielding Technology

- Savitech SV3H712 AMP

- Gold-plated audio jacks

- Rear optical S/PDIF out port

- Premium audio capacitors

-Audio cover

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

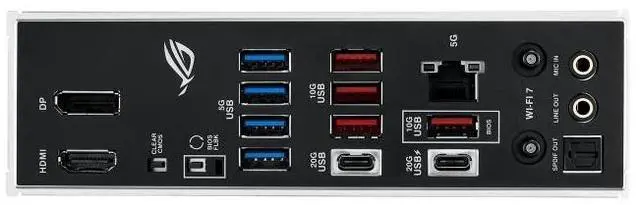

Rear side panel device interface

2 x USB 20Gbps ports (1 x USB Type-C®* + 1 x USB Type-C® with up to 30W PD Fast-charge**)

4 x USB 10Gbps ports (4 x Type-A)

4 x USB 5Gbps ports (4 x Type-A)

1 x DisplayPort

1 x HDMI port

1xWi-Fi module

1 x Realtek 5Gb Ethernet port

2 x Gold-plated audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack button

1xClearCMOSbutton

Built-in I/O device interface

Fan and Cooling Related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

5 x 4-pin Chassis Fan header

Power Related

1 x 24-pin Main Power connector

2 x 8-pin +12V CPU Power connector

StorageRela ted

4 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 20Gbps connector (supports USB Type-C® )

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x Chassis Intrusion header

1 x CPU overvoltage jumper

1 x Front Panel Audio header (F_AUDIO)

1 x Start button

1 x 10-1 pin Front System Panel header

1 x Thermal Sensor header

1 x Thunderbolt (USB4®) header
