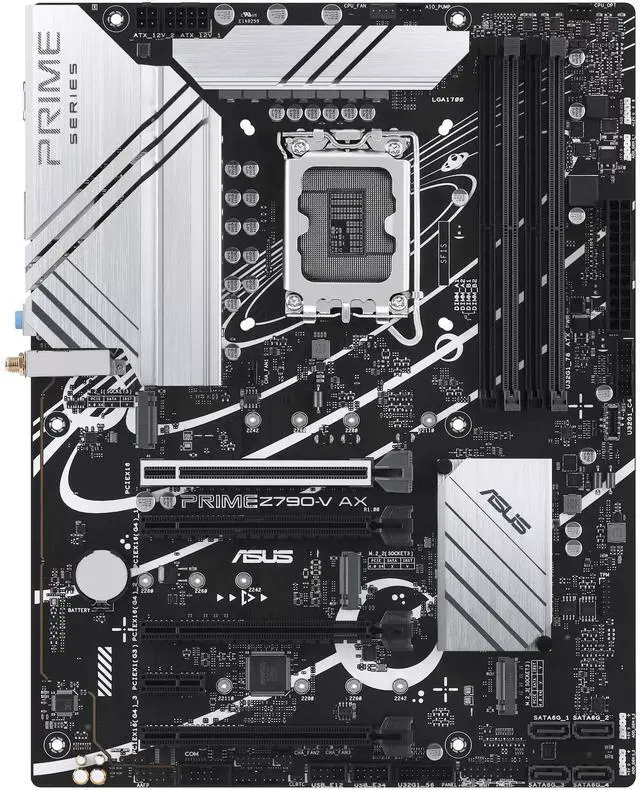

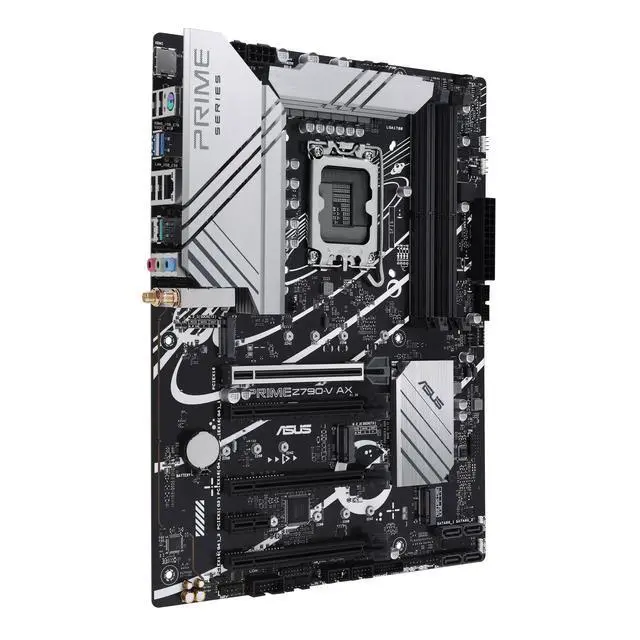

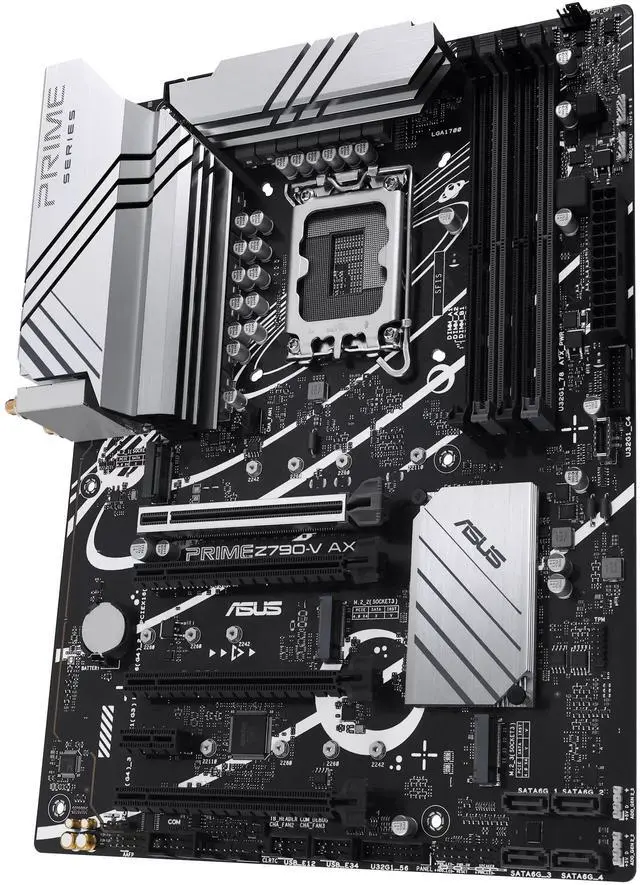

ASUS PRIME Z790-V AX LGA 1700 (Intel 14th, 13th & 12th Gen) ATX motherboard (PCIe 5.0, DDR5, 14+1Power Stages, 3x M.2, WiFi 6, Bluetooth v5.3, USB 3.2 Gen 2x2 Type-C & Thunderbolt (USB4) ,Arua Sync)

Model

PRIME Z790-V AX

CPU

Supports 14th and 13th Generation Intel® Core Processors and 12th Generation Intel® Core, Pentium® Gold and Celeron® Processors for LGA1700 socket*

Supports Intel® Turbo Boost 2.0 Technology and Intel® Turbo Boost Max 3.0 Technology**

* Please visit the ASUS website https://w3.asus.com.cn/ for the latest processor support list.

** Intel® Turbo Boost MAX 3.0 Technology support depends on the CPU type.

Chipset

Intel® Z790 Chipset

Memory

4 x DIMM slots, supporting up to 192GB DDR5 Non-ECC Un-buffered memory*

Supports Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP) technology

OptiMem II

* Supported memory types, data transfer rates, and the number of memory modules may vary depending on the processor and memory settings. For details, please refer to the "CPU/Memory Support List" in the "Service and Support" tab on the corresponding product page of the ASUS official website, or visit https://www.asus.com.cn/support/.

* Non-ECC, Un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1 x HDMI port**

* Display output specifications vary depending on the processor type. Please visit www.intel.com for the latest updates.

** Compliant with HDMI 2.1 specifications, supporting up to 4K @ 60Hz.

Expansion Slots

Intel® Core Processors (14th, 13th and 12th Generation)*

1 x PCIe 5.0 x16 slot

Intel® Z790 Chipset

3 x PCIe 4.0 x16 slots (supports x4 mode)

1 x PCIe 3.0 x1 slot

* Please visit https://www.asus.com.cn/support/FAQ/1037507/ for the PCIe lane splitting list. Note: To ensure compatibility with installed devices, please refer to https://www.asus.com.cn/support/ for a list of supported peripherals.

Storage Device Interfaces

Supports a total of 3 M.2 slots and 4 SATA 6Gb/s interfaces*

Intel® Core Processors (14th, 13th, and 12th Generation)

M.2_1 slot (Key M), supports 2242/2260/2280/22110 type storage devices (supports PCIe 4.0 x4 mode)

Intel® Z790 Chipset

M.2_2 slot (Key M), supports 2242/2260/2280 type storage devices (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), supports 2242/2260/2280/22110 type storage devices (supports PCIe 4.0 x4 and SATA modes)

4 x SATA 6Gb/s device interfaces

* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.

Networking Features

1 x Realtek 1Gb Ethernet controller

Wireless/Bluetooth

Wi-Fi 6

Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Supports 2.4/5GHz dual-band

Compatible with Bluetooth v5.3*

* Bluetooth version may vary; please refer to the Wi-Fi module manufacturer's website for the latest specifications. USB Ports

Rear Panel USB Ports (8 ports in total)

1 x USB 3.2 Gen 2x2 (20G) port (1 x USB Type-C®)

1 x USB 3.2 Gen 2 (10G) port (1 x Type-A)

2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

Onboard Front Panel USB Ports (9 ports in total)

1 x USB 3.2 Gen 1 (5G) port (supports USB Type-C®)

2 x USB 3.2 Gen 1 (5G) headers, expandable to 4 USB 3.2 Gen 1 ports

2 x USB 2.0 headers, expandable to 4 USB 2.0 ports

* USB_E1, USB_E2, USB_E3, and USB_E4 ports share bandwidth.

* USB_E5, USB_E6, USB_E7, and USB_E8 ports share bandwidth.

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports audio jack detection, multi-streaming, and front panel audio jack retasking

- Supports up to 24-Bit/192kHz playback

Audio Features

- Audio shielding design

- Premium audio capacitors

- Dedicated audio layers for left and right channels

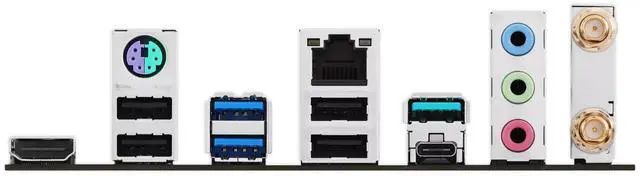

* Please use a chassis with HD audio jacks on the front panel to support 7.1 surround sound audio output. Rear Panel I/O Ports

1 x USB 3.2 Gen 2x2 (20G) port (1 x USB Type-C®)

1 x USB 3.2 Gen 2 (10G) port (1 x Type-A)

2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

1 x HDMI port

1 x Wi-Fi module

1 x Realtek 1Gb Ethernet port

3 x Audio jacks

1 x PS/2 keyboard/mouse combo port

Internal I/O Connectors

Fan and Cooling Related

1 x 4-pin CPU Fan header

1 x 4-pin CPU Optional Fan header

1 x 4-pin AIO Pump header

3 x 4-pin Chassis Fan headers

Power Related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

Storage Related

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 (5G) header (supports USB Type-C®)

2 x USB 3.2 Gen 1 (5G) headers, supporting 4 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers, supporting 4 additional USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 LED headers

1 x Aura RGB header

1 x Clear CMOS jumper

1 x Serial port header

1 x Front panel audio header (AAFP)

1 x S/PDIF digital audio header

1 x SPI TPM header (14-1pin)

1 x 20-5 pin System Panel header

1 x Thunderbolt header
