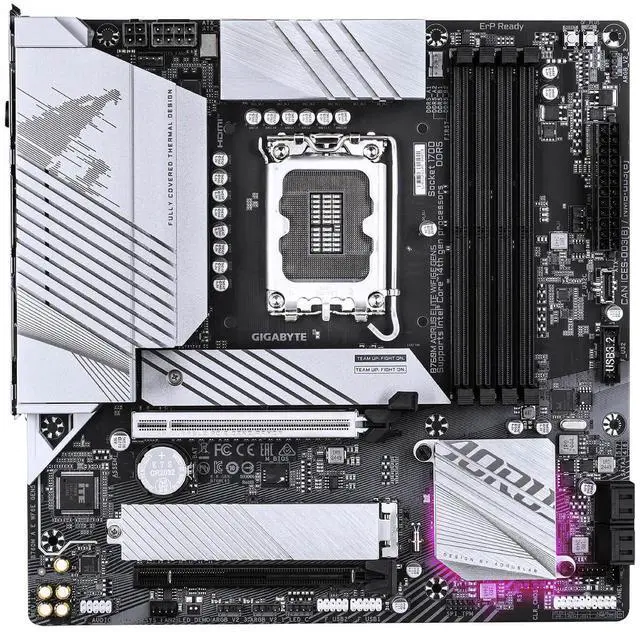

Gigabyte B760M AORUS ELITE WIFI6E GEN5 1700 DDR5 Micro ATX SATA3 Motherboard

1. CPU
2. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core,Pentium® Gold and Celeron® Processors
3. (Go to GIGABYTE's website for the latest CPU support list.)
4. L3 cache varies with CPU
5. Chipset
6. Intel® B760 Express Chipset
7. Memory
8. Support for DDR5 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
9. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
10. Dual channel memory architecture
11. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
12. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
13. Support for Extreme Memory Profile (XMP) memory modules
14. (The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
15. Onboard Graphics
16. Integrated Graphics Processor-Intel® HD Graphics support:
17. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
18. * Support for HDMI 2.1 version and HDCP 2.3.
19. ** Support for native HDMI 2.1 TMDS compatible ports.
20.

21. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
22. * Support for DisplayPort 1.2 version and HDCP 2.3
23.

24. (Graphics specifications may vary depending on CPU support.)
25. Audio
26. Realtek® ALC1220 CODEC
27. * The back panel line out jack supports DSD audio.
28.

29. High Definition Audio
30. 2/4/5.1/7.1-channel
31. * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
32.

33. Support for S/PDIF Out
34. LAN
35. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
36. Wireless Communication module
37. Intel® Wi-Fi 6E AX210
38. - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
39. - BLUETOOTH 5.3
40. - Support for 11ax 160MHz wireless standard
41. (Actual data rate may vary depending on environment and equipment.)
42. Expansion Slots
43. CPU:
44. - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
45. * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
46.

47. Chipset:
48. - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
49. Storage Interface
50. CPU:
51. - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
52. Chipset:
53. - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
54. - 4 x SATA 6Gb/s connectors
55. RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
56. USB
57. Chipset:
58. - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
59. - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
60. - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
61. - 1 x USB 3.2 Gen 1 port on the back panel
62. - 4 x USB 2.0/1.1 ports available through the internal USB headers
63. Chipset+USB 3.2 Gen 1 Hub:
64. - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
65. Chipset+USB 2.0 Hub:
66. - 4 x USB 2.0/1.1 ports on the back panel
67. Internal I/O Connectors
68. 1 x 24-pin ATX main power connector
69. 1 x 8-pin ATX 12V power connector
70. 1 x 4-pin ATX 12V power connector
71. 1 x CPU fan header
72. 3 x system fan headers
73. 3 x addressable RGB Gen2 LED strip headers
74. 1 x RGB LED strip header
75. 2 x M.2 Socket 3 connectors
76. 4 x SATA 6Gb/s connectors
77. 1 x front panel header
78. 1 x front panel audio header
79. 1 x USB Type-C® header, with USB 3.2 Gen 2 support
80. 1 x USB 3.2 Gen 1 header
81. 2 x USB 2.0/1.1 headers
82. 2 x Thunderbolt add-in card connectors
83. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
84. 1 x Q-Flash Plus button
85. 1 x reset button
86. 1 x reset jumper
87. 1 x Clear CMOS jumper

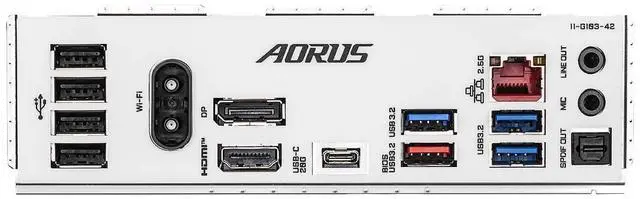

88. Back Panel Connectors
89. 2 x antenna connectors (2T2R)
90. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
91. 1 x USB 3.2 Gen 2 Type-A port (red)
92. 3 x USB 3.2 Gen 1 ports
93. 4 x USB 2.0/1.1 ports
94. 1 x HDMI port (Note)
95. 1 x DisplayPort (Note)
96. 1 x RJ-45 port
97. 1 x optical S/PDIF Out connector
98. 2 x audio jacks
99.

100. (Note) Actual support may vary by CPU.
101. I/O Controller
102. iTE® I/O Controller Chip
103. H/W Monitoring
104. Voltage detection
105. Temperature detection
106. Fan speed detection
107. Water cooling flow rate detection
108. Fan fail warning
109. Fan speed control
110. * Whether the fan speed control function is supported will depend on the fan you install.
111. BIOS
112. 1 x 256 Mbit flash
113. Use of licensed AMI UEFI BIOS
114. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
115. Unique Features
116. Support for GIGABYTE Control Center (GCC)
117. * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
118.

119. Support for Q-Flash
120. Support for Q-Flash Plus
121. Bundled Software
122. Norton® Internet Security (OEM version)
123. LAN bandwidth management software
124. * Service discontinued as a result of contract termination by the software provider
125. Operating System
126. Support for Windows 11 64-bit
127. Support for Windows 10 64-bit
128. Form Factor
129. Micro ATX Form Factor; 24.4cm x 24.4cm

Key Features

1. PCIe Gen5 Performance : Perfect Sync to Win
2. Supports Intel® Core 14th/ 13th /12th processors
3. Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
4. WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
5. WIFI Compass : Auto detects the best antenna position for strongest Wi-Fi signal
6. EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design
7. EZ-Latch Plus : M.2 Connectors with Quick Release & Screwless Design
8. PCIe UD Slot: SMD PCIe 5.0 Armor for enhanced graphics card support
9. Unparalleled Performance : Twin 12*+1+1 Phases Hybrid VRM Solution
10. Dual Channel DDR5 : 4*DIMMs with XMP Memory Module Support
11. Fast Networks : 2.5GbE LAN & Wi-Fi 6E 802.11ax
12. Extended Connectivity : Rear USB-C® 20Gb/s, Front USB-C® 10Gb/s, DP, HDMI
13. Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
14. Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
15. Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card
16. High-Res Audio : ALC1220 & High-End Audio Capacitors
