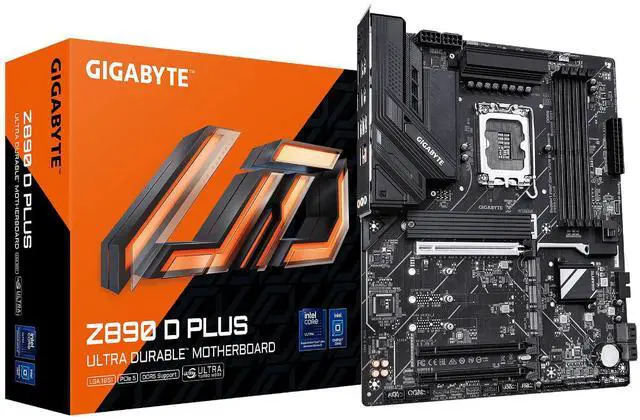

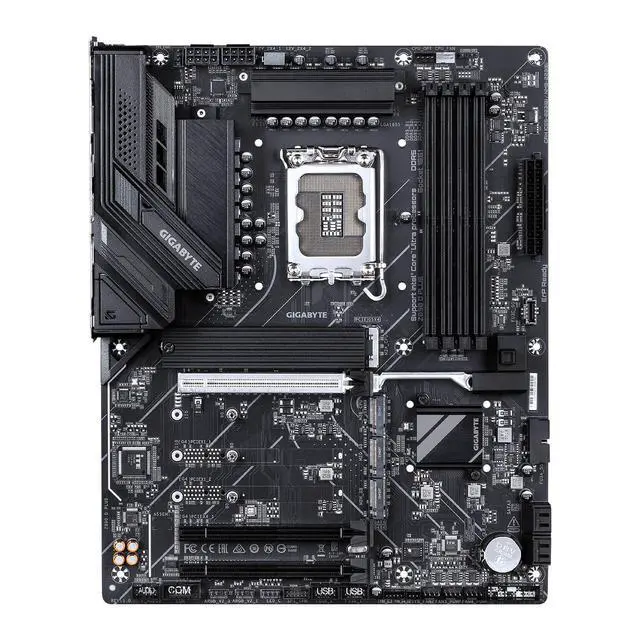

    Gigabyte Z890 D PLUS motherboard DDR5 M.2 PCIe LGA 1851 ATX LAN 2.5 Gb/s

    Be the first to review this product...
    • Gigabyte Z890 D PLUS. Motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods. GZ890DPLUS
    • tilizing proprietary deep-system optimizations to extract maximum potential from your Intel® Core Ultra 200S Series (K-SKUs) with one-click.
    • Performance Boost up to
    • 40%
    • * Performance may varies by CPU and DRAM condition.
    • LV1 Intel 200S Boost: Default-enabled for instant gaming performance through precision-tuned overclocking.
    • LV2 Turbo Mode: Optimized core curves and memory acceleration unlock breakthrough FPS gains.
    • LV3 Extreme Mode: Maximum aggression to fully unleash hidden performance for elite gaming.
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Overview
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    1. CPU
    2. LGA1851 socket: Support for Intel® Core Ultra Processors
    3. (Go to GIGABYTE's website for the latest CPU support list.)
    4. L3 cache varies with CPU
    5. Chipset
    6. Intel® Z890 Express Chipset
    7. Memory
    8. Support up to DDR5 9466+MT/s (OC)
    9. 4 x DDR5 DIMM slots, Dual Channel
    10. Max. Capacity 256 GB
    11. Support Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)
    12. Supports Intel® Extreme Memory Profile (XMP) memory module
    13. (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
    14. Onboard Graphics
    15. Integrated Graphics Processor-Intel® HD Graphics support:
    16. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    17. * Support for DisplayPort 2.1 version and HDCP 2.3

    19. (Graphics specifications may vary depending on CPU support.)
    20. Audio
    21. Realtek® Audio CODEC
    22. High Definition Audio
    23. 2/4/5.1-channel
    24. * You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings.
    25. LAN
    26. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    27. Expansion Slots
    28. CPU:
    29. - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
    30. * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    32. Chipset:
    33. - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)
    34. Storage Interface
    35. CPU:
    36. - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
    37. - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
    38. Chipset:
    39. - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
    40. - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
    41. - 4 x SATA 6Gb/s connectors
    42. RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
    43. RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
    44. USB
    45. Chipset:
    46. - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
    47. - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
    48. - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    49. - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    50. Chipset+2 USB 2.0 Hubs:
    51. - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
    52. Internal I/O Connectors
    53. 1 x 24-pin ATX main power connector
    54. 2 x 8-pin ATX 12V power connectors
    55. 1 x CPU fan header
    56. 1 x CPU fan/water cooling pump header
    57. 3 x system fan headers
    58. 1 x system fan/water cooling pump header
    59. 3 x addressable RGB Gen2 LED strip headers
    60. 1 x RGB LED strip header
    61. 4 x M.2 Socket 3 connectors
    62. 4 x SATA 6Gb/s connectors
    63. 1 x front panel header
    64. 1 x front panel audio header
    65. 1 x USB Type-C® header, with USB 3.2 Gen 1 support
    66. 1 x USB 3.2 Gen 1 header
    67. 2 x USB 2.0/1.1 headers
    68. 2 x Thunderbolt add-in card connectors (For GIGABYTE Thunderbolt 5 add-in card only)
    69. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
    70. 1 x serial port header
    71. 1 x reset jumper
    72. 1 x Clear CMOS jumper

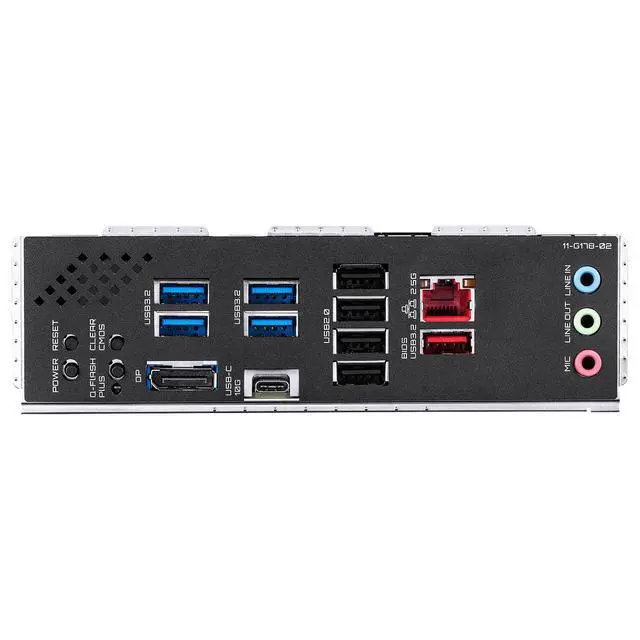

    73. Back Panel Connectors
    74. 1 x reset button
    75. 1 x power button
    76. 1 x Clear CMOS button
    77. 1 x Q-Flash Plus button
    78. 1 x DisplayPort (Note)
    79. 1 x USB Type-C® port, with USB 3.2 Gen 2 support
    80. 1 x USB 3.2 Gen 2 Type-A port (red)
    81. 4 x USB 3.2 Gen 1 ports
    82. 4 x USB 2.0/1.1 ports
    83. 1 x RJ-45 port
    84. 3 x audio jacks

    86. (Note) Actual support may vary by CPU.
    87. I/O Controller
    88. iTE® I/O Controller Chip
    89. H/W Monitoring
    90. Voltage detection
    91. Temperature detection
    92. Fan speed detection
    93. Water cooling flow rate detection
    94. Fan fail warning
    95. Fan speed control
    96. * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
    97. BIOS
    98. 1 x 256 Mbit flash
    99. Use of licensed AMI UEFI BIOS
    100. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    101. Unique Features
    102. Support for GIGABYTE Control Center (GCC)
    103. * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

    105. Support for Q-Flash
    106. Support for Q-Flash Plus
    107. Support for Smart Backup
    108. Bundled Software
    109. Norton® Internet Security (OEM version)
    110. Operating System
    111. Support for Windows 11 64-bit
    112. Support for Windows 10 64-bit
    113. * The Intel® NPU driver and Intel® 800 Platform Performance Package Installer are only supported on Windows 11.
    114. Form Factor
    115. ATX Form Factor; 30.5cm x 24.4cm
