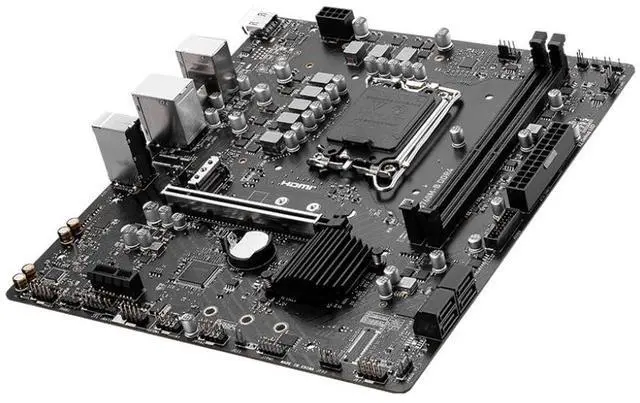

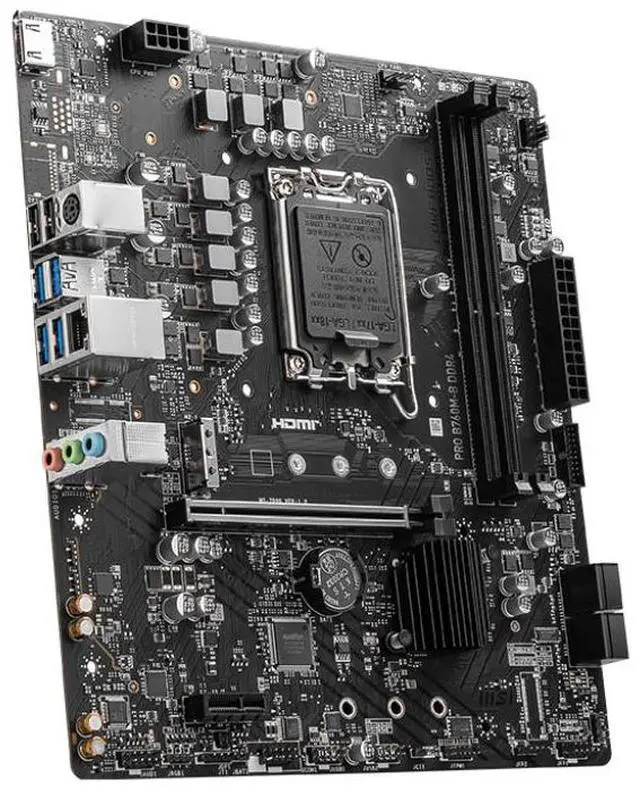

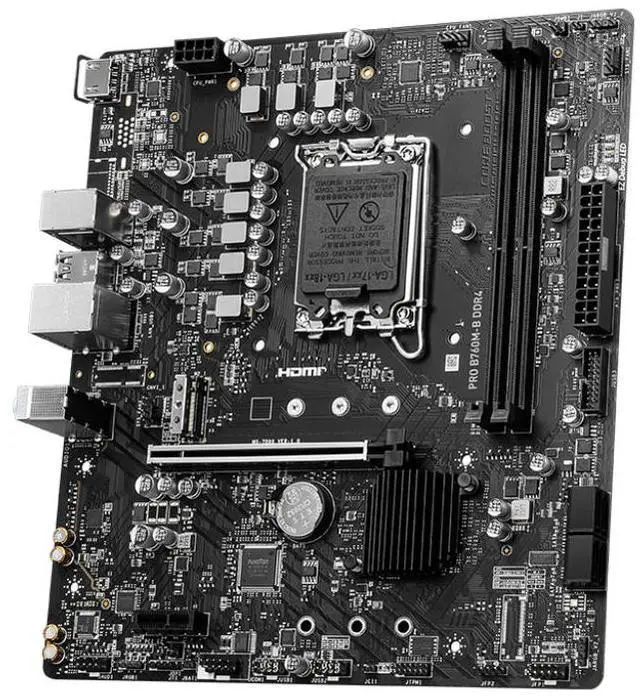

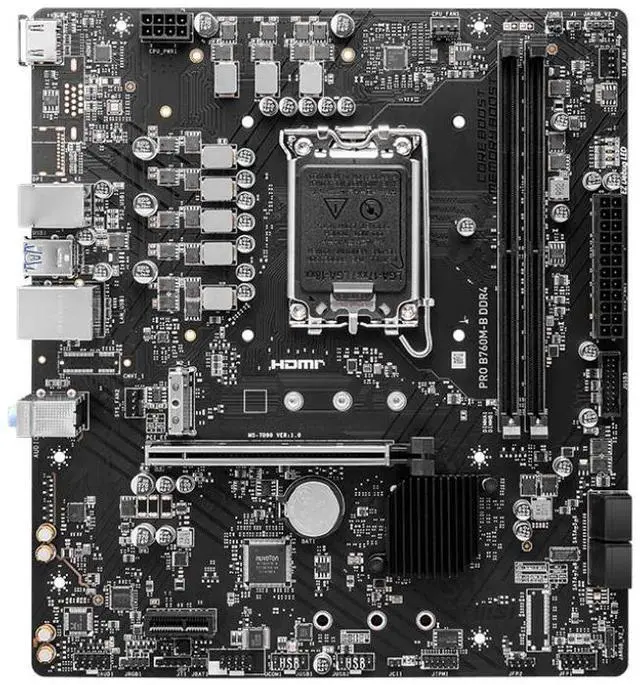

MSI B760M-B DDR4 motherboard Supports 12th/13th/14th Gen Intel® Core Processors, Pentium® Gold and Celeron® Processors (LGA 1700)
- #Please refer to the official website for detailed specifications#
- Supports Intel® Core 14th/13th/12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
- (Some 14th generation CPUs may require a BIOS update to gain support)
- Supports DDR4 memory, dual-channel DDR4 4800+MHz (OC)
- Core Boost: Combined with superior configuration and digital power design, it fully supports more cores and provides higher performance.
- Memory Boost: Advanced technology provides clean signal transmission for optimal performance and stability.
- Lightning-fast gaming experience: PCIe 4.0 slot, Lightning Gen4 x4 M.2
- 2.5G LAN: An upgraded networking solution tailored to the diverse needs of professional creators and casual gamers, providing secure, stable, and fast connections.
- AUDIO BOOST: Immerse your ears in studio-grade sound quality.
- Steel Armor: Protects VGA from bending and EMI interference for better performance, stability and lifespan.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Chipset INTEL B760
CPU Support Intel® Core 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700
Memory 2x DDR4, Maximum Memory Capacity 64GB
Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
1DPC 1R Max speed up to 4800+ MHz
1DPC 2R Max speed up to 4600+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Onboard Graphics 1x HDMI
Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 1x PCI-E x16 slot (Qty)
1x PCI-E x1 slot (Qty)
PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Storage 1x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
4x SATA 6G (Qty)
* SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
LAN Realtek® RTL8125B 2.5Gbps LAN
Internal IO 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
LED FEATURE 4x EZ Debug LED

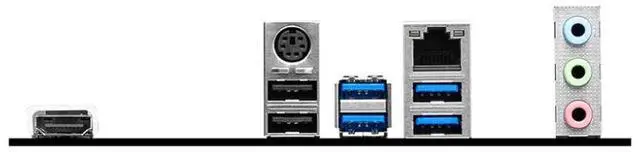

BACK PANEL PORTS
HDMI
Keyboard / Mouse
2.5G LAN
Audio Connectors
USB 2.0
USB 3.2 Gen 1 5Gbps (Type-A)
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info mATX
220mmx243.84mm
