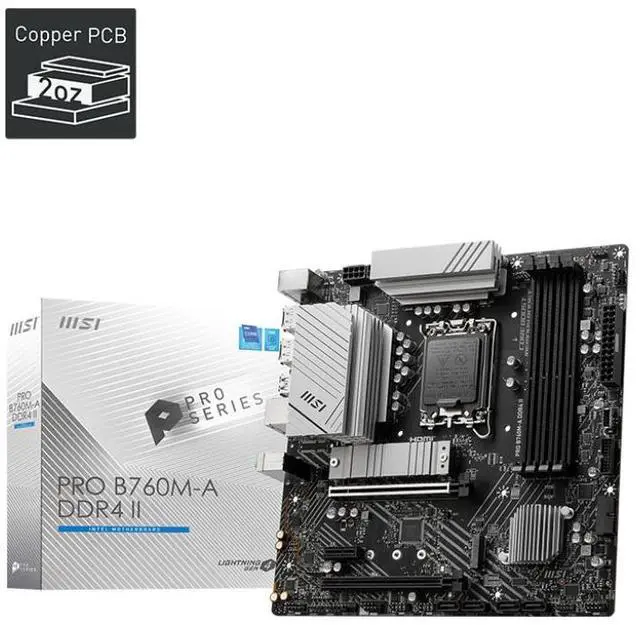

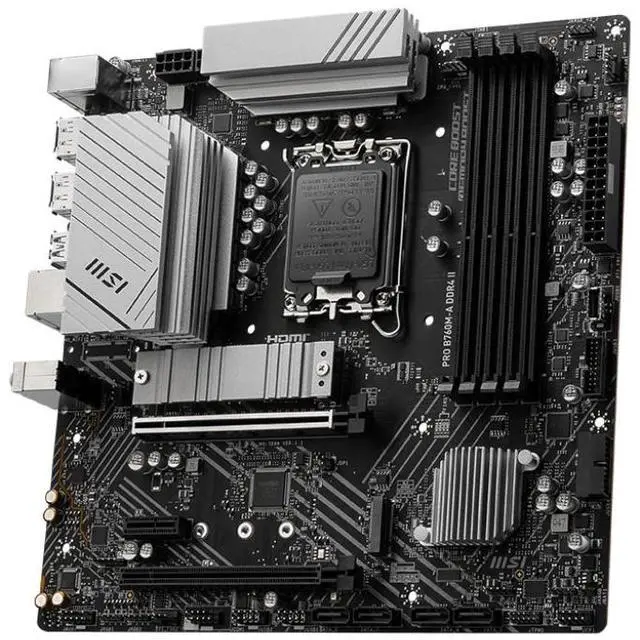

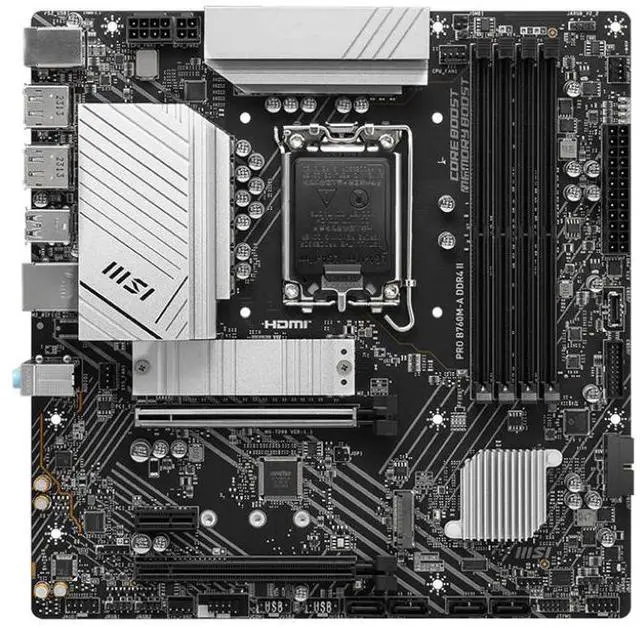

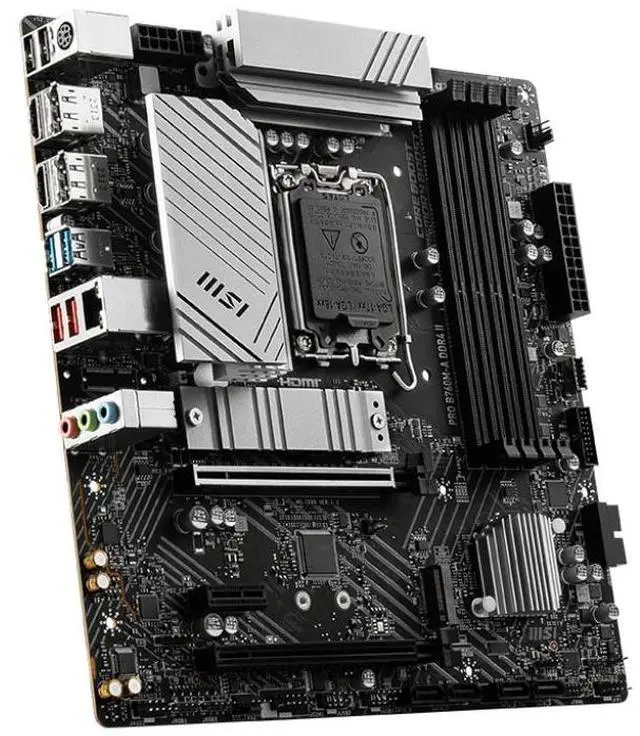

MSI PRO B760M-A DDR4 II LGA 1700 Intel B750 SATA 6Gb/s mATX Motherboard
- Support Intel® Core 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR4 Memory, Dual Channel DDR4 5333+MHz (OC)
- Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
- Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
- 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Chipset INTEL B760
CPU Support Intel® Core 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700
Memory 4x DDR4, Maximum Memory Capacity 128GB
Memory supports 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
1DPC 1R Max speed up to 5333+ MHz
1DPC 2R Max speed up to 4800+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Onboard Graphics 2x HDMI
Support HDMI 2.1, maximum resolution of 4K 60Hz*
2x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 2x PCI-E x16 slot (quantity)
1x PCI-E x1 slot (quantity)
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Storage 2x M.2 (Qty)
M.2_1 source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G (Qty)
* SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

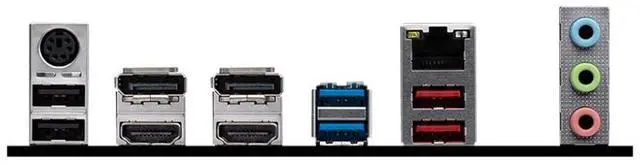

USB 2x USB 2.0 (rear)
4x USB 2.0 (front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
2x USB 10Gbps Type A (Rear)
LAN Realtek® RTL8125BG 2.5G LAN
Internal IO 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 interface
4x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
