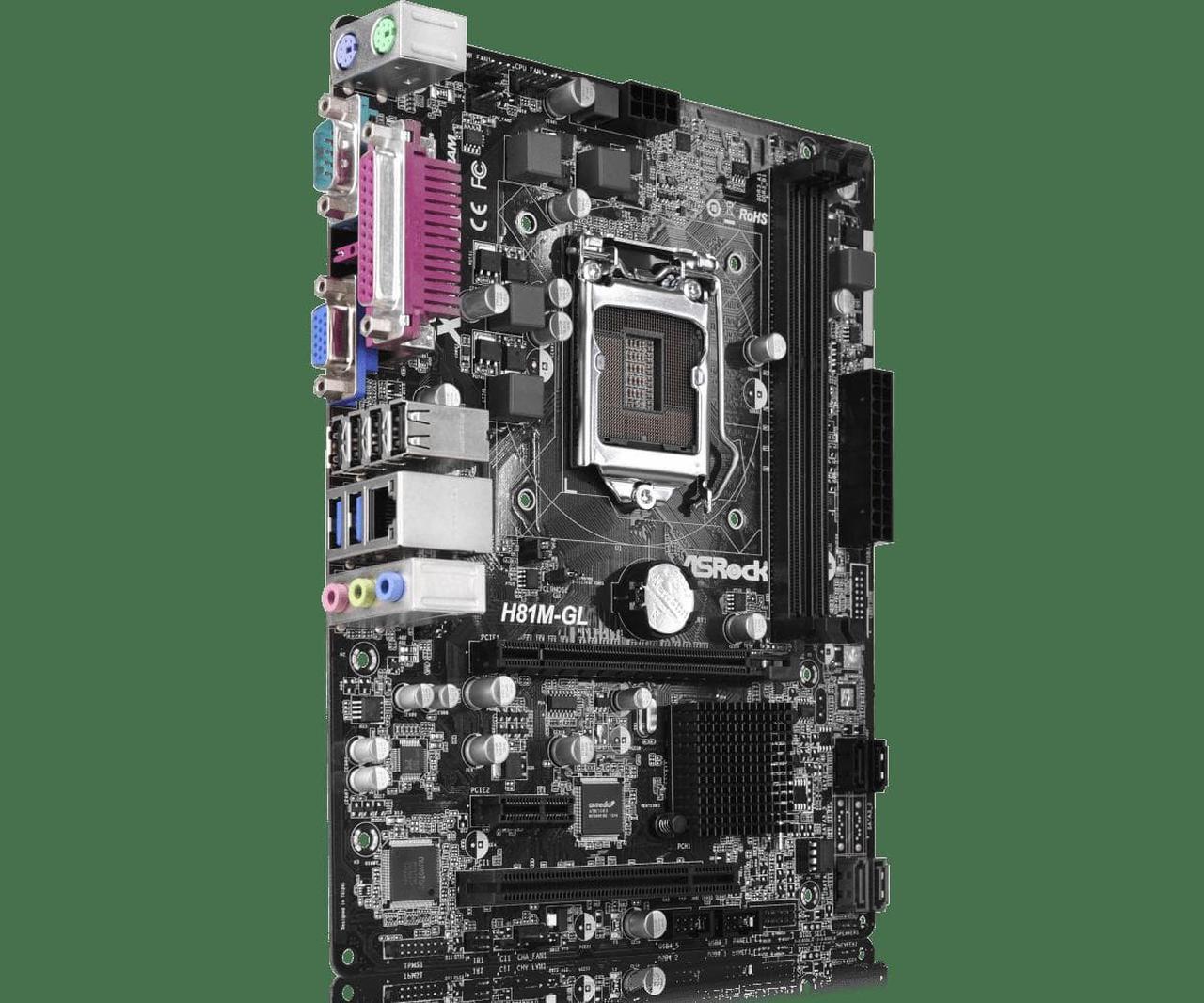

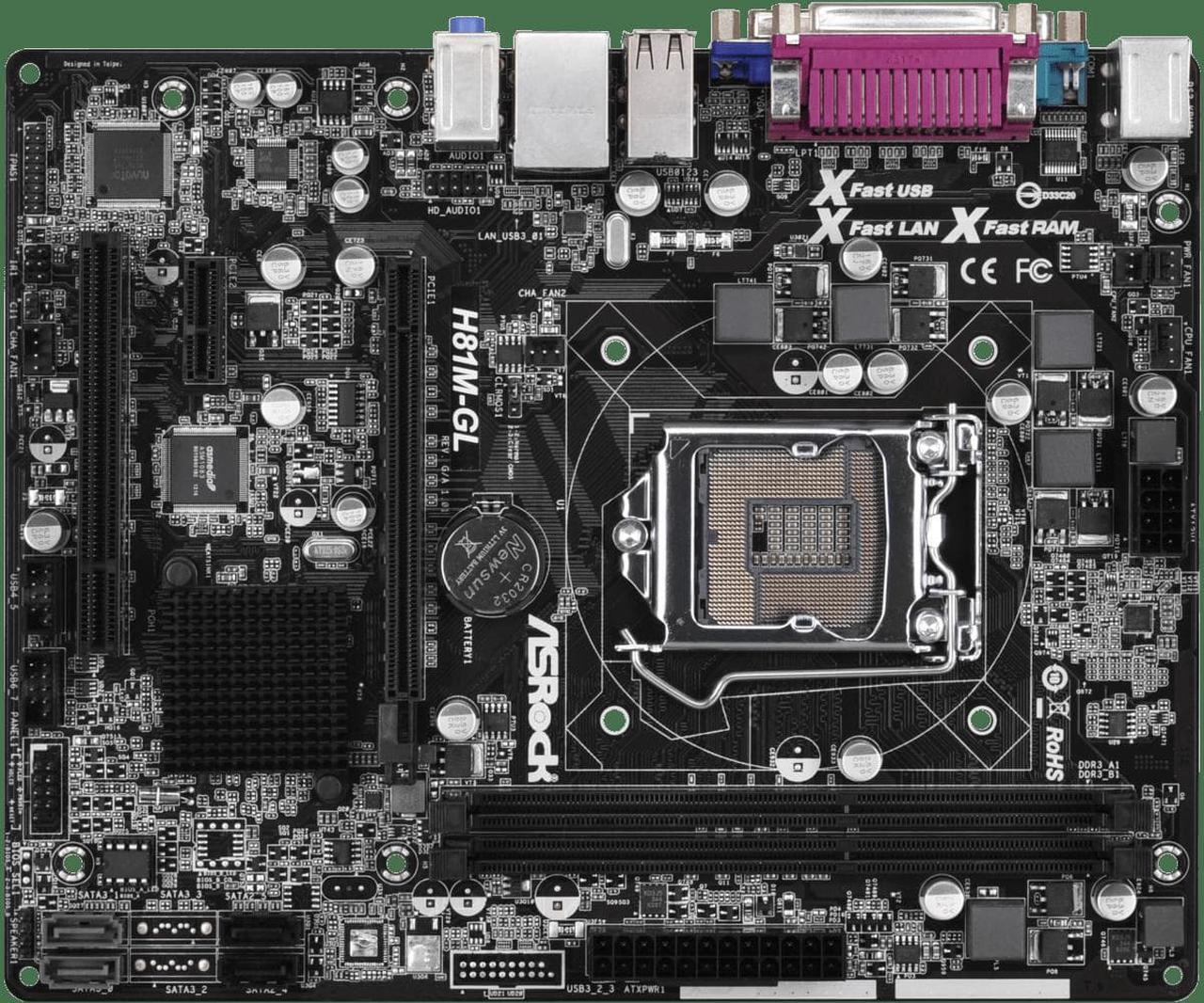

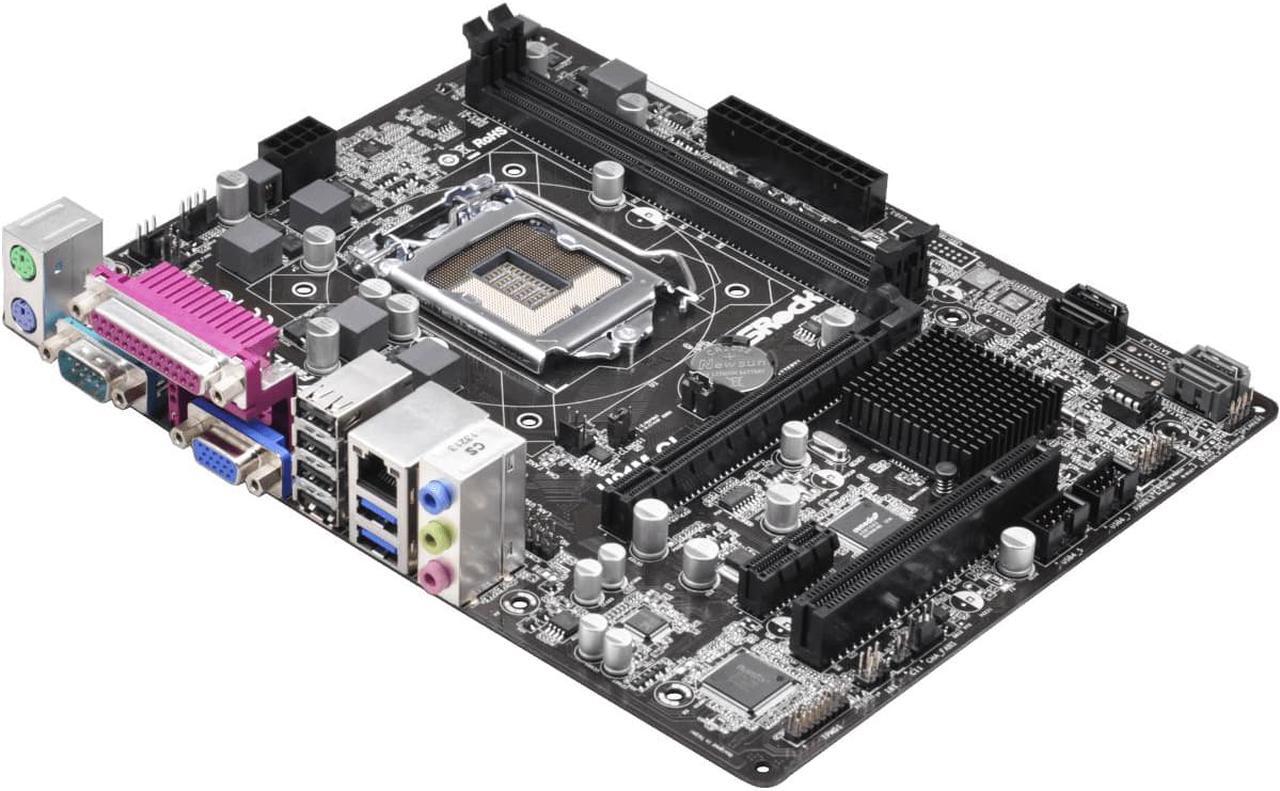

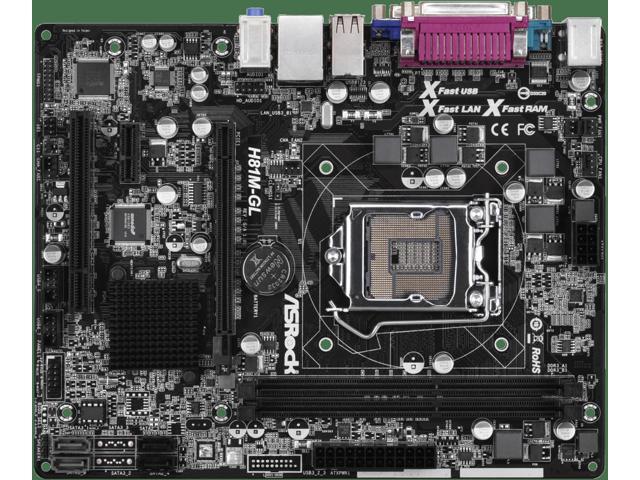

ASROCK H81M-GL motherboard

Note: Our motherboards are Brand New, without original packaging box and additional accessories, but in good condition, 100% working, 90 days factory warranty. The CMOS battery is not included because of the Customs Policy. Please know this before you buy, thanks!
The reason of Original package/ additional ac/battery are not allowed for refund or return, once you place a order means you agree with us.
Tips:

1. Please check the picture and DP/N to make sure that our product is exactly the same as yours before you bid.

2. If you have any pre-sale or after-sale questions please feel free to contact us, we will be happy to assist you.

Package Included:
1x Motherboard
H81M-GL

CPU
- Supports New 4th and 4th Generation Intel® Xeon® / Core i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
- Digi Power design
- 4 Power Phase design
- Supports Intel® Turbo Boost 2.0 Technology
Chipset
- Intel® H81
Memory
- Dual Channel DDR3/DDR3L Memory Technology
- 2 x DDR3/DDR3L DIMM Slots
- Supports DDR3/DDR3L 1600/1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB*
- Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS
- 32Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 1.1 Compliant wake up events
- SMBIOS 2.3. 1 support
- CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage multi-adjustment
Graphics
- Supports Intel® HD Graphics Built-in Visuals: Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru 3D, Intel® Clear Video HD Technology, Intel® Insider, Intel® HD Graphics 4400/4600
- Pixel Shader 5.0, DirectX 11.1
- Max. shared memory 512MB*
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

*The size of maximum shared memory may vary from different operating systems.

**Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

***Intel® InTru 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.
Audio
- 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
- TI® NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets)
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111G
- Supports Wake-On-LAN
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3 az
- Supports PXE
Slots
- 1 x PCI Express 2.0 x16 Slot (PCIE1: x16 mode)
- 1 x PCI Express 2.0 x1 Slot
- 1 x PCI Slot
Storage
- 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
- 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Connector
- 1 x IR Header
- 1 x Chassis Intrusion Header
- 1 x TPM Header
- 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
- 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin)
- 1 x Power Fan Connector (3-pin)
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

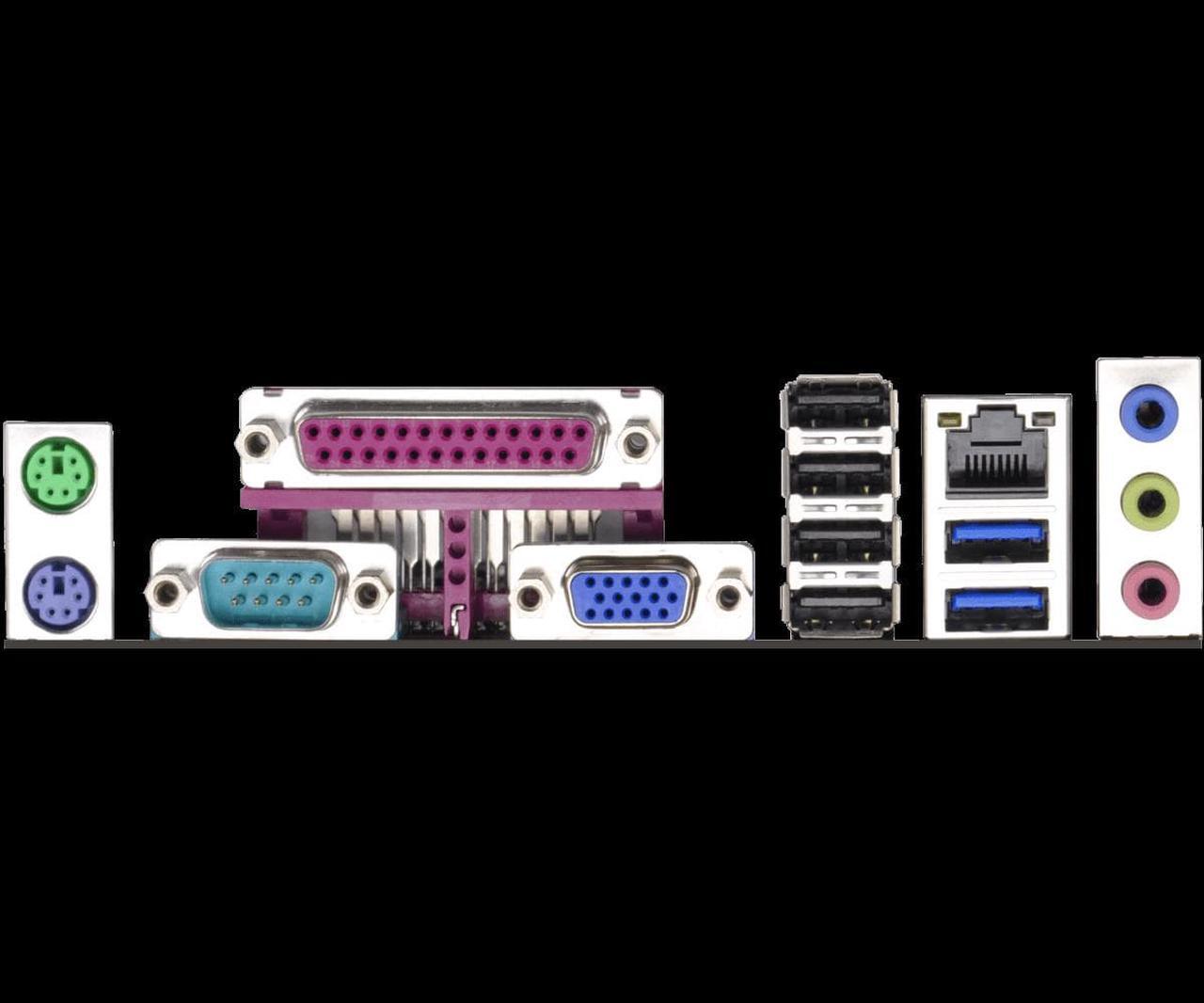

Rear Panel I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x Parallel Port (ECP/EPP support)
- 1 x D-Sub Port
- 4 x USB 2.0 Ports
- 2 x USB 3.1 Gen1 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Line in / Front Speaker / Microphone
Unique Feature
- ASRock APP Shop
- ASRock Cloud
- ASRock A-Tuning
- ASRock Instant Flash
- ASRock APP Charger
- ASRock XFast USB
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Crashless BIOS
- ASRock OMG (Online Management Guard)
- ASRock Internet Flash
- ASRock System Browser
- ASRock UEFI Tech Service
- ASRock Dehumidifier
- ASRock Easy Driver Installer
- ASRock Interactive UEFI
- ASRock Fast Boot
- ASRock Restart to UEFI
- ASRock USB Key
- ASRock FAN-Tastic Tuning
- Hybrid Booster:
- ASRock U-COP
- Boot Failure Guard (B. F. G. )
- Good Night LED
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar, Start8 (30 days trial)
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
Hardware Monitor
- CPU, Chassis temperature sensing
- CPU, Chassis, Power Fan Tachometer
- CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU, Chassis Fan multi-speed control
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, + 3.3V, CPU Vcore
Form Factor
- Micro ATX Form Factor
- All Solid Capacitor design
OS
- Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
Certifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)

IMPORTANT: PLEASE CHECK THE PART NUMBER OF THE ITEM BEFORE YOU PLACE THE ORDER. IF YOU ARE NOT SURE ABOUT IT, PLEASE CONTACT US!

ALL MOTHERBOARD DOESN'T INCLUDE THE CMOS BATTERY, BECAUSE THE CUSTOM DOESN'T ALLOW US TO SHIP IT WITH BATTERY.

Payment

Immediate payment required for this item For fastest service.





Shipping & Delivery

Shipping time: We will ship the item in 3 business days after your payment as soon as possible. It will be delay once we are in holiday ( weekend or traditional holiday)

Delivery Time

5-8 Business days to Customer in USA(just estimated, not guaranteed)

Other country please contact us to check.





Returns & Claims Replacement/Exchange



We accept exchange/replace item within 14 days when customer receive merchandise.

Buyer will pay the return shipping cost regardless any reasons. No exception.

We will process RMA within 2-7 days when we receive the item back. We exchange/replace item if only item is in same condition as when we shipped out. No exception.

Unwanted product returns will be subject to a 15% restocking fee and merchandise must be in the same condition as we shipped?



In the unlikely event that we have shipped the wrong item, we will refund your entire purchase and shipping in both directions. Please contact us immediately for instructions.



We will process all damage claims with the carrier and may request that you return the item. Please retain original shipping containers and notify us immediately if you suspect damage in shipment.



Damage can occur due to careless handling of sensitive electronics; and for that reason, we can not accept the return of items where the factory seal is broken or the item has been installed.
