3X ABI 3W LED Puck Light Kit for Kitchen Bookshelf Showcase, Warm White 3000K
- Three puck kit includes everything needed to get up and running
- Attractive machined aluminum
- Each puck provides 240 lumens of warm white light (equivalent to 25W halogen)
- Cool operation, low energy usage
- Includes power adapter, splitter cable, and DC extension cable
- Base Type: Ring Mount Puck
- Light Type: Halogen
- Specific Uses For Product: Cabinet
- Color Temperature: 3000 Kelvin
- Number of Items: 1
- Brightness: 240 Lumen
- Connectivity Technology: Normal bulb
- Controller Type: Ring
- Included Components: Splitter Cable
- Power Source: Corded Electric
- Shade Material: Aluminum, Wood
- Plug Format: A- US style
- Amperage Capacity: 2 Amps
- Switch Installation Type: Under Cabinet
- Batteries Included? No
- Batteries Required? No
- Type of Bulb: LED
- Wattage: 3 Watts
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

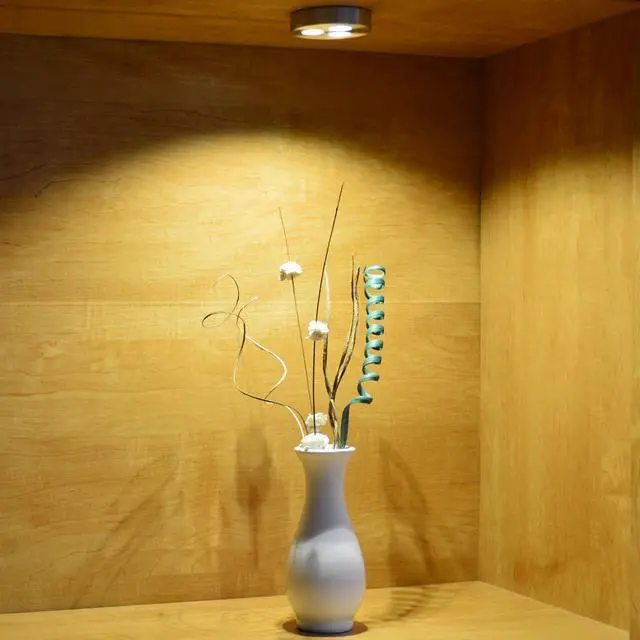

ABI 3W LED puck lights install under cabinets and elsewhere to provide years of beautiful warm white light. Machined aluminum housing provides an up-scale look, cool operation, and excellent durability. This listing is for a three puck kit and includes everything that you need to get up and running.

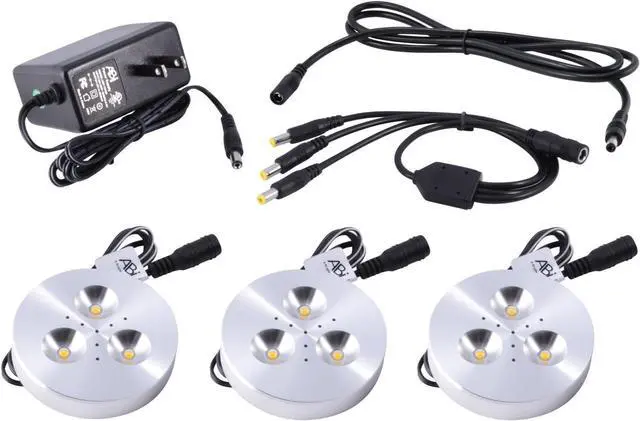

Package Contents:
3x ABI 3W Warm White LED Pucks
1x Power Adapter
1x Power Splitter Cable
1x 5 Foot DC Extension Cable
Installation

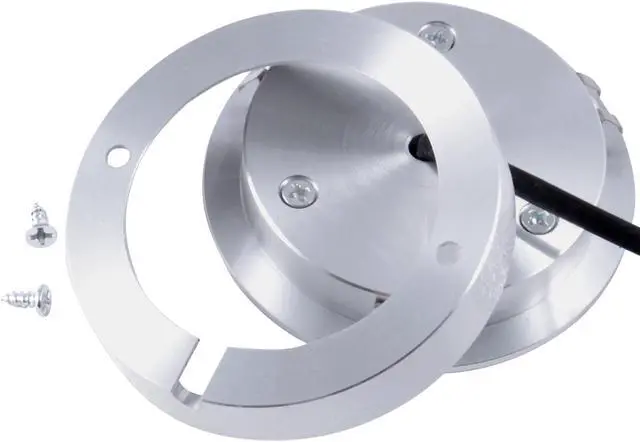

1. Separate the puck from the outer ring.
2. Mount the outer ring with the two included wood screws while keeping the wire routed under the notch.
3. Pull the wire through the notch, and snap the puck into the ring.
4. Connect the included power adapter.
Note
Use of the included 5 foot DC extension cable is optional. It can be used to add distance between one of the pucks and the splitter or between the splitter and the power adapter.
Color Temperature: Warm White 2800K
Power Consumption: 3W/ea
Light Output: 240 Lumens/ea
Halogen Equivalent: 25W/ea
Puck Dimensions: 70x15mm
Puck Cord Length: 1 Meter / 3 Feet
Adapter Cord Length: 1.5 Meter / 5 Feet
DC Extension Cord Length: 1.5 Meters / 5 Feet
AC Adapter Input: 100-240V (worldwide use)
AC Adapter Output: 12V DC 2A Max
DC Connectors: 5.5 x 2.1 mm
Package Contents:
3x ABI 3W Warm White LED Pucks
1x Power Adapter
1x Power Splitter Cable
1x 5 Foot DC Extension Cable
Installation
1. Separate the puck from the outer ring.
2. Mount the outer ring with the two included wood screws while keeping the wire routed under the notch.
3. Pull the wire through the notch, and snap the puck into the ring.
4. Connect the included power adapter.
Note
Use of the included 5 foot DC extension cable is optional. It can be used to add distance between one of the pucks and the splitter or between the splitter and the power adapter.
Specifications
Color Temperature: Warm White 2800K
Power Consumption: 3W/ea
Light Output: 240 Lumens/ea
Halogen Equivalent: 25W/ea
Puck Dimensions: 70x15mm
Puck Cord Length: 1 Meter / 3 Feet
Adapter Cord Length: 1.5 Meter / 5 Feet
DC Extension Cord Length: 1.5 Meters / 5 Feet
AC Adapter Input: 100-240V (worldwide use)
AC Adapter Output: 12V DC 2A Max
DC Connectors: 5.5 x 2.1 mm
