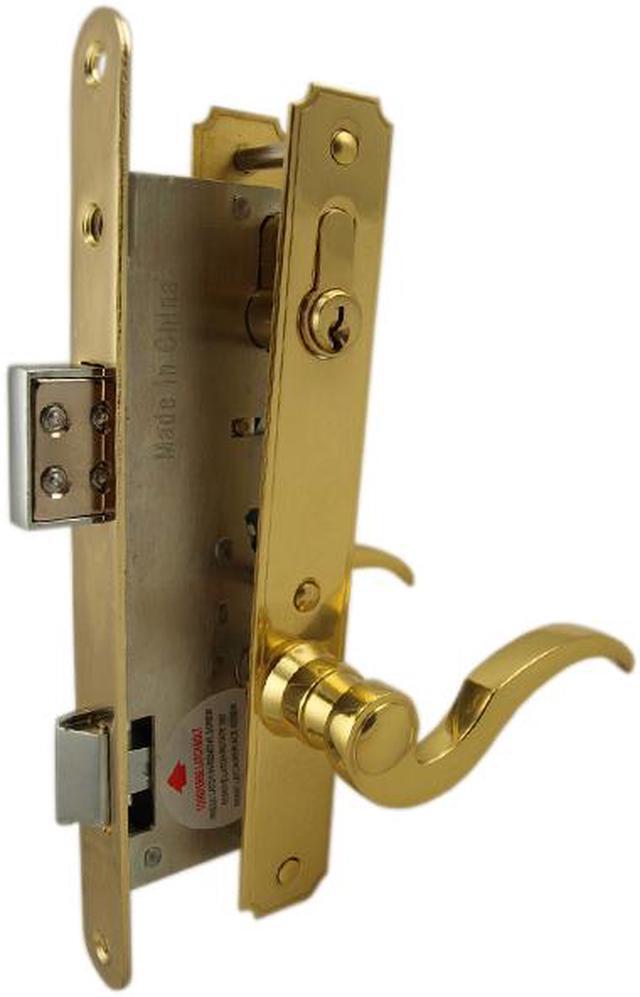

Ultra Hardware, 44625, Brass, Right Hand, Single Cylinder Mortise Entry Lever Handle Plate Trim Set, Narrow Style Storm Door Lockset with 1-3/4" Backset Lock Set

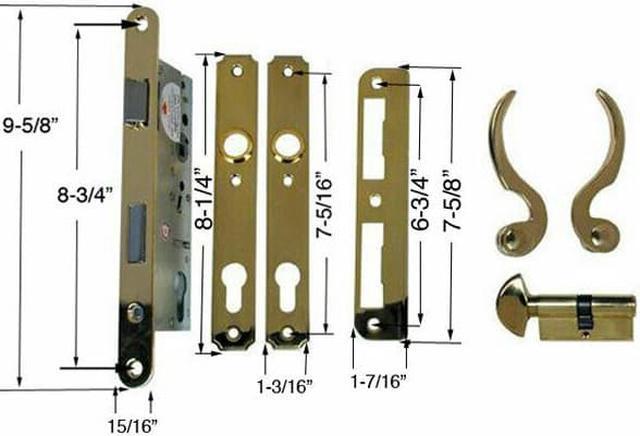

Ultra Hardware, 44625, Brass, Right Hand, Single Cylinder Mortise Entry Lever Handle Plate Trim Set, Narrow Style Storm Door Lockset Lock Set. Narrow stile 1-3/4" Backset, Full 1" throw deadbolt, Front: Lock Face Plate (where bolt and latch are coming out on side of backset) is 1" W x 9-5/8" H. Lock Trim Plates is Solid brass 1-1/8" W x 8-1/4" H. Single Cylinder - Key operated outside - turn knob operated inside. Commercial Mortise Locksets, For storm doors. Thru bolted solid brass lever plate trim set assemblies, Spring loaded captivated self adjusting spindles with screwless levers.
Finish: Brass.
Type: Complete.
Keyway: SC1. Heavy duty. Forged solid brass. Fits all doors from 1-3/8" to 1-7/8" thick. Solid brass lever 4-1/2" long. Single unit assembly with reversible latch. Rekeyable 5 pin tumbler cylinder. Double locking with sprig latch & deadbolt. 1-1/2" posts internally threaded. Solid brass trim and cylinder. Latchbolt cannot retract unless unlocked.

Features:

• Reversible Mortise Lock Backset: 1-3/4 inch
• Thru-bolted solid brass lever plate trim set assemblies
• Spring loaded captivated self adjusting spindles with screwless levers
