Electro-Voice Evolve 50 1000-watts Powered Column Speaker Array System, Black

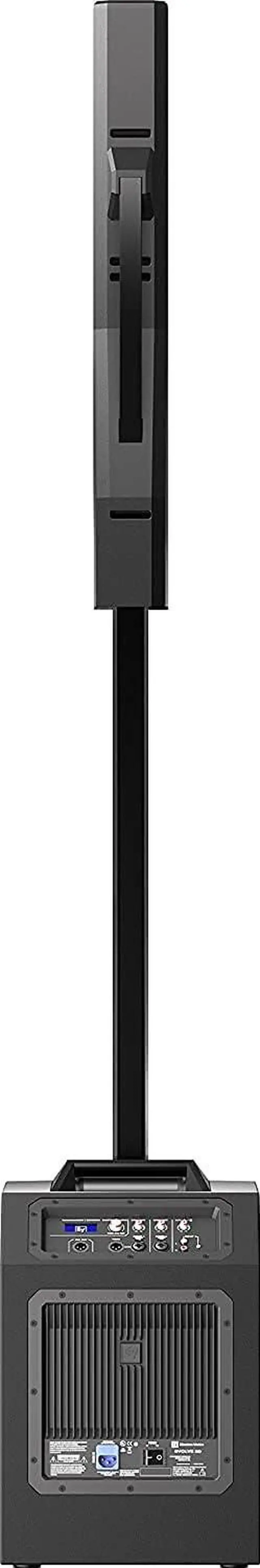

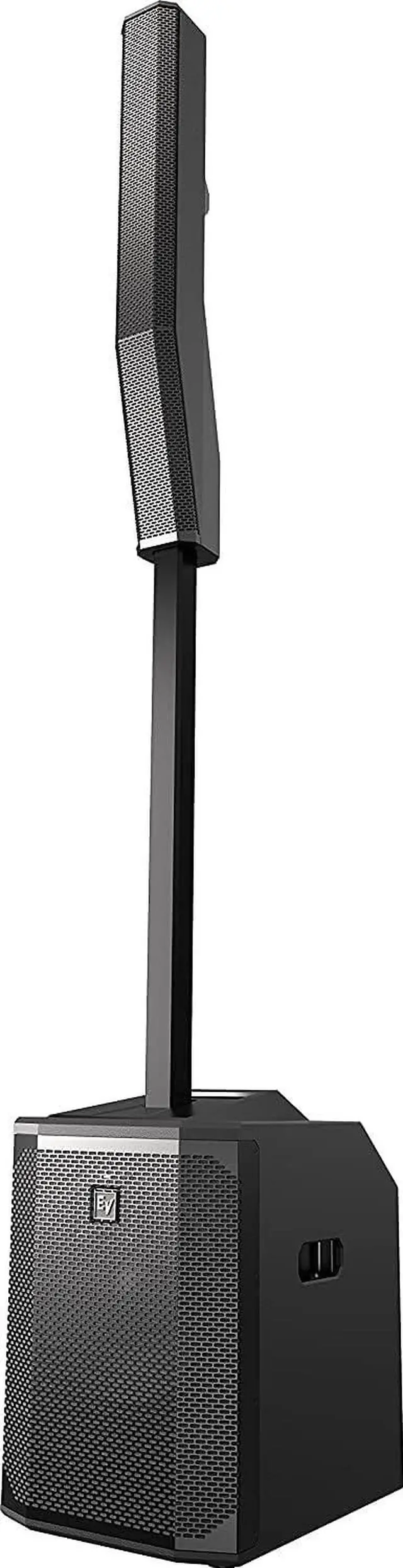

The Electro-Voice EVOLVE 50 Portable Column System bundles the EVOLVE50-SB-US and the EVOLVE50-TB, which together consist of the EVOLVE50 column subwoofer in black, column array, sub pole, and carrying bag. The EVOLVE 50 Portable Column System is a three-component loudspeaker system powered by a 1000 W Class-D amplifier and driven by Electro-Voice's Quick Smart DSP. The system consists of a 15 mm wooden, ported, powered subwoofer enclosure that houses a 12” subwoofer capable of a functional frequency output down to 37 Hz. The bi-directional aluminum pole’ s connection to the subwoofer is secured using a magnet, and the column array is gravity-held to the sub pole.

The signal is internally routed to the components. Eight 3. 5" neodymium drivers in the column array coupled with the 12" subwoofer delivers up to 127 dB SPL. The eight composite waveguides control high frequencies with 120 Degree of horizontal coverage, and 40 Degree of asymmetrical (down-facing) vertical coverage to ensure suitable output for sitting and standing audiences. The sub pole and column array come prepackaged in a carrying bag. The processing engine allows for easy setup via four presets (Music, Live, Speech, and Club), three-band EQ, five user-programmable presets (Store and Recall settings), output delay, phantom power (+15V), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.

The new Electro-Voice Quick Smart Mobile application utilizes Bluetooth Low Energy (BTLE) technology for the wireless configuration, control, and monitoring of up to six EVOLVE 50 systems simultaneously. High-resolution Bluetooth audio streaming adds convenience for wireless music playback in breakout rooms, intermission, and musical accompaniment. Bluetooth is available in select countries.

Specifications

:

Quickly and wirelessly configure, control, and monitor up to six EVOLVE 50 systems simultaneously
High-quality Bluetooth audio streaming for background music or musical accompaniment. Power consumption - 100-240 V AC, 50-60 Hz, 1.5 - 0.6 A
Ultra-wide 120 Degree horizontal coverage via custom-designed waveguides and array-formed 40 Degree asymmetrical vertical coverage
Quick Smart DSP provides best-in-class processing via EV's signature single-knob user interface with LCD
Light weight and intuitive assembly via the magnet-assisted sub pole make a quality performance easier than ever

Technical

Details

: Connectivity
Technology: BluetoothSpeaker
Type: Wireless, SubwooferBrand: Electro-VoiceModel
Name: Evolve50Recommended
Uses For Product: Music, MusicalItem
Weight: 70.8 poundsProduct
Dimensions: 39 x 17 x 22 inchesCountry of
Origin: ChinaItem
model number: Evolve50Date
First Available: August 22, 2017Color
Name: BlackSpeaker
Amplification Type: ActivePower
Source: Corded
ElectricStanding screen display size:
2Wattage: 1000 watts
