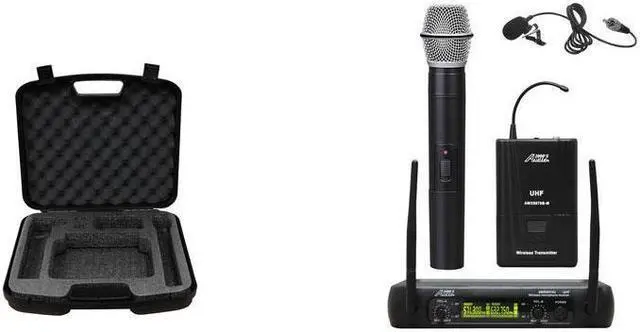

Audio 2000s AWM6074UL UHF Dual-Channel Wireless Handheld/Lavalier Mic System
- Carrier Frequency Range:571 - 598 MHz
- Frequency Stability:+/- 0.005%
- Audio Frequency Response:80 - 15,000 Hz
- Image and Spurious Rejection:50 dB Minimum
- S/N Ratio:> 80 dB
- Max. SPL:110 dB
- T.H.D.:< 1%
- Service Area:300' (91.4m) Outdoor, 150' (45.72m) Indoor
- Operation Temperature:14 - 122 Degree F (-10 - +50 Degree C)
- Carrier Frequency Range:571 - 598 MHz
- Frequency Stability:+/- 0.005%
- Modulation:Frequency Modulation (FM)
- Modulation Depth:40KHz
- Output Power:30mW, Max
- Spurious Emission:> 55 dB
- Battery:9V Battery
- Current Consumption:< 40 mA
- Dimensions:9.3 x 2 x 2" (235 x 50 x 50mm)
- Carrier Frequency Range:571 - 598 MHz
- Frequency Stability:+/- 0.005%
- Receiving Sensitivity:-105 dBm
- S/N Ratio:80dB
- T.H.D.:< 1%
- Audio Output:1/4" and XLR (0 - 300mV @ 600 Ohms)
- Dimensions:8.5 x 1.6 x 5.4" (215 x 40 x 138mm)
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
With the exceptional RF transmission and reception, the AWM6074U system, with a transmission range of more than 100 feet, fully delivers all the reception and audio quality features that allow you to really enjoy the freedom of wireless without any of the problems.
Engineered For Dependable UHF Systems
As all the other Audio2000'S wireless products, the AWM6074U system has been engineered to be dependable UHF system with a wide audio frequency range, high S/N ratio, and outstanding performance equal to that of any professional wireless systems costing much more. This is achieved through strict component selection and high quality circuit design. A delicately designed silence circuit eliminates static noise when the transmitters are either turned off or out of transmission range. An auto mute circuit is incorporated in these systems to effectively eliminate the popping noise when the switch is turned on or off.
System Designed For Accessibility
The AWM6074U system has been designed and manufactured to be dependable, problem free, versatile and easy to use. The AWM6074U system is intended to be readily accessible to everyone with exceptional performance at a preferred and affordable price.
Applications
Musician; disc jockey (DJ); karaoke jockey (KJ); church; school; conference room; karaoke; home entertainment
- AWR6074U Receiver Features -
UHF Band Frequency (571 - 598 MHz)
Two Independent XLR Balanced Outputs
One 1/4" Unbalanced Audio Output
RF Input with Built-in RF Preamplifier to Improve S/N Ratio, Sensitivity and Dynamic Range
Low Noise Mixer Circuitry for Reducing interference
12V-18V DC Power Supply
- AWX6070M Transmitter Features -
UHF Band Frequency
High Sensitivity Cardioid Microphone Capsule
Audio Level Adjustment Knob for the AWX6070M and AWX6070H
Noise Reduction Mechanism for Eliminating Handling Noise and Switch Shock Noise
Low Battery LED Indicator
Engineered For Dependable UHF Systems
As all the other Audio2000'S wireless products, the AWM6074U system has been engineered to be dependable UHF system with a wide audio frequency range, high S/N ratio, and outstanding performance equal to that of any professional wireless systems costing much more. This is achieved through strict component selection and high quality circuit design. A delicately designed silence circuit eliminates static noise when the transmitters are either turned off or out of transmission range. An auto mute circuit is incorporated in these systems to effectively eliminate the popping noise when the switch is turned on or off.
System Designed For Accessibility
The AWM6074U system has been designed and manufactured to be dependable, problem free, versatile and easy to use. The AWM6074U system is intended to be readily accessible to everyone with exceptional performance at a preferred and affordable price.
Applications
Musician; disc jockey (DJ); karaoke jockey (KJ); church; school; conference room; karaoke; home entertainment
- AWR6074U Receiver Features -
UHF Band Frequency (571 - 598 MHz)
Two Independent XLR Balanced Outputs
One 1/4" Unbalanced Audio Output
RF Input with Built-in RF Preamplifier to Improve S/N Ratio, Sensitivity and Dynamic Range
Low Noise Mixer Circuitry for Reducing interference
12V-18V DC Power Supply
- AWX6070M Transmitter Features -
UHF Band Frequency
High Sensitivity Cardioid Microphone Capsule
Audio Level Adjustment Knob for the AWX6070M and AWX6070H
Noise Reduction Mechanism for Eliminating Handling Noise and Switch Shock Noise
Low Battery LED Indicator
