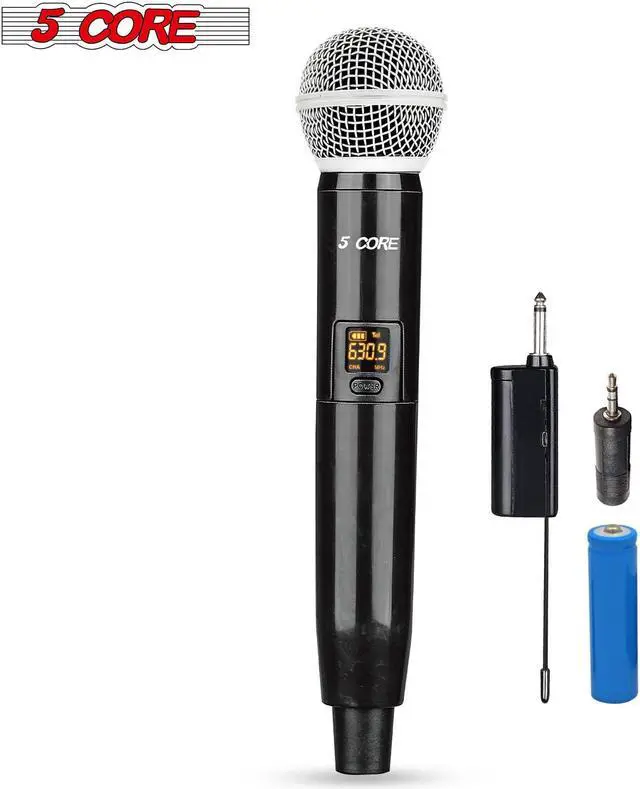

5 Core Pro Wireless Handheld Microphone Transmitter with Vocal Microphone Capsule for use with Wireless Systems Rechargeable Digital WM 1001

Details

:

WIRELESS MICROPHONE - 1001
Product features
Digital audio transmission technologyUnique digital ID code pilot technology; ID code 32bit; completely solve thesame frequency cross-talk phenomenonUltra-low audio latency.
Audio sampling mode: 48KHz.

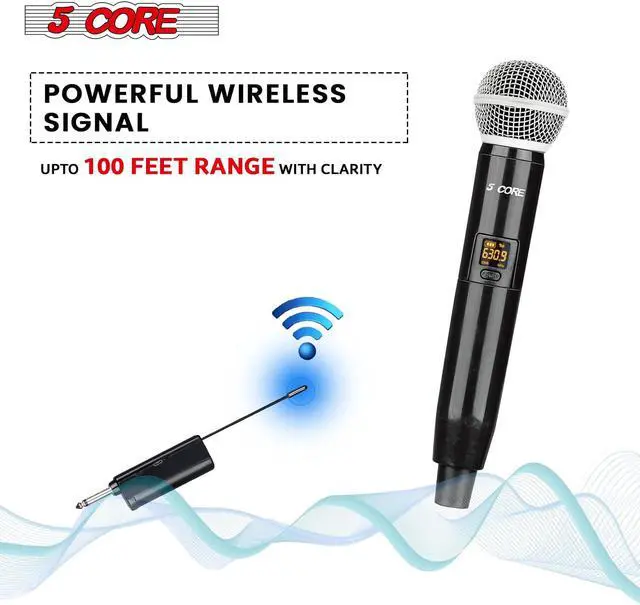

Frequency range: 80Hz-18KHzReceive automatic scanTheoretical transmission distance of open environment: 25-80 meters

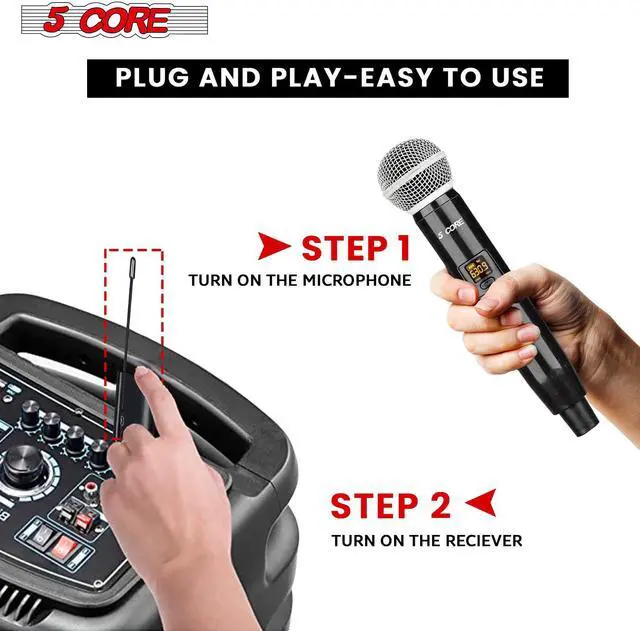

Basic operating instructions:
Microphone:


1. Unscrew the battery compartment and insert 2 AA batteries; paying attention that the positive and negative polarity cannot be reversed.

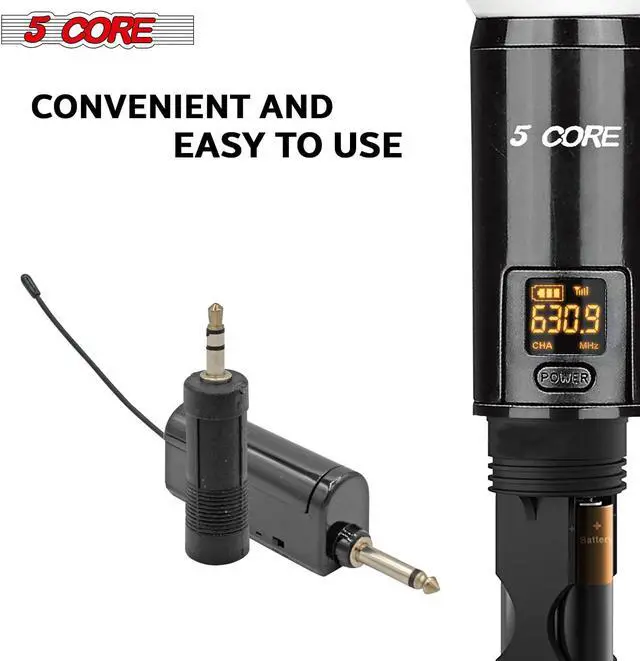

2. Short press the microphone power switch to tum on mic; the display will tums bright; showing the working frequency; channel and battery real-time power; long press the switch to turn off mic.

Receiver:


1. Open the battery compartment; insert a lithium battery; and note that the positive and negative
polarities cannot be reversed

2. Turn the receiver switch key to the "ON" position; when the power indicator turns green the receiver will work normally

3. The receiver signal indicator shows green; indicating that the receiver has successfully connected to the microphone of the CHA channel; and the microphone can be used

4. When the receiver's battery under low power status the green light will slightly dim5. When charging; the power indicator light will turns and keep red after fully charged the red light will turn off

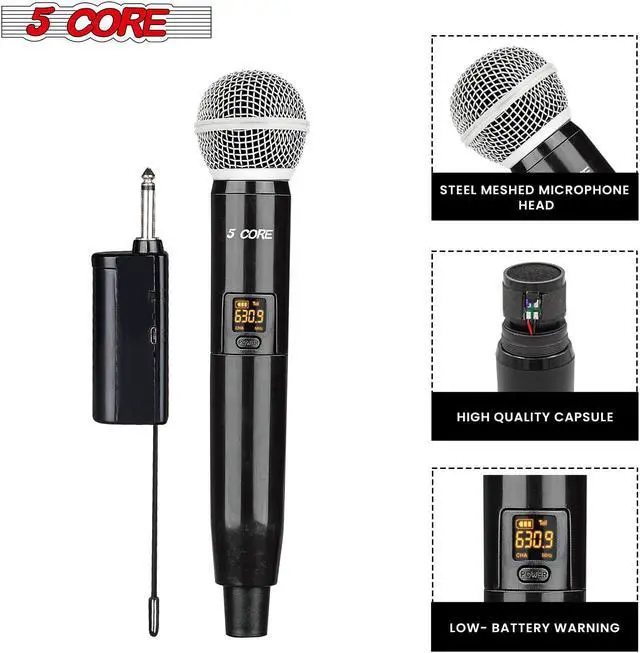

Specification of hand-held microphone -

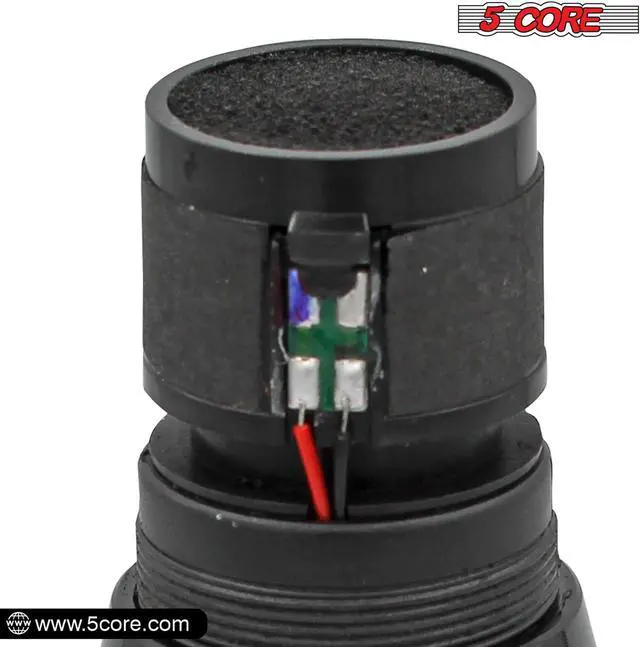

Capsule: DynamicPolar pattern: CardioidRadio frequency bandwidth: 60 MHZ
Transmission power: 20mwWFrequency
response: 80Hz-18KHzDynamic range: 96 dbHarmonic radiation: <-50DBC
The distortion degree of: <0.5%The power supply mode: 1.5AA alkaline batteries

Receiver specification -
RF bandwidth: 60MHFrequency
points: 2 x 50 (1)
Signal-to-noise ratio: >105dBReceiving
sensitivity: 10-20dBuvFrequency
response:
80Hz-18KHzDistortion: < 0.5 %Dynamic
Range: 96dBReceive
delay: 2.5
msPower supply: One 18650 lithium battery ( 3.7V )
