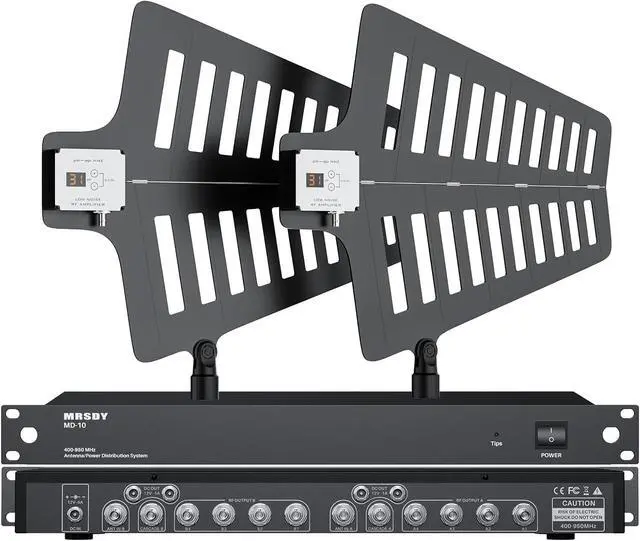

MD-10 UHF Wireless Antenna Distribution System, Wireless Microphone Signal Amplifier, Gain Adjustment Active Antenna Paddles, 8 Outputs + 2 Cascade Ports, Covers 400-950MHz Frequency Range

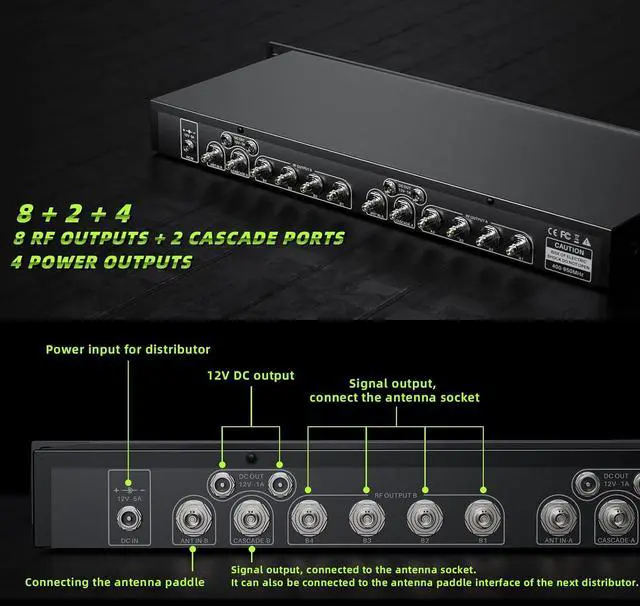

ANTENNA DISTRIBUTION SYSTEM MRSDY MD-10 UHF wireless antenna distribution system compatible with full 400-950MHz frequency range wireless microphone systems. 4 groups of DC power ports, 12V direct current, them can power up to 4 units wireless microphones simultaneously, Two Antenna socket support most active antenna. And power the active antenna through the BNC cable, 8 Outputs + 2 Cascade Ports support 10 groups wireless microphone receiver antennas.

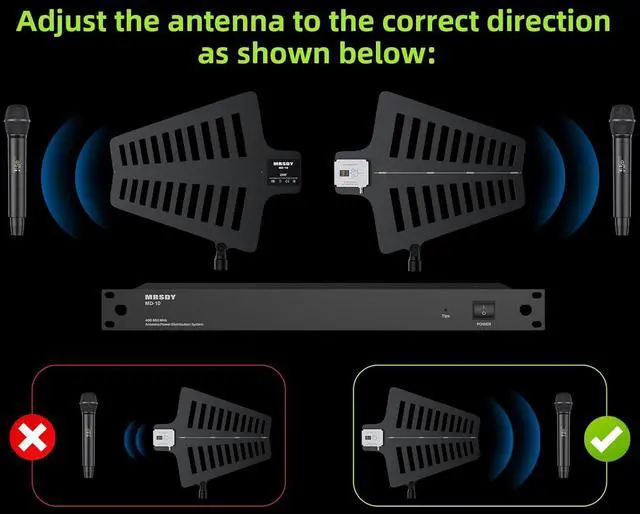

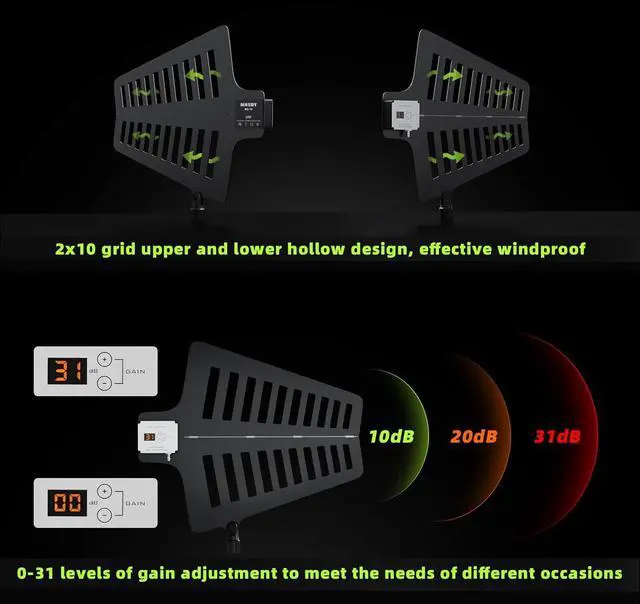

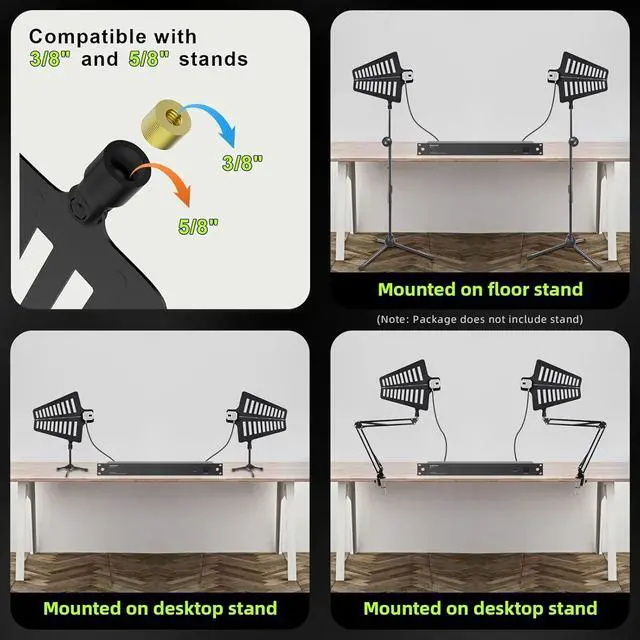

DIRECTIONAL ANTENNA PADDLE The antennas has a unique exhaust air design, very easily mounted on stands or walls without fall. 360° perfect receiver signal, coverage every angle, microphone transmission is more stable. Have 0-31tap position gain adjustment to compensate for different situation signal loss. Signal reception distance up to 2200 ft.
CASCADE PORT AND APPLICATIONThe cascade port can extra connect one antenna distribution system or the fifth wireless receiver for multiset operation. The large wireless system can work by one pair antennas. This UHF antenna distributor ideal for stages, gigs, live shows, conferences, and large-scale outdoor events.

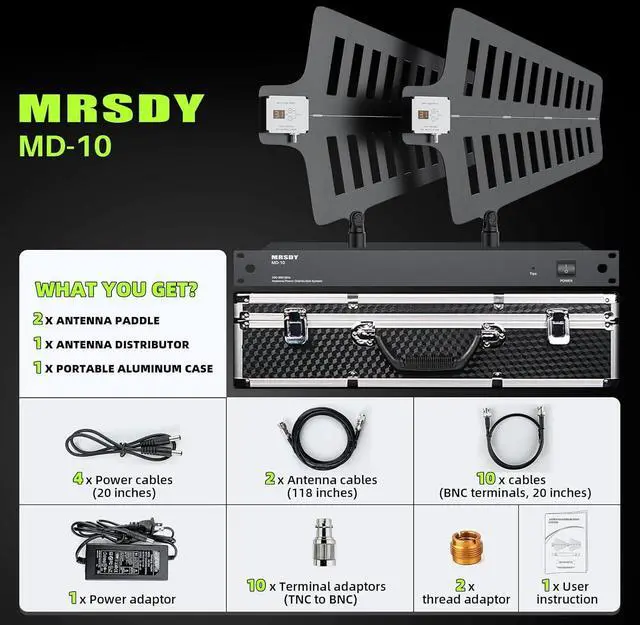

PACKING BOX LIST The package includes: Handheld aluminum box*1, Antenna receiver*1, Directional antenna paddles*2, DC power cords*4, 20in BNC cables*10, 9.8ft BNC cables*2, TNC to BNC antenna port*10(The wireless receiver antenna port is a TNC interface, which needs to be used for conversion), 5/8" Male to 3/8" Female Threaded Nut Screw Adapters*2(Bracket port for converting and matching fixed antennas), Power adapter*1, User manual*1.
POWER SUPPLY DESIGNAC100-240V power supply, meet different power supply environment. The 4 groups of DC power ports on the distributor can support 4 units wireless microphones receivers at the same time.
