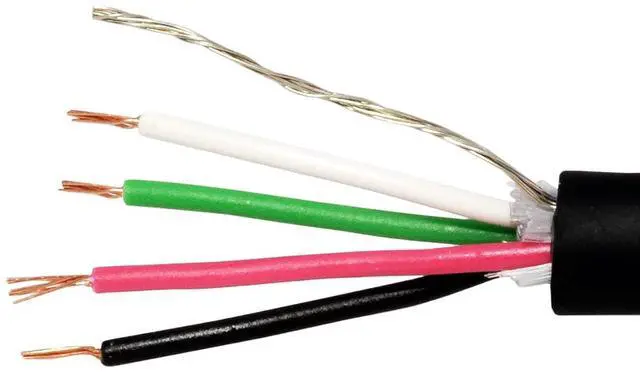

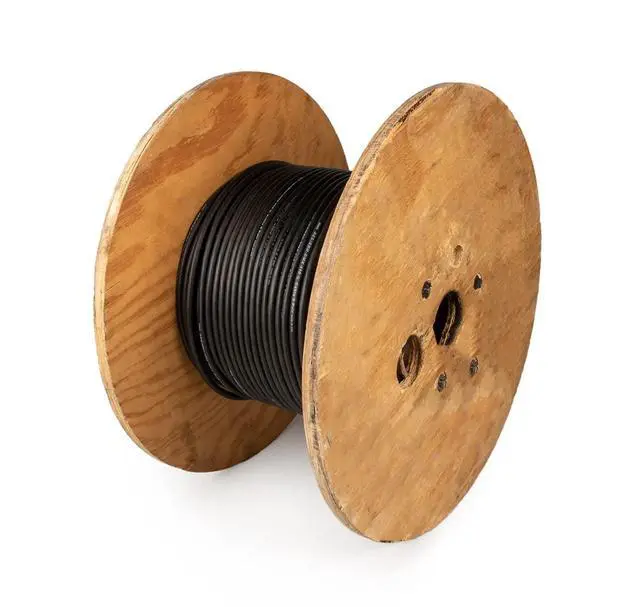

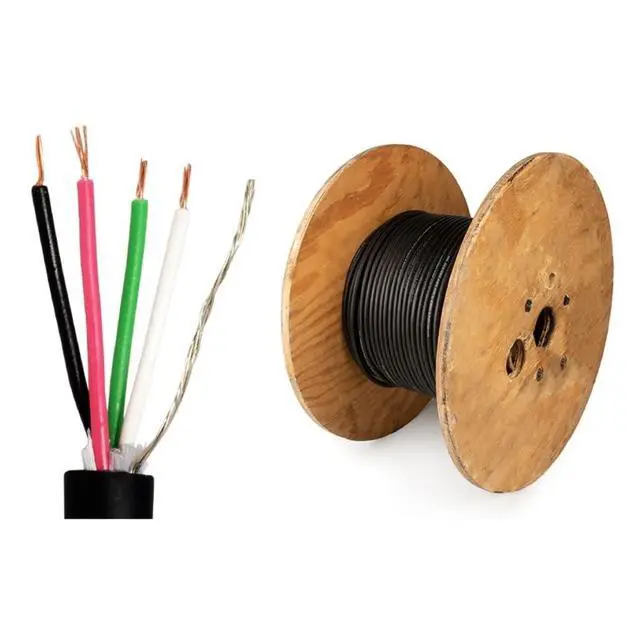

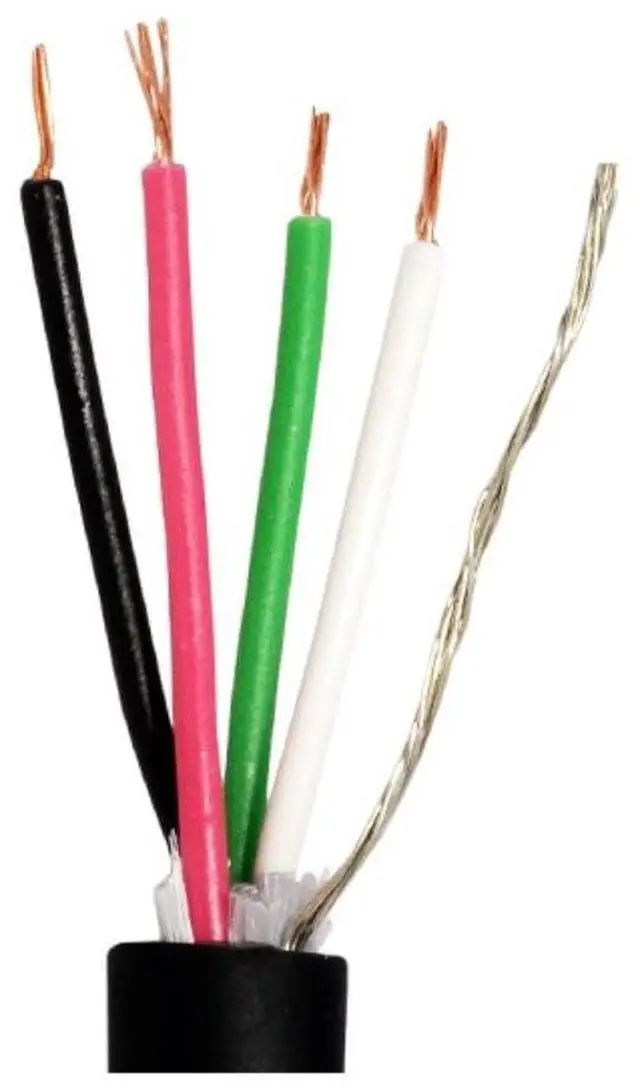

SIRS-E Rapco Horizon DMX-2PR 4 Conductors + Drain (2 Pair) 24 AWG Shielded DMX Cable for Lighting Control, 500ft Spool
- DMX Digital Lighting Installation Cable, 500ft Spool

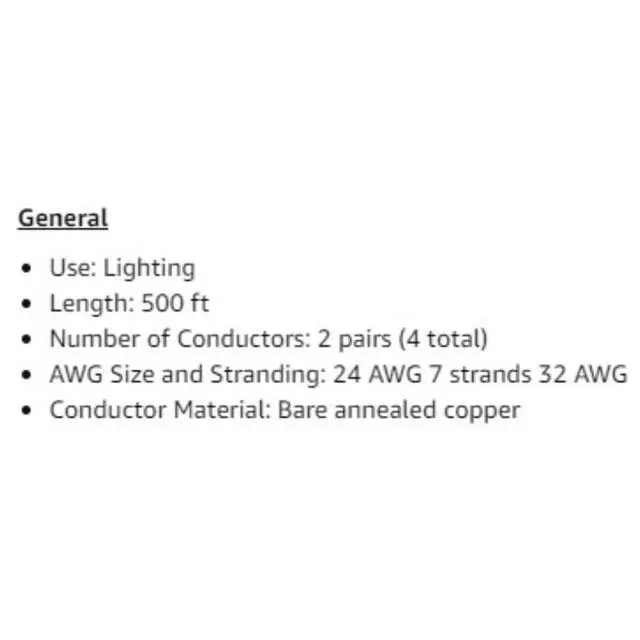

- 2 Pair (4 Conducor + Shield), 24AWG (7 strands 32 AWG)

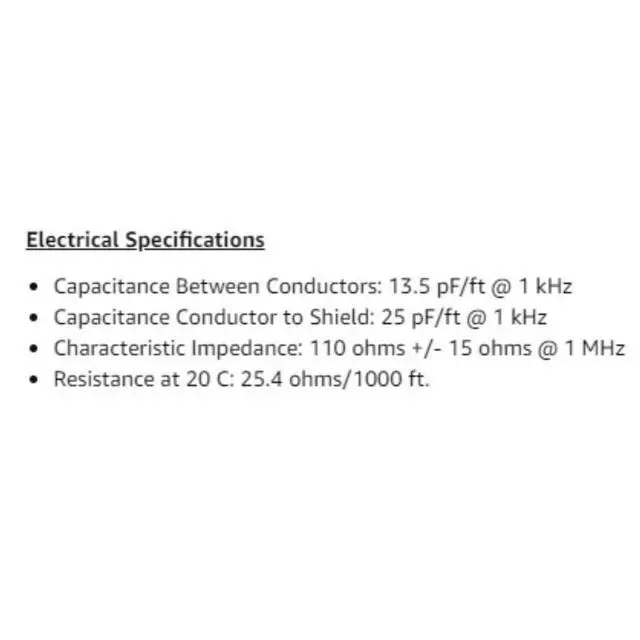

- Characteristic Impedance: DMX 110 (ohm) +/- 15 ohms @ 1 MHzcable
- Conductor Material: Bare annealed copper

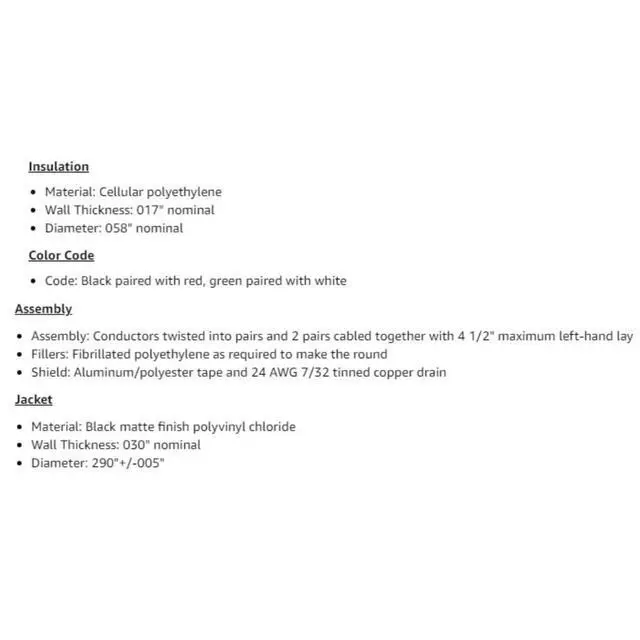

- Jacket Material: Black matte finish polyvinyl chloride (Flexible & Durable)
- Insulation Material: Cellular polyethylene
- Assembly: Conductors twisted into pairs and 2 pairs cabled together with 4 1/2" maximum left hand lay
- Shield: Aluminum/polyester tape and 24 AWG 7/32 tinned copper drain
- Color Code: Black paired with red, green paired with white
- DMX pair meet the specifications of the USITT standard as well as the AES/EBU standards for digital audio
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
DMX Digital Lighting Installation Cable, 500ft Spool
2 Pair (4 Conducor + Shield), 24AWG (7 strands 32 AWG)
Characteristic Impedance: DMX 110 (ohm) +/- 15 ohms @ 1 MHzcable
Conductor Material: Bare annealed copper
Jacket Material: Black matte finish polyvinyl chloride (Flexible & Durable)
Insulation Material: Cellular polyethylene
Assembly: Conductors twisted into pairs and 2 pairs cabled together with 4 1/2" maximum left hand lay
Shield: Aluminum/polyester tape and 24 AWG 7/32 tinned copper drain
Color Code: Black paired with red, green paired with white
DMX pair meet the specifications of the USITT standard as well as the AES/EBU standards for digital audio
2 Pair (4 Conducor + Shield), 24AWG (7 strands 32 AWG)
Characteristic Impedance: DMX 110 (ohm) +/- 15 ohms @ 1 MHzcable
Conductor Material: Bare annealed copper
Jacket Material: Black matte finish polyvinyl chloride (Flexible & Durable)
Insulation Material: Cellular polyethylene
Assembly: Conductors twisted into pairs and 2 pairs cabled together with 4 1/2" maximum left hand lay
Shield: Aluminum/polyester tape and 24 AWG 7/32 tinned copper drain
Color Code: Black paired with red, green paired with white
DMX pair meet the specifications of the USITT standard as well as the AES/EBU standards for digital audio
