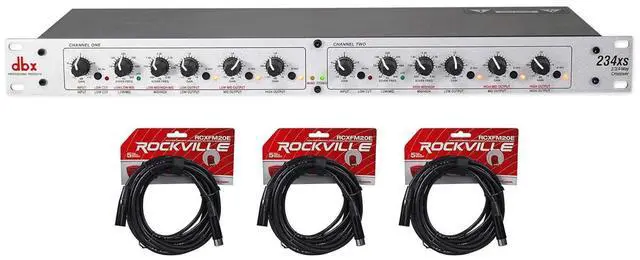

DBX 234XS Professional Crossover with 2, 3, or 4 Way Operation and Mono Bundle With (3) Rockville RCXFM20E-B 20 Foot Female to Male XLR Mic Cable Black 100% Copper

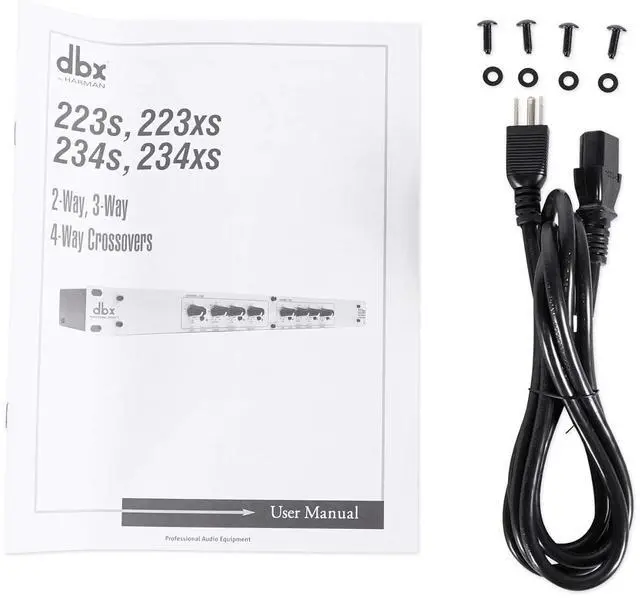

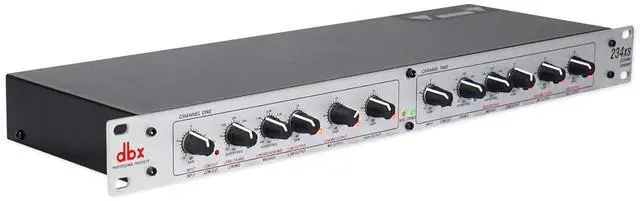

Package Includes: (1) DBX 234XS Rack Mount Stereo 2/3/4-Way Crossover Pro Audio Sound Processor/XLR. (3) RockvilIe RCXFM20E-B 20 Foot Female to Male XLR Mic Cables Black 100% Copper. Features: dbx 234XS Rack Mount Stereo 2/3/4-Way Crossover Pro Audio Sound Processor/XLR. XLR balanced ins and outs. Mode switches for mono 4-way or stereo 2-way/3-way operation. Low frequency summed (subwoofer) output. x10 range switch on both channels. 40Hz high pass (low cut) filter both channels
Phase reverse switch on all outputs. Individual level controls on all outputs. 24dB per octave Linkwitz-Riley filters (the professional standard). Stereo/Mono status LEDs indicate the selected mode. Specifications: Input: Connectors: XLR Type: Electronically balanced/unbalanced, RF filtered Impedance: Balanced >50k ohm, unbalanced >25k ohm Max Input Level: >+21dBu balanced or unbalanced CMRR: >40dB, typically >50dB at 1kHz. Connectors: XLR
Type: Electronically balanced/unbalanced, RF filtered. Impedance: Balanced >50k ohm, unbalanced >25k ohm. Max Input Level: >+21dBu balanced or unbalanced. CMRR: >40dB, typically >50dB at 1kHz. Outputs: Connectors: XLR Type: Electronically-balanaced/unbalanced, RF filtered Impedance: Balanced 60 ohm, unbalanced 300 ohm Max Output Level: >+20dBu balanced/unbalanced into 600 ohms or greater. Connectors: XLR. Type: Electronically-balanaced/unbalanced, RF filtered
Impedance: Balanced 60 ohm, unbalanced 300 ohm. Max Output Level: >+20dBu balanced/unbalanced into 600 ohms or greater
System Performance: Bandwidth: 20Hz to 20kHz, +/-0.5dB Frequency Response: < 3 Hz to > 90 kHz, +0/-3 dB Signal-to-Noise: Ref: +4 dBu, 22 kHz measurement bandwidth Stereo Mode: >94dB (Low Output) >93dB (Mid Output) >90dB (High Output) Mono Mode: >94dB (Low Output) >94dB (Low/Mid Output) >92dB (High/Mid Output) >88dB (High Output) Dynamic Range: > 106 dB, un-weighted, any output THD + Noise: < 0.004% at +4 dBu, 1 kHz < 0.04% at +20 dBu, 1 kHz Interchannel Crosstalk: < -80 dB, 20 Hz to 20 kHz
