Rapco 22ga Balanced Mic Install Hookup Wire Audio Cable 1000', ProCo USA Made

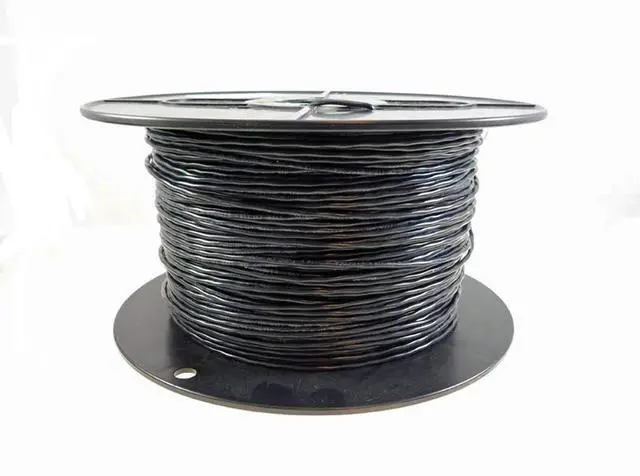

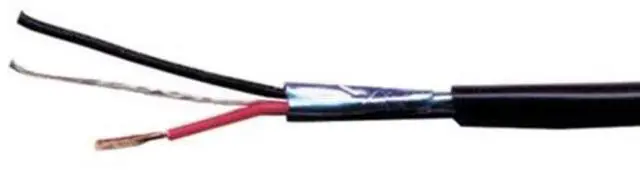

(One) Brand New Genuine Rapco Horizon ProCo 1000' Spool of American Made 22 Gauge Balanced Installation Grade Microphone Cable. 2 conductor 22 AWG stranded bare copper, polypropylene insulated, shielded, PVC jacketed installation microphone cable VTG Part Number: MIC2. 1. Conductor 1.1 AWG Size and Stranding: 22 AWG 7 strands 30 AWG 1.2 Material: Bare annealed copper 2. Insulation 2.1 Material: Polpropylene 2.2 Wall Thickness: .008" nominal 2.3 Diameter: .046" nominal 3. Color Code 3.1 Code: Black and red 4. Assembly 4.1 Assembly: Conductors cabled left hand lay 4.2 Drain Wire: 24 AWG 7/32 tinned copper 4.3 Shield: .001 aluminum/polyester tape 5. Jacket 5.1 Material: Polyvinyl chloride 5.2 Colors: Black, gray, green, pink, brown, orange, purple, red, white and yellow 5.3 Wall Thickness: .023" nominal 5.4 Diameter: .140" 6. Markings 6.1 Type: Surface printing in white ink on black jacket, black in on all colors. Black print has sequential footage marks 6.2 Legend: VTG AUDIO 22 AWG TYPE CL3 (UL) E156866 MADE IN U.S.A. XXXXX FEET 7 Electrical Specifications 7.1 Capacitance Between Conductors: 32 pF/ft @ 1 kHz 7.2 Capacitance Conductor to Shield: 58 pF/ft @ 1 kHz 7.3 Characteristic Impedance: 45 ohms @ 1 MHz 7.4 Resistance at 20C: 15.3 ohms/1000 ft. When You Think of Cables usbargainsound We Are The Sound People!
