| Processor |
Intel Core i9-13900F/I7 13700F/i5 13400F Processor |
| Discrete Graphics |
GeForce RTX4070 12G, Basic frequency: 1.92GHz, Acceleration frequency: 2.48GHz, 12GB GDDR6X, 192bit. |
| RAM |
2 x so-dimm RAM DDR4 slot,max support 64GB |
| SSD |
1 x M.2 NVME SSD NGFF/PCIE high speed SSD, max support 2TB |
| Storage Expansion |
2 X 2.5-inch SATA HDD/SSD Slot (SATA 3.0 6.0Gb/s) |
| Power supply |
Support 100-240V |
| O/S |
Pre-installed Windows 11 Pro, Also support Windows 10 pro, Linux, ubuntu, CentOS. |
| Ethernet |
Dual 1000Mbps LAN |
| Wireless |
Bluetooth5.3, AX210 WiFi6E |
| Fiber Optic Interface |
Support 7.1 surround sound, just need by hooking up a surround sound speaker setup |
| Operating Temperature |
0C~ 60C. SSD storage temperature:-40C~85C". |
| Relative Humidity |
10%~90% (non-condensing) |
| More Function |
RTC/Wake on Lan/Auto Power on(BIOS setting) |
| Size |
270 x 215 x 55mm |
| Package |
1 x mini computer, 1 x Bracket, 1 x Power adapter with cable, External antenna |
| Efficient Heat Dissipation |
Inside the chassis are four all-copper turbo fans and eight vacuum heat pipes for powerful cooling |
Model Number: B21
CPU: Intel Core i5-13400F Processor(20M Cache, up to 4.60 GHz)
CPU: GeForce RTX4070 Discrete Graphics, Basic frequency: 1.92GHz, Acceleration frequency: 2.48GHz, 12GB GDDR6X, 192bit. CUDA: 5888
Memory: 2 x so-dimm RAM DDR4 slot,max support 64GB
Storage: 1 x M.2 NVME SSD NGFF/PCIE high speed SSD, max support 2TB, 2 X 2.5-inch SATA HDD/SSD Slot (SATA 3.0 6.0Gb/s)
Network Card: 1000Mbps LAN
I/O Port: 4 x USB2.0, Dual WiFI Holes, 3 x DP1.4, 1 x HDMI2.1, DC IN, 4 x USB3.2, 2 x Gigabit LAN, Optical, Audio
Power: Support 100-240V
Operating Temperature: Operating Temperature: 0°C ~60°C. SSD storage temperature-40°C~85°C
Relative Humidity: 10%~90% (non-condensing)
Wireless: Bluetooth5.3, AX210 WiFi6E(Compared with wifi6, 6GHz channel is added, which has stronger anti-interference ability and faster transmission speed.)
Fiber Optic Interface: Support 7.1 surround sound, just need by hooking up a surround sound speaker setup
More Function: RTC/Wake on Lan/Auto Power on(BIOS setting)

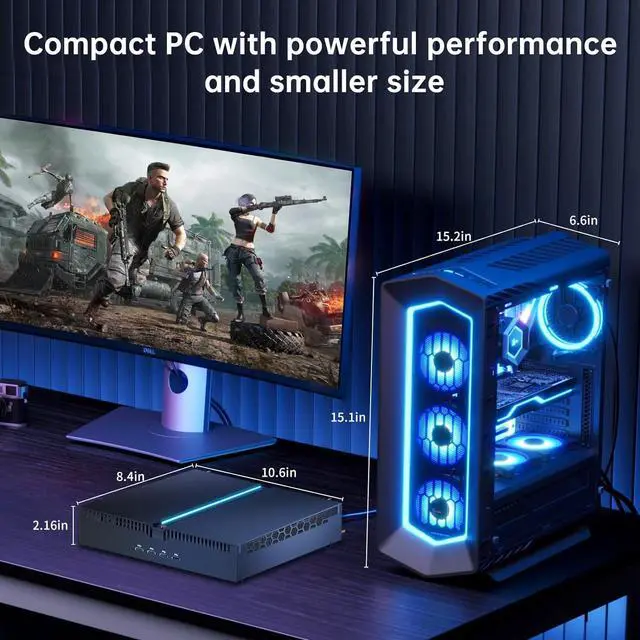

Size: 270 x 215 x 55mm
Cooling system: Intelligent Heat Dissipation
Package: 1 x mini computer, 1 x Bracket, 1 x Power adapter with cable, 2 x External antenna
System: Pre-installed Windows 11 Pro
