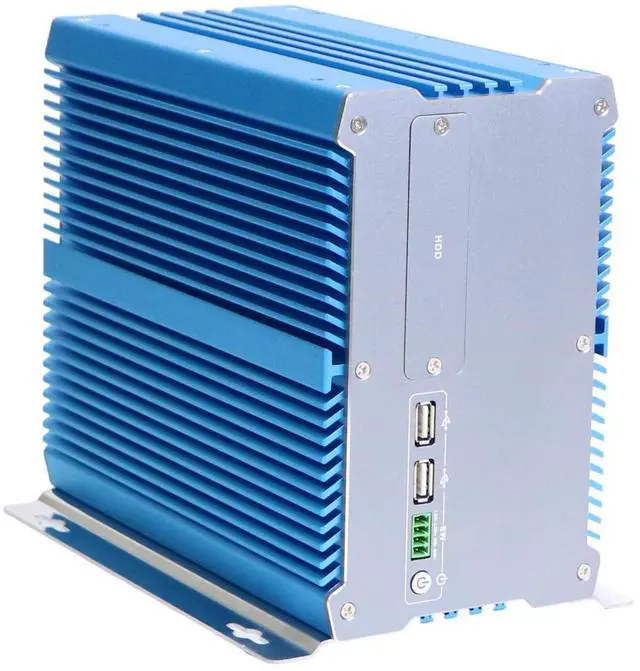

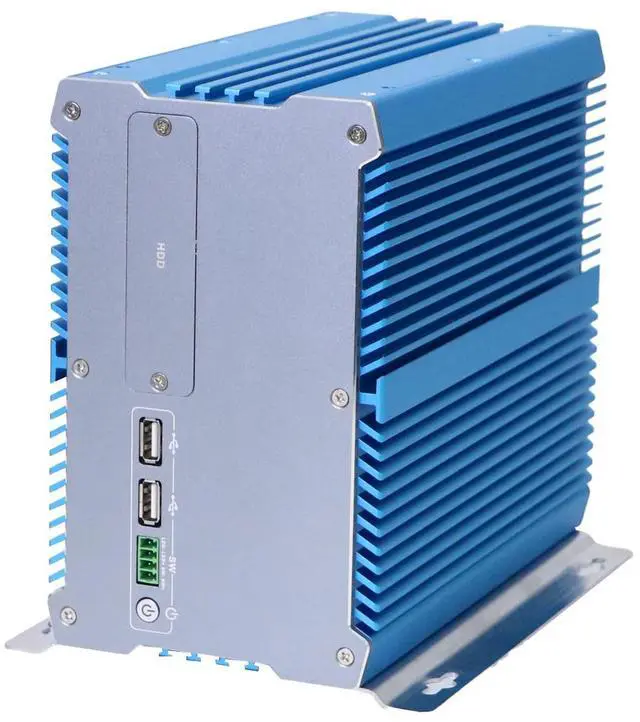

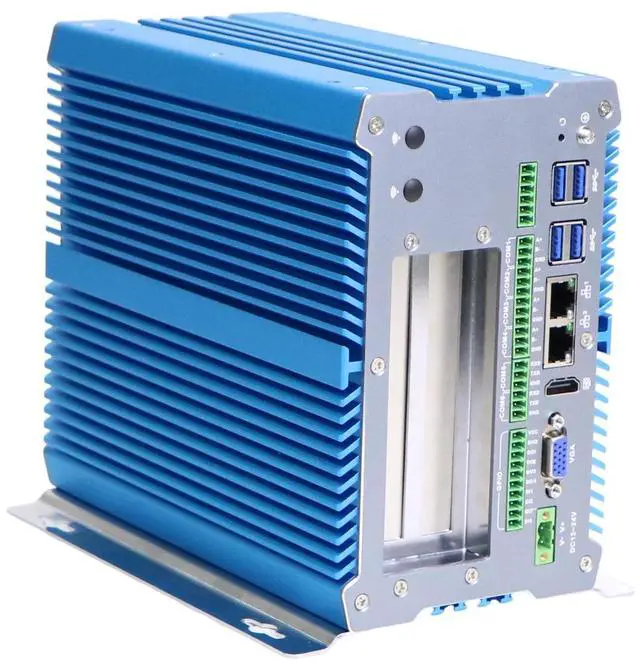

Partaker Rugged Industrial PC, Fanless Computer, IPC, N97, Windows 11 Pro, PCIe & PCI Expandable, 2 x LAN, 6 x COM, VGA HD Display, DC 12-24V, 16G RAM, 512G SSD
Limited time offer, ends 12/05 By Partaker Mini PC‘s Marketplace
- Fanless & Robust Design: Features a durable, all-aluminum alloy chassis with a hard-anodized surface, ensuring silent and reliable operation in harsh environments.
- Compact & Efficient Performance: Powered by the quad-core N97 processor, delivering capable computing power with low thermal design for fanless operation.
- Rich Industrial I/O Connectivity: Equipped with 6 COM ports (RS-485/232), dual Intel Gigabit Ethernet, and a 4-in-4-out isolated GPIO for versatile device integration.
- Flexible Expansion Options: Includes 1 PCIe x1 and 1 PCI slots, an M.2 SATA slot, a 2.5" drive bay, and a mini PCIe slot for 3G/4G module expansion.
- Wide-Range Power Input: Supports a DC 12~24V wide voltage input with reverse connection protection, ideal for various industrial power scenarios.
- Stable Operation in Extended Temperatures: Designed to operate reliably within a temperature range of 0°C to +50°C, suitable for demanding industrial applications.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model Number: Partaker I33
Color: Blue + grey (color available)
Material: High quality all-aluminum alloy, surface hard anodized
Processor: Intel N97 (4 Core 4 threads, 6MB cache, Max Turbo 3.6 GHz)
BIOS: AMI UEFI BIOS
Chipset: Intel UHD Graphics
Memory: 1 x DDR4 3200 SODIMM ram slot, Max 32 GB
Display Port: 1* VGA, 1* HD

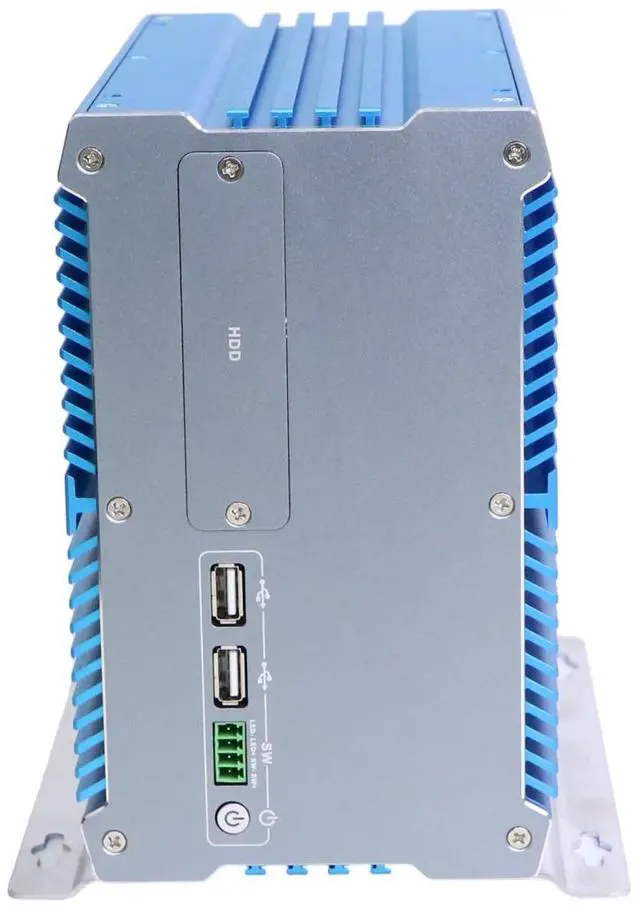

Front I/O: 2 x USB 2.0, 1 x Power Button, 4P Phoenix Terminal (Remote Switch), 1 x 2.5 -inch drawer style hard drive expansion slot

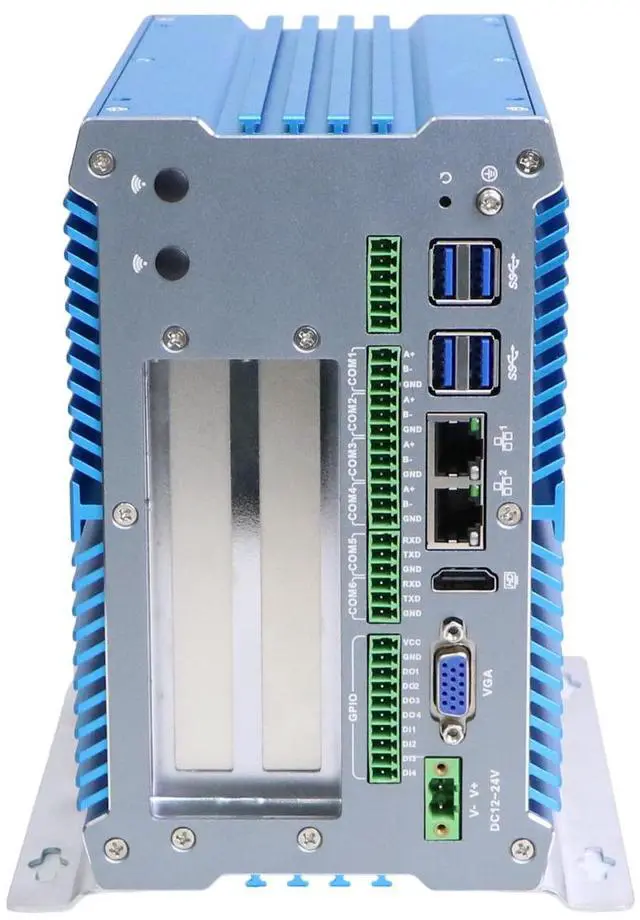

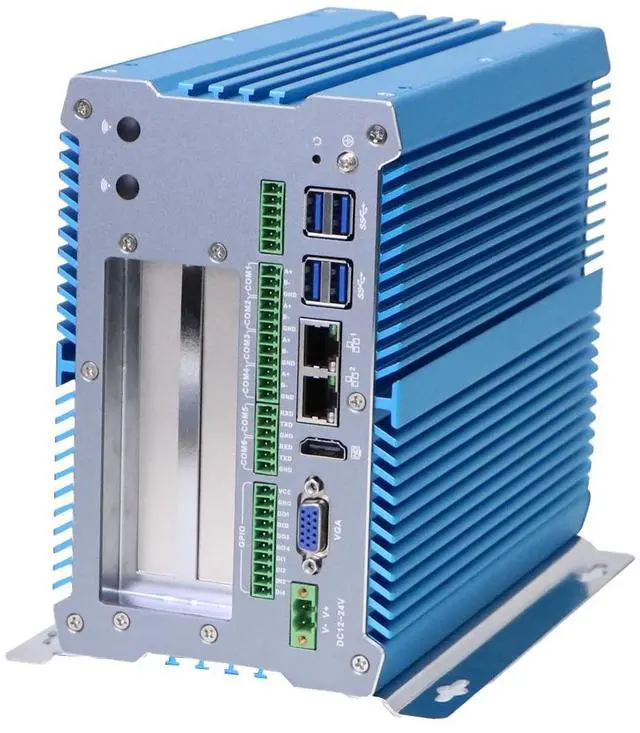

Rear I/O: 4 x USB 3.0 (N 97: 3 x USB 3.0, 1 x USB 2.0, ) 2 x Intel Gigabit Ethernet, 1 x VGA, 1 x HDM, 1 x 2P powered Phoenix terminal, 1* Clear COMS button, 6*COM (COM1-4 RS 485, COM5-6 RS232)
10P Phoenix terminal 4 in 4 out GPIO (with optical coupler isolation, 9-24V wide voltage), 6P Phoenix Terminal (Customizable Pin)
Expansion I/O: 1 x M. 2 2280 M-key slot (SATA), 1 x MINI PCIE (3G/4G, Core CPU support PCIE & USB, N97 only USB signal), with SIM card holder,
Optional Port ( standard shipments not included in) Audio, expandable 4-in-4-out GPIO
Expansion Slot: 1 x PCIE X8 slot (N97 1X, 1035G1/1235U/1255U4X)+1 PCI slot (32-bit)
Network: N 97: 2 x Intel i210 10 / 100 / 1000M
Ethernet; 1035G1/1235U/1255U: 1 Intel i210-AT, 1 i219-V Gigabit Ethernet
Storage: 1 x M. 2 (SATA ) slot, 1 x 2.5 -inch HDD or SSD
Power Supply: DC 12~24V wide voltage input, support positive and negative reverse connection protection
Other Function: Auto Power on, Timing Boot, Wake On Lan, PXE, Watchdog (0~255 levels)
Work Temp: 0 ~ + 50 (commercial HDD), -20 ~ + 60 (industrial SSD), with surface air flow
Work Humidity: 5% 95% non-condensing
Dimension: 216 * 185 * 115 mm [Wall mount not included]
Weight: 4kg [Wall mount not included]
Application: Industrial control, Industrial automation, robotics, iot, edge computing, machine vision, AGV/AMR, et
Color: Blue + grey (color available)
Material: High quality all-aluminum alloy, surface hard anodized
Processor: Intel N97 (4 Core 4 threads, 6MB cache, Max Turbo 3.6 GHz)
BIOS: AMI UEFI BIOS
Chipset: Intel UHD Graphics
Memory: 1 x DDR4 3200 SODIMM ram slot, Max 32 GB
Display Port: 1* VGA, 1* HD
Front I/O: 2 x USB 2.0, 1 x Power Button, 4P Phoenix Terminal (Remote Switch), 1 x 2.5 -inch drawer style hard drive expansion slot
Rear I/O: 4 x USB 3.0 (N 97: 3 x USB 3.0, 1 x USB 2.0, ) 2 x Intel Gigabit Ethernet, 1 x VGA, 1 x HDM, 1 x 2P powered Phoenix terminal, 1* Clear COMS button, 6*COM (COM1-4 RS 485, COM5-6 RS232)
10P Phoenix terminal 4 in 4 out GPIO (with optical coupler isolation, 9-24V wide voltage), 6P Phoenix Terminal (Customizable Pin)
Expansion I/O: 1 x M. 2 2280 M-key slot (SATA), 1 x MINI PCIE (3G/4G, Core CPU support PCIE & USB, N97 only USB signal), with SIM card holder,
Optional Port ( standard shipments not included in) Audio, expandable 4-in-4-out GPIO
Expansion Slot: 1 x PCIE X8 slot (N97 1X, 1035G1/1235U/1255U4X)+1 PCI slot (32-bit)
Network: N 97: 2 x Intel i210 10 / 100 / 1000M
Ethernet; 1035G1/1235U/1255U: 1 Intel i210-AT, 1 i219-V Gigabit Ethernet
Storage: 1 x M. 2 (SATA ) slot, 1 x 2.5 -inch HDD or SSD
Power Supply: DC 12~24V wide voltage input, support positive and negative reverse connection protection
Other Function: Auto Power on, Timing Boot, Wake On Lan, PXE, Watchdog (0~255 levels)
Work Temp: 0 ~ + 50 (commercial HDD), -20 ~ + 60 (industrial SSD), with surface air flow
Work Humidity: 5% 95% non-condensing
Dimension: 216 * 185 * 115 mm [Wall mount not included]
Weight: 4kg [Wall mount not included]
Application: Industrial control, Industrial automation, robotics, iot, edge computing, machine vision, AGV/AMR, et
