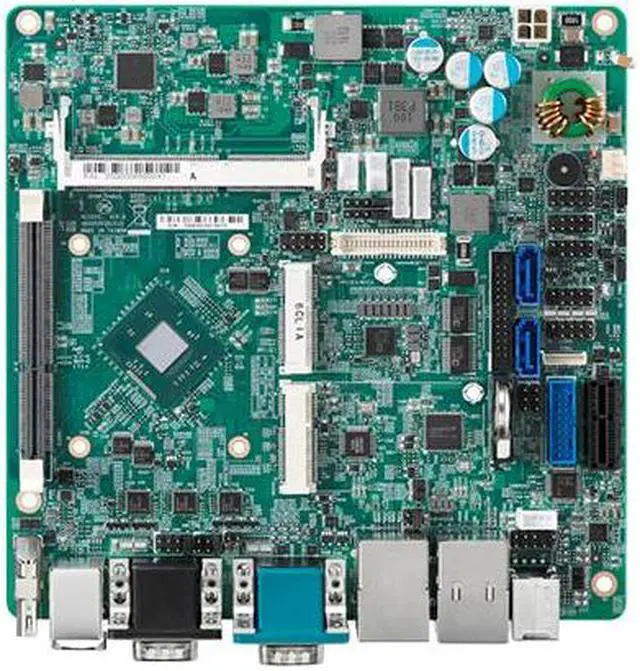

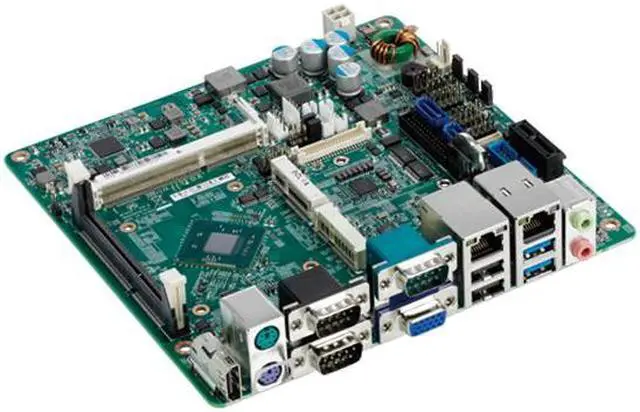

NexCOBOT Industrial motherboard | Single board computer NEX 650-ADU Intel® Celeron® processor J1900 2 X DDR3 1333 SO-DIMM up to 8GB

NEX 650-ADU is the NEXCOM most advanced flagship Mini-ITX form factor powered by onboard 4-core Intel® Celeron® J1900 processor (codenamed Bay Trail) that integrates with 24/48-bit LVDS & upto 8GB DDR3/L memory & rich I/Os.

AIoT Software free downloadhttps://www.aiotcloud.dev/en/community-version

NEX 650-ADU represents a powerful model for intensive multi-media & high computing base application which can be embedded into fan-less or 1U/2U rack mounted chassis as customized system–ready PBOX solution. The wide range 12~24V DC-in.

Specifications

Form Factor

Dimensions: Mini-ITX (6.7-in x 6.7-in)

Processor System

CPU: Intel® Celeron® processor J1900

Core number: 4

Max speed: (by CPU)

L3 cache: 2MB

Chipset: N/A

BIOS: UEFI

Expansion Slot

mini-PCIe: 1 (full size)

mSATA: 1

PCIe: 1

Memory

Technology: dual channel DDR3L 1333 MHz SDRAM

Max.: 8GB

Socket: 2 x SO-DIMMv

Graphics

Controller: Intel® Gen7 Intel® graphics DX 11, OGL3.2

VRAM: shared memory

VGA: supports max. resolution 1920 x 1200

LVDS: dual channel 24-bit, max resolution 1920 x 1200@60Hz

HDMI: supports HDMI 1.3a, max resolution 1920 x 1200

Ethernet

Ethernet: 10/100/1000 Mbps

Controller: GbE LAN: 2 x Realtek RTL8111H-CG

Connector: 2 x RJ-45

I/O Interface

Max. data transfer rate: SATA2 (3.0 Gb/s)

Rear I/O

VGA: 1

HDMI: 1

Ethernet: 2

USB: 4 (2 x USB 3.0, 2 x USB 2.0)

Audio: 2 (Mic-in, Line-out)

Serial: 3 (RS-232/422/485)

PS2: 2 (1 x keyboard, 1 x mouse)

Internal Connector

USB: 6 (2 x USB 3.0, 4 x USB 2.0)

LVDS/inverter: 1/1

VGA: 1 (shared with rear I/O VGA COM)

Serial: 2 (RS-232)

SATA: 2 x SATA2 (3.0Gb/s)

mPCIe: 1

Parallel: 1

mSATA: 1 (shared)

GPIO 8-bit: 4 x GPI + 4 x GPO

SATA PWR output con: 1

Speaker header: 1

Watchdog Timer

Output: from super I/O to drag RESETCON#

Interval: 256 segments, 0,1,2…255sec/min

Power Requirements

Input PWR: 12~24V DC-in (4-pin ATX PWR Con)

Power on: AT/ATX supported

AT: directly PWR on as power input ready

ATX: press button to PWR on after power input ready

Environment

Temperature: 0ºC~60ºC

OS Support Lists

Windows 7/ Windows 8

Certifications

CE/FCC

Weight Information

1Kg

Warranty

2 year global warranty
