| Products | |||||
|---|---|---|---|---|---|

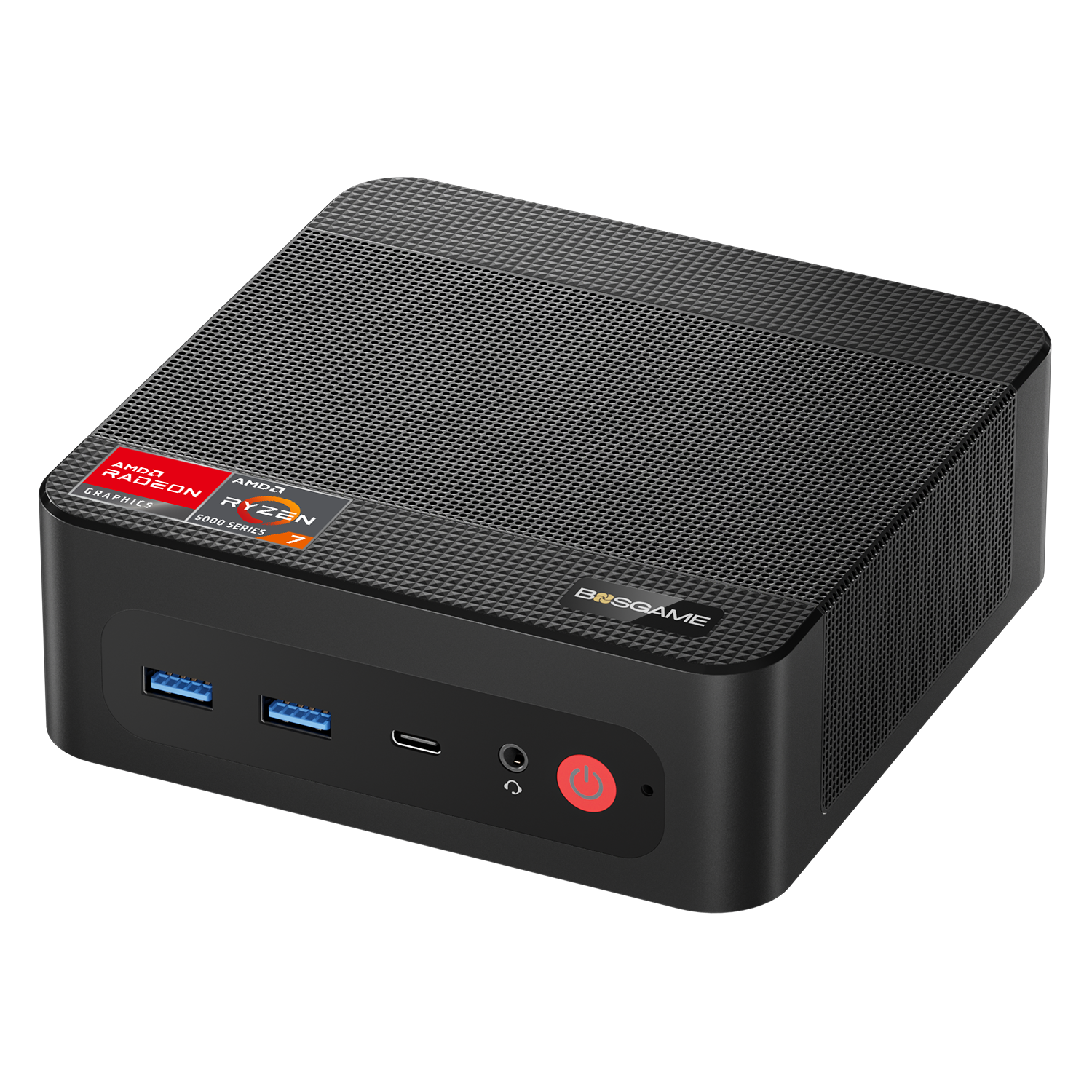

| Processor | AMD Ryzen 9 7940HS Processor, 8 Cores/16 Threads (16M Cache, up to 5.2 GHz) | AMD Ryzen 7 7840HS Processor, 8 Cores/16 Threads (16M Cache, up to 5.1 GHz) | AMD Ryzen 7 8745HS Processor, 8 Cores/16 Threads (16M Cache, up to 4.9 GHz) | AMD Ryzen 9 6900HX Processor, 8 Cores/16 Threads (16M Cache, up to 4.9 GHz) | AMD Ryzen 7 5825U Processor, 8 Cores/16 Threads (16M Cache, up to 4.5 GHz) |
| Graphics | Radeon 780M Graphics | Radeon 780M Graphics | Radeon 780M Graphics | Radeon 680M Graphics | AMD Radeon Graphics |
| Memory | DDR5 Dual channel (SODIMM Slots×2, up to 64GB) | DDR5 Dual channel (SODIMM Slots×2, up to 64GB) | DDR5 Dual channel (SODIMM Slots×2, up to 64GB) | LPDDR5 Dual channel | DDR4 Dual channel (SODIMM Slots×2, up to 64GB) |
| Storage | M.2 2280 PCIe4.0 SSD ×1 (up to 4TB) | M.2 2280 PCIe4.0 SSD ×1 (up to 4TB) | M.2 2280 PCIe4.0 SSD ×1 (up to 4TB) | M.2 2280 PCIe4.0 SSD ×1 (up to 4TB) | M.2 2280 PCIe4.0 SSD ×1 (up to 2TB) |
| Communications | Wi-Fi 6E (802.11ax) Bluetooth 5.2 Dual 2.5 Gigabit Ethernet (RJ-45 connector) | Wi-Fi 6E (802.11ax) Bluetooth 5.2 Dual 2.5 Gigabit Ethernet (RJ-45 connector) | Wi-Fi 6E (802.11ax) Bluetooth 5.2 Dual 2.5 Gigabit Ethernet (RJ-45 connector) | Wi-Fi 6E (802.11ax) Bluetooth 5.3 Dual 2.5 Gigabit Ethernet (RJ-45 connector) | Wi-Fi 6E (802.11ax) Bluetooth 5.2 Dual 2.5 Gigabit Ethernet (RJ-45 connector) |
| Display Support | Quad displays: one display with up to 8K resolution at 60Hz over Thunderbolt; one display with up to 4K resolution at 60Hz over USB-C; one display with up to 4K resolution at 60Hz over HDMI or 4K resolution at 60Hz over DP | Quad displays: one display with up to 8K resolution at 60Hz over Thunderbolt; one display with up to 4K resolution at 60Hz over USB-C; one display with up to 4K resolution at 60Hz over HDMI or 4K resolution at 60Hz over DP | Quad displays: one display with up to 8K resolution at 60Hz over Thunderbolt; one display with up to 4K resolution at 60Hz over USB-C; one display with up to 4K resolution at 60Hz over HDMI or 4K resolution at 60Hz over DP | Triple displays: one display with up to 4K resolution at 60Hz over USB-C; one display with up to 4K resolution at 60Hz over HDMI or 4K resolution at 60Hz over DP | Triple displays: one display with up to 4K resolution at 60Hz over USB-C; one display with up to 4K resolution at 60Hz over HDMI or 4K resolution at 60Hz over DP |
| Audio | 3.5mm headphone jack with advanced support for high-impedance headphones | 3.5mm headphone jack with advanced support for high-impedance headphones | 3.5mm headphone jack with advanced support for high-impedance headphones | 3.5mm headphone jack with advanced support for high-impedance headphones | 3.5mm headphone jack with advanced support for high-impedance headphones |

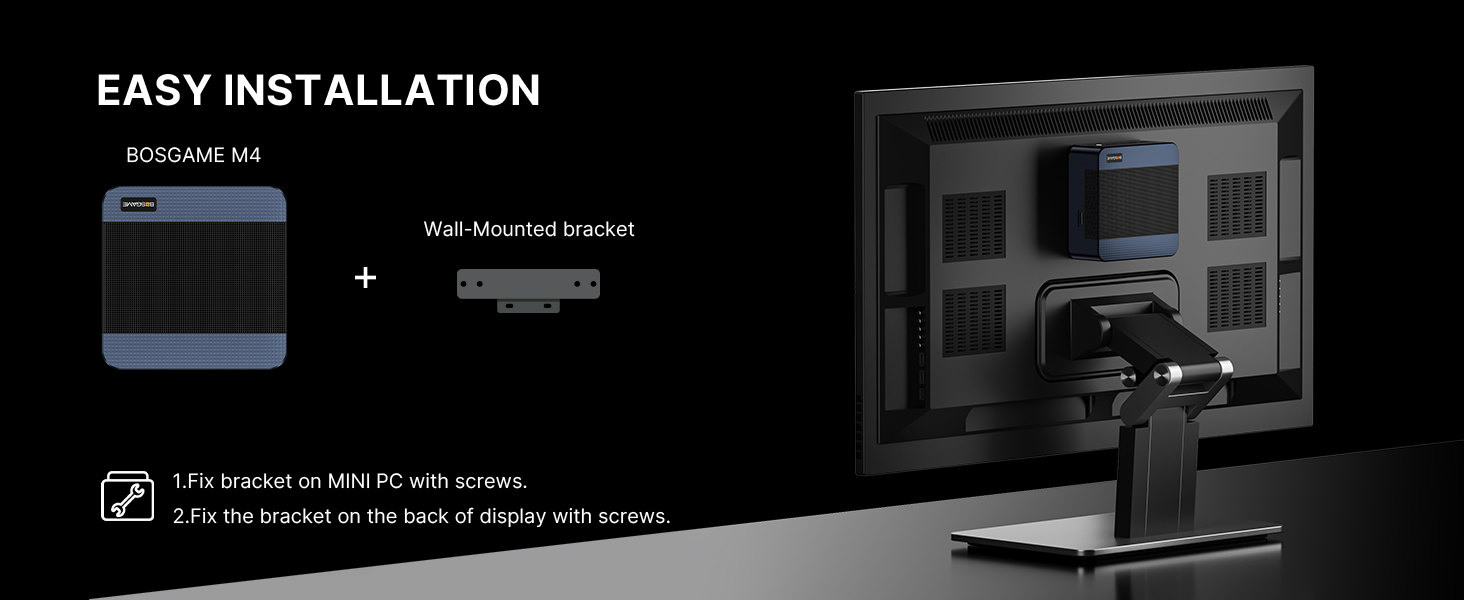

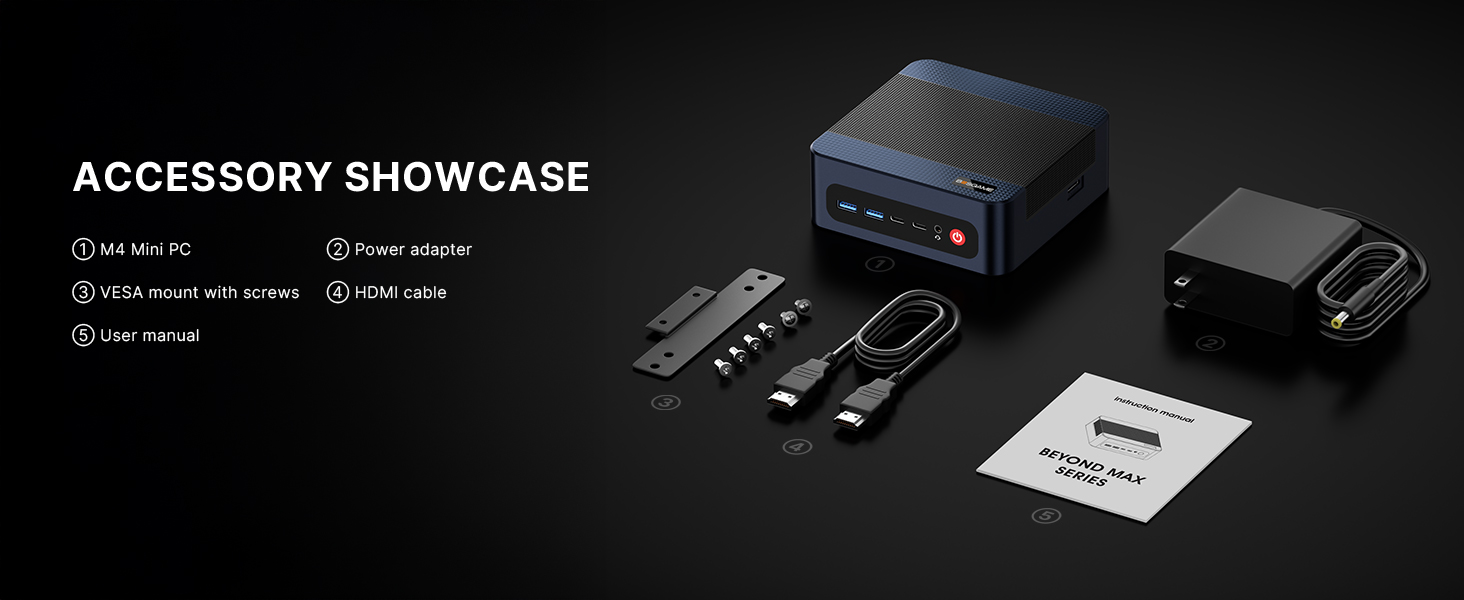

| In the Box | 7940HS mini pc Adapter HDMI cable User Manual VESA Mount | 7840HS mini pc Adapter HDMI cable User Manual VESA Mount | 8745HS mini pc Adapter HDMI cable User Manual VESA Mount | 6900HX mini pc Adapter HDMI cable User Manual VESA Mount | 5825U mini pc Adapter HDMI cable User Manual VESA Mount |
Product Details

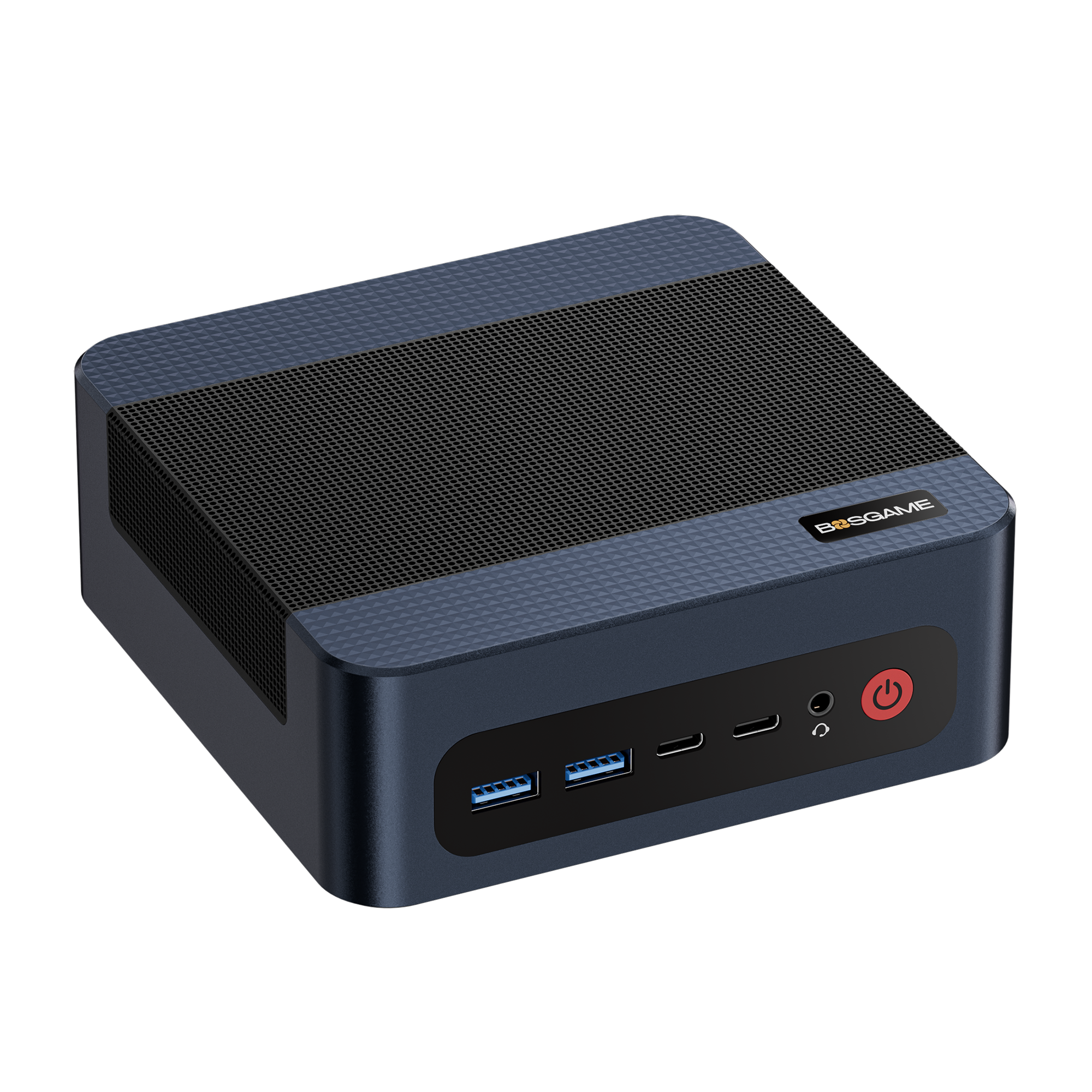

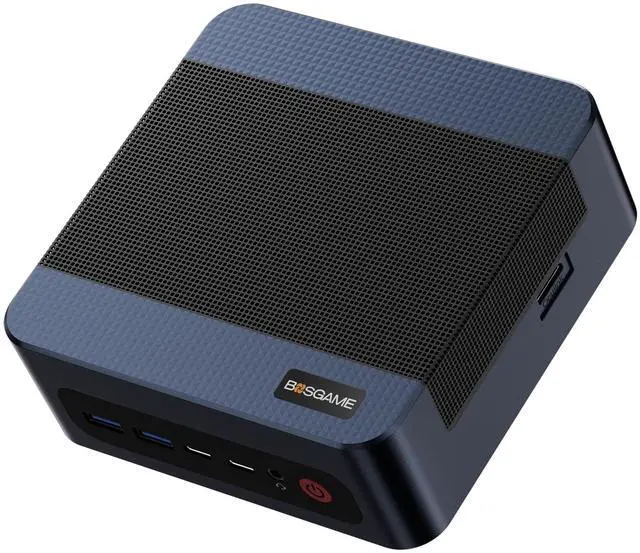

BOSGAME M4 plus 7940HS

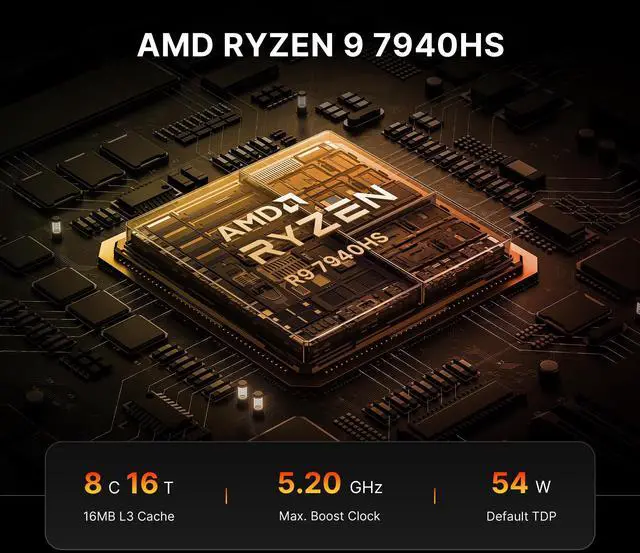

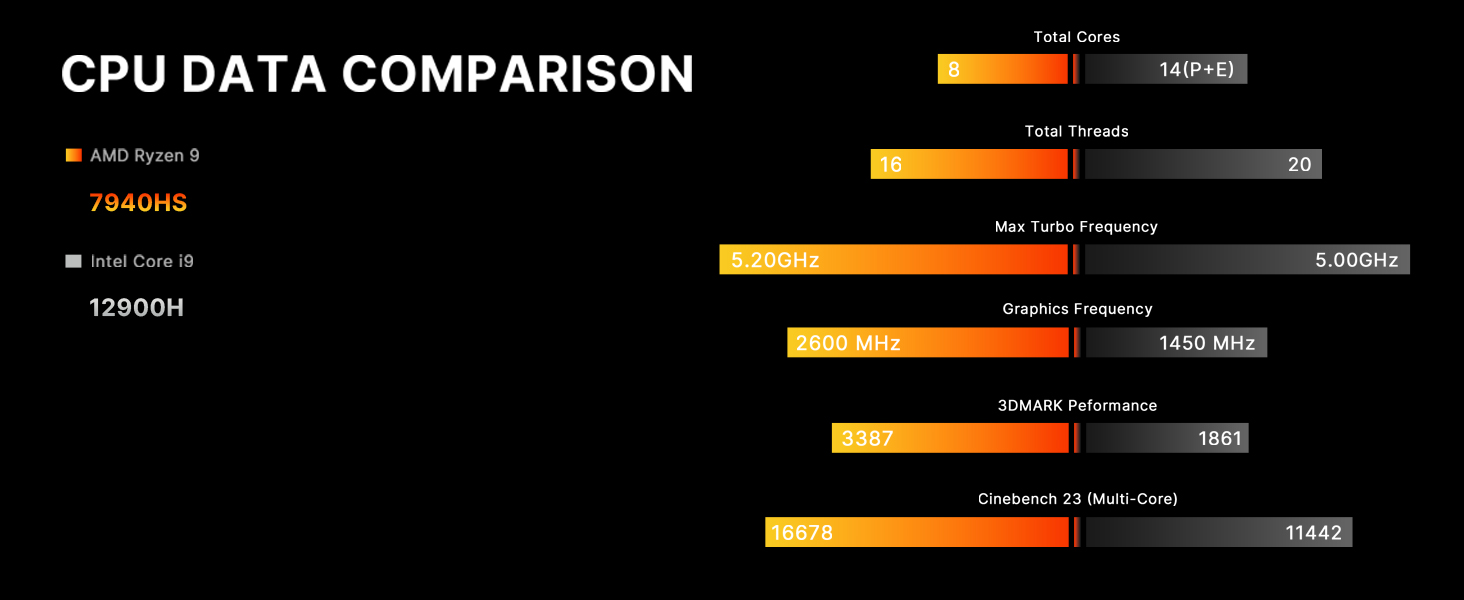

CPU
AMD Ryzen 9 7940HS
- CPU with 8 Total Cores and 16 Total Threads
- Processor Architecture Zen 4
- 12-core GPU
- 2800 MHz Graphics Frequency
- Media engine
- AMD Ryzen AI Available
-
Performance Up to 10 TOPS

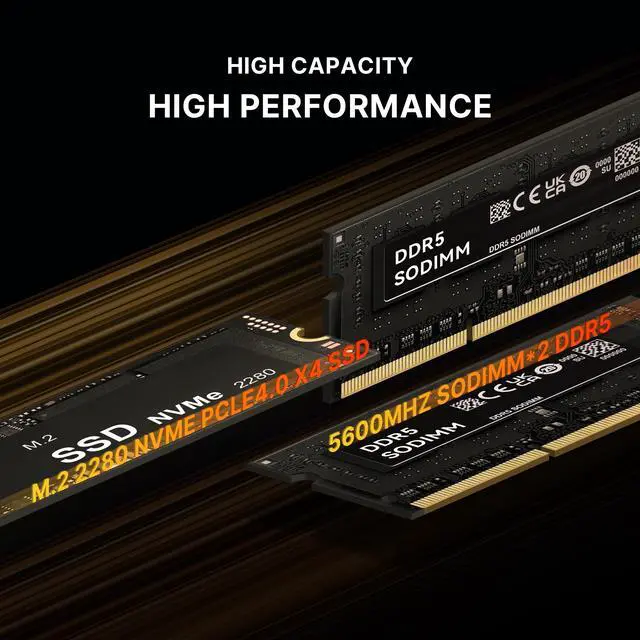

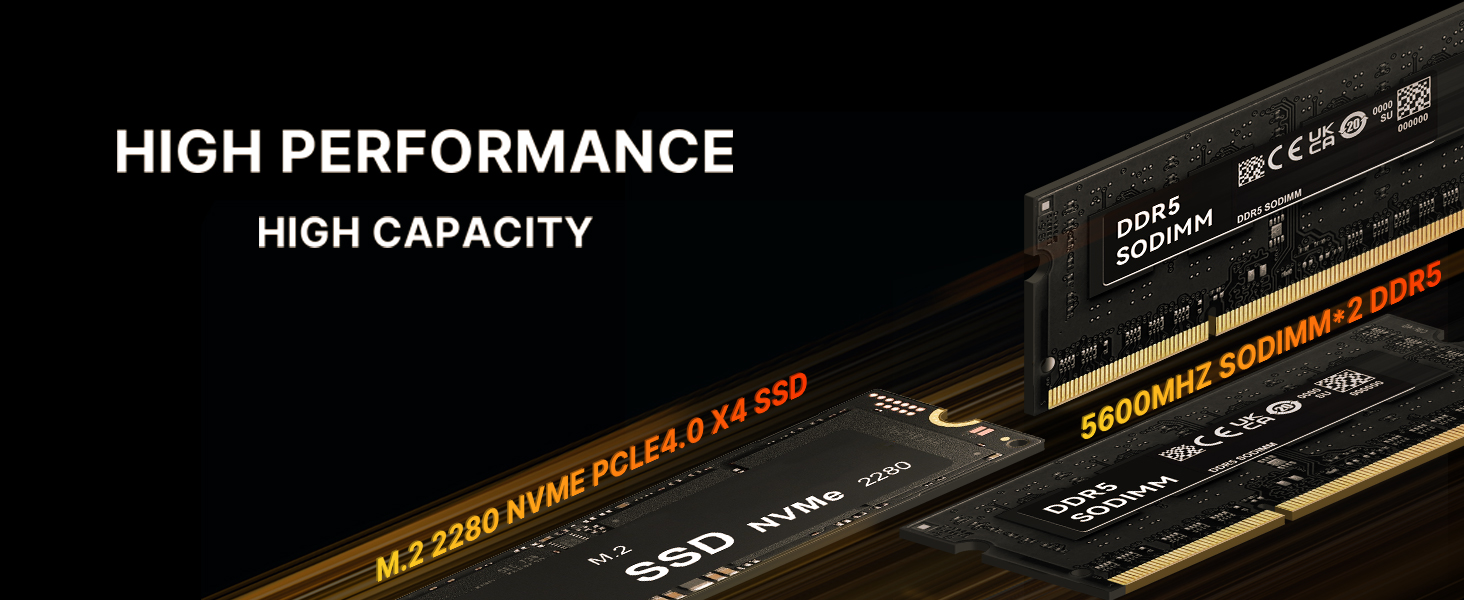

Memory
-
Pre-installed with 32GB DDR5 memory, expandable up to 64GB

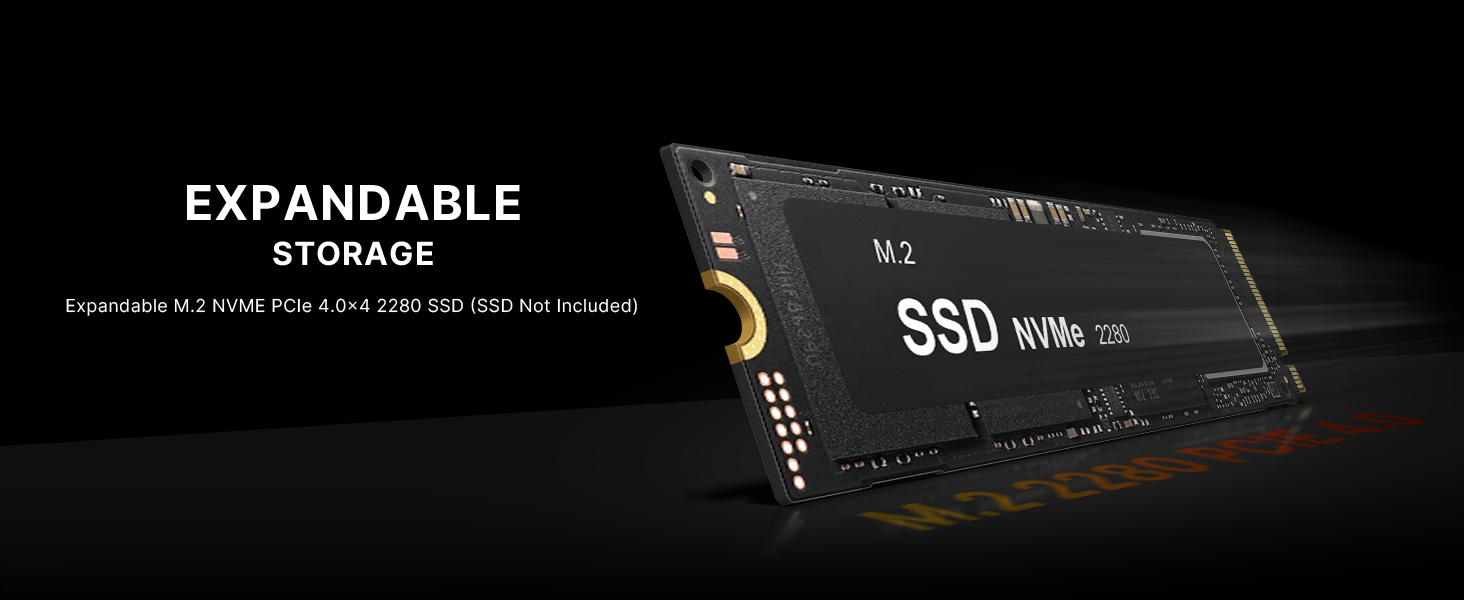

Storage
-
1TB SSD
Video Playback
- Supported formats include HEVC, H.264
-
HDR with Dolby Vision, HDR10+/HDR10 and HLG
Audio Playback
-
Supported formats include AAC, MP3, FLAC, Dolby Digital, and Dolby Digital Plus
Audio
-
3.5mm headphone jack with advanced support for high-impedance headphones

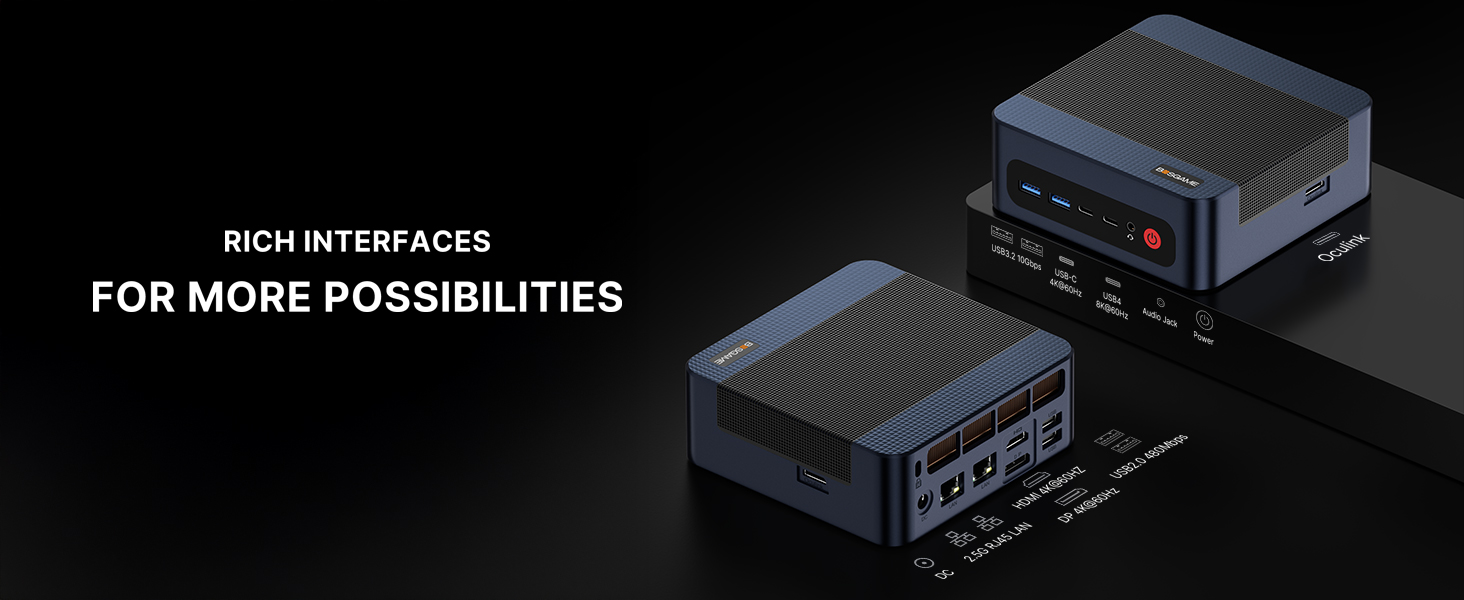

Connections and Expansion

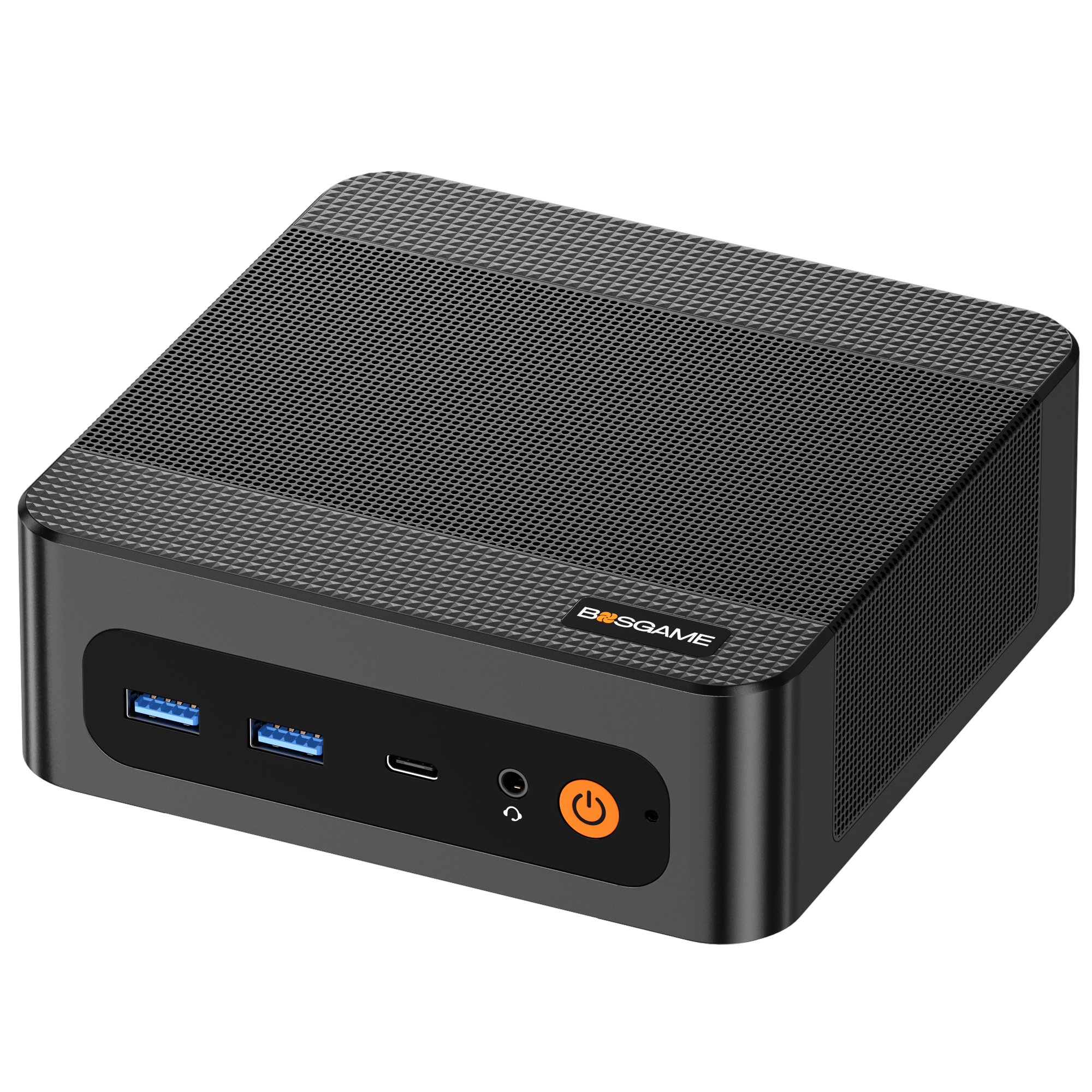

On front
- One USB-C port with support for USB 3 (up to 10Gb/s)

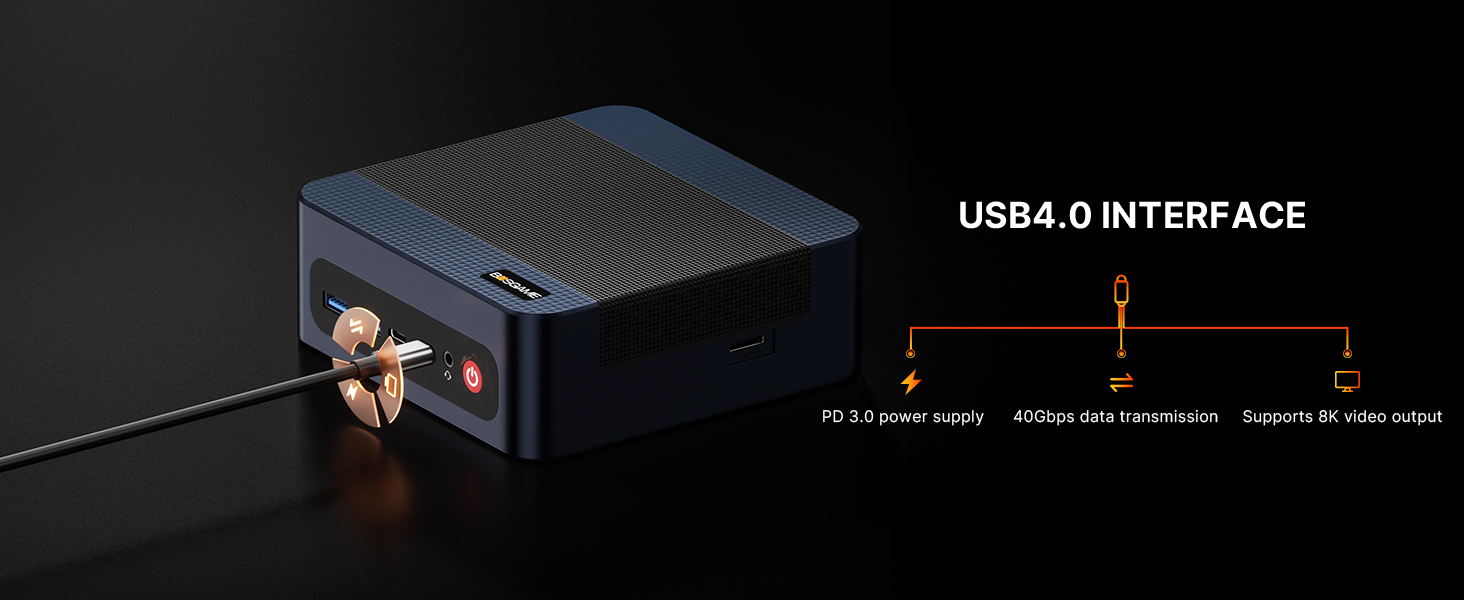

- One Thunderbolt 4 (up to 40Gb/s)
- Dual USB 3.2(10Gbps 5V/1A Double Layer)
On back

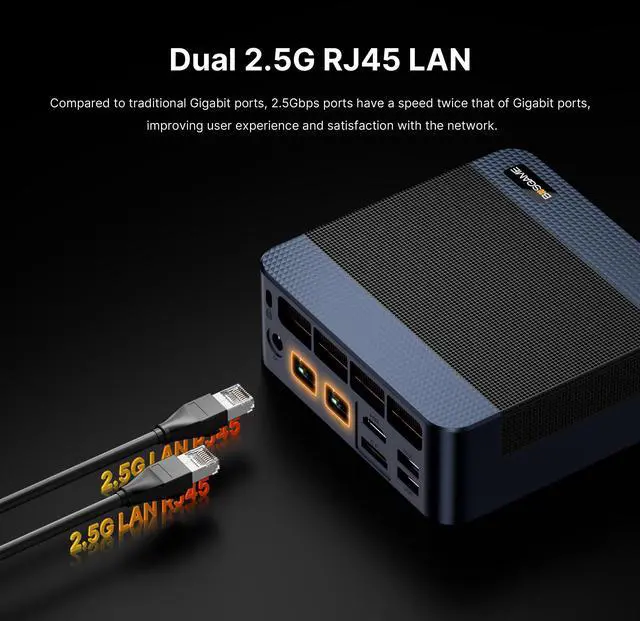

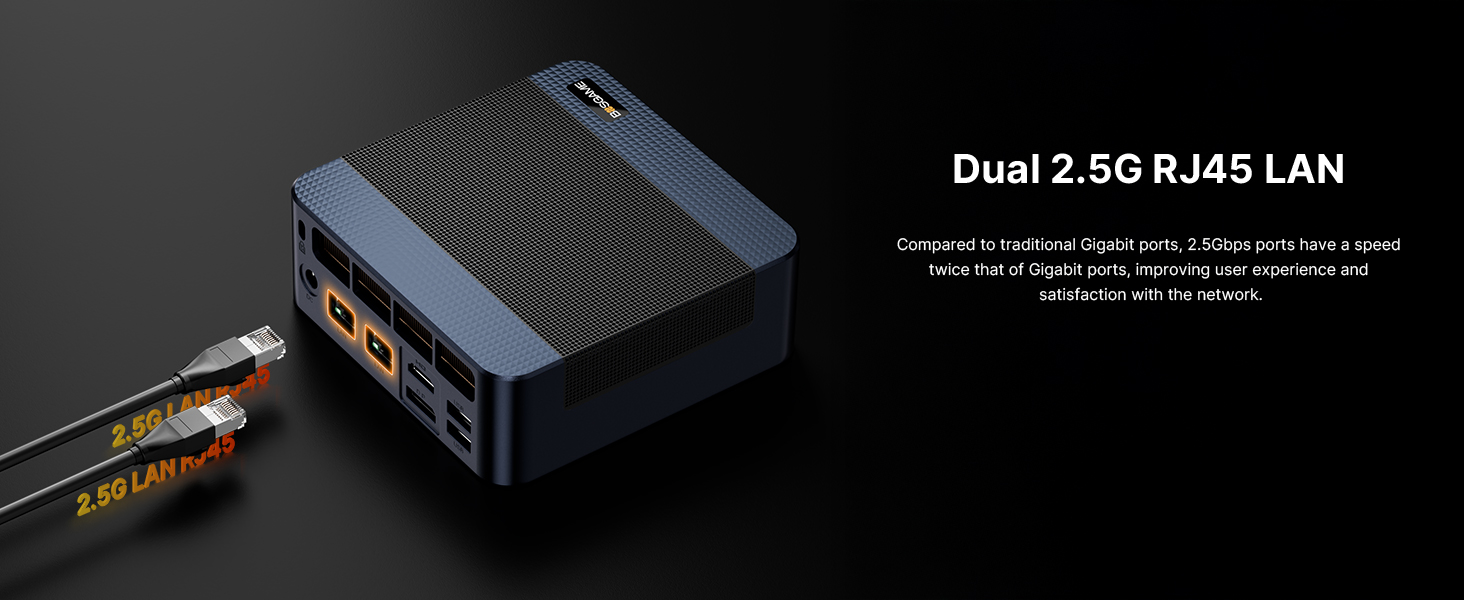

- Dual 2.5 Gigabit Ethernet port (configurable to 10Gb Ethernet)
- HDMI port
- DP port
- Dual USB 3.2(10Gbps 5V/1A Double Layer)
- 3.5mm headphone jack
