Original PSU 8Pin to 4+4Pin Dual CPU Power Cable for CORSAIR RM450 RM550 RM650 RM750 RM850 RM1000 GOLD Type 3 Modular Power 70CM
*Pre-Purchase Notes:
1. All pictures are for illustration purposes only, actual products may vary according to new production date and batch.
2. All cables are CORSAIR Original & New. Quality is much more better than compatible copy cable.
3. Different Brands & Series PSUs generally use unique pinouts, mix using may cause damage. Please check compatiblity in the below list or chat with us before you buy to ensure proper operation.
Description

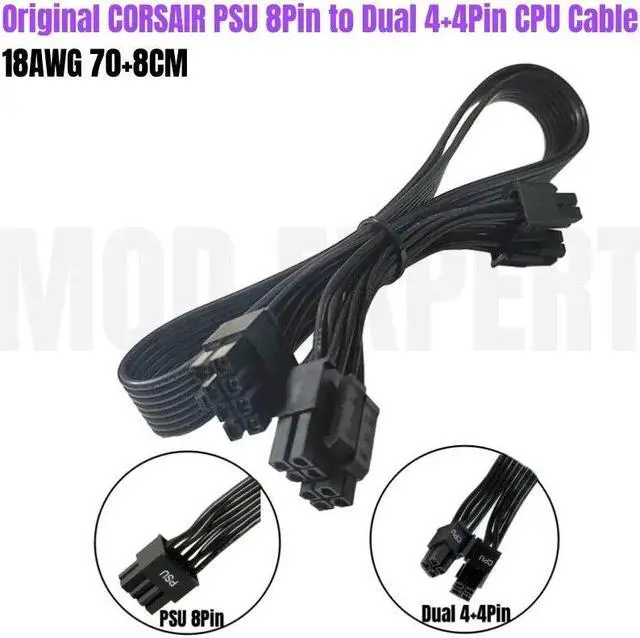

Interface: PSU 8Pin to Dual CPU 4+4Pin
Cable Gauge: UL1007 18AWG standard tin-coating copper wire.
Cable Length: 70cm, Extension 4+4 Pin CPU Cable length is 8cm (Not including interface).
The 4-pin CPU cable can supply up to 155 watts & the 8-pin CPU cable can supply up to 235 watts.
Adavantages:
1. Suitable for chassis wiring.
2. High current terminal & up to 10A
3. Easy to bend with good cable management.
4. FLEXIBLE & DURABLE to prevent corrosion and provide a long lifespan.

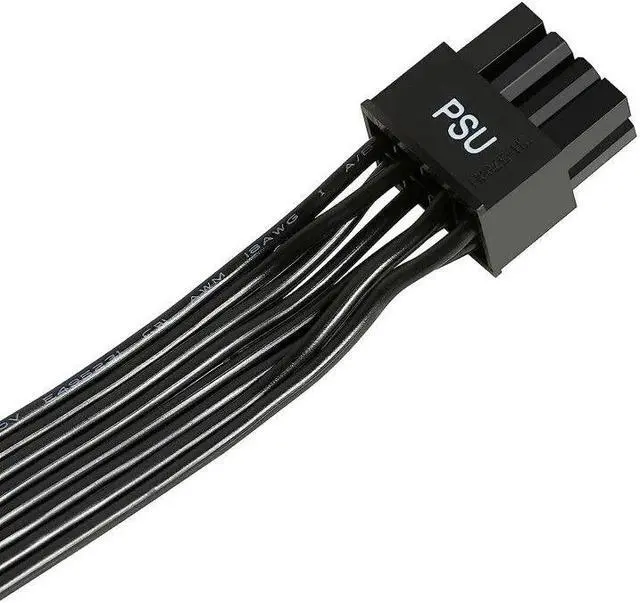

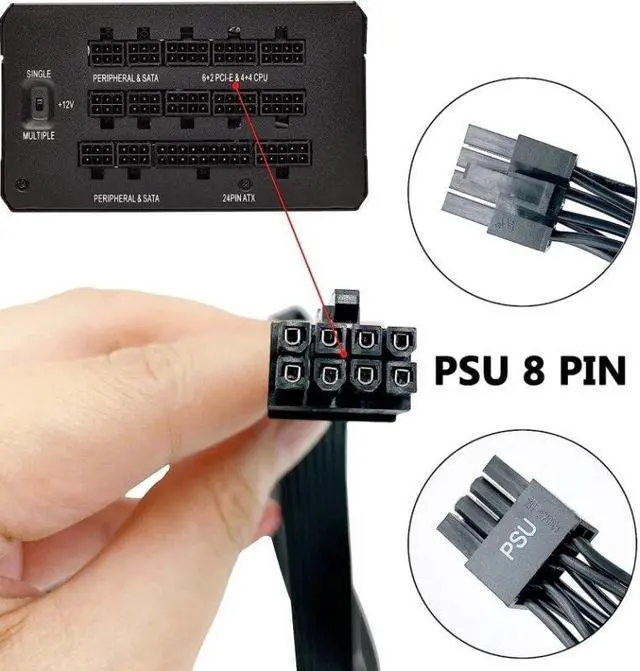

PSU 8Pin male end to plug into the power connector of power supply

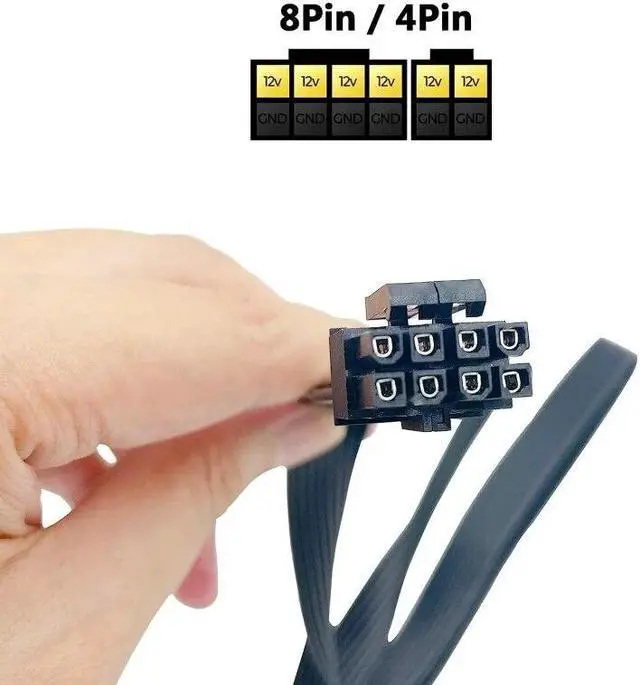

(NOTE: 8 pin male connector is ATX 8 pin, not pci-e 8 pin. )

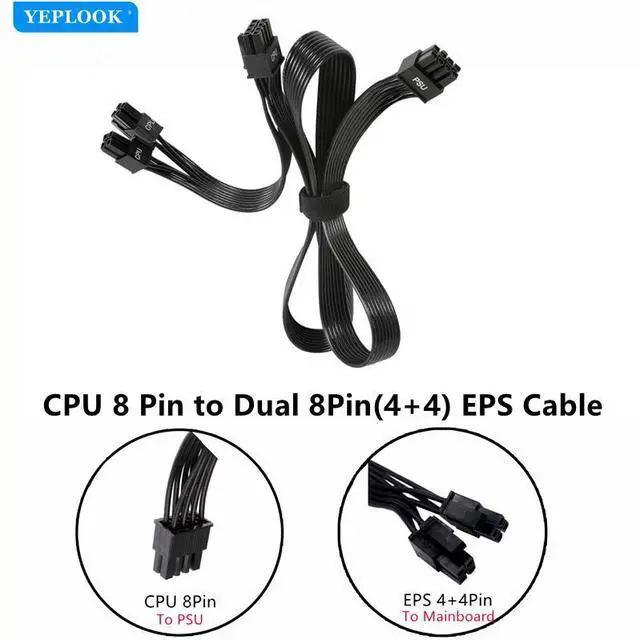

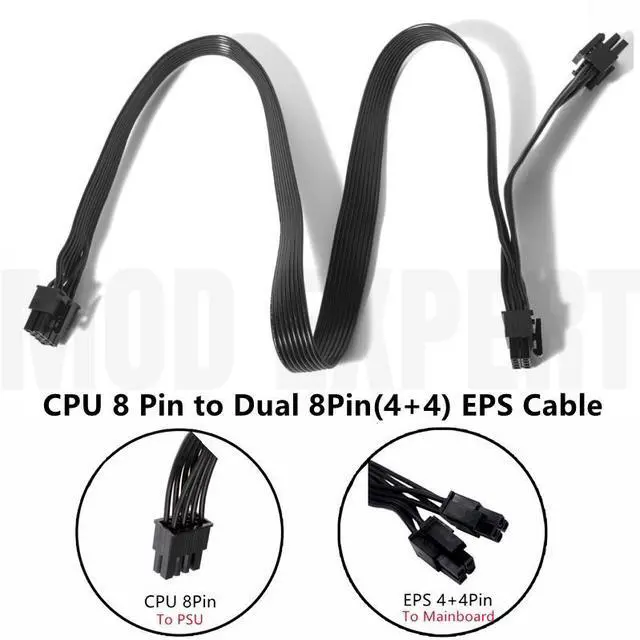

CPU 8Pin (4+4Pin) male end to plug into the Motherboard.

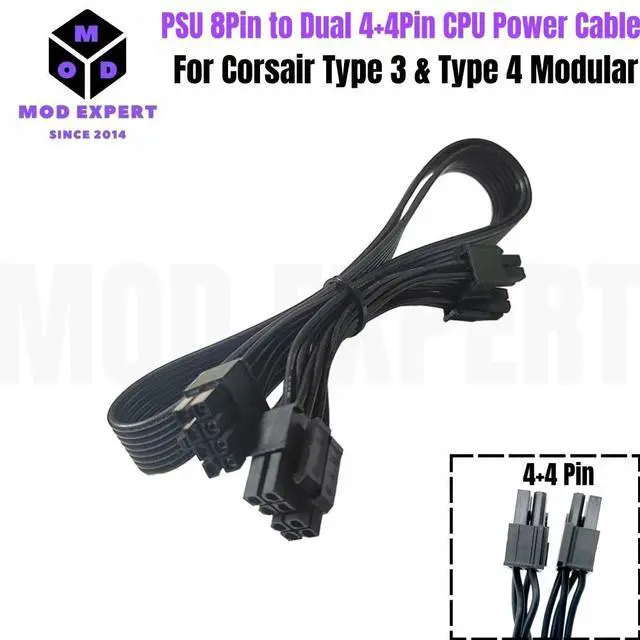

(NOTE: Detachable EPS 8Pin(4+4Pin) could be used as EPS ATX 8Pin or P4 ATX 4Pin by sliding on/off the 4Pin. )
Our power supply units (PSUs) use an 8-pin EPS12v CPU cable that can be split into two 4-pin connectors.
If you want to connect our PSU into a 4-pin EPS motherboard port, simply pull the two halves of the connector apart and connect one half into the motherboard port. PSU 8Pin and EPS 4+4Pin male cannot be used interchangeably! The CPU cable does not work with GPU graphics card.
Fully Compatible:
Guaranteed support Corsair All TYPE 4 Modular Power Supplies, also backward compatible with TYPE 3.
Type 3:
CORSAIR AXi: AX760i, AX860i, AX1200i, AX1500i.
CORSAIR HXi: HX750i, HX850i, HX1000i, HX1200i
CORSAIR HX Gold: HX650, HX750, HX850, HX1050
CORSAIR RM: RM450, RM550, RM650, RM750, RM850, RM1000 (Old & Yellow label).
CORSAIR CX-M: CX850M, CX750M, CX600M, CX500M, CX450M, CX430M.
CORSAIR CX: CX550, CX650, CX750.
CORSAIR CS-M: CS850M, CS750M, CS650M, CS550M, CS450M.
CORSAIR TX-M: TX850M, TX750M, TX650M, TX550M.
Type 4:
CORSAIR RMx: RM550x RM650x RM750x RM850x RM1000x.
CORSAIR RMi: RM550i RM650i RM750i RM850i RM1000i.
CORSAIR RMe: RM550e RM650e RM750e RM850e RM1000e.
CORSAIR RM (2019): RM450, RM550, RM650, RM750, RM850, RM1000 Platinum Version.
CORSAIR SF: SF450, SF600, SF700.
CORSAIR HX Platinum: HX750, HX850, HX1000, HX1200 Platinum Version.
CORSAIR AX1600i.
Not for CORSAIR Type 1 and Type 2 power, and other brands and models. Please Check with us if your power is not in the list.
Package List: 1x CORSAIR Dual 4+4Pin CPU Power Cable, 1x free gift cable tie.
