Original CPU Power Cable 4+4Pin 8Pin for Seasonic FOCUS+ PX-1000, PX-850, PX-750, PX-650, PX-550 Platinum Modular PSU Fonte 70CM

Original CPU Power Cable 4+4Pin 8Pin for Seasonic FOCUS+ PX-1000, PX-850, PX-750, PX-650, PX-550 Platinum Modular PSU Fonte 70CM 18AWG

* Pre-Purchase Notes:

1. These cables are original and new. Quality is more better than copy fake cable.

2. Different Brands & Series cables are not common used, mix using may cause damage.

3. Please check compatibility with us before you buy. If buy wrongly, please contact us first, do not accept bad rating.

Description

Manufacturer: Seasonic.
Length: 70CM/ 27.6 inch/ 2.3 ft.

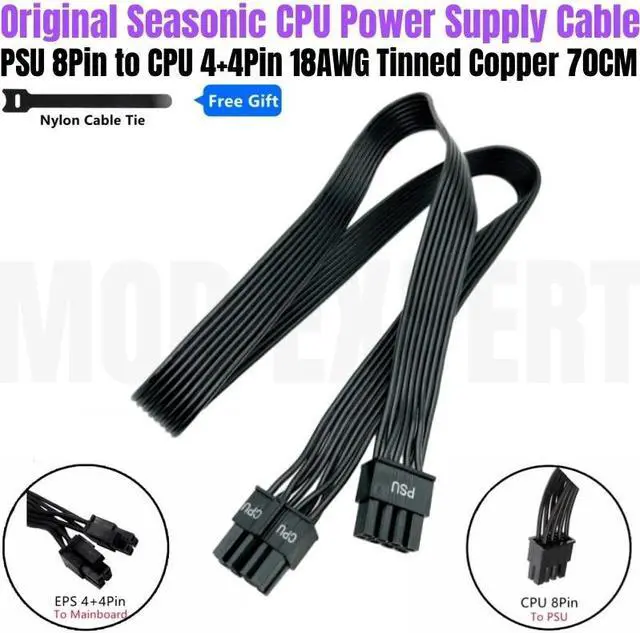

Interface: PSU 8Pin to CPU 4+4Pin
Gauge: Original Quality, made of UL1007 standard 18AWG tinned copper wire.
Features: Flexible and easy to bend, keeping cables in a good management. Excellent durability, high temperature resistance, support high currents in order to achieve superior performance.

How to Connect:

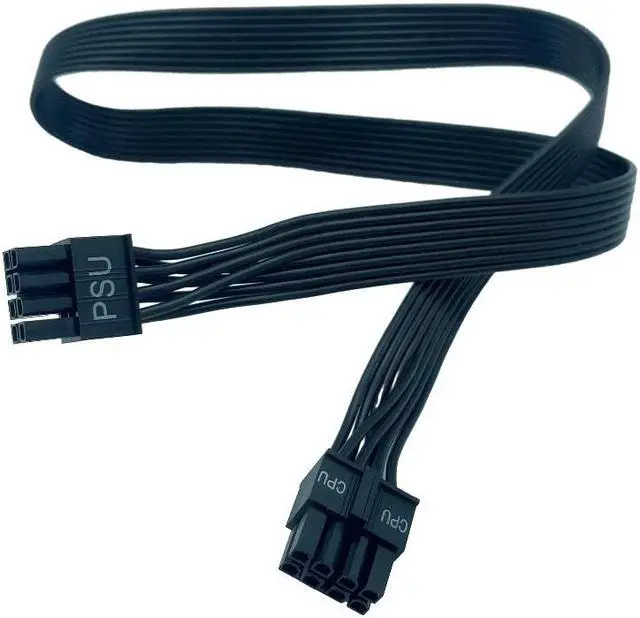

PSU 8Pin male end to plug into the power connector of power supply
(NOTE: 8 pin male connector is ATX 8 pin, not pci-e 8 pin. )

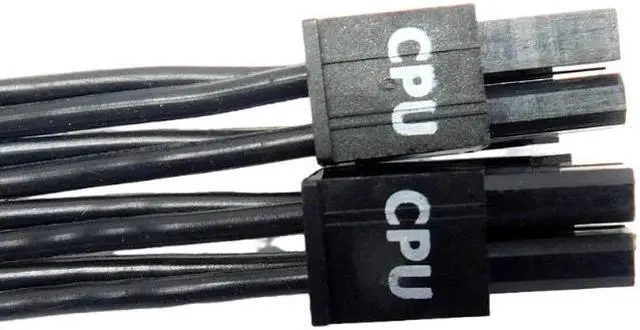

EPS 8Pin (4+4Pin) male end to plug into the Motherboard.
(NOTE: Detachable EPS 8Pin(4+4Pin) could be used as EPS ATX 8Pin or P4 ATX 4Pin by sliding on/off the 4Pin. )

The cable does not work with GPU graphics card. PSU 8Pin and EPS 4+4Pin male cannot be used interchangeably!

Packing list: 1x Seasonic Original Single CPU Power Supply Cable, 1x free gift nylon cable tie.

Compatiblity: Support Seasonic FOCUS PLUS Platinum PX Series Below:

Model: SSR-1000PX, FOCUS PX-1000, FOCUS PLUS 1000 Platinum Full Modular PSU

Model: SSR-850PX, FOCUS PX-850, FOCUS PLUS 850 Platinum Full Modular PSU

Model: SSR-750PX, FOCUS PX-750, FOCUS PLUS 750 Platinum Full Modular PSU

Model: SSR-650PX, FOCUS PX-650, FOCUS PLUS 650 Platinum Full Modular PSU

Model: SSR-550PX, FOCUS PX-550, FOCUS PLUS 550 Platinum Full Modular PSU

Warning!!! NOT for other brands and models! Also Not for some Seasonic old version
PSUs Below:

X Series: SS-650KMSS-750KMSS-560KMSS-660KMSS-760KMSS-850KMSS-1050XMSS-1250XM
P Series: SS-1000XPSS-860XP
FL Series: SS-400FLSS-460FL

If your power supply model is not mentioned, please check compatibility with us!
We have many full sets of modular power cables of many brands of Power Supply Unit. (8Pin, Dual 8Pin, SATA, IDE, CPU, 24Pin Main Power), please ask for links to purchase.
