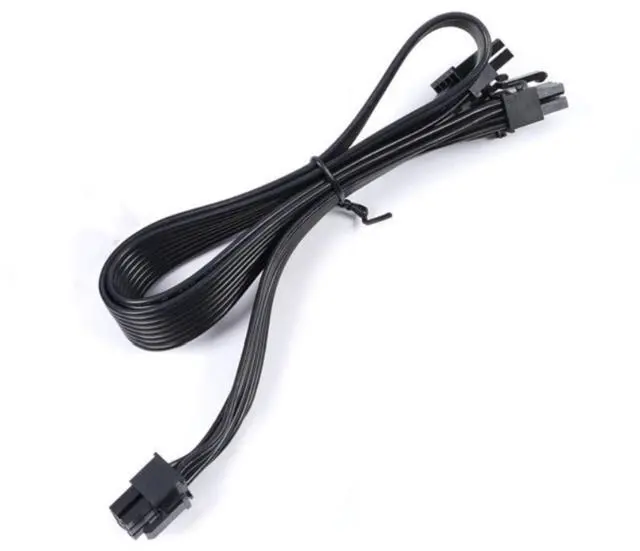

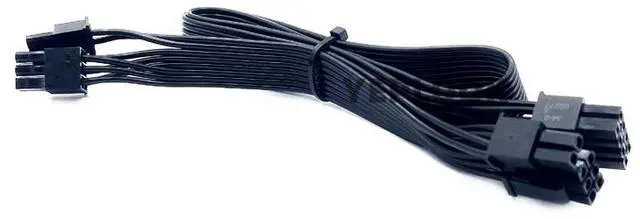

YEPLOOK PCIe Dual 8Pin 6+2Pin with Pigtail, GPU Power Cable for Corsair HX1200i, HX1000i, HX850i, HX750i Type 3 Modular Power Supply

YEPLOOK PCIe Dual 8Pin 6+2Pin with Pigtail, GPU Power Cable for Corsair HX1200i, HX1000i, HX850i, HX750i Type 3 Modular Power Supply

*Mod Expert Store Pre-Purchase Notes:

1. All pictures are for reference only, please contact us for real photo if need.

2. Mix use cables between brands may cause damage. Please check compatibility with us before you buy.

About the Compatibility:

This PCI-e Dual 6+2 8Pin GPU power cable is compatible with Corsair HX-i TYPE 3 modular power supply units.

If your modular power is not mentioned, please check compatibility with us to ensure proper installation.

Not compatible with Corsair Type 1, Type 2 and Type 5 modular powers.

Not compatible with modular powers of other brands and models.

There is an empty pin of PSU 8Pin, which is normal and default pin layout design, not a defective cable.

The PCI-E 8Pin could be used as 6pin or 8pin by sliding on/off the 2pin, supports any GPU graphics cards with 6pin or 8pin.

Description:

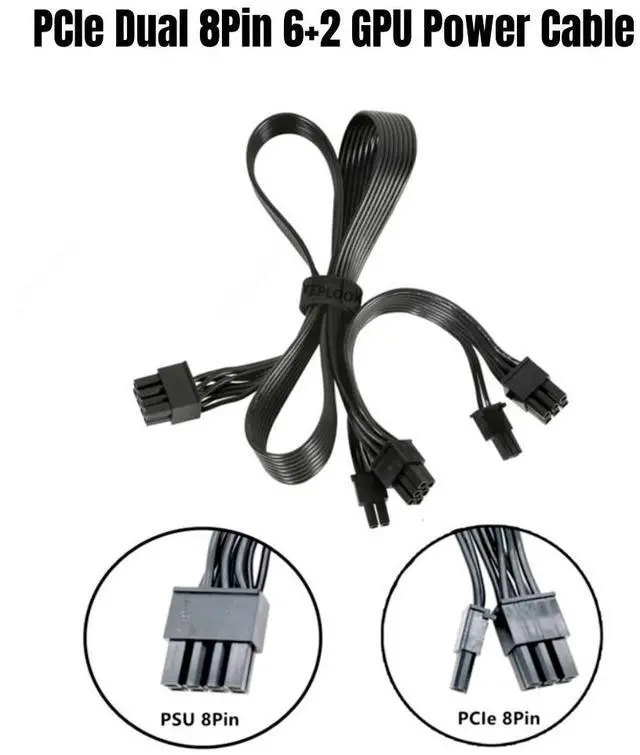

Interface: PSU 8Pin to PCI-e 6+2Pin 8Pin

Length: 60+20cm / 23.62+7.87 inch

Cable Gauge: AWM 18AWG standard tin-plated copper wire.

Nominal Voltage: 300V

Temperature Range: -30°C ~ 80°C

Number of Inner Wires: 34 PCS

Package List: 1x PCIe Dual 8Pin 6+2 GPU Power Cable for Corsair HXi type 3 modular powers.

Features

1. Gauge: Made of UL1007 standard 18AWG wire, heat resistant, not easy aging, very durable.

2. Soft flat cable, flexible and easy to bend, easy to organize and good cable management.

3. PCIe cable could be used as 6pin or 8pin by sliding on/off the 2pin. Supports GPU graphics cards with 6pin, 8pin or 8pin+6pin power socket. Such as GTX1080, GTX1080Ti, RTX2060, RTX2070, RTX2080, RTX2080Ti, RTX3060, RTX3070, RTX3080Ti, RTX3090Ti, RX570, RX580, RX590, RX5700 XT, RX6700XT, RX6800XT, RX6900XT

Installation

1. The 7Pin port [PSU side] can only be inserted into the PCI-e socket of modular power supply.

2. The 6+2 PIN [PCIE] port can be directly inserted into the graphics card or into the female port of a standard female-to-male PCIE extension cable.

3. The above installation method is the only correct way. Please confirm before and after installation.

Questions

Q 1: Why is its [PSU] interface only 7Pin?

A: please notice that the one that came with the PSU has a double wired pin on the left and so there is an empty pin on the right. Because the graphics card power supply only needs 3Pins 12V signals. The other 5 Pins are GND signals.

Q 2: Can I use it power for CPU?

A: No! Although the CPU interface in the power panel is shared with the PCIE interface.

Q 3: Does it work with other brands of module power supplies?

A: No, it only compatible with modular powers mentioned above.
