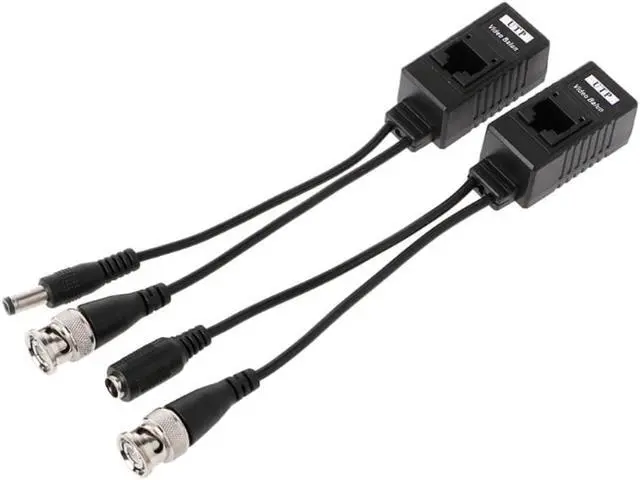

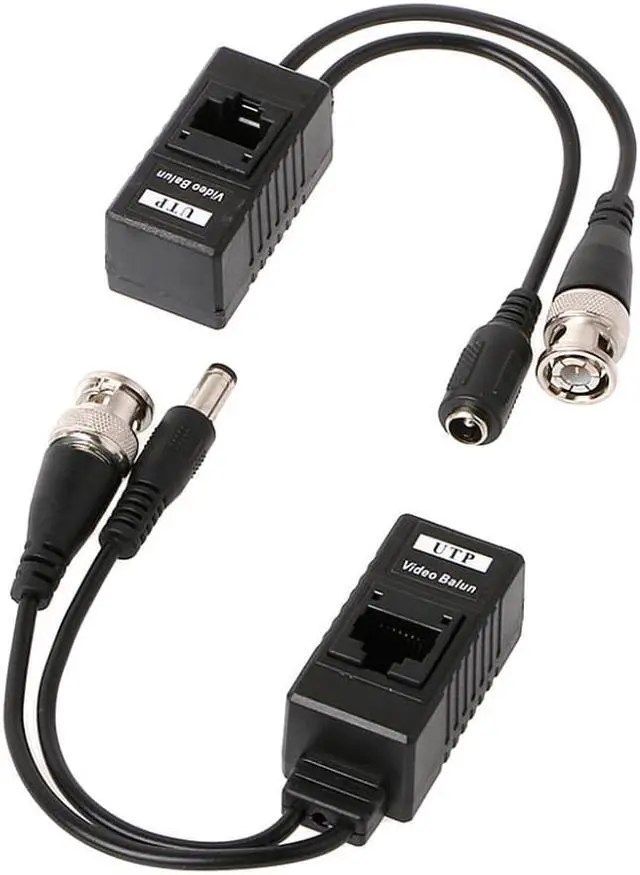

1 Pair BNC To RJ45 Passive Video Power + Audio Balun Transceiver For CCTV Camera

Plug Type:None
Size:AAA
Model Number:AAA
Item Type:POE Spliter
Origin:Mainland China
Certification:NONE

1 Pair BNC To RJ45 Passive Video Power + Audio Balun Transceiver For CCTV Camera
Features:
100% brand new and high quality.
Easy installation, using the
standard UTP cable system.
Using UTP cable ( CAT5, RJ45) to transmit video, audio signal instead of co-axial.
Support all video device, such as camera, monitor, DVR card and recorder etc.
Image with high quality in long distance.
Built - in transient protection.Excellent anti
-jamming ability.
Real-time monochrome or color transmission PAL, NTSC, SECAM and other standard baseband video signal.
Passive UTP video transmission equipment, and can be used for sending and receiving, without providing power.
Specifications:
Size: 43×22×21mm/1.69×0.87×0.83in (Approx.)
Video Format: NTSC / PAL / CCIR / SECAM
- Frequency respond: DC-6MHz
- Common-ode / differential-mode rejection: 15HKz - 6MHz 60dB type
Video In / Out: BNC (Male) x 1 + BNC (Male) x1
Power Input: DC 12V
Frequency Response: DC to 6MHz
Impedance:
- Coaxial cable BNC Male: 75
- UTP RJ45 Data Connector: 100
Working temperature: -10 ° to +70 °
Storage temperature: -30 ° to +70 °
Humidity: (non-condensing) 0-95%
Quantity: 1 Set(1 Pair) (other accessories demo in the picture is not included)
Note:
1.Transition: 1cm=10mm=0.39inch
2.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
3.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package includes:
1 Pair X BNC To RJ45 Passive Video Balun Transceiver For CCTV Camera
