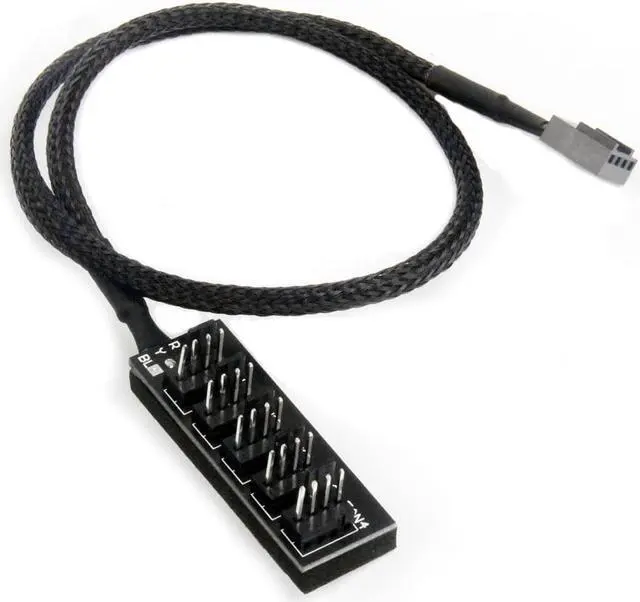

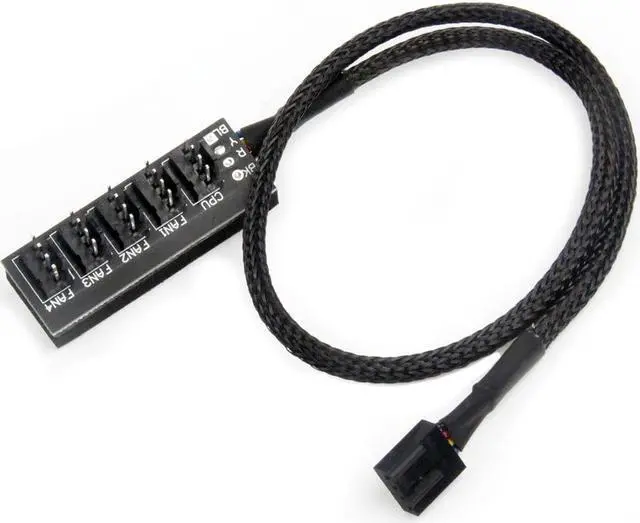

40cm 1 To 5 4-pins Molex TX4 PWM CPU Cooler / Case / Chasis Cooling Fan Power Cable Hub Splitter Adapter

Type:Modem Cable
Origin:Mainland China
Certification:NONE

Product Name: mainboard 4Pin / pin PWM hub fan hub computer temperature control and speed regulation board chassis four wire fan controller
One drag five
Connecting wire length: 40cm
Product weight: 14g
Connecting wire body, mesh, black.
1: This baby is a hub, not a governor. The speed regulation function is realized through the motherboard, not through the hub
Direct governor. To realize the speed regulation function, you need to plug the hub into the computer motherboard with 4-pin PWM speed regulation
On the socket of the;
2: Support 4 / 5-way PWM fan, compatible with 3 / 4P fan;
3: The hub interface only has the fan connected to the CPU to measure the speed, and other positions can only adjust the speed without measuring the speed
4: The back is equipped with back glue, which is convenient to fix the hub;
5: The speed can be adjusted only when the four wire fan is connected to the hub, and the speed can not be adjusted when the three wire fan is connected to the hub
6: Generally speaking, the power supply of a four pin socket on the computer motherboard is about 12W, so this hub is required
The power of the connected fan should not be too large to avoid a series of problems caused by overload
The main function of the product is to solve the problem that the temperature control 4P plug on the power supply motherboard is often insufficient. One interface of the hub can meet the power supply needs of multiple fans. Solve the problem of insufficient computer power supply interface
