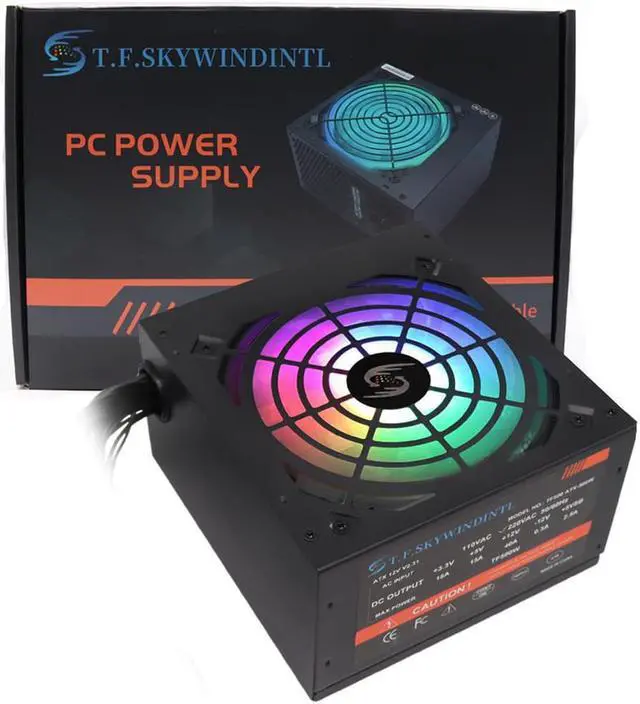

T.F.SKYWINDINTL PC Power RGB Source Max 700w For Gaming Desktop Rated 500w 24pin 12v Atx PASSIVE PFC PC FD54286298 Fonte 500w

Fans:1
PFC Type:PASSIVE
Number of SATA Ports:3
D-type Bus Number:2
CPU Power Connector:8 pin
Package:Yes
Interface Type:20 + 4Pin
Application:Desktop,Server
Model Number:RGB 500W
Modular:Non-Modular
80 PLUS Certification:Other Certification
Origin:Mainland China
Certification:CE

Specification:
1: Power supply size: 150*140*85
2: Power standard: ATX 12V
3: Applicable to CPU range: AMD, Intel
4: PFC type: passive PFC
5: Maximum power: 850W
6: Input voltage: 94-264V
7:+ 3.3V output current 18A
+ 5V output current 15A
+ 12V1 output current 40A
- 12V output current 0.3A
+ 5Vsb output current 2.5A
8: Support wide voltage: Yes
9: Support temperature control PWM: Yes
10: Certification: CB, CCC, FCC, Class, CE, ROHS
11: Product weight: 1300g
12: Support power: 20P/24Pin motherboard
13: Power Output Design: Multiplex + 12V
14:IDE interface: 1
15: SATA interface: 3
16: CPU interface: 4 + 4pin*1
17: Video card interface: (6PIN + 2)* 1
Notice
1The power cord of this product defaults to UKplug/USplug/EUplugs.
Please tell us the type of plug you need after placing the order, otherwise we will not be responsible for the consequences caused by this.
please noted this is not a very slient fan , if you mind,do not buy ,
2:Our default is 230v, if the voltage in your country is 220v, 230v, 240v, please do not toggle the switch, because if you fluctuate the switch to 110v, and then connect the power supply, the power supply will be damaged, if for this reason Please be responsible for any damage to the power supply.
If your required voltage is 100v, 110v, 120v, please turn the switch to 110v, so as to ensure your normal use.
When you receive the power supply, please do not connect your motherboard immediately, please check the power supply like this,
If you have a power tester, you can use the power tester to connect the 24PIN of the power supply, and then connect the power supply to see if the fan rotates. If the fan rotates, it proves that the power supply is working normally. When you connect the motherboard, If there is no electricity, please check your other equipment, there is no problem with the power supply,
If you have any questions, please contact us, we are happy to serve you
