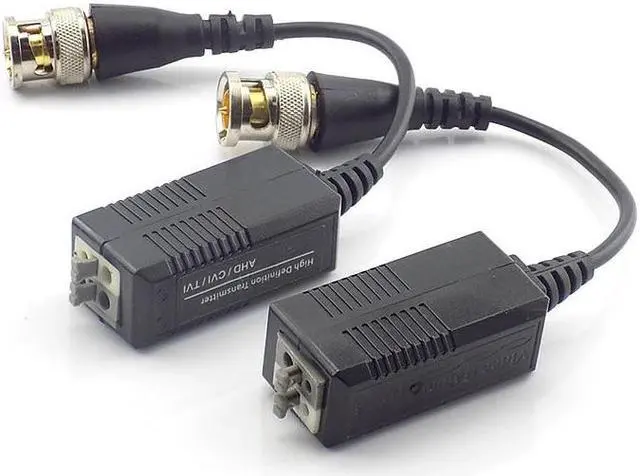

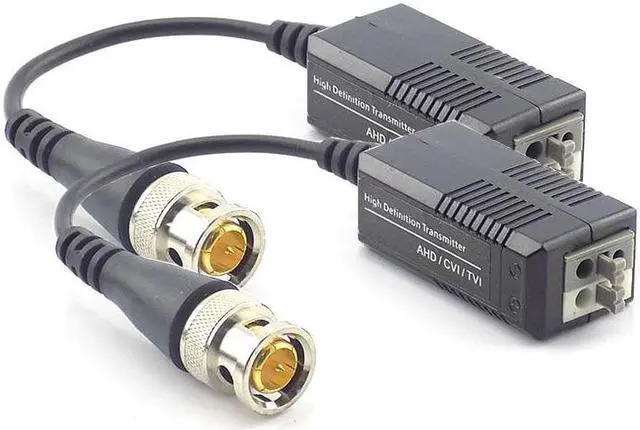

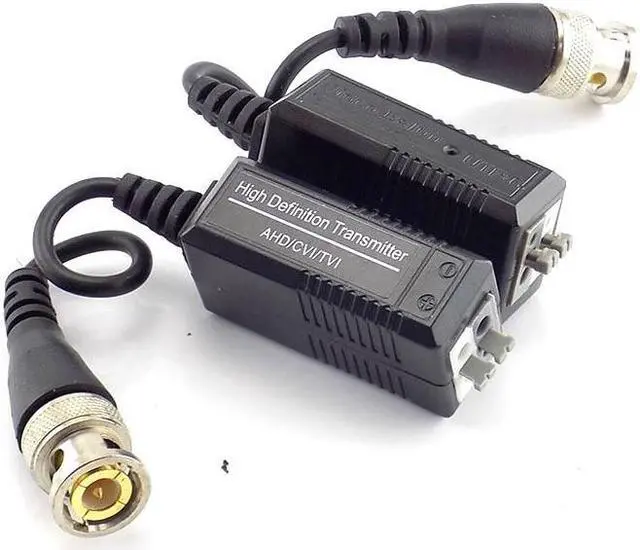

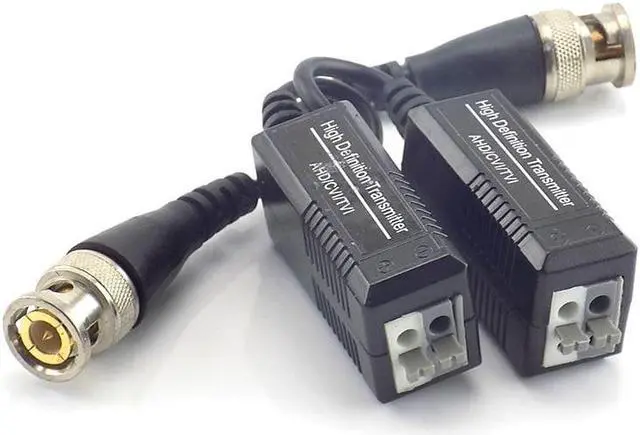

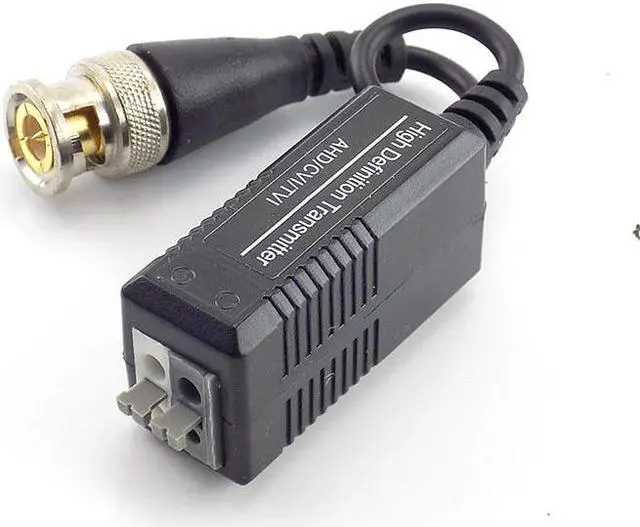

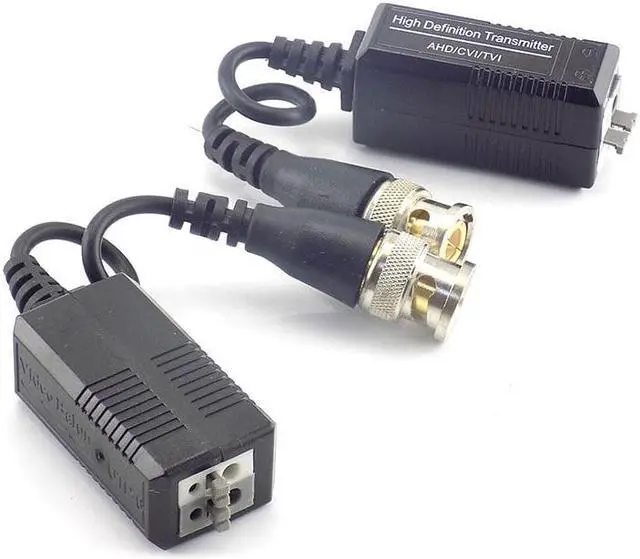

1pair UTP Video Balun Twisted CCTV Balun Passive Transceivers for 720P HD CVI/TVI/AHD Camera Male BNC to UTP CCTV Accessories

1pair UTP Video Balun Twisted CCTV Balun Passive Transceivers for HD CVI/TVI/AHD Camera Male BNC to UTP CCTV Accessories A7
Features:
Compatible with all HD-CVI, HD-TVI, HD-AHD
Up to 250m for 720P CVI camera
Up to 150m for 1080P CVI camera
Up to 150m for 720P/1080P TVI camera
Up to 120m for 720P AHD camera
NTSC, PAL video formats
No power required
60dB cross talk and noise immunity
Compact size and easy installation
Built-in transient suppression protection
Technical Specification:
Frequency response: DC to 60Mhz
Attenuation: 0.5 dB type
CMRR: 60dB
Surge protection: 4KV
EDS: 8KV
Connectors: Male BNC and "Press -fit "terminal blocks
Impedance BNC: 75 OHMs
Terminal: 100 OHMs
Working temperature: -10~+70 Degree
Storage temperature: -30~+70 Degree
Humidity: 0~95 %
Dimension: 39 x 16 x 19mm (excluding connectors)
Material: ABS plastic
Package content:
2pcs (1 pairs) * Video Balun Transceiver For AHD TVI CVI
