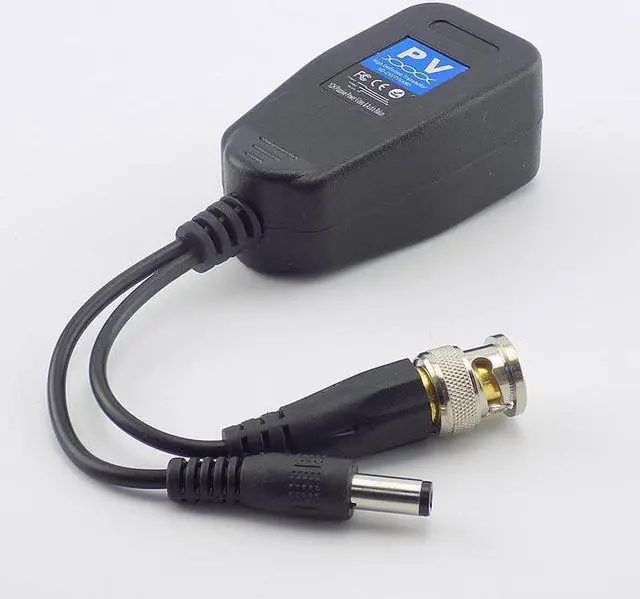

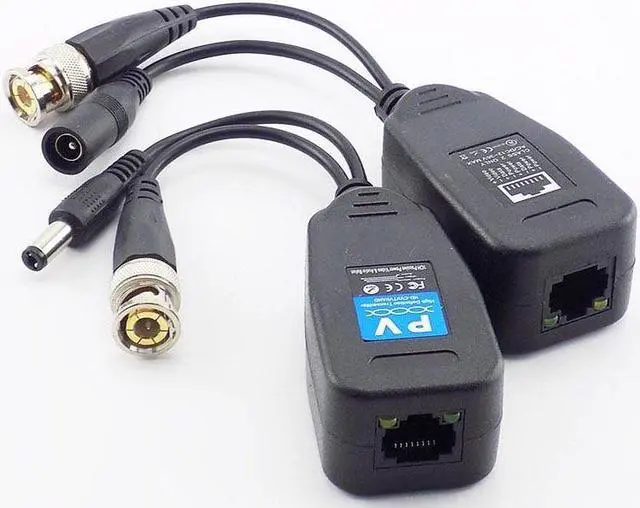

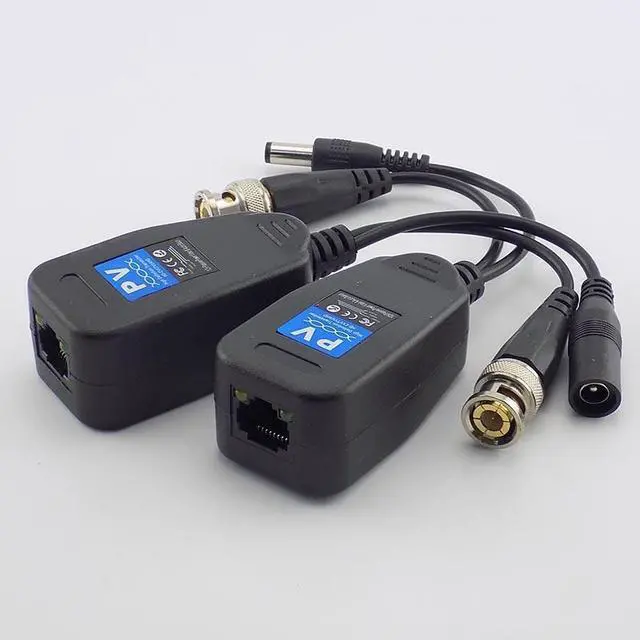

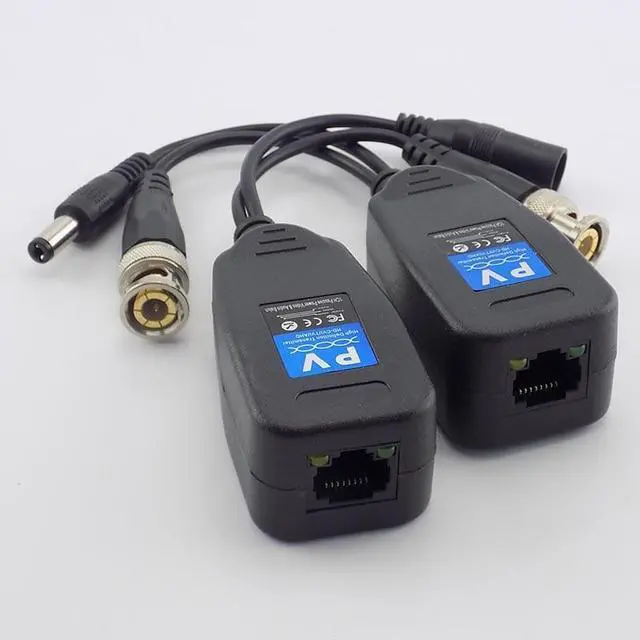

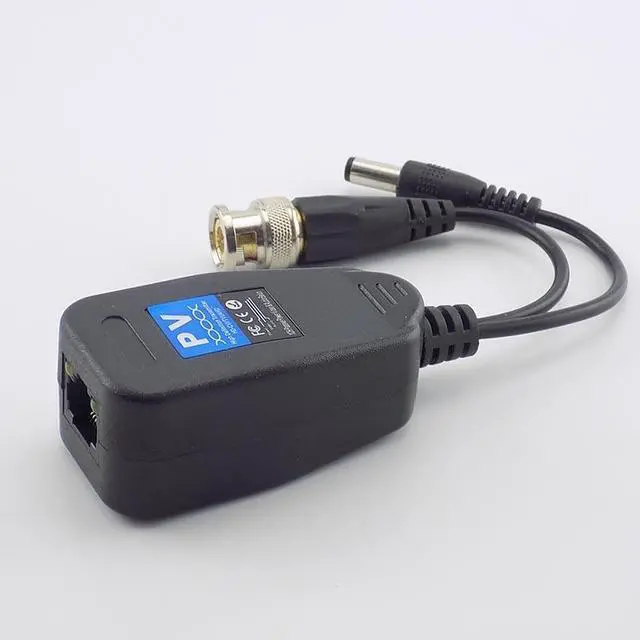

1 Pair(2pcs) Passive CCTV Coax BNC Power Video Balun Transceiver Connectors to RJ45 BNC male for CCTV video Camera L19

1 Pair (2pcs) Passive CCTV Coax BNC Power Video Balun Transceiver Connectors to RJ45 BNC male for CCTV video Camera L19
Features:
Compatible with all HD-CVI, HD-TVI, HD-AHD.
Up to 450m for 720P CVI cameras.
Up to 250m for 1080P CVI cameras.
Up to 250m for 720P/1080P TVI cameras.
Up to 320m for 720P AHD cameras
NTSC, PAL, and SECAM video formats.
No power required.
60dB cross talk and noise immunity.
Compact size and easy installation.
Built-in transient suppression protection.
Innovative combination design.

Specifications

:
Item Type: 1CH Passive Power & Video Balun plug
Shell Material: ABS
Color: Black
Size: 452521mm/ 1.770. 980.83 in (Approx. )
Cable length: 14cm/ 5.51 in (Approx. )
Frequency response: DC to 60Mhz
Attenuation: 0.5 dB type
CMRR: 60dB
Surge Protection: 4KV
ESD: 8KV
Connectors: Male BNC and Prees-Fit Terminal blocks
Impedance:
BNC: 75 ohmas
Terminal: 100 ohms
Working temperature: -10 to +70
Storage temperature: -30 to +70
Humidity: (non-condensing) 0-95%
Quantity: 1 Set (1 Pair) (other accessories demo in the picture is not included)
Power-Distance Chart:
Using PVD product, cameras can be powered at extended distances, please refer to the chart below for more information.
Power Supply Voltage: 24VAC 28VAC 13VDC
Resultant Camera Voltage: 21VAC 21VAC 10VDC
100 mA Camera: 300m 700m 300m
300 mA Camera: 100m 230m 100m
500 mA Camera: 60m 140m 60m
Note:
1.
Transition: 1cm=10mm= 0.39 inch
2. Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
3. Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package includes:
1 Pair X Video Balun
