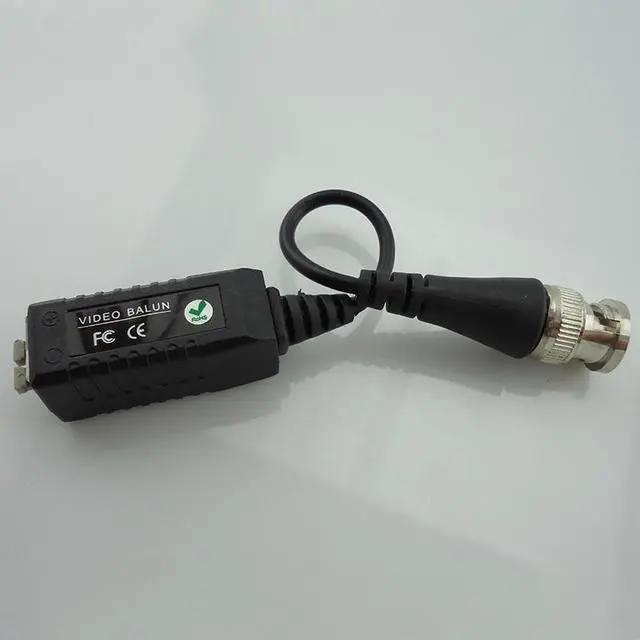

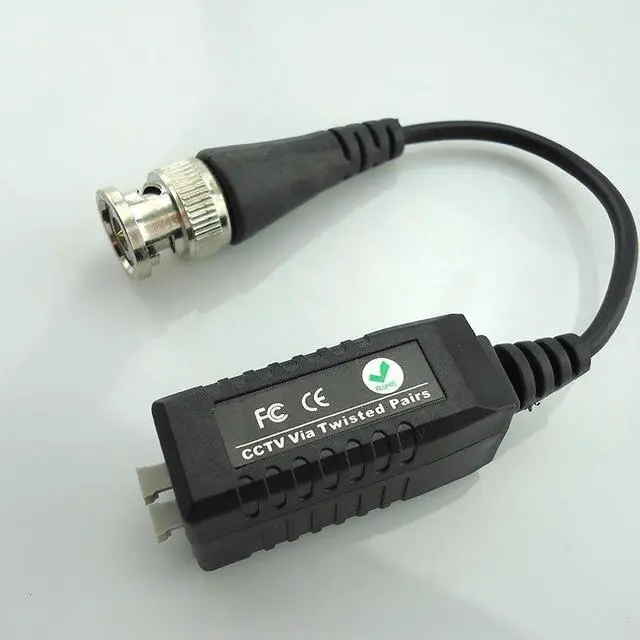

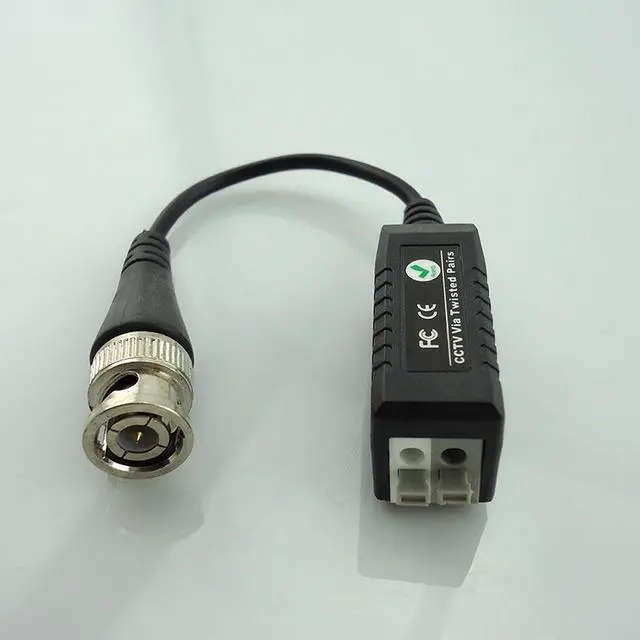

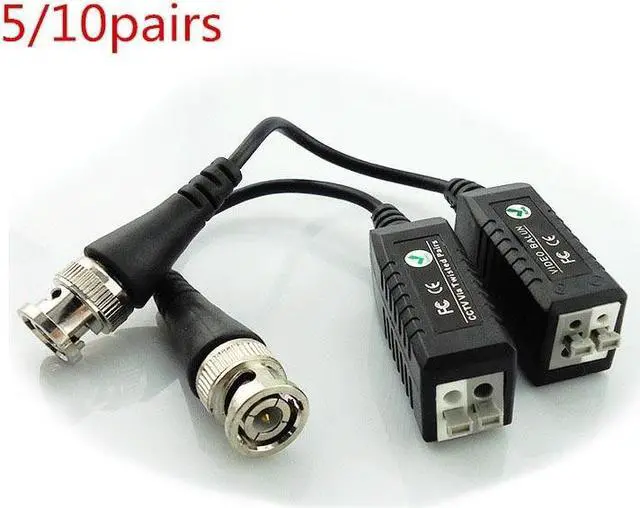

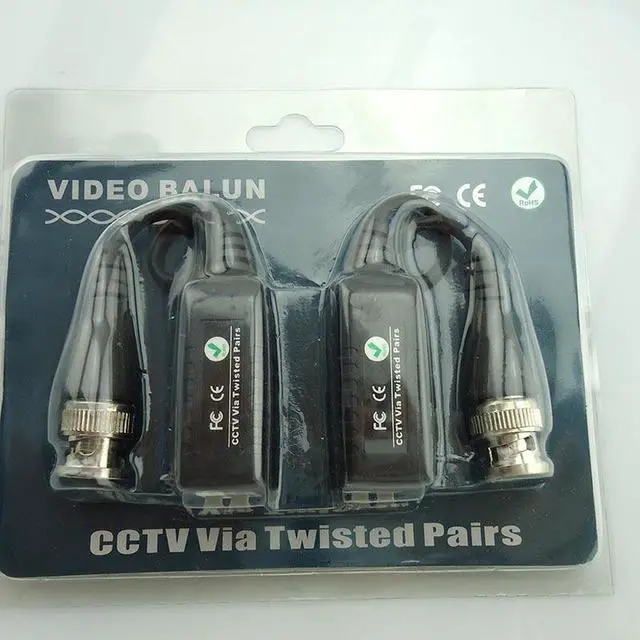

5/10pairs Enhanced Twisted Bnc Cctv Video Balun Passive audio camera Transceiver Utp Balun Bnc Mail To Cat5 Cctv Cable L19(10pairs)

5/10pairs Enhanced Twisted Bnc Cctv Video Balun Passive audio camera Transceiver Utp Balun Bnc Mail To Cat5 Cctv Cable L19
Features:
Single channel passive video balun
Video transmission via UTP CAT5 cable
10-20% wire costs saved
Full-motion CCTV video at distances up to 300m
Outstanding interference rejection and transient protection
Male BNC allows connection directly to the camera or DVR
No power required passive convenient
Transmission: Single-channel signal
Signal format: Adapt NTSC, PAL, SECAM, CCIR format
Frequency response: DC-8MHZ
Attenuation: 0.5 db Max
Impedance: BNC (75 ); UTP (100 )
CMRR: >60 db
DC circuit resistance: 18 /100m
Differential capacitor: 62pf/m (MAX)
Wire type: Over CAT 5e
Bandwidth: 0-6MH (3db)
Distance: 350-550m

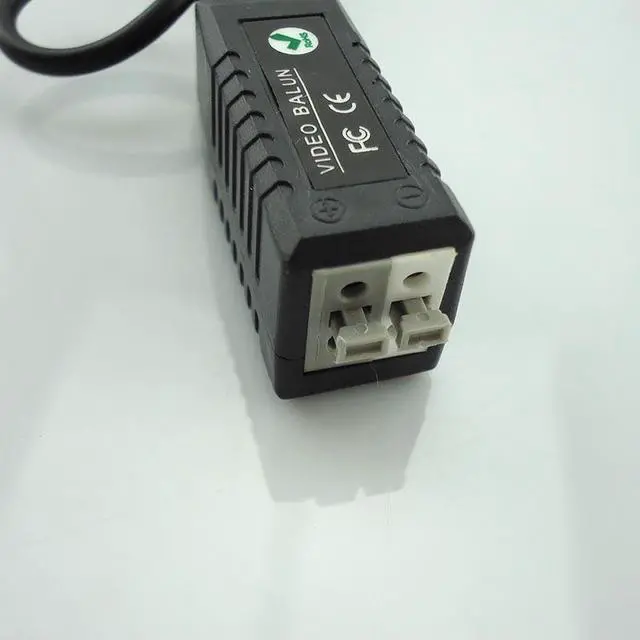

Connectors: BNC port + Press-Fit terminal block
Temperature: -10-70
Humidity: 0 to 95%
Size: 39mm*16mm*19mm (excluding BNC connectors)
Material: ABS Plastic
Good quality Press-Fit terminal block, compact size and easy installation
Full-motion CCTV video at distances up to 330m when used with any passive transceiver
Up to 1500 m with any active UTP video receiver
60 dB crosstalk and noise immunity
Built-in transient suppression protection
