USB to RS422/485 Serial Cable RS232 with Terminal RS422 RS485 Serial Port to USB Adapter Communication Converter 180CM FTDI Chip

USB to RS422/485 Serial Cable RS232 with Terminal RS422 RS485 Serial Port to USB Adapter Communication Converter 180CM FTDI Chip
About Description:
Feature:

1.
Standards: conforming to USBV 1.0, 1.1 and 2.0
2. RS-485, RS-422 TIA/EIA Standard
3.
USB signals: VCC, DATA+, DATA-, GND and FG
4.
RS-422 Signal: T/R+, T/R-, RXT+, RXD-, GND;
RS-485 signals: T/R+, T/R-. GND

5.
Working mode: asynchronous working, point-to-point or point-to-multipoint 2 wires (half duplex) 4 wires (full duplex)

6. Single chip USB to asynchronous serial data transfer interface

7.
Direction control: Adopt the technology which automatically controls the data-flow direction, automatically distinguish and control the data-transmission direction;

8. Support Bits per second Data transfer rates from 300 baud to 921600baud;
9. UART interface support for 7 or 8 data bits, 1 or 2 stop bits and even/odd/mark/space/none

10. Flow control none, hardware and xon/xoff

11. Synchronous and asynchronous bit bang interface options with RD# and WR# strobes

12.
Transmission distance: RS-485/422
port: 1.2 km (300bps-921600bps).
USB port: No more han 5 meters

13.
Interface protection: surge protection and 15KV ESD protection

14. Load capability; Support point-to-multipoint transmission. Each converter can connect 32 RS-422 or RS-485 interface equipment

15.
Signal indication: indicator lights for Power (PWR), Send (TXD) and Receive (RXD)

16.
Transmission media: twisted-pair cable or shielded cable;

17. Extended operating temperature range; -40 to 85 C
Applications:
USB to UART Cable
POS Printer Terminal
Networking System
Industrial and Power Meter
USB Bar Code Reader
USB Digital Camera Interface
USB Wireless/Wired Modem
Support System:
Windows XP, Vista, 7, 8 32/64bit
Windows Server 2003, 2008, 2012 32/64bit
Mac OS
Linux 3.2 or Above
Android

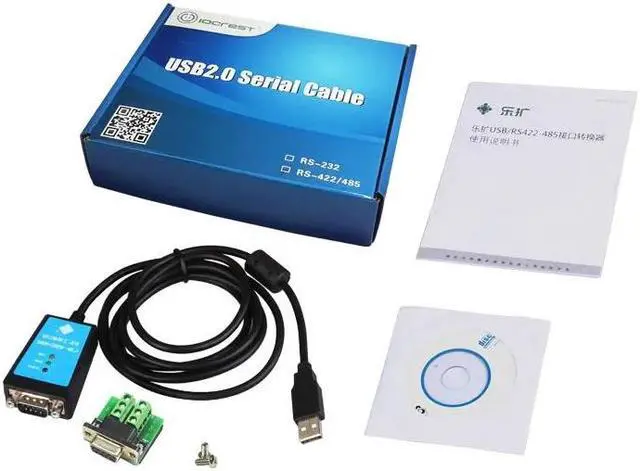

You'll receive:
1 x USB 2.0 to Serial Adapter (NOT Included Retail Packaging)
1 x RS422/485 Terminal
1 x User Manual
1 x CD Driver
Please check pictures for more details.
