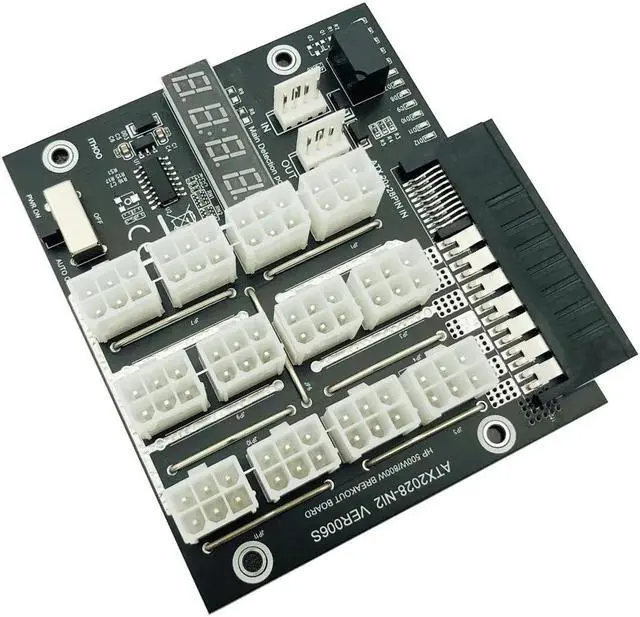

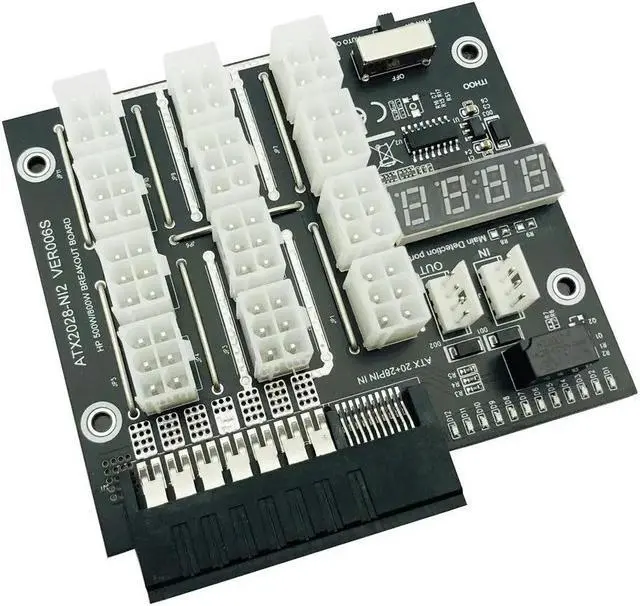

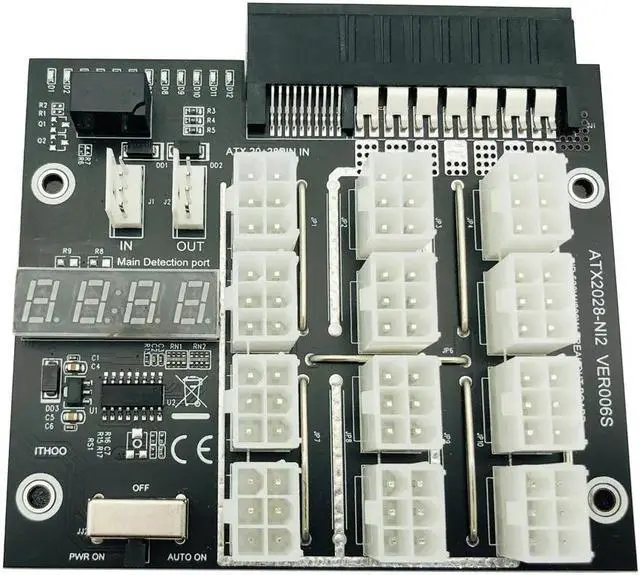

Breakout Board For HP Server Power 500W 80W Converter Board 12Port 6Pin LED 12V GPU PSU Server Power Supply Mining Board Module

Breakout Board For HP Server Power 500W 80W Converter Board 12Port 6Pin LED 12V GPU PSU Server Power Supply Mining Board Module
About Description:
Specification
Product Name: Power Supply Breakout Board Adapter for ETH/BTC Mining
this board is only suitable for HP brand PSU and the following model listed.
Output Power: 12V
PCB Color: Black
Applicatioin: for mining graphics card power
Features:

1. Maximum Support up to 2200Watts

2. Electronic on/off switch. Retains its state.

3. Breakout boards is done by connecting the interconnect cable from PSU 1 to PSU2, PSU 2 to PSU 3, and so on.
4. 12PCIe ports, for 6pin connectors

5. On-board LED voltage meter display
6. with Flash LED Function for working
This adapter only suitable for the following model of power supply (HP
Brand):
HP 500W Power Supply: 720478-B21
HP 800W Power Supply: 865414-B21 720479-B21 720482-B21 865438-B21 865428-B21 754378-001
HP 1400W Power Supply: 733428-101 720620-B21 754383-001 733427-101
HP 1600W Power Supply: 830272-B21 863373-001 830262-001
HP 1800W-2200W Power Supply: 876935-B21 876933-301 882135-001
You'll receive:
1 x Board Adapter
1 x 4Pin Cable
1 x SATA to Molex 4Pin Cable
Please check pictures for more details.
