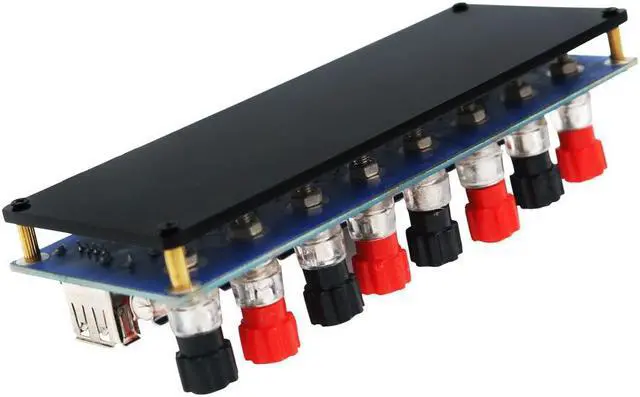

24 pin / 20pin ATX Power Supply Adapter 24Pin ATX Benchtop Computer Power Supply Module Breakout Adapter USB 5V Port with Switch

24 pin / 20pin ATX Power Supply Adapter 24Pin ATX Benchtop Computer Power Supply Module Breakout Adapter USB 5V Port with Switch
About Description:
Feature:

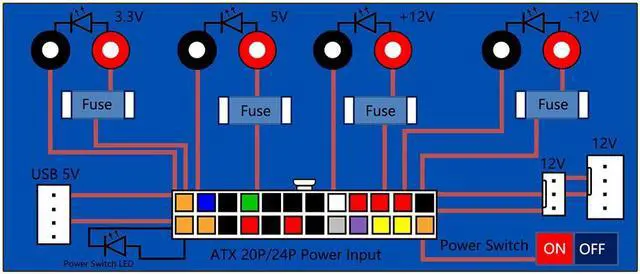

1. Designed to take advantage of your power supply to create a benchtop power supply with 4 channel voltages to run almost any of your embedded electronics projects

2. Provide quick access to the typical voltages needed including 3.3V, 5V, 12V and -12V

3. Each output channel has replaceable 5A fuse and corresponding ground connection with binding post easy to connect

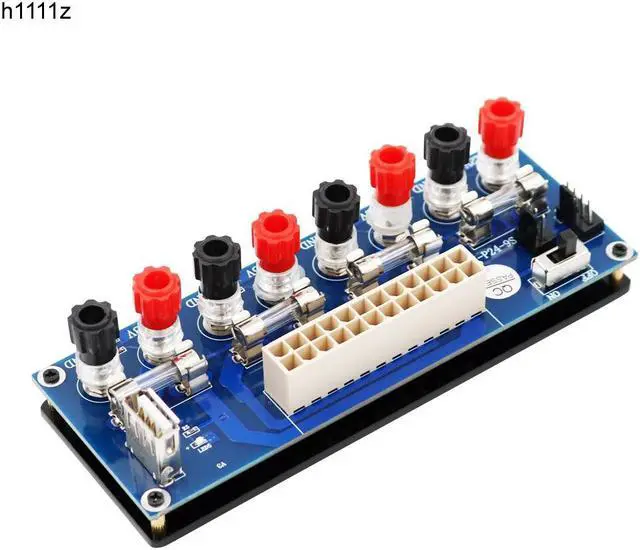

4. On-board standard 24pin ATX port, power indicator and power switch easy to control ideal to DIY low voltage power supply for developing physical computing projects (embedded systems)
5. PCB plastic spacer design for preventing short circuit.

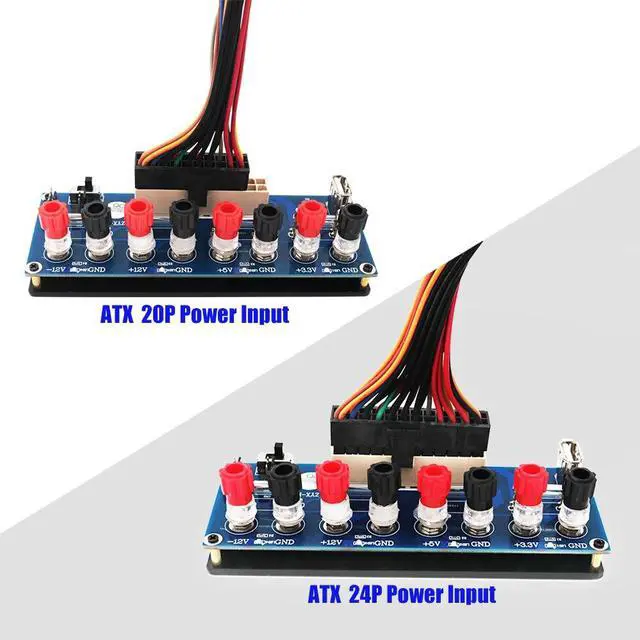

6. 24 pins ATX computer power sockets, compatible with 20 pins plug.
Specification:

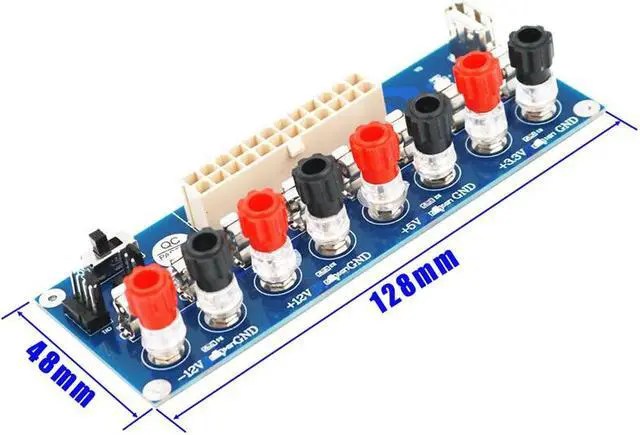

Size: 128x48x40mm/ 5.03 x 1.88 x 1.57 ''
Note:
Please allow 1-3cm differs due to manual measurement.
Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
You'll receive:
1 x ATX PC Power Supply Breakout Module Adapter
Please check pictures for more details.
