M.2 to SATA Adapter SATA Port Multiplier 2 Port SATA III 6Gb/s M2 22x42 M Key + B Key Controller SATA 6G Internal Expansion Card

M. 2 to SATA Adapter SATA Port Multiplier 2 Port SATA III 6Gb/s M2 22x42 M Key + B Key Controller SATA 6G Internal Expansion Card
About Description:
2 Port SATA III 6Gb/s M. 2 22x42 Controller Card
Complies with PCI Express base specification revisiion 3.1 a. M. 2 B+M Key interface
Compliant with Serial ATA AHCI (advanced host controller interface) Specification Rev 1.0, Supports SATA 3.0 transfer rate up to 6Gbps. Maxium Sequencial Read / Write Speed 850 MB/s.

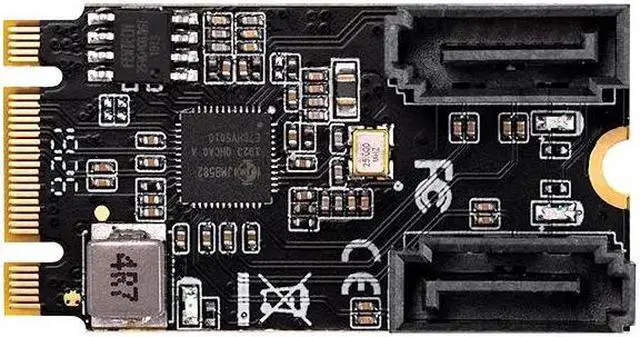

Jmicron JMB582 Chipset, Port Multiplier FIS-based and Command-based switching supported. Hot plug and Hot swap SATA ports. Support Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i.
Compatible with Windows XP/7/8/10/MAC/NAS/Linux OS. No driver installation is required. Support install Windows OS from Win10 PE.
2 Port SATA III 6Gb/s M. 2 22x42 Controller Card is the easiest way to update any computer with SATA ports with a free M. 2 slot. Once installed this host card will add SATA ports with two independent channels. This allows support of two SATA devices at speeds of up to 6Gb/s whether it is a SATA hard drive or SATA device.
Using the JMB582 chipset, can provide a maxium sequencial Read / Write Speed of 850 MB/s to 2 SATA 6Gb/s ports. For the storage solution based on data transfer of multiple hard drives, the newly added FIS-based switching design can overcome the bottlenecks created by operating multiple SATA storage devices simultaneously.
Feature:
1. Supports one lane of PCI Express.
2. Complies with PCI Express Base Specification Revision 3.1 a.
3. Supports PCIe link layer power saving mode.
4. Supports 2 SATA port.
5. M. 2 B+M Key interface.
6. Complies with SATA Specification Revision 3.2.
7. Supports command-based and FIS-based for Port Multiplier.
8. Supports AHCI mode and IDE programming interface.
9. Supports Native Command Queue (NCQ).
10. Supports SATA link power saving mode (partial and slumber)
11. Supports SATA plug-in detection capable.
12. Supports drive power control and staggered spin-up.
13. Supports SATA Partial / Slumber power management state.
System Requirements:
Windows 7 (X86/X64)
Windows 8/8. x / 10 (X86/X64) (Windows in-box driver)
Linux-base OS
UEFI

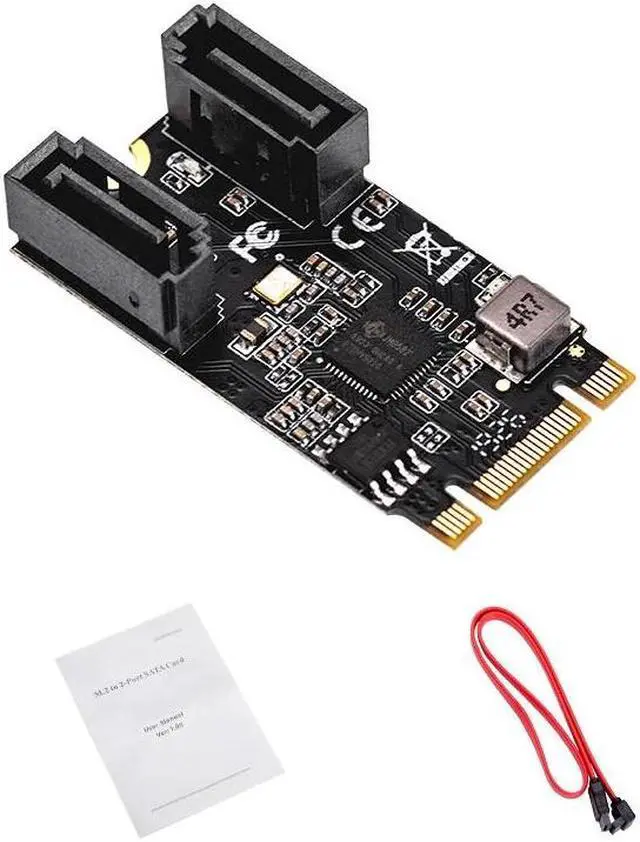

You'll receive:
1 x M. 2 to 2-Port SATA Card
1 x User Manual
1 x SATA Cable
Please check pictures for more details.
