DSTIKE Deauther Watch V3 DSTIKE Wifi Deauther Watch ESP8266

Update Log
DifferenceDeauther V1Deauther Watch V2Deauther Watch V3

Battery 500mah 800mah 800mah
3D Print Case YES YES YES
Screen NO YES YES
Battery Indicate NO YES YES
Power Switch Plastic Metal Metal
Charging Current 0.5A 0.8A 0.8A
RTC DS3231 NO YES YES
Breakout GPI
Os NO YES YES
Color Black Black&White Black
Laser NO NO YES
Work Time 3-4h 7-8h 7-8h
Weight 50g 61g 78g

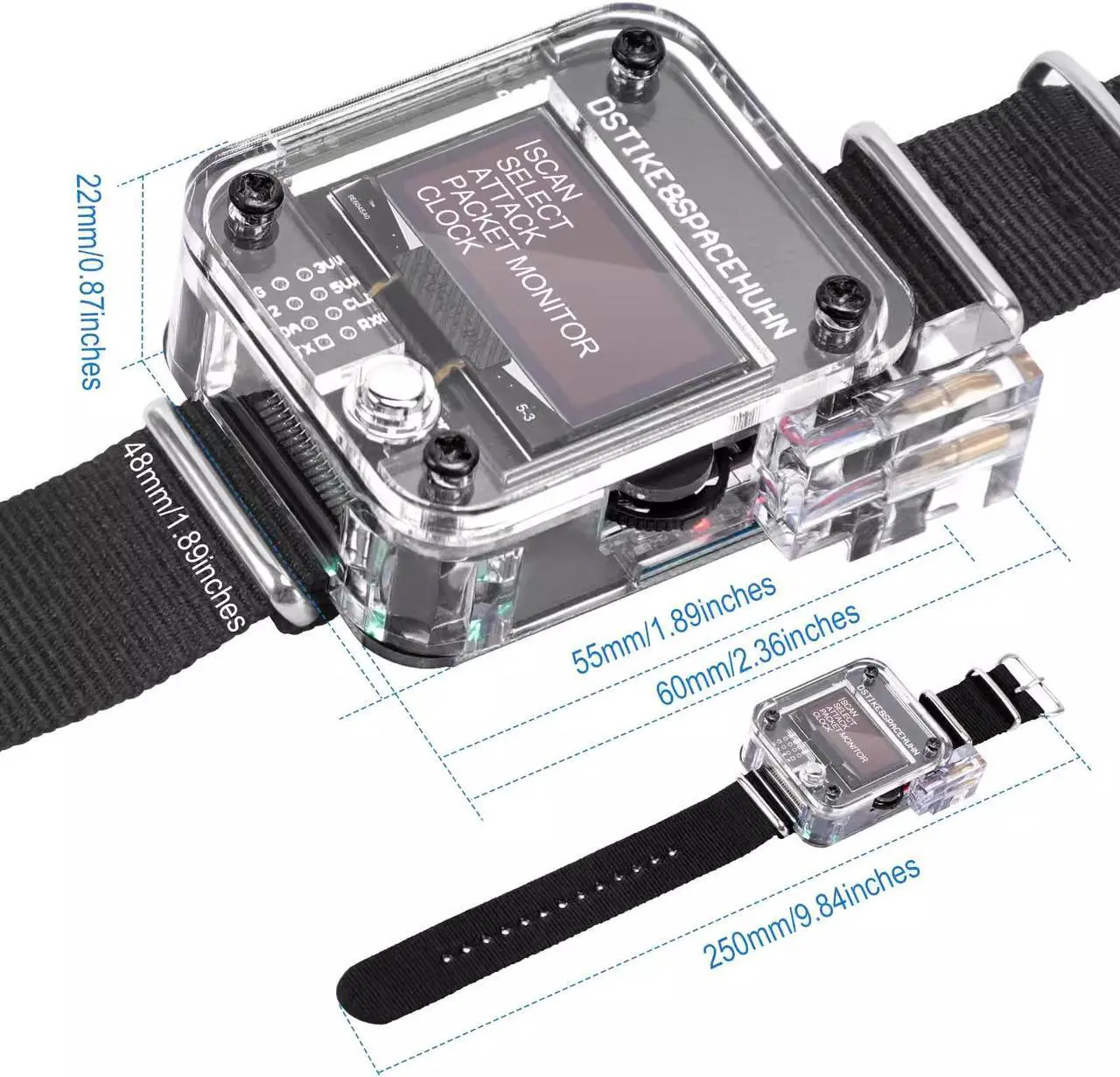

Size (LxWxH mm) 48x39x17 55x50x19 60x55x22
What is it?
Deauther Watch is still an ESP8266 development board, but you can wear it like a smartwatch.

It comes installed with the latest ESP8266 Deauther software. With this software, you can perform different attacks to test WiFi networks.

Please note that the ESP8266 does only support 2.4GH z.

You can also use it to develop your own software. It is simple to use, just like any other ESP8266 development board.

Function

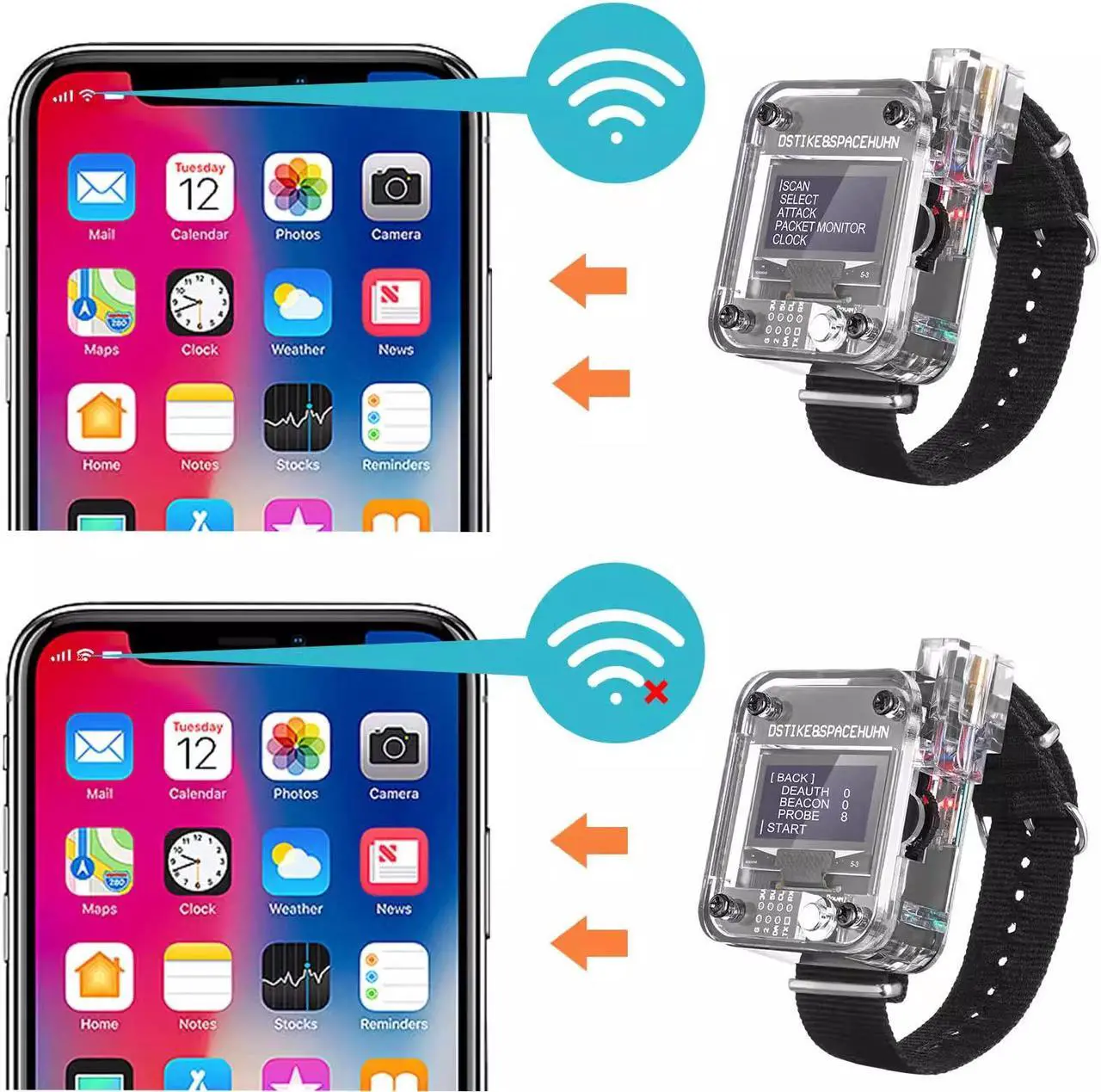

Deauther Attack: Disconnect 2.4G WiFi
Deauther Beacon: Create fake networks
Deauther Probe: Confuse wifi trackers
Packet Monitor: Display wifi traffic
CLock: Real Time Clock Adjustable
Laser: Powerful Laser can reach 50-100m
GPI
Os and Hardware info
Display: SH1106 1.3" OLED
Display SDA: GPIO 5
Display SCL/SCK: GPIO 4
WS2812b LED: GPIO 15
Button Up: GPIO 12
Button Down: GPIO 13
Button Select: GPIO 14
Laser: GPIO 16
Side Button: GPIO0, RST
Why did you make it?
I designed this development board especially for
Spacehuhn's great project: ESP8266 Deauther. It has been authorized by him and is officially supported.

Thanks to every customer that leaves feedback! I will keep improving this board.

What makes it special?
Only ~80mA power usage
800 mA charging current
Up to around 8-10 hours work time
Arcylic cover and 3D print transparent case
Powerful laser for fun

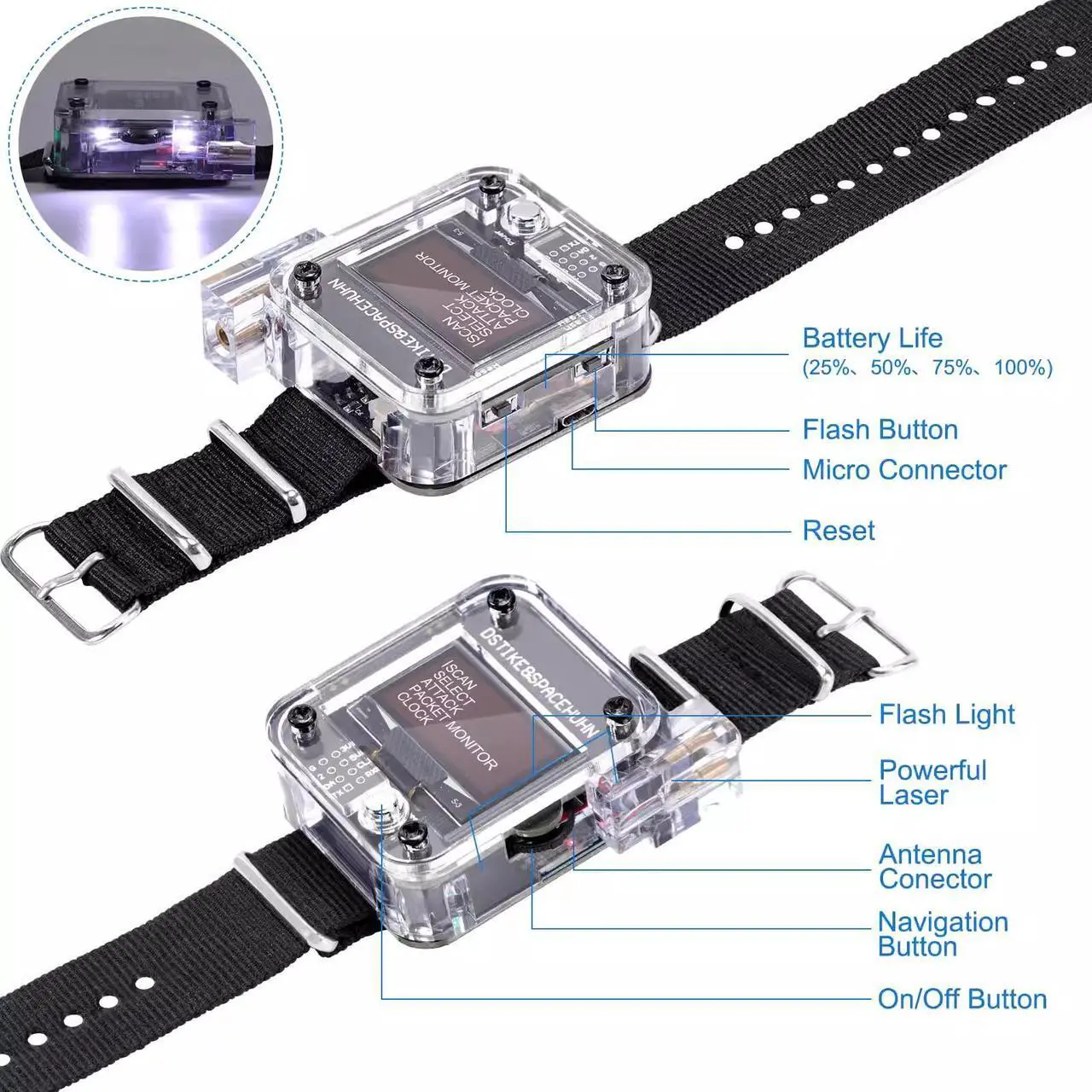

Indicate charging LED (25%, 50%, 75%, )
Included 5dB FPC antenna
Power Switch (Click to turn on, double click to turn off, long click to open flashlight)
: short,, over discharging, temperature
Added Extremely Accurate DS3231
Disclaimer
This project is a proof of concept for testing and educational purposes. Neither the ESP8266, nor its SDK was meant or built for such purposes. Bugs can occur!

Use it only against your own networks and devices! Please check the legal regulations in your country before using it. We don't take any responsibility for what you do with this program.

More Info
Deauth
Closes the connection of WiFi devices by sending deauthentication frames to access points and client devices you selected. This is only possible because a lot of devices don't use the 802.11 w-2009 standard that offers a protection against this attack. Please only select one target! When you select multiple targets that run on different channels and start the attack, it will quickly switch between those channels and you have no chance to reconnect to the access point that hosts this web interface.

Beacon
Beacon packets are used to advertise access points. By continuously sending beacon packets out, it will look like you created new WiFi networks. You can specify the network names under SSI
Ds.

Probe
Probe requests are sent by client devices to ask if a known network is nearby. Use this attack to confuse WiFi trackers by asking for networks that you specified in the SSID list. It's unlikely you will see any impact by this attack with your home network.
