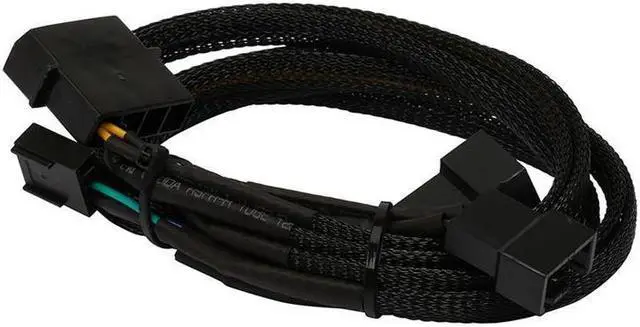

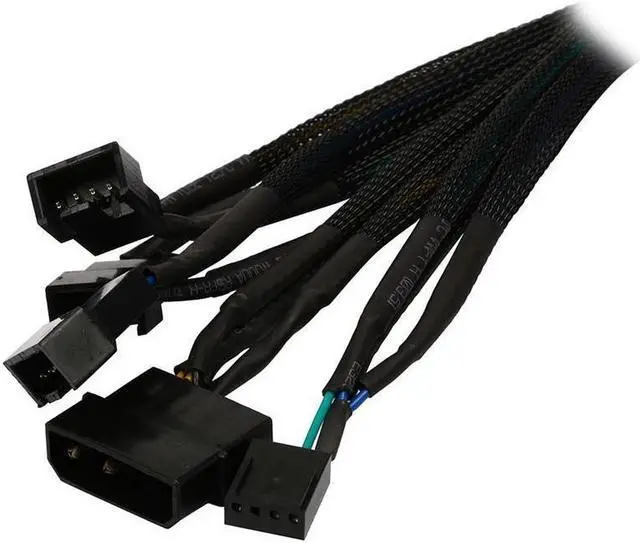

Molex to 4 Pin PWM Power Splitter Cable, PSU IDE LP4 to 3 Ports 4Pin Fan Adapter PWM Cooler Hub for 12V Desktop Computer Case Cooling - 12 Inches, Sleeved Black

Molex to 3 pin 4 pin fan adapter PWM fan splitter hub cable is compatible with all 4-pin and 3-pin enclosure fans!
The Splitter cable is powered by PSU, which can reduce the load of the motherboard, increase the service life of the motherboard, and ensure the PWM speed regulation function.
one end is black Sleeved wire with Molex LP4 power supply interface and to the motherboard CPU SYS Fan Header of 4pin speed measurement and temperature control, and the other three ends are fan 4pin or 3pin interface.

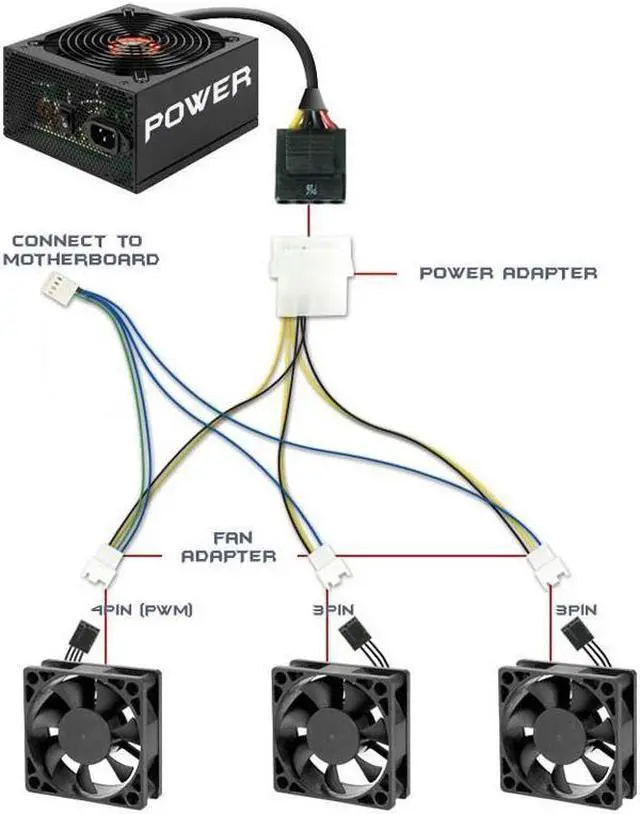

Connecting three computer chassis to a motherboard fan connector can make three fans realize synchronous temperature control function with the motherboard, allowing computer fans to share a power interface.

Type: PWM fan power cable
Length: 12 inches
Conductor: 26AWG Copper
Input: Molex 4 Pin connector (typically used in pc power).
Output: 3x 3/4-Pin male fan connectors (this interface is compatible with 3pin and has no speed regulation function when inserting 3pin fans).
1 x 4pin PWM Fan TX4 female to motherboard CPU SYS-Fan 4pin header for RPM feedback and PWM controller
Power supports: 12V fans
3-PIN & 4-PIN fan compatible

Note:
Motherboard can only provide the accurate speed measurement value of one fan, so only one 4pin fan has PWM speed regulation function, but all PWM 4pin fans running the same speed using PWM control
Compatible standard 3-pin and 4-pin fans, when 3pin fan is inserted no speed regulation function, fans will be operated at the fixed voltage of 12V


Model
Brand Aile Tech
Model IDE23PWM12
Type Power Splitter
Type Cable Splitters
Color Black

Details

Length 11" - 15"
Connectors
Connector Number 5
Terminal Gender Male to Male

Details

Specifications

Type: PWM fan power cable
Length: 12 inches
Conductor: 26AWG Copper
Connector A: 1 x Molex 4pin LP4 male
Connector B: 3x 4pin PWM Fan TX4 male
1 x 4pin PWM Fan TX4 female for RPM feedback
Power supports: 12V/5V fans
3-PIN & 4-PIN fan compatible
Features
Features PWM FAN SPLITTER CABLE connects up to 3 computer PWM fans to a single Molex 4pin header of your PSU and return RPM signal to computer by motherboard fan header;
1 to 3 fan converter cable connects an additional fan to increase airflow in your computer case
Molex 4pin plug connects to IDE 4pin on your PUS and splits the power to 3 PWM fans;
Fans can spin at the same speed using software from a motherboard equipped with PWM control
MOBO 4-Pin receptacle connector to the 4-Pin header on motherboard that sends the RPM signal to the motherboard connector for synchronizing the fan speed with the other fan;
3 pin fan connector omits the RPM signal pin for tandem fan speeds with both fans
3-PIN & 4-PIN FAN COMPATIBLE with popular brands of computer case cooling fans
